seat armrest removal

ok quick question how to you remove the armrest/storage of the 93 model driver seat?

Thanks,
yonu
Reply With Quote
  #2
Old 05-04-2009, 08:33 PM
michigan66's Avatar
michigan66 michigan66 is offline
Posting Guru

Join Date: Mar 2005
Location: Dexter, MI
Posts: 1,533
michigan66 is gaining momentum as a positive member of FTE.

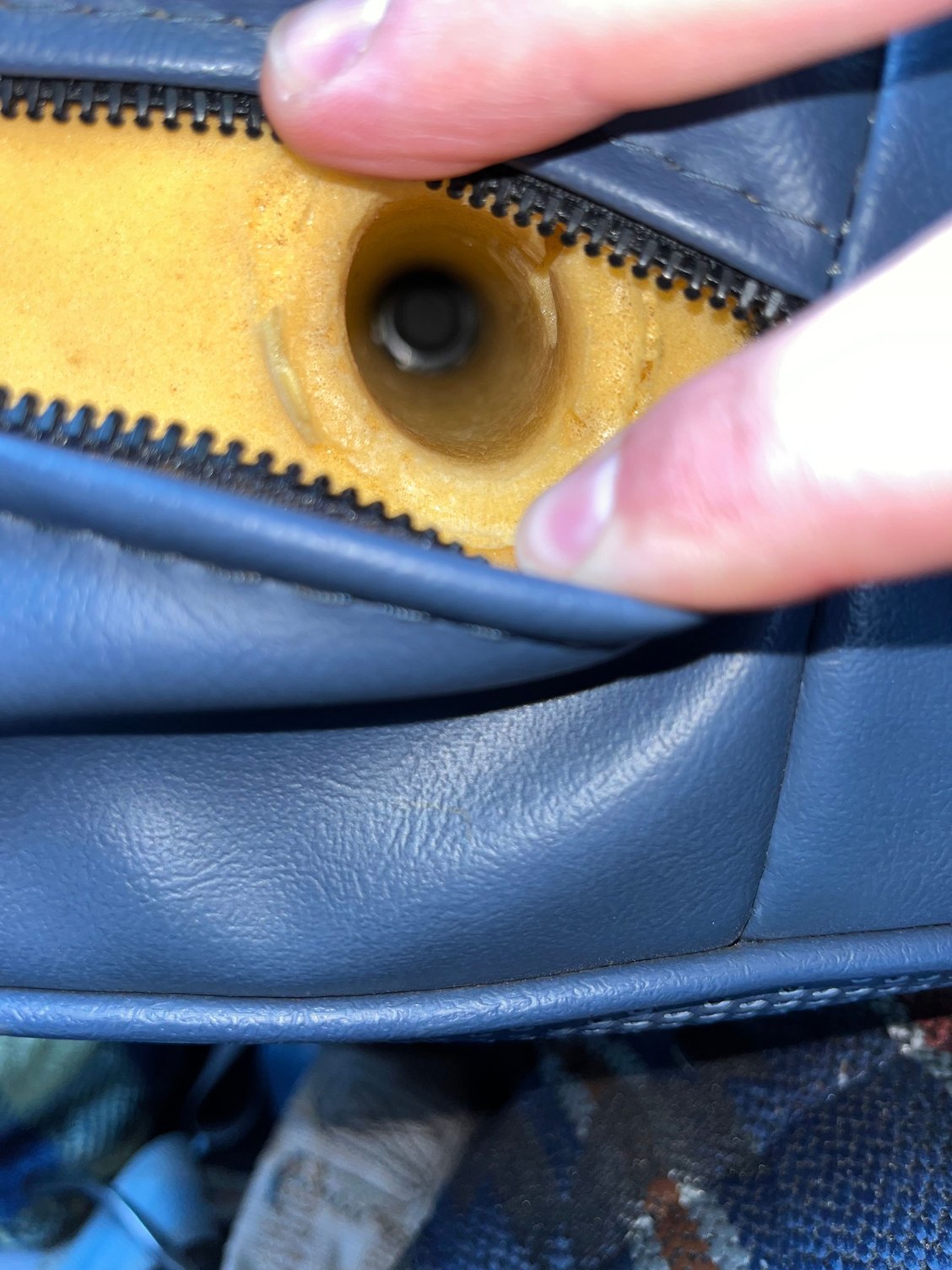

Remove as much of the cover on the armrest as you can. On the right side of the foam, near the back of the armrest you will find a hole. You will need a long extension and a star socket (I'm not sure of the size). The bolt has right hand threads and is in tight. You may have to work at it to get it loose but be patient with it.

Good luck.
Reply With Quote
  #3
Old 05-04-2009, 08:42 PM
yonu yonu is offline
Senior User
Thread Starter

Join Date: Jun 2005
Posts: 205
yonu is starting off with a positive reputation.
then I take it there is not a simple way to do it as I intend to reinstall?

as i am mainly after getting the liner out of it
Reply With Quote
  #4
Old 05-05-2009, 07:56 AM
michigan66's Avatar
michigan66 michigan66 is offline
Posting Guru

Join Date: Mar 2005
Location: Dexter, MI
Posts: 1,533
michigan66 is gaining momentum as a positive member of FTE.
The cover has a zipper along the side, so getting it removed enough to get to the bolt hole is not a problem. I've removed mine but did not reinstall. I would think reinstalling the arm rest should be fairly simple and straight forward. All you need to do is follow the removal steps in reverse.
Reply With Quote
  #5
Old 05-05-2009, 09:38 AM
yonu yonu is offline
Senior User
Thread Starter

Join Date: Jun 2005
Posts: 205
yonu is starting off with a positive reputation.
ok no luck mine doesn't have a zipper on it
Reply With Quote
  #6
Old 05-05-2009, 01:40 PM
michigan66's Avatar
michigan66 michigan66 is offline
Posting Guru

Join Date: Mar 2005
Location: Dexter, MI
Posts: 1,533
michigan66 is gaining momentum as a positive member of FTE.
Sorry about that, mine did. Question: You mentioned "armrest/storage." Does that mean there is a storage compartment in the arm rest? Also, what kind of covering does the armrest have? Mine has a steel core with a block of foam molded around it and has a fabric cover that matches the seat upholstery. How does that compare to what you have.
As I think about it more, your '93 is one generation newer than my '91.

Hopefully someone else will come along and help you out.
Reply With Quote
  #7
Old 05-05-2009, 06:58 PM
yonu yonu is offline
Senior User
Thread Starter

Join Date: Jun 2005
Posts: 205
yonu is starting off with a positive reputation.
the one on mine is a fabric covered storage compartment that doubles as an armrest/seatback for center seat
Reply With Quote
  #8
Old 05-05-2009, 08:48 PM
michigan66's Avatar
michigan66 michigan66 is offline
Posting Guru

Join Date: Mar 2005
Location: Dexter, MI
Posts: 1,533
michigan66 is gaining momentum as a positive member of FTE.
We are talking about a Ranger,aren't we?
Reply With Quote
  #9
Old 05-05-2009, 09:50 PM
yonu yonu is offline
Senior User
Thread Starter

Join Date: Jun 2005
Posts: 205
yonu is starting off with a positive reputation.
yeap 93 reg cab xlt
Reply With Quote
  #10
Old 05-06-2009, 04:59 PM
tom_foreman tom_foreman is offline
Elder User

Join Date: Dec 2002
Location: Georgia
Posts: 624
tom_foreman is starting off with a positive reputation.
I have the same. It is a center console that has one wide arm rest that lifts up for storage. I took a quick look at mine but I needed extra light to see how it comes off. As it is about to storm here I'll have to wait.
Reply With Quote
  #11
Old 05-07-2009, 04:31 PM
nelstone74 nelstone74 is offline
Senior User

Join Date: Jul 2007
Location: Roseville MN
Posts: 229
nelstone74 is starting off with a positive reputation.
Im pretty sure you have the same one that I have in my ranger. You need to open the door and look on the inside there will be a little acsess panel in the middle pop it off and you will see the head of the bolt (that is what holds it on and is the pivot point. IIRC it is a torx drive (bigger one maybe T50)
Reply With Quote
  #12
Old 05-07-2009, 08:55 PM
yonu yonu is offline
Senior User
Thread Starter

Join Date: Jun 2005
Posts: 205
yonu is starting off with a positive reputation.
thanks I had ran my hands all through the darn thing and never noticed the cap anychance you know what the trick is to getting the plastic insert out?
Reply With Quote
  #13
Old 05-08-2009, 12:38 PM
nelstone74 nelstone74 is offline
Senior User

Join Date: Jul 2007
Location: Roseville MN
Posts: 229
nelstone74 is starting off with a positive reputation.
I used a pocket knife to get under the edge and pry it off,
Reply With Quote
  #14
Old 05-10-2009, 10:05 PM
yonu yonu is offline
Senior User
Thread Starter

Join Date: Jun 2005
Posts: 205
yonu is starting off with a positive reputation.
well I got it apart turns out on mine under the felt carpet stuff is 4 screws

I thought I would post a couple of pics to show you folks what I am doing




these will be for my power windows and locks I have never liked door mounted switches
Reply With Quote
