Manifold Air Baffle Assembly
Thread Starter
|
Freshman User
Joined: Aug 2005
Posts: 25
Likes: 0
From: Boerne, TX
Manifold Air Baffle Assembly
According to the shop manual, my '48 226 should have a manifold air baffle assembly. It doesn't and I am trying to put the truck back to stock condition. What does this part do for the truck and where might I find one? Most other trucks I have seen don't have one so most were probably removed and discarded.
Also, the shop manual recommends coating the head bolt threads lightly with water resistant sealer when replacing them. What is that sealer and what would happen if they were not coated? I am not sure mine were coated when the engine was rebuilt. I also removed a couple to pull the engine and I guess I should coat them before I put them back in. Comments?
Also, the shop manual recommends coating the head bolt threads lightly with water resistant sealer when replacing them. What is that sealer and what would happen if they were not coated? I am not sure mine were coated when the engine was rebuilt. I also removed a couple to pull the engine and I guess I should coat them before I put them back in. Comments?
Fleet Owner
Joined: Jul 2004
Posts: 27,294
Likes: 1,055
From: NM
It may be a flapper valve in the exhaust, controlled by a thermostatic spring, that directs exhaust heat against the intake to help vaporize fuel during a warm-up. I couldn't find it in the parts manual, but it appears to be #9426 in the attached pic
Hotshot
Joined: Jan 2001
Posts: 16,882
Likes: 3,126
From: SE Wisc. (the Rust Belt)
I've had quite a few flat six engine, my '49 F-2 has one, and most of them were missing this because they tend to rust up and stick. You only need it in the colder climates and it didn't do much anyways because they always rusted.
Senior User
Joined: Dec 2004
Posts: 376
Likes: 0
My 1952, 226 had the original air baffle. What did it do? Well supposedly it was intended to "lessen,divert or restrict" the cool air from the fan that passed across the intake and exhaust manifold so that they would retain their temperatures for better operation and starting. Did it really do that? I'm not really sure but consider this is So.Calif... Can you find one? You might try Dennis at Reck And Relics in Ohio. I saw one on E-Bay about a year ago relatively cheap. If you keep hunting you may find one. As for coating the head bolts, I used Anti-Sieze on them and it worked great. I hope this help
Fleet Owner
Joined: Jul 2004
Posts: 27,294
Likes: 1,055
From: NM
You're right, Dylan, I remember a thread about this about 3 yrs ago (maybe more).
Supposedly the absolute best thread compound for sealing bolts or studs is GM pipe sealant #12346004, available at all GM dealers.
Supposedly the absolute best thread compound for sealing bolts or studs is GM pipe sealant #12346004, available at all GM dealers.
Senior User
Joined: Dec 2004
Posts: 376
Likes: 0
From Ross's illustration, I'm assuming we are talking about that black box looking piece that the arrow shows no number but is on the front of intake/exhaust manifold. The "baffle' between the intake/exaust manifold I was told was a "heat riser" to help engine warm up. I guess it helped in really cold areas? if they did not rust out.
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 785
From: Simi Valley, CA
Then when you look there, it sez:
1948/53: C, D, Y, T, TH, TQH, TL / 226/254: 8MTH-9426 .. Exhaust Manifold & Thermostat.
6 cylinder manifold: 9426 / V8's are either 9430 or 9431.
Trending Topics
Thread Starter
|
Freshman User
Joined: Aug 2005
Posts: 25
Likes: 0
From: Boerne, TX
Actually, maybe I have the wrong name for the part in question. It is the "black box looking piece" in the illustration provided by Ross, just above the fuel pump.
I also thought the coating on the head bolts was to keep water from seeping up through the bolt holes and anti seizing compound might do that. I don't know.
Thanks for all the help. This is a great forum.
I also thought the coating on the head bolts was to keep water from seeping up through the bolt holes and anti seizing compound might do that. I don't know.
Thanks for all the help. This is a great forum.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
FTE Legend
Joined: Nov 2015
Posts: 30,912
Likes: 4,123
From: Angier, NC

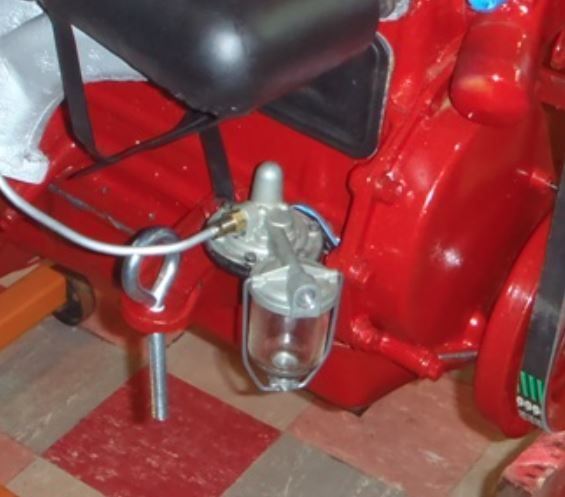

What I think they were talking about back in 2008 is 9437 that fits over the front of the manifolds.
Hard to tell if it uses the fuel pump bolt but dose look like there is a bolt in the side of the head to hold the top of the baffle.
Dave ----
Laughing Gas
Joined: Jan 2011
Posts: 1,230
Likes: 199
From: near Philadelphia Pa
12226 looks to be pointing to the metal line for the dist. advance.
What I think they were talking about back in 2008 is 9437 that fits over the front of the manifolds.
Hard to tell if it uses the fuel pump bolt but dose look like there is a bolt in the side of the head to hold the top of the baffle.
Dave ----
What I think they were talking about back in 2008 is 9437 that fits over the front of the manifolds.
Hard to tell if it uses the fuel pump bolt but dose look like there is a bolt in the side of the head to hold the top of the baffle.
Dave ----
