4x4 knob lighting
#1
4x4 **** lighting
I did a search (admittedly... a quick one) and didn't find anything about this...
Is there supposed to be lighting behind the 4x4 **** on the dash? Similar to the lighting on the heater controls? In my '04 I cannot see the 4x4 **** at night with the headlights on. I was wondering if this is normal or if I have a bulb burnt out or something?
Thanks in advance!
Jason
Is there supposed to be lighting behind the 4x4 **** on the dash? Similar to the lighting on the heater controls? In my '04 I cannot see the 4x4 **** at night with the headlights on. I was wondering if this is normal or if I have a bulb burnt out or something?
Thanks in advance!
Jason
Last edited by 1975StroppeBaja; 12-05-2007 at 05:32 PM.
#3
#4
#5
Originally Posted by Topbob
My '06 SD-250 4x4 switch is backlighted; don't know about your '04.
This is one heck of a site, isn't it? Everything from engine engineering to
dash light info.
bob
This is one heck of a site, isn't it? Everything from engine engineering to
dash light info.
bob
So, I guess my next step is to take apart the dash as described in some other threads and see if I can find a blown bulb. Unless anyone has had luck removing the little 4x4 **** panel without pulling the dash apart???
#6
Once you get the dash panel out you will see how to get the 4x4 switch plate out. I would not try removing it without taking the dash panel out. Search through my old posts, as I have given instructions on how to remove the dash panel a few times.
BTW I'm pretty sure the writing on my 99 F250 XLT and 07 F350 Lariat 4x4 switches lit up with the interior lights. I'm not sure if it is a replaceable bulb though, you may have to replace the whole switch.
BTW I'm pretty sure the writing on my 99 F250 XLT and 07 F350 Lariat 4x4 switches lit up with the interior lights. I'm not sure if it is a replaceable bulb though, you may have to replace the whole switch.
#7
Well, not sure what's going on but the writing above the **** lights up as of last night
It snowed a bit here last week and I had it in & out of 4x4 half a dozen times so maybe I shook something behind there and its working again.. for now?
Anyhow, I guess I'll just go with it until they go out again.
Thanks again for all the input.
It snowed a bit here last week and I had it in & out of 4x4 half a dozen times so maybe I shook something behind there and its working again.. for now?
Anyhow, I guess I'll just go with it until they go out again.
Thanks again for all the input.
Trending Topics
#8
Ok... the lights behind my 4x4 **** went out again so I took it apart. I found that the bulb is burnt out. I see +12V on the terminals with the headlights on, but no bulb lighting. So... has anyone ever replaced this bulb? It looks to be replaceable. It comes out of the switch assy with 1/4 turn of a screwdriver. See pics below.
#12
Ok... here's the story as I see it, in case anyone's interested. The name for these type of 1/4 twist bulbs is "neo-wedge" which is apparently very popular for normal instrument cluster type illumination in cars these days. The company that built these particular bulbs for Ford is "JKL Components Corporation".
The 4x4 **** version of this bulb is an oddball since it is taller than the typical bulbs you'll find if you search for "neo-wedge" bulbs. It's also an oddball because the typical neo-wedge bulbs that I've found have the contacts in the wrong area. The replacment bulbs have contacts in the area shown by the blue arrow in the pic below. The Ford bulb has contacts in the area shown by the red arrow. You can see that better in the third pic that I posted above.
I ended up finding a bunch of the bulbs pictured below on ebay. They are *almost* an exact replacement, except for the contact location problem. So, I simply removed the dead bulb from my original housing, inserted a bulb from one of my spares, placed the green cap on, and it works like a charm.
So, if anyone ever has a problem with this bulb (and possibly the bulb that lights the headlight switch, I haven't looked?) shoot me a pm and I can help. If you're ok with doing what I did (remove dead bulb/reinstall new bulb) then I can mail you replacements for $2 each. I'm going to see about modifying these bulbs to be direct plug-ins but I don't have the time right now to work on it. I think it should be fairly simple.
Whew, so that's it. Everything I know about the 4x4 **** bulb
The 4x4 **** version of this bulb is an oddball since it is taller than the typical bulbs you'll find if you search for "neo-wedge" bulbs. It's also an oddball because the typical neo-wedge bulbs that I've found have the contacts in the wrong area. The replacment bulbs have contacts in the area shown by the blue arrow in the pic below. The Ford bulb has contacts in the area shown by the red arrow. You can see that better in the third pic that I posted above.
I ended up finding a bunch of the bulbs pictured below on ebay. They are *almost* an exact replacement, except for the contact location problem. So, I simply removed the dead bulb from my original housing, inserted a bulb from one of my spares, placed the green cap on, and it works like a charm.
So, if anyone ever has a problem with this bulb (and possibly the bulb that lights the headlight switch, I haven't looked?) shoot me a pm and I can help. If you're ok with doing what I did (remove dead bulb/reinstall new bulb) then I can mail you replacements for $2 each. I'm going to see about modifying these bulbs to be direct plug-ins but I don't have the time right now to work on it. I think it should be fairly simple.
Whew, so that's it. Everything I know about the 4x4 **** bulb
#13
Headlight Switch bulb for 2007 Explorer Sport Trac

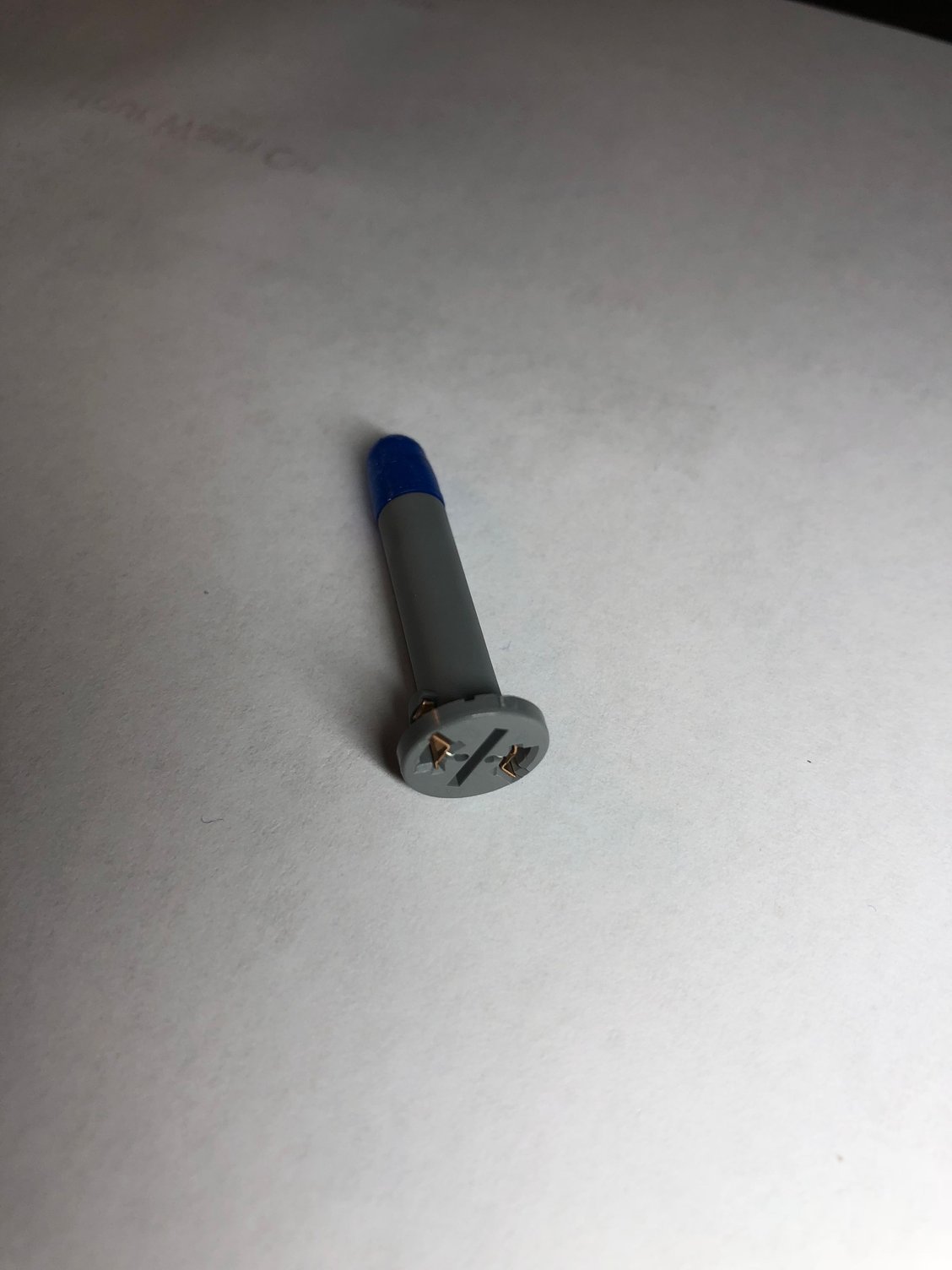

This may work for you. The following bulb worked in a 2007 Explorer Sport Trac headlight switch: http://audioxpress.org/listing/05-06-07-08-09-ford-mustang-headlight-switch-light-bulb It had a blue rubber covering over the bulb, so I removed it before installing.
Also here is a link to the bulb manufacturer. It has a lot of similar type bulbs with specifications, drawings and dimensions, but not sure which bulb it is:http://www.jkllamps.com/incandescent/neo-wedgelamps
Also here is a link to the bulb manufacturer. It has a lot of similar type bulbs with specifications, drawings and dimensions, but not sure which bulb it is:http://www.jkllamps.com/incandescent/neo-wedgelamps
