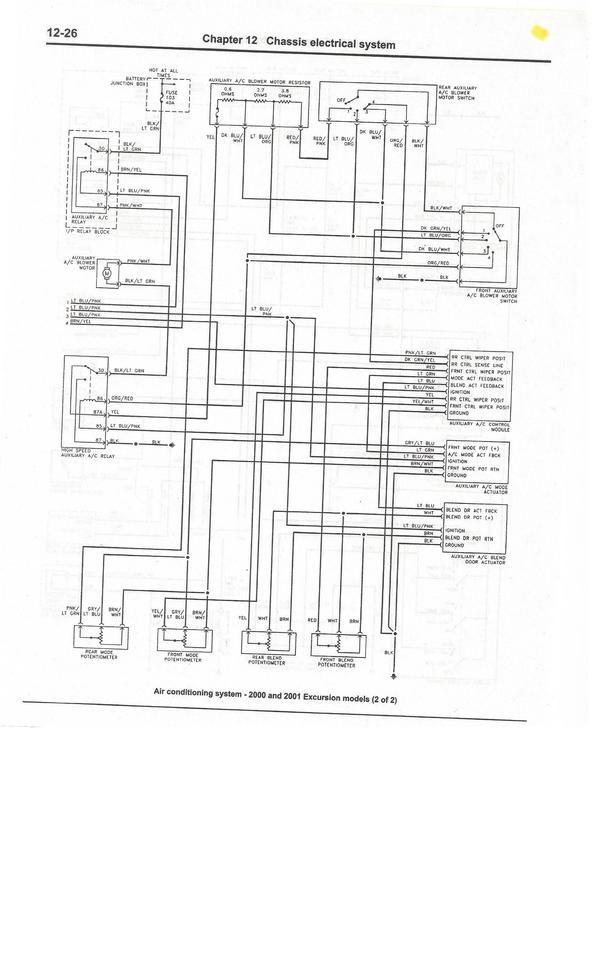

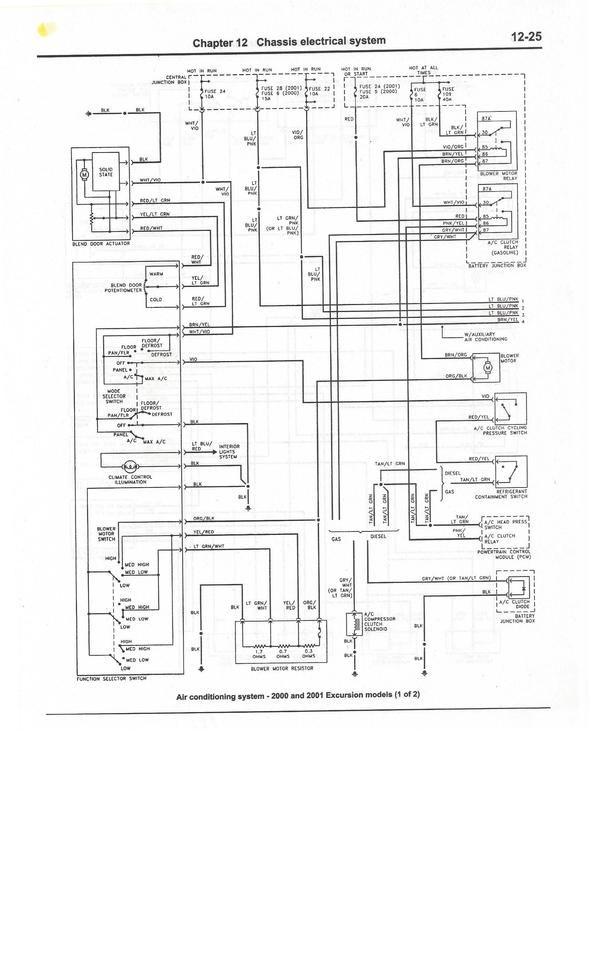

I'm trying to figure out why my vacuum pump is not working, but for the life of me I cant find it on the wire diagram chapter 12 pages 25 & 26
could it be called something else? I have even looked at a different diagram and couldn't find it , Thank you in advance
I don't have my service book with me, but those pages are all climate control. There should be another page for engine electrical for your engine type (i.e. 7.3L different than gasoline).

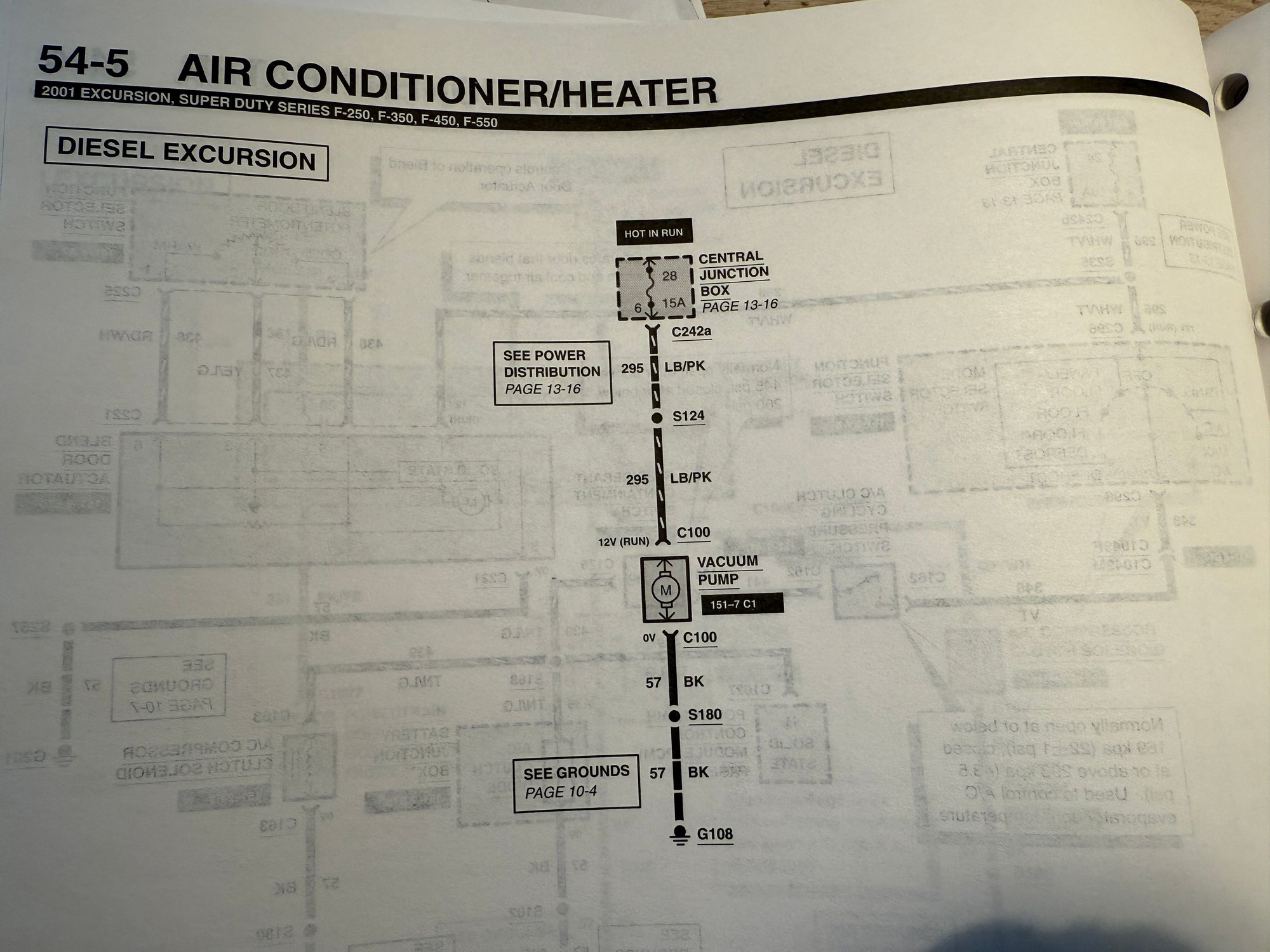

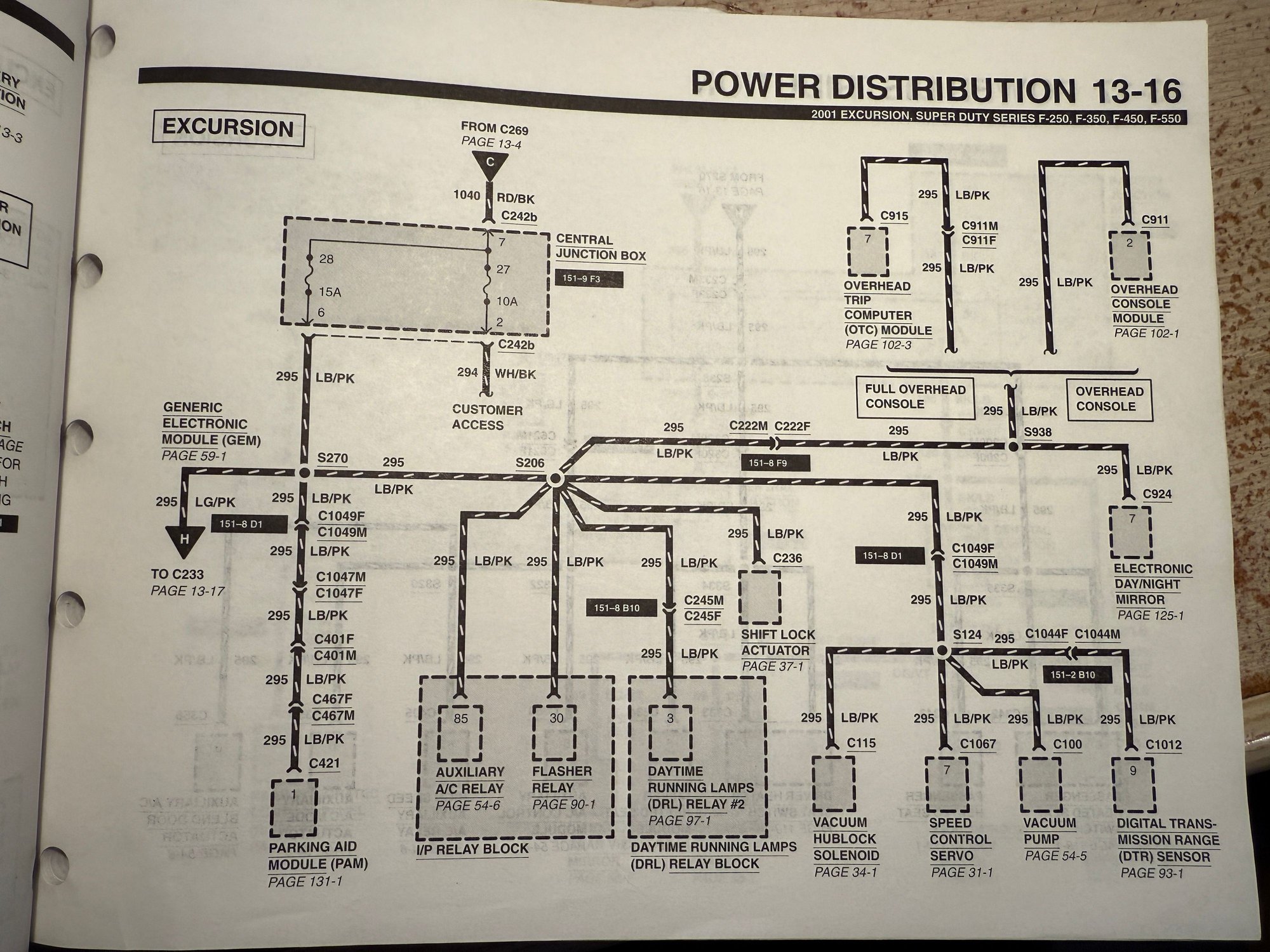

This is from the 2001 Schematic book, if you are 2002 or newer those platforms saw an electrical platform change. So these wire colors will probably be different than 2002 and newer, and possibly the pin locations. The wire pathways may be the same, either way this should be a starting guide.
Cargo Master Thank you
Mine is a 2000 2wd 7.3 , I Purchased in 2010. For over a Year I have been trying to do my own maintenance and repairs for my X and my 2000 F 450
where did you get your Schematic book? or recommendations on anything that would help me
