Engine compartment wiring.
Anyone have a pics of what the stock wiring for a 1948 F-1 should look like? (flathead V8) I've been cleaning up the wiring on my truck, and I'm trying to figure out how things are supposed to be routed, Particularly, what is routed towards the front for the headlights. Currently it's all routed down and along the frame.


Reply
0
Old May 11, 2025 | 05:53 PM
Share
  #2
bmoran4's Avatar
bmoran4
Parts Nerd Extraordinaire
15 Year Member
Liked
Loved
Community Favorite
Joined: Sep 2010
Posts: 4,327
Likes: 1,759
From: Western NY
Club FTE Gold Member
This is what Ford provides for pictorial guidance:



Reply
1
Old May 11, 2025 | 06:19 PM
Share
  #3
JPMallory's Avatar
JPMallory
Thread Starter
|
Laughing Gas
10 Year Member
Liked
Loved
Community Favorite
Joined: Feb 2014
Posts: 794
Likes: 120
From: Behind the wheel, IN
Club FTE Silver Member

Thanks. It looks like I might be missing a couple of wire clips that are supposed to be on the inner fender.

Reply
0
Old May 11, 2025 | 06:29 PM
Share
  #4
bmoran4's Avatar
bmoran4
Parts Nerd Extraordinaire
15 Year Member
Liked
Loved
Community Favorite
Joined: Sep 2010
Posts: 4,327
Likes: 1,759
From: Western NY
Club FTE Gold Member
This can help you sort out some of the clamps:


Reply
0
Old May 11, 2025 | 07:22 PM
Share
  #5
abe's Avatar
abe
Fleet Owner
25 Year Member
Liked
Loved
Top Answer: 1
Joined: Dec 2000
Posts: 25,310
Likes: 5,348
From: Central PA
Club FTE Silver Member

For correct clips look at Restoration Specialties.
https://www.restorationspecialties.com/

814.467.9842

Reply
1
Old May 11, 2025 | 07:56 PM
Share
  #6
52Flthed's Avatar
52Flthed
Fleet Mechanic
5 Year Member
Shutterbug
Liked
Loved
Joined: Aug 2019
Posts: 1,354
Likes: 415
From: Monmouth County, NJ

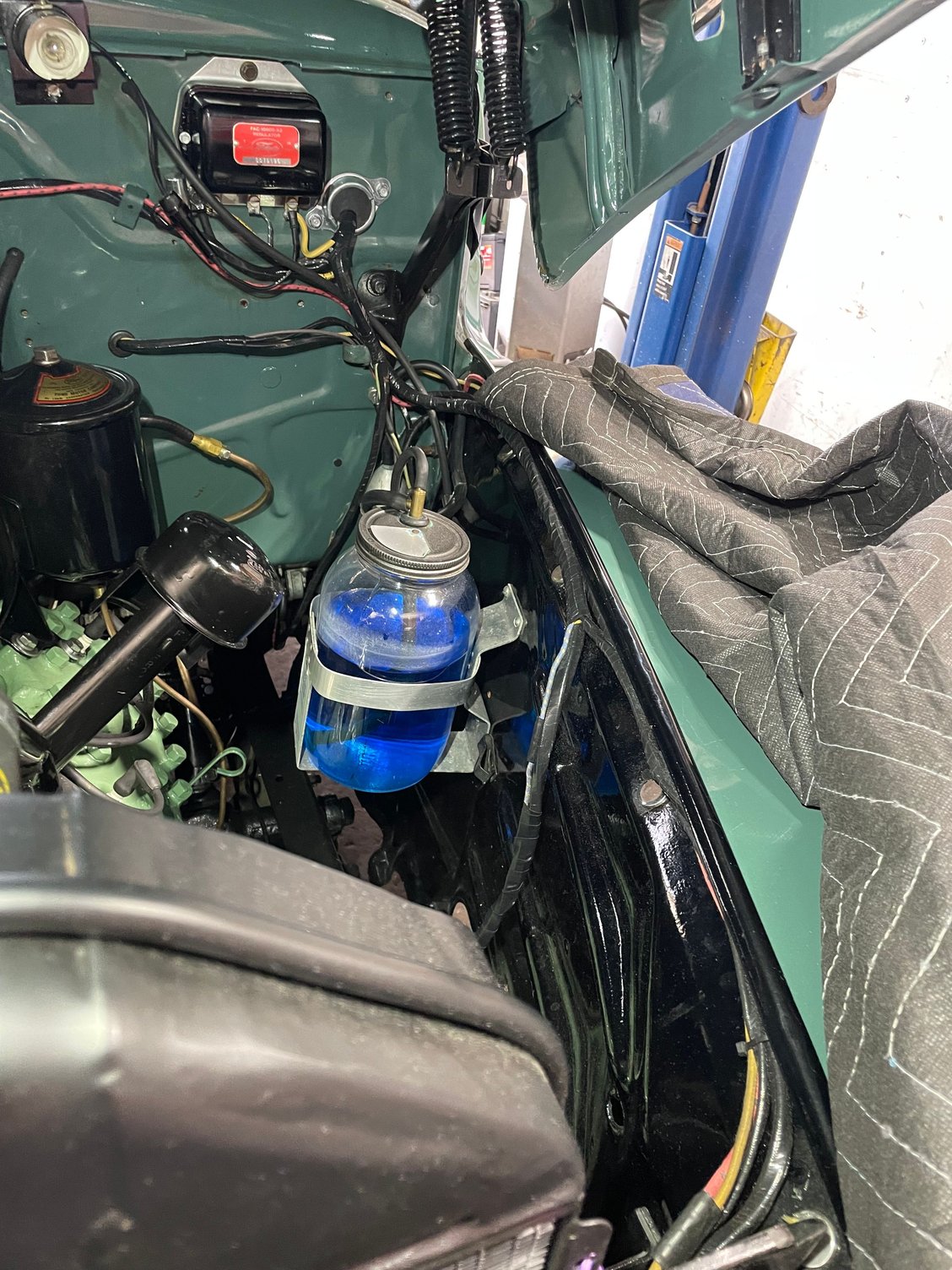

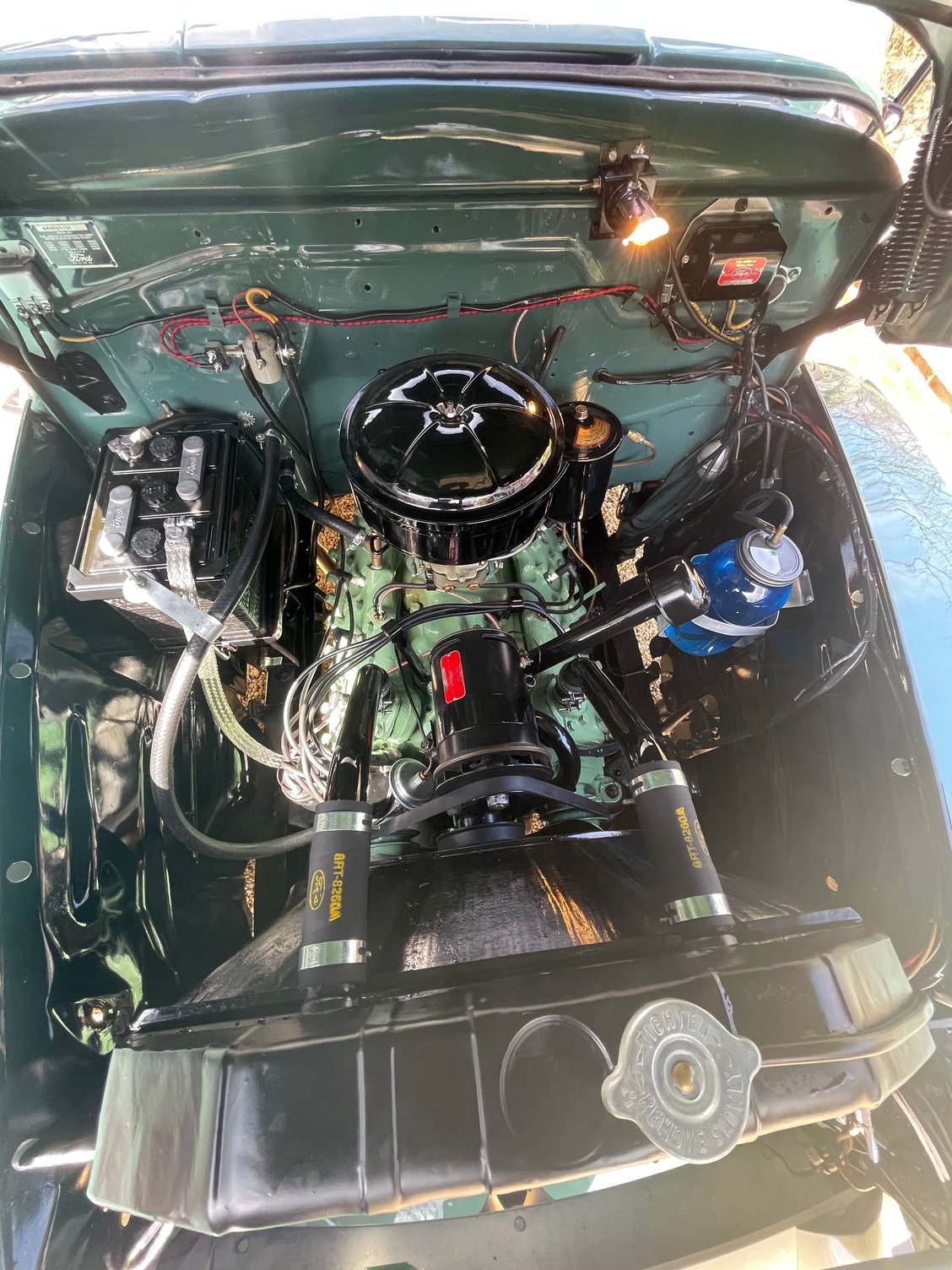

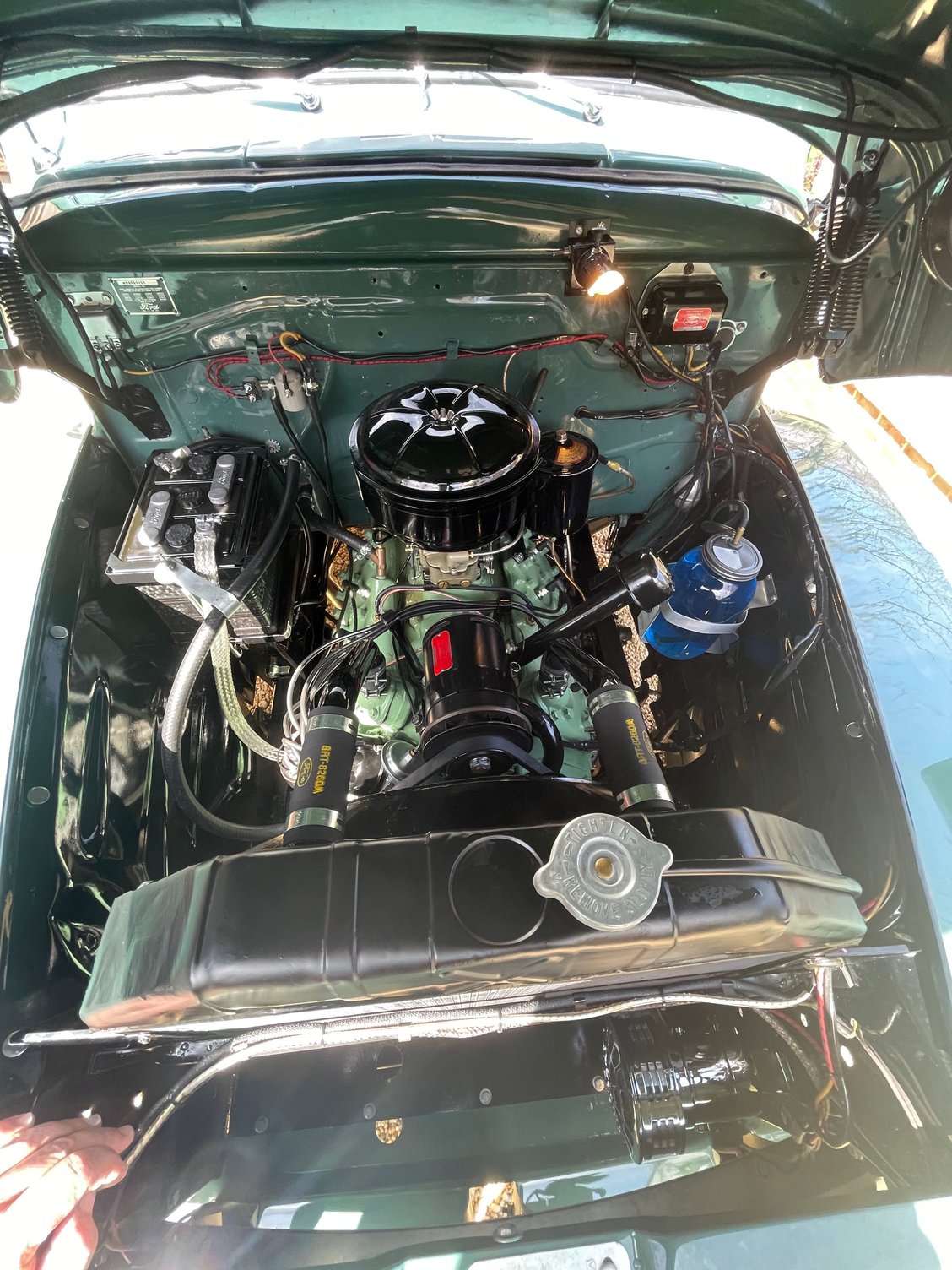

52 F1




Reply
4
Old May 12, 2025 | 04:35 AM
Share
  #7
JPMallory's Avatar
JPMallory
Thread Starter
|
Laughing Gas
10 Year Member
Liked
Loved
Community Favorite
Joined: Feb 2014
Posts: 794
Likes: 120
From: Behind the wheel, IN
Club FTE Silver Member

Those pictures are perfect. Thank you very much!

Reply
0

Trending Topics

Old May 12, 2025 | 09:02 AM
Share
  #8
abe's Avatar
abe
Fleet Owner
25 Year Member
Liked
Loved
Top Answer: 1
Joined: Dec 2000
Posts: 25,310
Likes: 5,348
From: Central PA
Club FTE Silver Member

Originally Posted by JPMallory
Those pictures are perfect. Thank you very much!
His whole truck is perfect!

Reply
1
FTE Stories

Ford Trucks for Ford Truck Enthusiasts

story-0

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

 Verdad Gallardo
story-1

10 Best Ford Truck Engines We Miss the Most!

 Joe Kucinski
story-2

2026 Shelby F-150 Off-Road: Better Than a Raptor R?

 Brett Foote
story-3

2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!

 Michael S. Palmer
story-4

10 Most Surprising 2026 Ford Truck Features!

 Joe Kucinski
story-5

Top 10 Ford Trucks Coming to Mecum Indy 2026

 Brett Foote
story-6

5 Best / 5 Worst Ford Truck Wheels of All Time

 Joe Kucinski
story-7

Ford Super Duty: 5 Things Owners LOVE, 5 Things They LOATHE!

 Joe Kucinski
story-8

Every 2026 Ford Truck Engine RANKED from WORST to FIRST!

 Michael S. Palmer
story-9

The Best F-150 Deal of Every Trim Level (XL through Raptor)

 Joe Kucinski
Old May 12, 2025 | 01:35 PM
Share
  #9
pintoplumber's Avatar
pintoplumber
Cargo Master
20 Year Member
Photogenic
Shutterbug
Liked
Joined: Feb 2006
Posts: 2,292
Likes: 876
From: Lititz PA
Wow, an under hood light!

Reply
0
Old May 12, 2025 | 01:46 PM
Share
  #10
abe's Avatar
abe
Fleet Owner
25 Year Member
Liked
Loved
Top Answer: 1
Joined: Dec 2000
Posts: 25,310
Likes: 5,348
From: Central PA
Club FTE Silver Member

Originally Posted by pintoplumber
Wow, an under hood light!
And a windshield washer set up .

Reply
0
Old May 12, 2025 | 03:16 PM
Share
  #11
mtflat's Avatar
mtflat
Lead Driver
25 Year Member
Photogenic
Photoriffic
Shutterbug
Joined: Oct 1999
Posts: 6,765
Likes: 547
From: Kalispell, MT
The branch of the loom that comes forward for lights/horn consists of these stock colors for 48-50:

Horn - Blue/Yellow trace
Horn - Yellow/Green
High beams - Green/Black
Park lights - Black/Yellow
Low beams - Red/Black
Ground - Black

Reply
0
Old May 12, 2025 | 05:14 PM
Share
  #12
52Flthed's Avatar
52Flthed
Fleet Mechanic
5 Year Member
Shutterbug
Liked
Loved
Joined: Aug 2019
Posts: 1,354
Likes: 415
From: Monmouth County, NJ
Originally Posted by pintoplumber
Wow, an under hood light!
Originally Posted by abe
And a windshield washer set up .
Originally Posted by abe
His whole truck is perfect!
gosh thanks guys! The compartment light is customized with a toggle kill switch too -so the hood can stay up without draining the battery. I love accessories and there’s a lot of neat ones on the truck.

Reply
2
Old May 12, 2025 | 05:47 PM
Share
  #13
52 Merc's Avatar
52 Merc
Hotshot
15 Year Member
Liked
Community Favorite
Top Answer: 3
Joined: Oct 2009
Posts: 16,135
Likes: 4,735
From: Burbank, WA
Originally Posted by JPMallory
Thanks. It looks like I might be missing a couple of wire clips that are supposed to be on the inner fender.
If you're missing inner fender clips and need some, let me know, I may be able to scrounge up a few.

Reply
0
Old May 29, 2025 | 05:03 PM
Share
  #14
JPMallory's Avatar
JPMallory
Thread Starter
|
Laughing Gas
10 Year Member
Liked
Loved
Community Favorite
Joined: Feb 2014
Posts: 794
Likes: 120
From: Behind the wheel, IN
Club FTE Silver Member

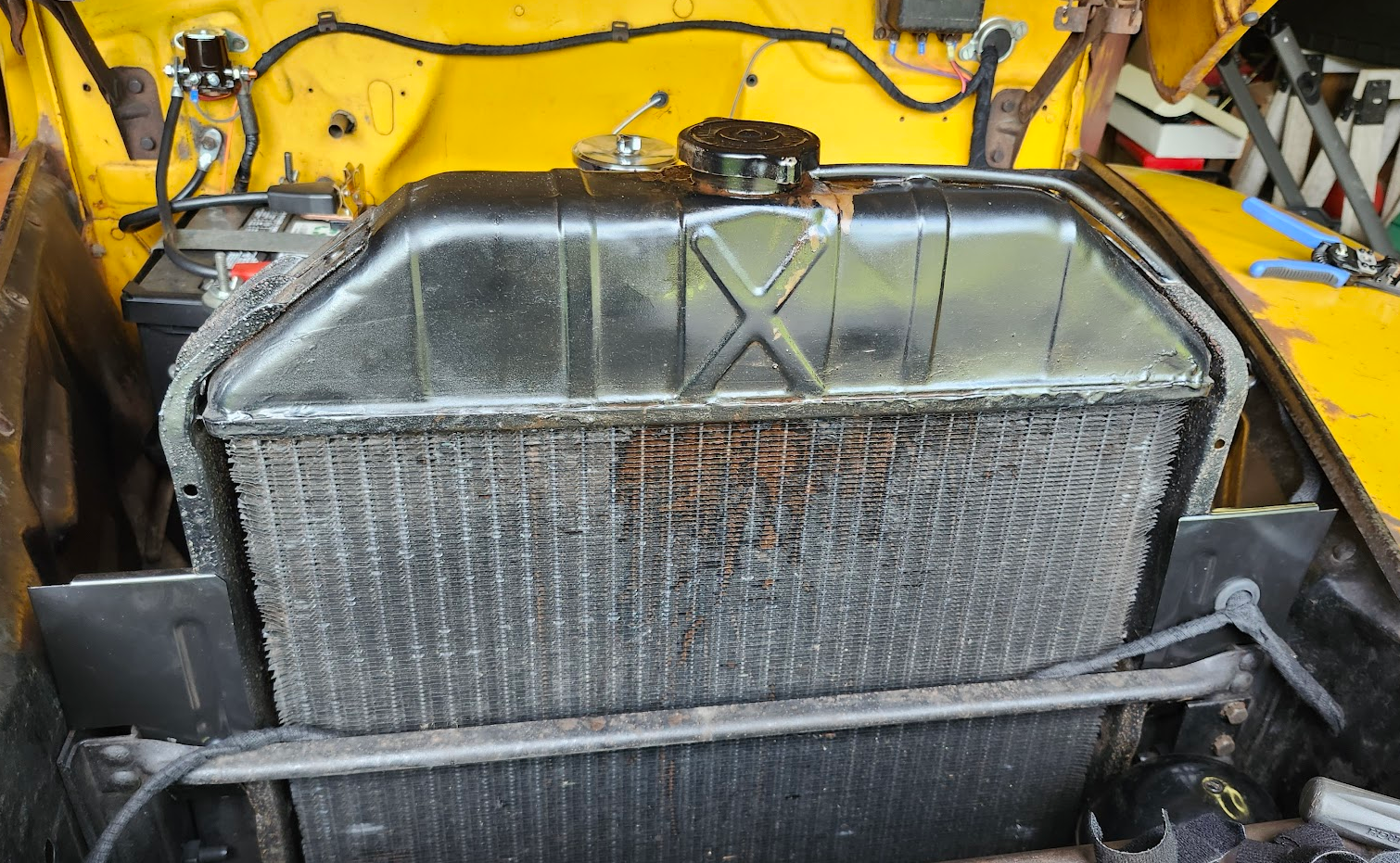

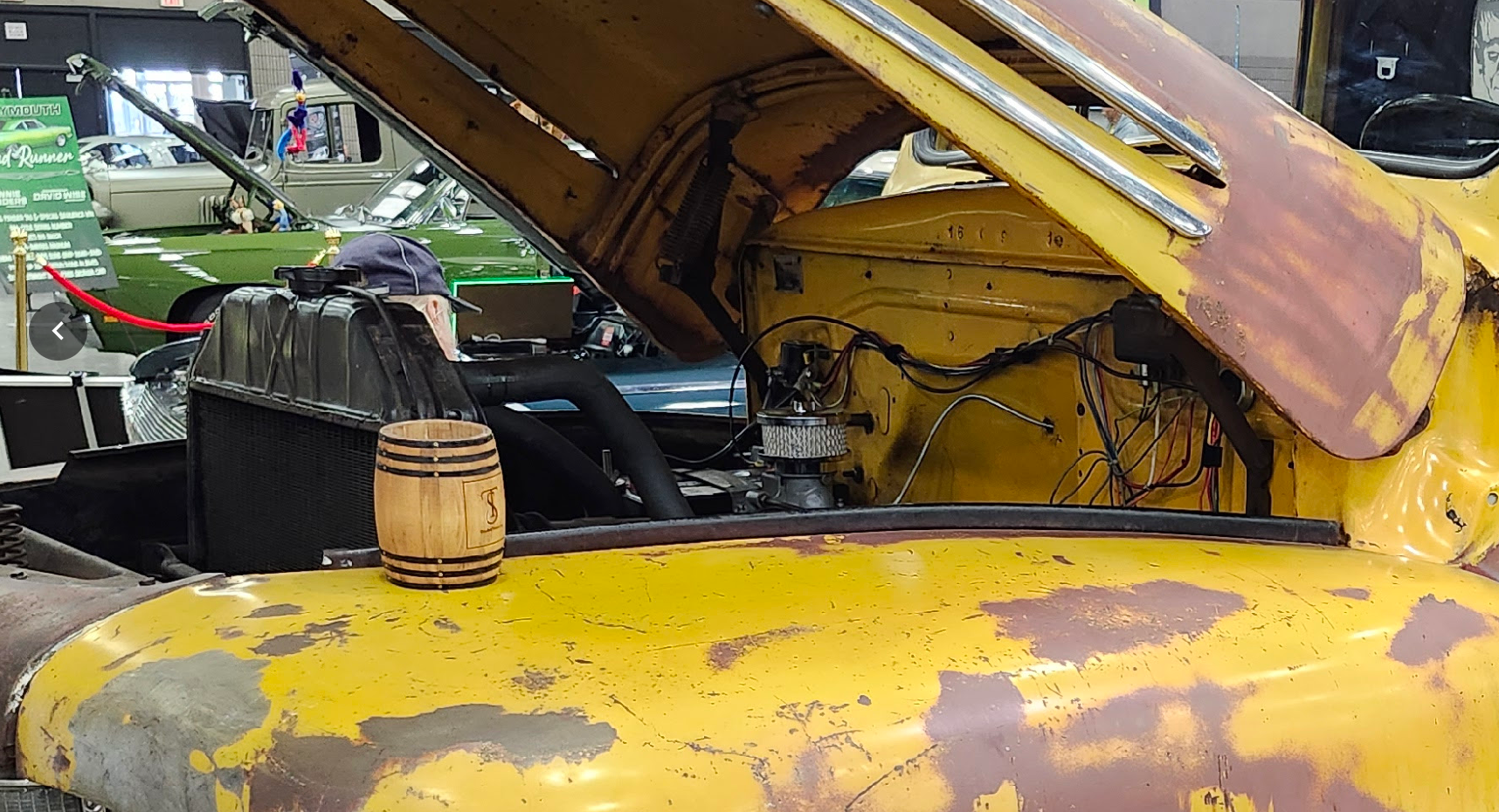

I got the wiring looking much better. I don't have a good pic of what it looked like before. This is a sample of the mess:

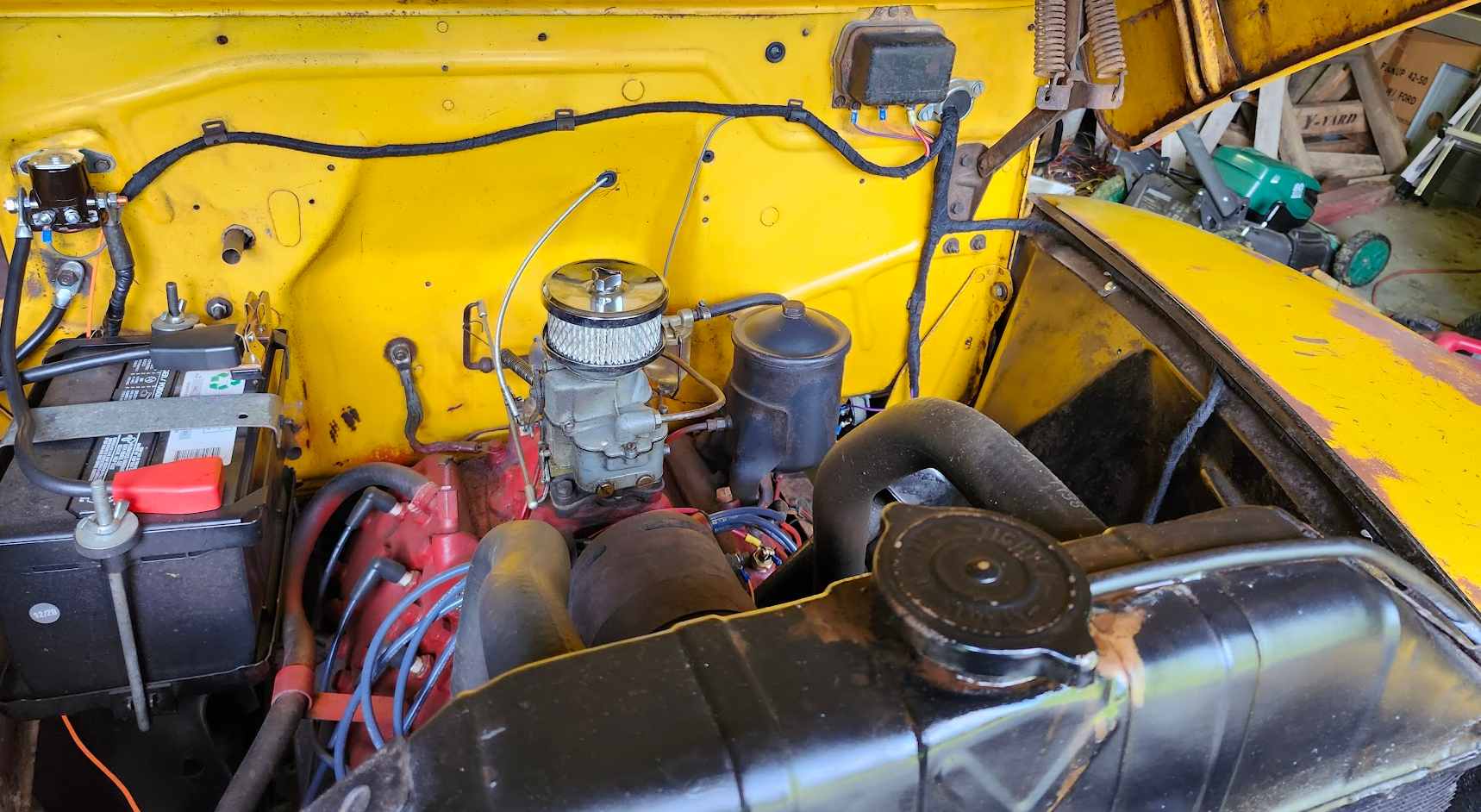

Now with less chaos (and zip ties):









Reply
1
Old May 29, 2025 | 06:35 PM
Share
  #15
52 Merc's Avatar
52 Merc
Hotshot
15 Year Member
Liked
Community Favorite
Top Answer: 3
Joined: Oct 2009
Posts: 16,135
Likes: 4,735
From: Burbank, WA
Looks great. It's amazing what a little detailing with tape and clips will do for you. Nice job!
