Speedometer gear tables
I am replacing my speed sensor. I am planning on replacing the driven gear while I am at it. I have been searching for any indication of the proper driven gear, but I am unable to find it. I saw the tables posted online at garysgaragemahal, but it doesn't list my combination. does anyone have the tables for 1989 they could share?
Also, I bought the digital shop manuals package from Rock Auto, but despite my inquiring, they DO NOT have parts diagrams or part numbers. Frustrating. I guess I'll buy the other digital manuals that (presumably?) have all part numbers...
Also, I bought the digital shop manuals package from Rock Auto, but despite my inquiring, they DO NOT have parts diagrams or part numbers. Frustrating. I guess I'll buy the other digital manuals that (presumably?) have all part numbers...
i ain't rite
Joined: Mar 2005
Posts: 65,448
Likes: 5,518
From: Marlboro Mental Hospital.
red is 21 tooth, black is 20 tooth, natural is 19 tooth, yellow is 18 tooth, 17 tooth is white, wine/burgandy is 16 tooth
one tooth equals about a 1.5 mph difference.
more teeth, slower speedometer reads. less teeth higher it will read.
one tooth equals about a 1.5 mph difference.
more teeth, slower speedometer reads. less teeth higher it will read.
Cargo Master
Joined: Aug 2021
Posts: 2,251
Likes: 740
From: Maryland
Cargo Master
Joined: Aug 2021
Posts: 2,251
Likes: 740
From: Maryland
Hotshot
Joined: Jun 2015
Posts: 12,784
Likes: 2,422
Hotshot
Joined: Jul 2020
Posts: 10,354
Likes: 2,592
From: Near Salt Lake City
We never used a table to figure the speedometers out
You go 60 miles per hour on the gauge and measure the distance traveled at the same time using the mile markers on the freeway
1 tooth equals 5 miles an hour at 60
You are talking about driven gears and they make different drive gears too
You need a Ford parts department catalog, that uses your rear axle ratio and tire size, to come up with what the stock color was
Simply figure out how far off you are, (how many seconds) off at 60 miles an hour on the freeway
You go 60 miles per hour on the gauge and measure the distance traveled at the same time using the mile markers on the freeway
1 tooth equals 5 miles an hour at 60
You are talking about driven gears and they make different drive gears too
You need a Ford parts department catalog, that uses your rear axle ratio and tire size, to come up with what the stock color was
Simply figure out how far off you are, (how many seconds) off at 60 miles an hour on the freeway
Trending Topics
Hotshot
Joined: Jun 2015
Posts: 12,784
Likes: 2,422
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Hotshot
Joined: Jun 2015
Posts: 12,784
Likes: 2,422

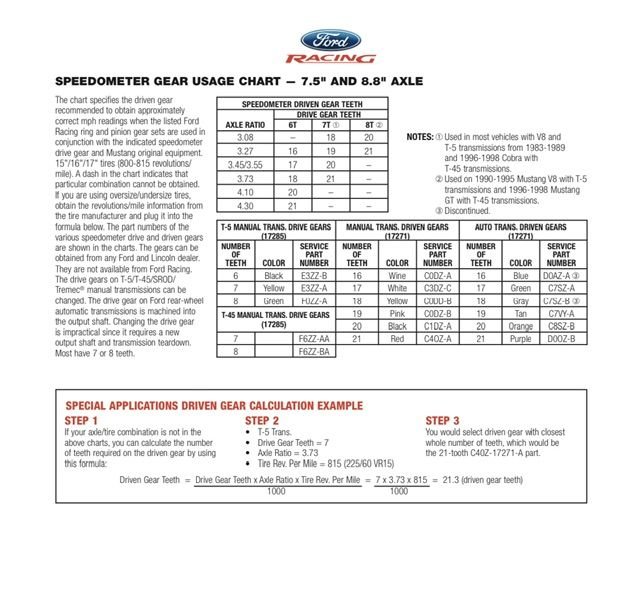

Do you not understand how to use the formula? Tire manufacturers list the revolutions per mile for their tires or at least they used to which is how I figured out what driven gear I needed for the FSB when I went from the original 215 or 235 tires to 35” tires
