Dash wiring identification

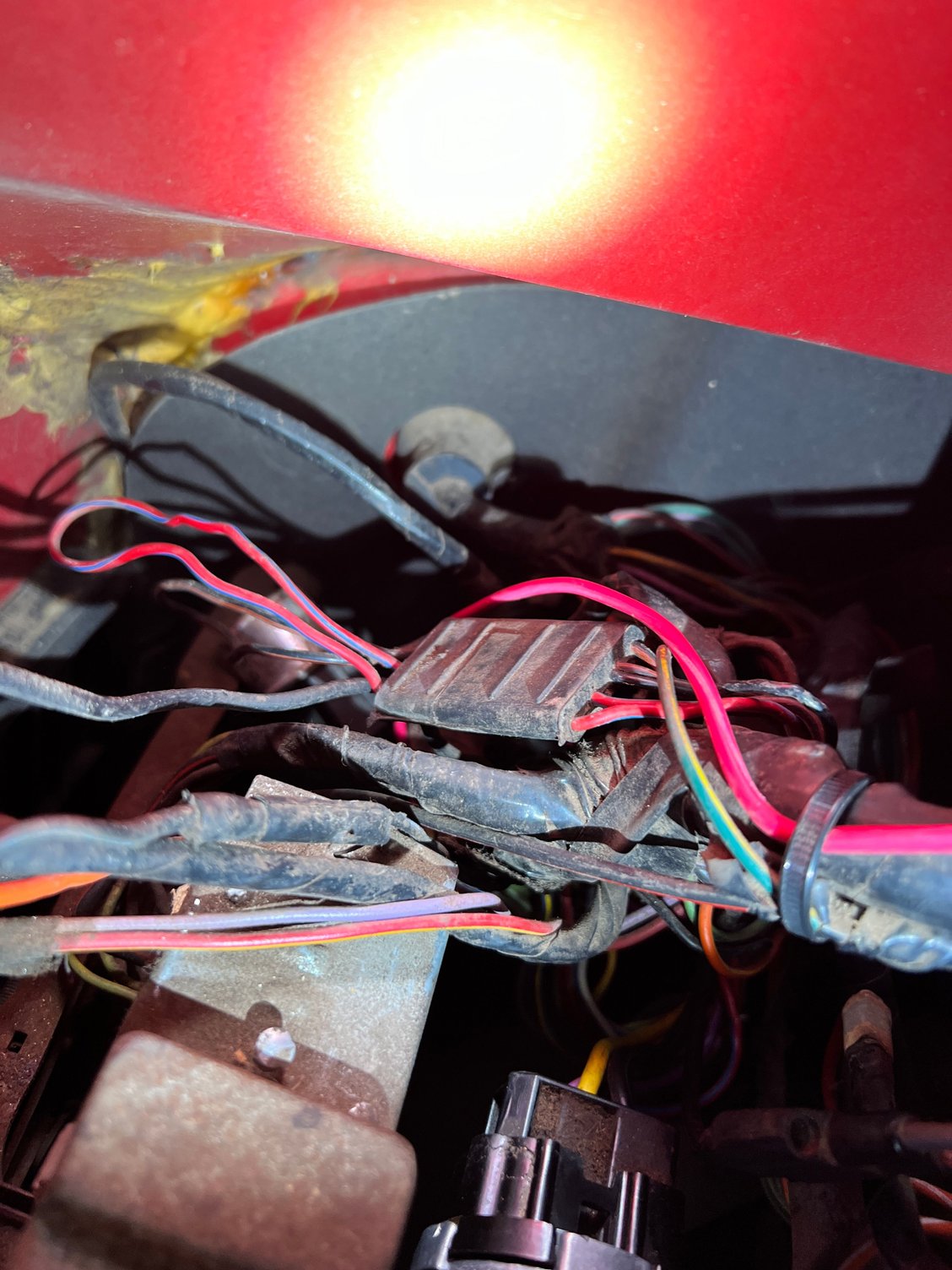

So in the process of fixing some wiring misroutes I found this big flat plug toward the top of the wiring behind the instrument cluster (this flat plug sits on top of the harness that t’s off the ignition switch.

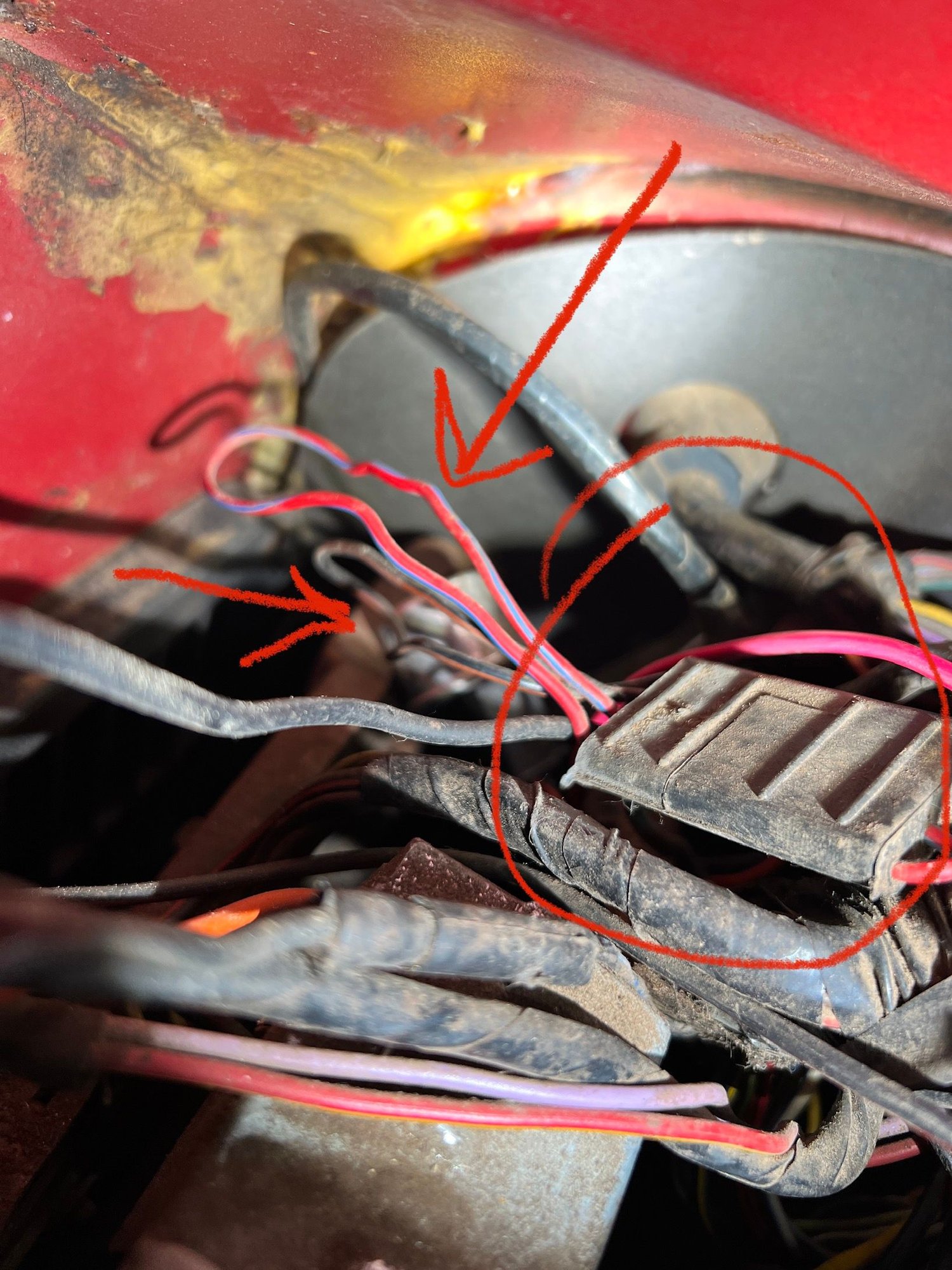

my question is, what is it? There are two wires that just loop. A RED/BLUE wire and a BLACK/ORANGE wire.
1970 F250
manual trans
my question is, what is it? There are two wires that just loop. A RED/BLUE wire and a BLACK/ORANGE wire.
1970 F250
manual trans
Tuned
Joined: Jun 2014
Posts: 476
Likes: 137
From: Colorado Springs
I think that is your Neutral Safety Switch bypass connection, beings your truck is a manual transmission. Here is an article that talks about it:
Neutral safety switch don't work now? - The FORDification.com Forums
Neutral safety switch don't work now? - The FORDification.com Forums
Mountain Pass
Joined: Apr 2013
Posts: 138
Likes: 18
From: Moriarty, NM
Here is wiring diagram. http://fordification.com/tech/wiring...-70_master.jpg
Look center bottom of diagram by the dimmer switch.
Look center bottom of diagram by the dimmer switch.
Thread Starter
|
More Turbo
Joined: Nov 2011
Posts: 508
Likes: 0
From: PNW
I think that is your Neutral Safety Switch bypass connection, beings your truck is a manual transmission. Here is an article that talks about it:
Neutral safety switch don't work now? - The FORDification.com Forums
Neutral safety switch don't work now? - The FORDification.com Forums
I think you nailed it, sure looks like the critter. Wonder if a guy could steal switched power from that line? 🤔
Mountain Pass
Joined: May 2006
Posts: 206
Likes: 23
From: Az
nope, one side is crank only and the other is for the reverse lamp circuit I believe. I know without that jumper it won't start.
