Gas Guage
I know that I saw a thread on a non-working gauge reading empty and mine is driving me nuts as I replaced the fuel pump and that thing on the rear axle and gauge is still not working.
I tried resetting it at the steering wheel. What am I missing?? I carry a gallon in the truck bed but if I run out of gas at night on a busy road, I could get hit. At 77, I wouldn't make it!
I tried resetting it at the steering wheel. What am I missing?? I carry a gallon in the truck bed but if I run out of gas at night on a busy road, I could get hit. At 77, I wouldn't make it!
Last edited by Lee Phillips; Jun 2, 2023 at 11:07 PM.
Fleet Mechanic
Joined: Apr 2016
Posts: 1,653
Likes: 193
You need to see if the signal is getting to the cluster. I havent looked into the wiring path from the fuel tank. You should print that path out and look for damage under neath truck or perhaps the connector under driver side that gets dirty corroded .
Your fpdm on rear axle should not come into play . Rats and squirrels are hell on wiring .
Your fpdm on rear axle should not come into play . Rats and squirrels are hell on wiring .
Fleet Mechanic
Joined: Apr 2016
Posts: 1,653
Likes: 193

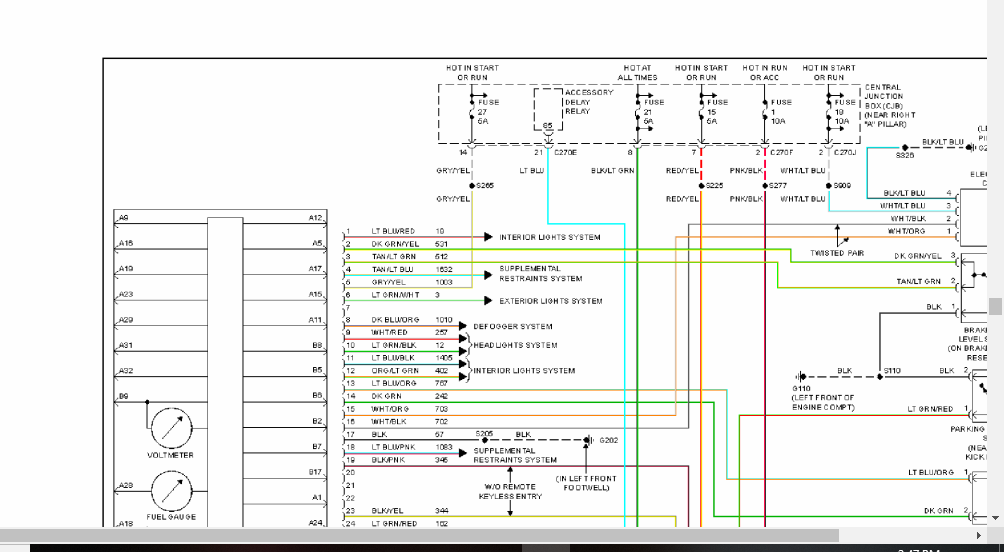

What I don't understand is the connector under drivers side, it doesn't show on this diagram . Yet i know the cab is capable of being removed by unplugging most of the wiring , the shops prefer removing cab for a lot of deep work on the engines/drive train .
So I have been told.
Someone can enlighten us . I dont know the code connector name for that under drivers side .
So I have been told.
Someone can enlighten us . I dont know the code connector name for that under drivers side .
Thread Starter
|
3rd Gear
Joined: May 2023
Posts: 4
Likes: 0
From: Pittsburgh
Trending Topics
Mountain Pass
Joined: May 2023
Posts: 109
Likes: 23
From: Summerville SC
I'd first look for a wiring problem by examining the wires near the pump, between the pump and the FPDM (on rear axle), the wire connector there, then the wires running forward, probably under the driver's side, plastic, door trough covers.
If no problem was found I'd next check the fuel gauge wire leaving the fuel pump for power with the key on.
If you do this and there is power on the wire from the fuel gauge, let us know if you need more suggestions.
If no problem was found I'd next check the fuel gauge wire leaving the fuel pump for power with the key on.
If you do this and there is power on the wire from the fuel gauge, let us know if you need more suggestions.
