Disregard the illustration and some of the other information from the 2022 OM having to do with auxiliary switch wiring. It is a misprint and applies to the F-150 (Raptor and Tremor) not Super Duty.
Correct, the '22 owners manual is incorrect in the color coding of the wires to aux switch diagram.

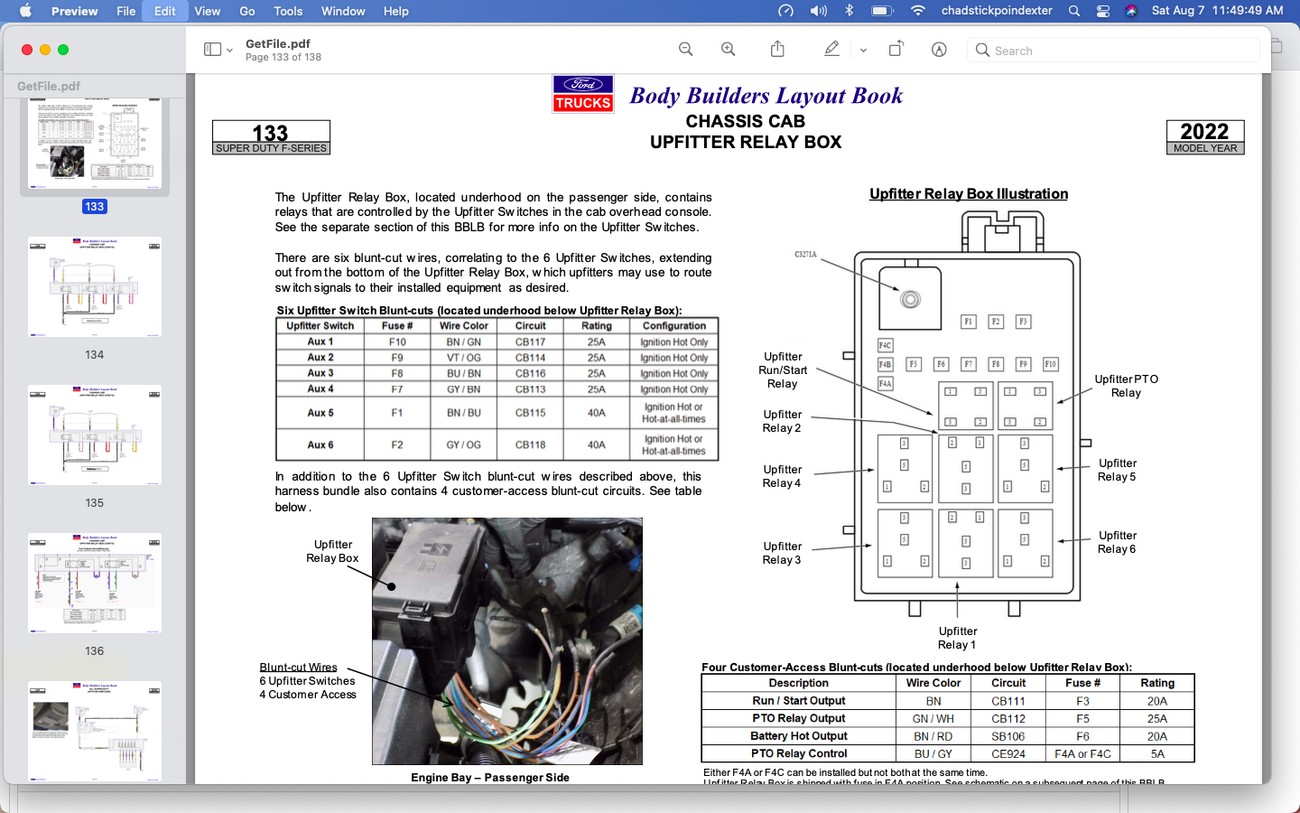

Here is the correct one from the body builders guide:
Correct, the '22 owners manual is incorrect in the color coding of the wires to aux switch diagram.
Here is the correct one from the body builders guide:

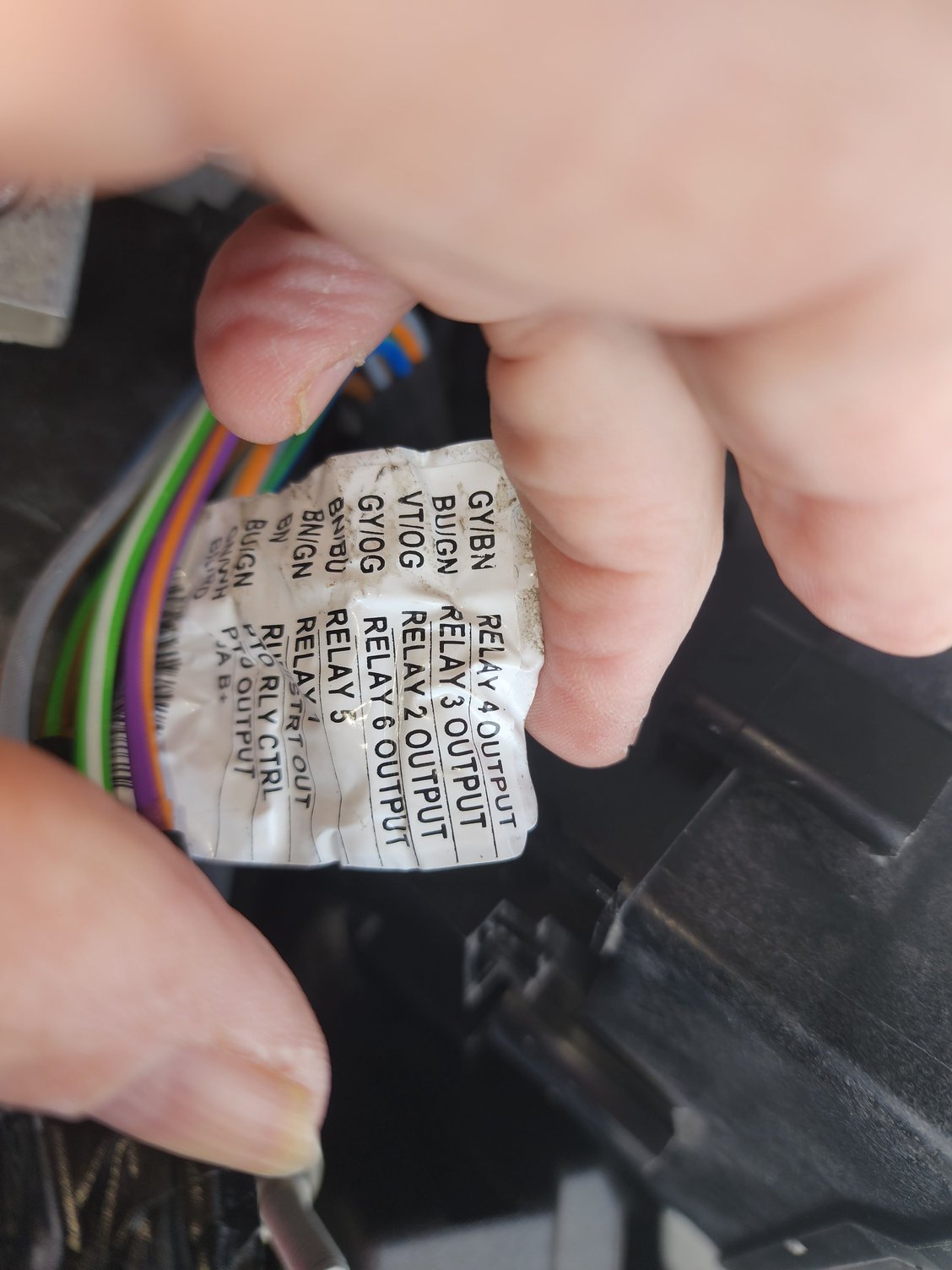

Looks like the callout sticker on the wires is also wrong?
WheelerFreak's post has Aux 3 as BU/BN but my sticker has it as BU/GN.
I did verify all the wires listed on the sticker are present in the bundle. Except for the PTO Relay CTRL which is listed as BN on the sticker but is correctly BU/GY on the sheet above.
WheelerFreak's post has Aux 3 as BU/BN but my sticker has it as BU/GN.
It does look like the body builders guide has Aux 3 wire color wrong.
The colors for each upfitter switch wire haven't changed for several years. The 2022 OM was a complete mistake, but the OM from the previous years should be correct. This is from the 2021 OM.
I also notice the Run/Start Output and the Battery Hot wires would be a good way to power your dashcams but you'd have to use 2 of your pass throughs for that.
