Purchased 96 f250 and trying to figure out where these wires go to, what is missing. Also, these is a hose missing, on the passenger side. Does it go to the top of the water pump? Any ideas? thanks.

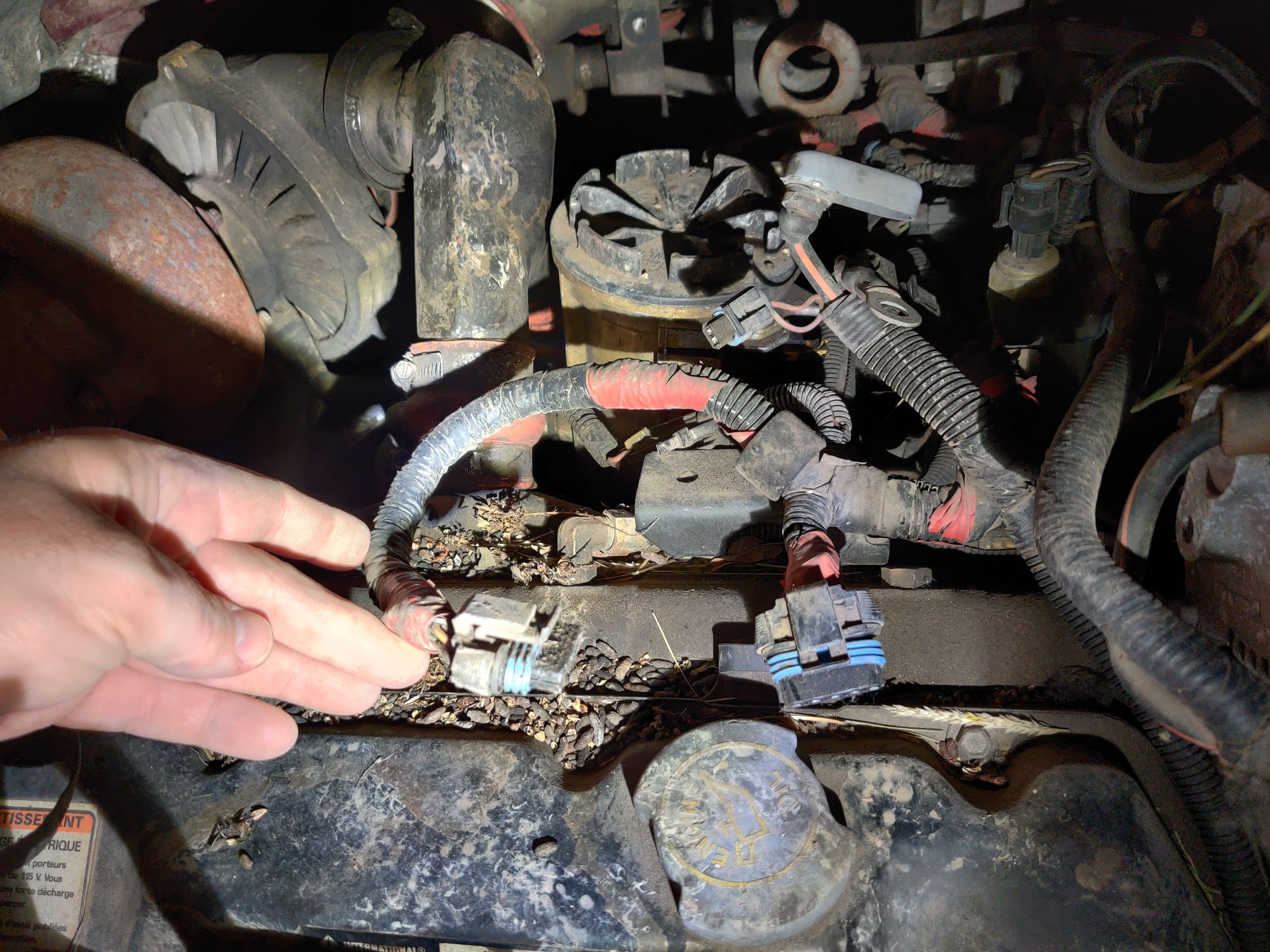

Look like the wires that connect to the under valve cover harness, for injectors and glow plugs. The hose looks like it possibly runs to the heater core. Also looks like you are missing a glow plug relay.
I had purchased the relay already and just need to install it, didn't see the connectors for the valve cover harness but I see them now. just covered with dirt.
As for the hose to the heater core, there is one open on top of the water pump as well, does that run to the heater core? Is there a diagram for those hoses? Just want to make sure they go the correct spots.
There is another hose I am not sure about, I will take a picture and post it later.

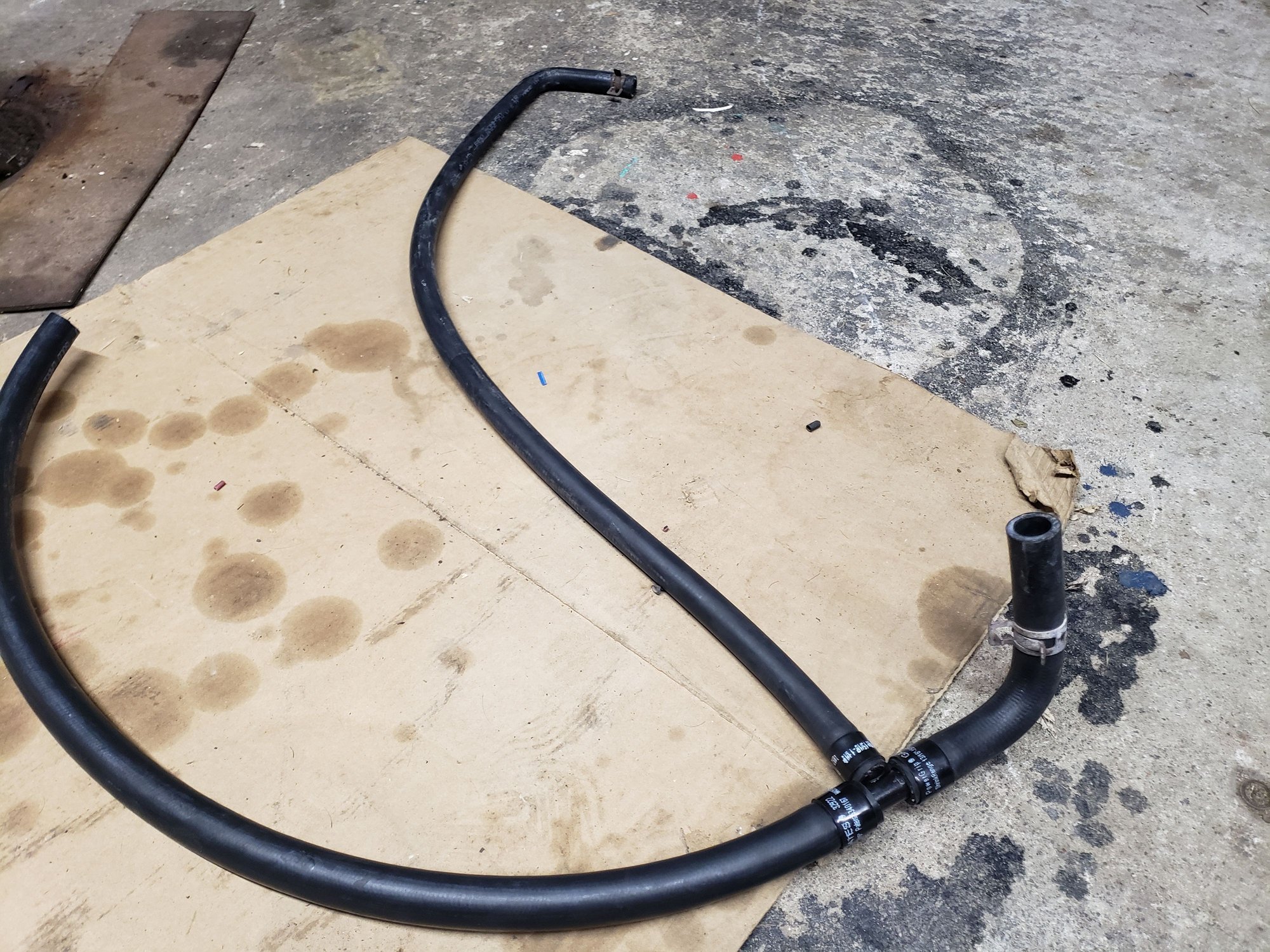

The hose goes from heat to heater core but has a t thats 1/2" and has a smaller hose that goes to bottom of radiator on drivers side. That hose is not reproduced. I built one to get new hosses on my old truck.
First was related to the glow plug relay, not sure how to plug it back in. Especially that there is two posts and a different connector on the wires. Any help would be appreciated.
Also, does the square device hose go into the orange hose connector? The device has a hose coming out of it but not sure where it would go.
Lastly, there looks like a cut hose, its behind the intake filter housing. Vacuum lines I am assuming, coming out of some sort of distribution hub. Picture was hard to get.
unknown device with hose unknown cut hose how does this connect?
not running yet, have to install some other parts and need to get batteries.

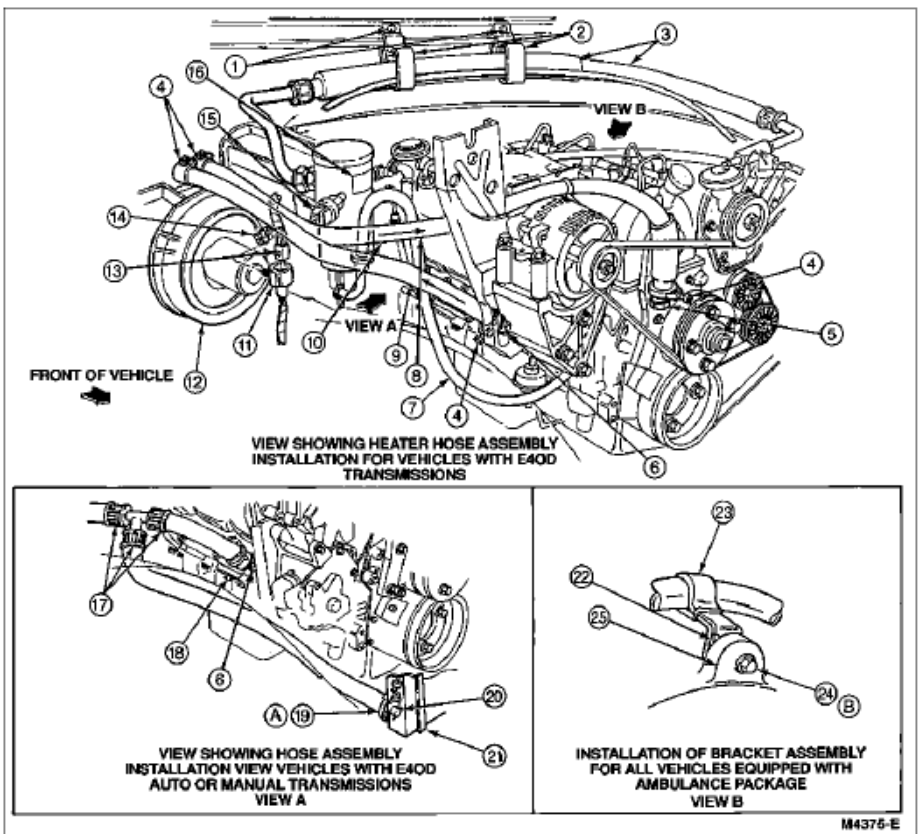

Is there any diagrams where the heater core hoses go to? Is one just going from the heater core directly to radiator? The other has the tee connector? what size are the hoses so I can try to create the hose since it seems to be hard to find?
The GPR wire was missing because the one they sold me was the starter solenoid.
Got the glow plug relay installed and some other items.
I can't figure out the heater core hoses still. I found one connection on top of the water pump. Found the one on the passenger side of the engine block. Not seeing anything at the bottom of the radiator, or sides. Any pictures of the exact location?
