Ecm Pinout

Can someone please provide a ecm pinout for a 2005 f150 5.4 triton? Iv been unable to find one and was hoping someone could help me out.

Reply
Old Dec 5, 2022 | 07:22 AM
  #2
Byoung Oh's Avatar
Byoung Oh
Mountain Pass
Joined: Mar 2016
Posts: 123
Likes: 10

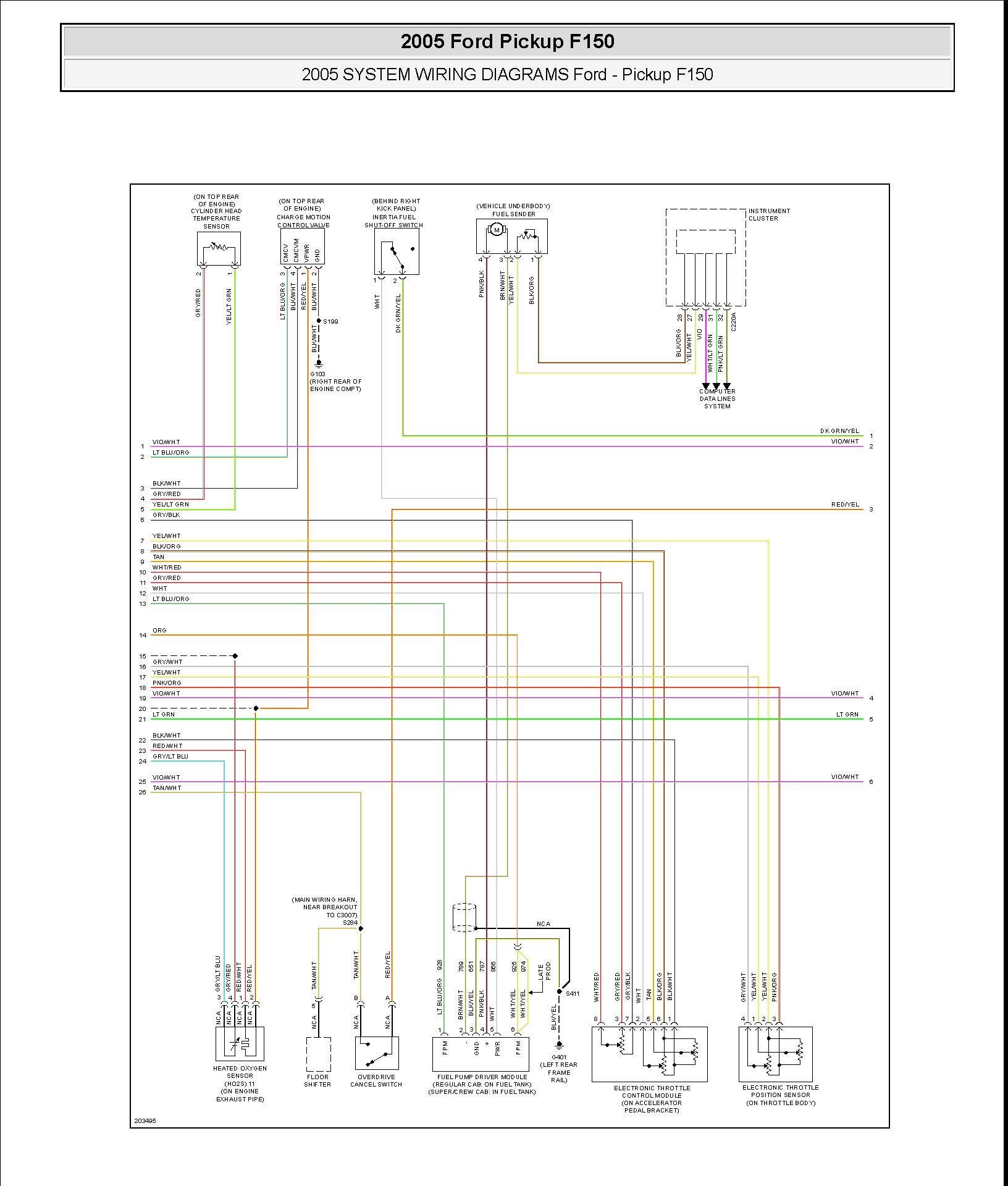

I hope this is what you are looking for. PDF version is also attached.








Attached Images
File Type: pdf
F150 5.4 PCM.pdf (215.8 KB, 53 views)
