S&S DPK installed
Lead Driver
Joined: May 2021
Posts: 5,846
Likes: 3,468
From: Uh oh, CA
When I get a chance, I'll pull mine out and measure those hoses. I'm glad you posted this. I'm going to do the same before I install mine. Or have it installed...
Unless Jolly remembers and posts up...

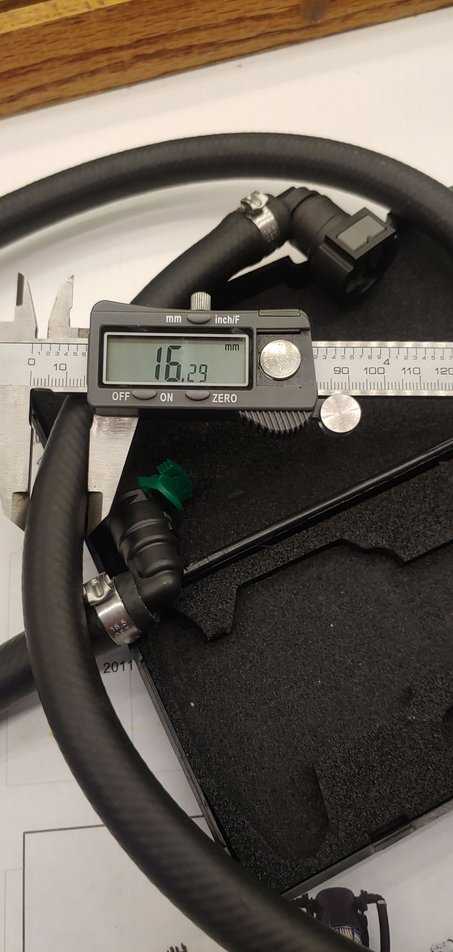

Okay I measured the OD of the 3/8 inch ID fuel hoses with a micrometer, they all are 3/8 inch ID, the OD is approximately 16.25mm (loosely measured) which converts to 0.639 inches OD. I bet 5/8 inch (0.625") OD loom would work.
I'll post pics and have some additional info to post up.
Unless Jolly remembers and posts up...
Okay I measured the OD of the 3/8 inch ID fuel hoses with a micrometer, they all are 3/8 inch ID, the OD is approximately 16.25mm (loosely measured) which converts to 0.639 inches OD. I bet 5/8 inch (0.625") OD loom would work.
I'll post pics and have some additional info to post up.
Lead Driver
Joined: May 2021
Posts: 5,846
Likes: 3,468
From: Uh oh, CA
So I have some more questions... I was watching the Thoroughbred Diesel YT video for install. When reinstalling the upper intake he mentioned torquing to 89 in/lbs, then I think he said to get the temp up to 98* and retorque to 18 ft/lb. Then the 2 bolts on the lower intake are only 31 in/lb. So, did he just go back and retorque the upper intake bolts after letting it run a bit to get the temp up? Also, 31 in/lb on the lower intake... wow, that doesn't seem very tight. I guess this is because it's plastic though?
FTE Legend
Joined: Mar 2017
Posts: 31,880
Likes: 9,175
From: Western NY
Since my truck has more miles, I ordered a set of intake manifold gaskets. I'll feel better with replacing them when intake is reassembled.

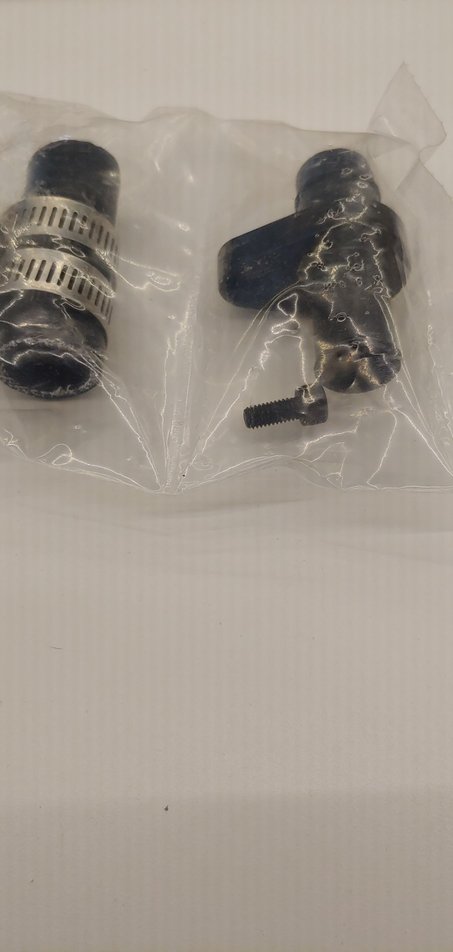

Pic of the hoses included with my kit MY 11 to 16. All the hoses were the same.

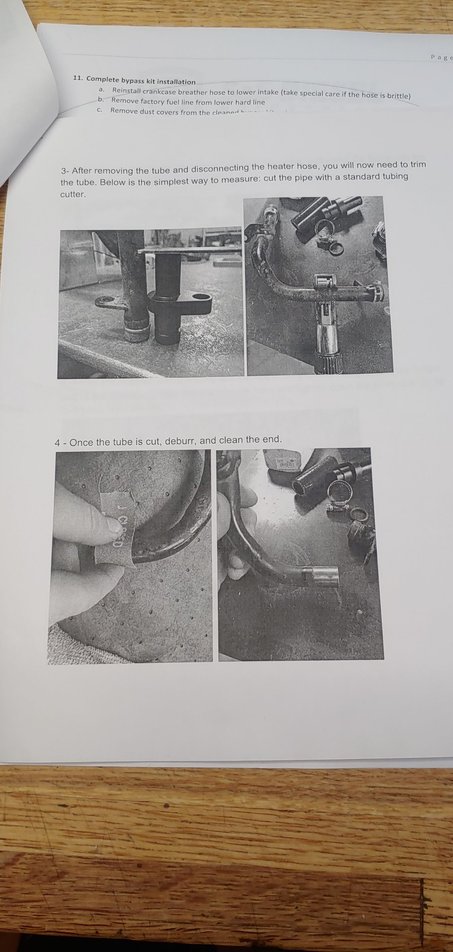

I have this from SPE that will get installed when the DPK gets installed...
https://www.spemotorsport.com/collections/powerstroke-cooling-system/products/spe-coolant-tube-fitting-kit-fits-6-7l-powerstroke
Fixes the problematic OEM heater inlet tube which is prone to corrosion and leaking at the thermostat crossover manifold.
Benefits:
- Easy install— Simple instructions that even an amateur can follow.
- Durable— made out of billet aluminum with the correctly sized o-ring rather than the factory thin-wall steel with a poorly fitted o-ring.
- Cleans Up Engine Valley— Great for highly modified trucks looking to clean up the valley of the engine. Fitting converts over to a ¾” hose outlet.
Vehicle Compatibility:
- 2011-2022 Ford SuperDuty F-250/F-350/F-450/F-550 6.7L Powerstroke
The 6.7L Powerstroke has a thin-wall steel line running from the coolant/thermostat crossover manifold to the heater hose. It’s not uncommon to see coolant weeping there, specifically where the heater inlet tube meets the crossover manifold. This is due to both the metal properties, making it prone to corrosion, and the poorly fitted o-ring and tube design. Additionally, any time there’s EGR work, turbo work, or any other movement of the tube, leaking is more prevalent. This is mostly in part to the flawed design of the tube. With the SPE Heater Inlet Tube Fitting Kit we have resolved this issue.
Last edited by Overkill2; Sep 10, 2022 at 02:34 PM. Reason: add to post -- add link
Lead Driver
Joined: May 2021
Posts: 5,846
Likes: 3,468
From: Uh oh, CA
I have been watching videos and then walking outside, popping the hood and then studying... Lol! I'm getting excited to do mine, but I know that once I get started I'll be a bit nervous. On another note, I'm hoping too that before I start digging into this I will see my DPF% start climbing again... being stuck at 0% for a couple of weeks now is making me nervous and if somethings going on I would rather wait to do this install until after figuring that out.
Hotshot
Joined: Jul 2013
Posts: 14,266
Likes: 2,187
I have been watching videos and then walking outside, popping the hood and then studying... Lol! I'm getting excited to do mine, but I know that once I get started I'll be a bit nervous. On another note, I'm hoping too that before I start digging into this I will see my DPF% start climbing again... being stuck at 0% for a couple of weeks now is making me nervous and if somethings going on I would rather wait to do this install until after figuring that out.
correct.
you do not want to introduce changes if there are open items.
if you have forscan or an idash, you can use that to see if your back pressure sensor is sending pressure data.
also, you can check you exhuast tip for black soot inside the tip end walls. If the end walls are black, that would be an indication of cracked ceramic dpf honey comb…which would explain back pressure loss if that is the case.
Hotshot
Joined: Dec 2005
Posts: 10,250
Likes: 7,678
From: Chino Valley, Arizona
correct.
you do not want to introduce changes if there are open items.
if you have forscan or an idash, you can use that to see if your back pressure sensor is sending pressure data.
also, you can check you exhuast tip for black soot inside the tip end walls. If the end walls are black, that would be an indication of cracked ceramic dpf honey comb…which would explain back pressure loss if that is the case.
you do not want to introduce changes if there are open items.
if you have forscan or an idash, you can use that to see if your back pressure sensor is sending pressure data.
also, you can check you exhuast tip for black soot inside the tip end walls. If the end walls are black, that would be an indication of cracked ceramic dpf honey comb…which would explain back pressure loss if that is the case.
FTE Legend
Joined: Mar 2017
Posts: 31,880
Likes: 9,175
From: Western NY
correct.
you do not want to introduce changes if there are open items.
if you have forscan or an idash, you can use that to see if your back pressure sensor is sending pressure data.
also, you can check you exhuast tip for black soot inside the tip end walls. If the end walls are black, that would be an indication of cracked ceramic dpf honey comb…which would explain back pressure loss if that is the case.
you do not want to introduce changes if there are open items.
if you have forscan or an idash, you can use that to see if your back pressure sensor is sending pressure data.
also, you can check you exhuast tip for black soot inside the tip end walls. If the end walls are black, that would be an indication of cracked ceramic dpf honey comb…which would explain back pressure loss if that is the case.
https://docs.bankspower.com/bids/fil...7L_V_79_E.html
There's too under the Pressure field;
DPFIP1 DPF Inlet Press Bank 1 PSIG and EXH P1 Exhaust Back Pressure PSIA
There's also a bunch under the Emissions field but nothing that I see specific to DPF pressure readings.
