What connector is this?

Thread Tools

Search this Thread

Old Nov 4, 2021 | 05:51 PM
Share
  #1
SeniorRVer's Avatar
SeniorRVer
Thread Starter
|
Mountain Pass
Joined: Aug 2021
Posts: 111
Likes: 51

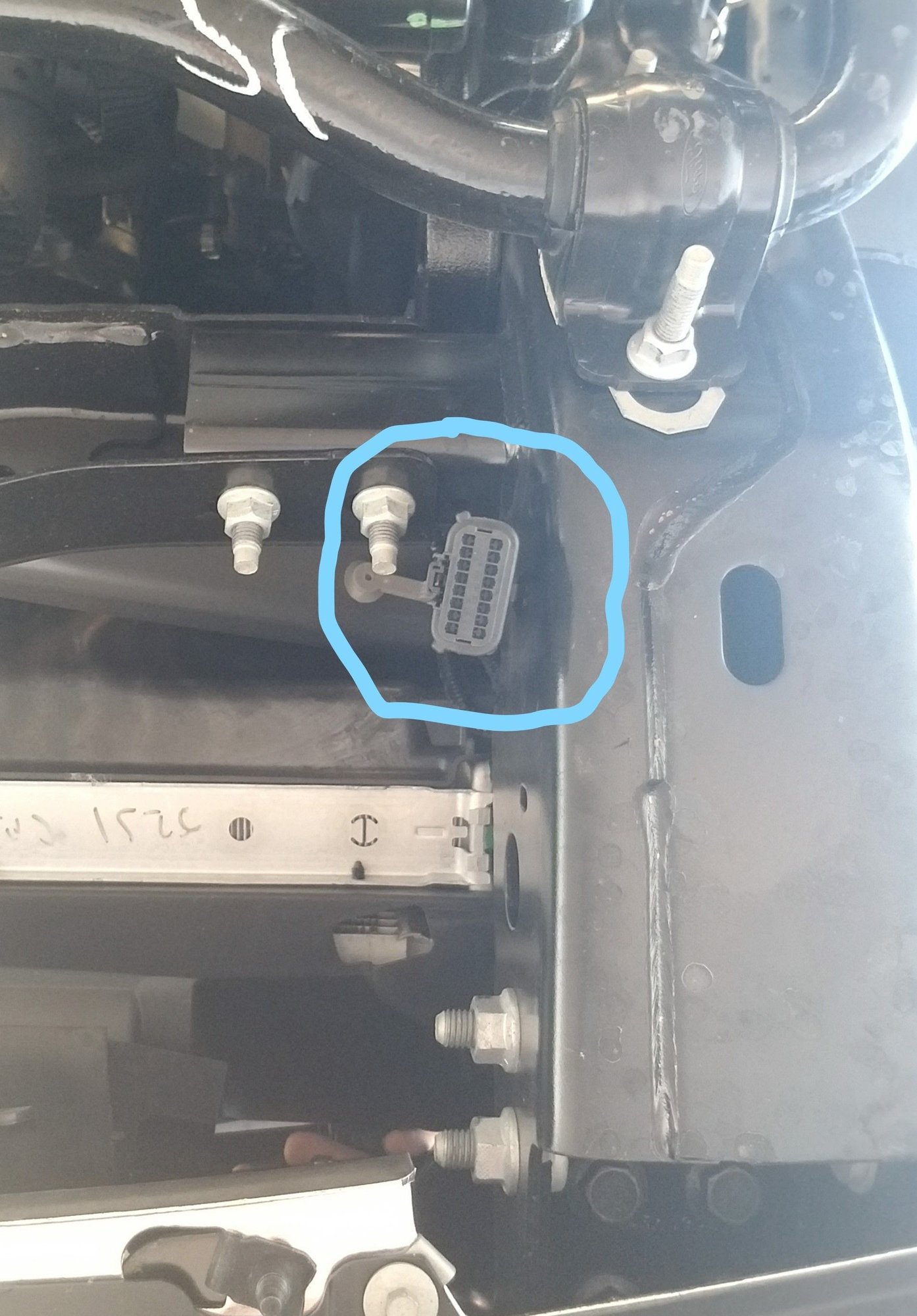

What connector is this?
driver side frame rail, right behind front bumper
.


Reply
0
Old Nov 4, 2021 | 05:54 PM
Share
  #2
BillyE's Avatar
BillyE
Fleet Mechanic
5 Year Member
Liked
Loved
Community Favorite
Joined: Feb 2018
Posts: 1,592
Likes: 204
I believe factory fog lights are powered through that connector.

Reply
0
Old Nov 4, 2021 | 06:06 PM
Share
  #3
h20camper's Avatar
h20camper
Logistics Pro
5 Year Member
Liked
Loved
Community Favorite
Joined: Apr 2017
Posts: 3,924
Likes: 321
From: Lost in the Ozone....
Correct. Along with some other features. But that is what I used it for, to add fogs to my STX.

Reply
0
Old Nov 4, 2021 | 07:51 PM
Share
  #4
SeniorRVer's Avatar
SeniorRVer
Thread Starter
|
Mountain Pass
Joined: Aug 2021
Posts: 111
Likes: 51
Originally Posted by h20camper
Correct. Along with some other features. But that is what I used it for, to add fogs to my STX.
ok, sounds good, but what adapter did you use to connect to a 16 pin port?
where can I find the pin mapping for it? and which options it enables?

Reply
0
Old Nov 4, 2021 | 08:07 PM
Share
  #5
h20camper's Avatar
h20camper
Logistics Pro
5 Year Member
Liked
Loved
Community Favorite
Joined: Apr 2017
Posts: 3,924
Likes: 321
From: Lost in the Ozone....
I bought the OEM harness that connects to it and then to the fog lights. I used an aftermarket harness that converted the OEM to standard aftermarket

Pin Out here:
  • 3 = 12v
  • 6 = Ground Headlamp Panel Left
  • 10 = Left Fog
  • 11 = Right Fog
  • 12 = CanBus High Speed 2 (Upper) Low
  • 13 = CanBus High Speed 2 (Upper) High
  • 14 - Ground Headlamp Panel Right

Reply
0
Old Nov 4, 2021 | 08:24 PM
Share
  #6
SeniorRVer's Avatar
SeniorRVer
Thread Starter
|
Mountain Pass
Joined: Aug 2021
Posts: 111
Likes: 51
Originally Posted by h20camper
I bought the OEM harness that connects to it and then to the fog lights. I used an aftermarket harness that converted the OEM to standard aftermarket

Pin Out here:
  • 3 = 12v
  • 6 = Ground Headlamp Panel Left
  • 10 = Left Fog
  • 11 = Right Fog
  • 12 = CanBus High Speed 2 (Upper) Low
  • 13 = CanBus High Speed 2 (Upper) High
  • 14 - Ground Headlamp Panel Right
hopefully, the pin position is same on a '22... I'm having hell finding the correct OEM part number ...
anyway, thanks for the info

Reply
0
Old Nov 5, 2021 | 11:24 AM
Share
  #7
Norcalpr's Avatar
Norcalpr
Tuned
Joined: Mar 2021
Posts: 370
Likes: 178
Originally Posted by SeniorRVer
ok, sounds good, but what adapter did you use to connect to a 16 pin port?
where can I find the pin mapping for it? and which options it enables?
The connector is a molex mx150. You can either buy the pins separately or the whole connector easily...

Amazon Amazon

Use a set of doubpe crimp pliers obviously...

Reply
0

Trending Topics

Old Nov 8, 2021 | 11:17 PM
Share
  #8
RubenZ's Avatar
RubenZ
More Turbo
Joined: Apr 2021
Posts: 650
Likes: 245
So once you connect them up, how do you turn them on from the inside?

Reply
0
FTE Stories

Ford Trucks for Ford Truck Enthusiasts

story-0

Rezvani's Latest Post-Apocalytic Monster Is a Ford F-150 Raptor Underneath

 Verdad Gallardo
story-1

Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer

 Joe Kucinski
story-2

2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)

 Brett Foote
story-3

Top 10 Ford Truck Tragedies

 Joe Kucinski
story-4

AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make

 Brett Foote
story-5

Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!

 Michael S. Palmer
story-6

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

 Verdad Gallardo
story-7

10 Best Ford Truck Engines We Miss the Most!

 Joe Kucinski
story-8

2026 Shelby F-150 Off-Road: Better Than a Raptor R?

 Brett Foote
story-9

2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!

 Michael S. Palmer
Old Nov 10, 2021 | 06:05 AM
Share
  #9
SeniorRVer's Avatar
SeniorRVer
Thread Starter
|
Mountain Pass
Joined: Aug 2021
Posts: 111
Likes: 51
Originally Posted by RubenZ
So once you connect them up, how do you turn them on from the inside?
by swapping out the headlamp control with one that has a fog light button

Reply
0
