Headlight circuit wire

I recently install some Glowshift gauges into my ‘99 and would like to wire in the nighttime dimmer function for them. I would like to wire that function into the headlight circuit, but I am not sure which wire at the headlight switch is the headlight circuit. Anyone know what color this wire is?

Aug 22, 2021 | 09:52 AM

alloro

Fleet Owner

Joined: Apr 2008

Posts: 24,319

Likes: 5,130

From: 0,0,1

If you want them to dim then it's the dimmer circuit you need to tap into, not the headlight circuit, unless you're saying they have their own built in dimmer and you just need power?

Aug 22, 2021 | 11:04 AM

JacobH190

Thread Starter

Freshman User

Joined: Jun 2020

Posts: 30

Likes: 0

From: Southern Missouri

Quote:

Originally Posted by alloro

If you want them to dim then it's the dimmer circuit you need to tap into, not the headlight circuit, unless you're saying they have their own built in dimmer and you just need power?

Correct, they have their own built in dimmer function. Looking at the wiring diagram, it would be the red and yellow wire I need to tap into?

Aug 23, 2021 | 09:38 AM

alloro

Fleet Owner

Joined: Apr 2008

Posts: 24,319

Likes: 5,130

From: 0,0,1

Quote:

Originally Posted by JacobH190

Correct, they have their own built in dimmer function. Looking at the wiring diagram, it would be the red and yellow wire I need to tap into?

Yes, wire R/Y, pin 6, on the headlight switch connector.

Aug 23, 2021 | 09:43 AM

alloro

Fleet Owner

Joined: Apr 2008

Posts: 24,319

Likes: 5,130

From: 0,0,1

Quote:

Originally Posted by JacobH190

Correct, they have their own built in dimmer function. Looking at the wiring diagram, it would be the red and yellow wire I need to tap into?

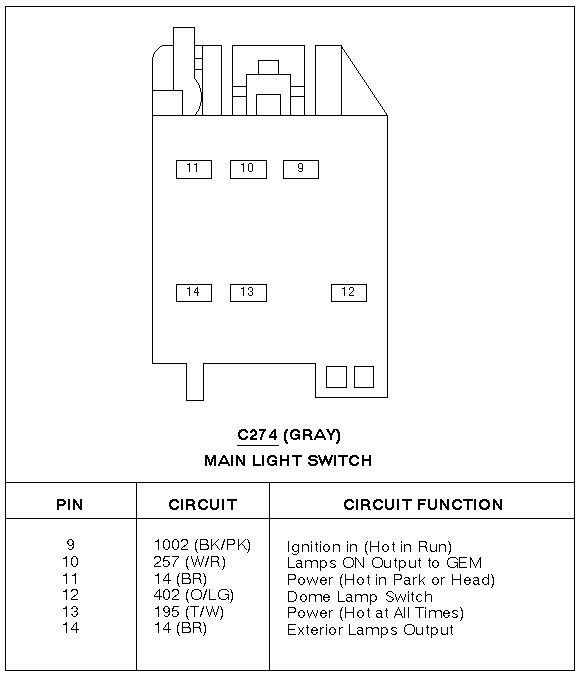

Food for thought, rather than the headlamp circuit, you might want to tap into the parking lamps circuit instead. That way you can have them on without having to have the headlamps on too. For that tap into the BR wire or pin 14 of the parking lamps circuit pin.
