T-case Floor Cutout

Thread Tools

Search this Thread

Old Jul 21, 2021 | 09:47 AM
Share
  #1
SVandal's Avatar
SVandal
Thread Starter
|
Tuned
5 Year Member
Liked
Loved
Community Favorite
Joined: Mar 2017
Posts: 417
Likes: 37
T-case Floor Cutout
Is the cutout for the T-case shifter in all cabs or only just the 4x4 models? I want to convert over to 4x4 and wondering if I will need to do some cutting on the body.

Reply
0
Old Jul 21, 2021 | 10:05 AM
Share
  #2
My4Fordtrucks's Avatar
My4Fordtrucks
Hotshot
10 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2015
Posts: 12,796
Likes: 2,427
No. It is not in all cabs. I am not sure if the transmission made a difference meaning if you had a manual transmission there would be a hole for the transfer case because of the different tunnel cover.

Reply
0
Old Jul 21, 2021 | 10:10 AM
Share
  #3
SVandal's Avatar
SVandal
Thread Starter
|
Tuned
5 Year Member
Liked
Loved
Community Favorite
Joined: Mar 2017
Posts: 417
Likes: 37
Ok. Mine is an automatic. Sounds like I will have to cut some sheet metal to make it work if I go that route vs an electric shift t-case.

Reply
0
Old Jul 21, 2021 | 10:45 AM
Share
  #4
GoinBoarding's Avatar
GoinBoarding
Cargo Master
15 Year Member
Liked
Loved
Community Favorite
Joined: Mar 2010
Posts: 3,326
Likes: 292
From: Laramie, WY
My '96 had no cutout for trans or t-case. Came as an electric t-case 4x4 with E4OD. There's a stamped outline though, so pretty straightforward to figure out.

Reply
2
Old Jul 21, 2021 | 12:18 PM
Share
  #5
GNR22's Avatar
GNR22
Logistics Pro
10 Year Member
Liked
Loved
Community Favorite
Joined: Mar 2011
Posts: 4,197
Likes: 558
From: Central Wisconsin
We just cut out the floor on a '94 2 wheel drive cab yesterday for this. You can distinctly see the outline where the shifter hole should be for the t-case. We cut it out with a plasma cutter.

Reply
1
Old Jul 21, 2021 | 01:08 PM
Share
  #6
SVandal's Avatar
SVandal
Thread Starter
|
Tuned
5 Year Member
Liked
Loved
Community Favorite
Joined: Mar 2017
Posts: 417
Likes: 37
Thank you for the information. Sounds very doable. Now I just need some hardware from a donor.

Reply
0
Old Jul 21, 2021 | 09:31 PM
Share
  #7
IBLDBLUE's Avatar
IBLDBLUE
Mountain Pass
20 Year Member
Photogenic
Liked
Joined: Jan 2005
Posts: 157
Likes: 16
From: Everett
My 1990 2wd had the cut out. There was a plate being held in with 4 screws and some silicon.

Reply
1

Trending Topics

Old May 6, 2023 | 03:16 PM
Share
  #8
bulletpruf's Avatar
bulletpruf
Fleet Mechanic
15 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2009
Posts: 1,312
Likes: 327
From: San Antonio, TX
No cutout on my 1987 F350, ZF5. Any ideas on where to cut? Thanks


Reply
0
FTE Stories

Ford Trucks for Ford Truck Enthusiasts

story-0

Top 10 Ford Truck Tragedies

 Joe Kucinski
story-1

AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make

 Brett Foote
story-2

Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!

 Michael S. Palmer
story-3

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

 Verdad Gallardo
story-4

10 Best Ford Truck Engines We Miss the Most!

 Joe Kucinski
story-5

2026 Shelby F-150 Off-Road: Better Than a Raptor R?

 Brett Foote
story-6

2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!

 Michael S. Palmer
story-7

10 Most Surprising 2026 Ford Truck Features!

 Joe Kucinski
story-8

Top 10 Ford Trucks Coming to Mecum Indy 2026

 Brett Foote
story-9

5 Best / 5 Worst Ford Truck Wheels of All Time

 Joe Kucinski
Old May 6, 2023 | 06:06 PM
Share
  #9
My4Fordtrucks's Avatar
My4Fordtrucks
Hotshot
10 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2015
Posts: 12,796
Likes: 2,427
Originally Posted by bulletpruf
No cutout on my 1987 F350, ZF5. Any ideas on where to cut? Thanks
What transfer case shifter are you using? On my ‘87 Bronco the transfer case shifter is centered on the top of the cover.

Reply
0
Old May 6, 2023 | 09:06 PM
Share
  #10
bulletpruf's Avatar
bulletpruf
Fleet Mechanic
15 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2009
Posts: 1,312
Likes: 327
From: San Antonio, TX

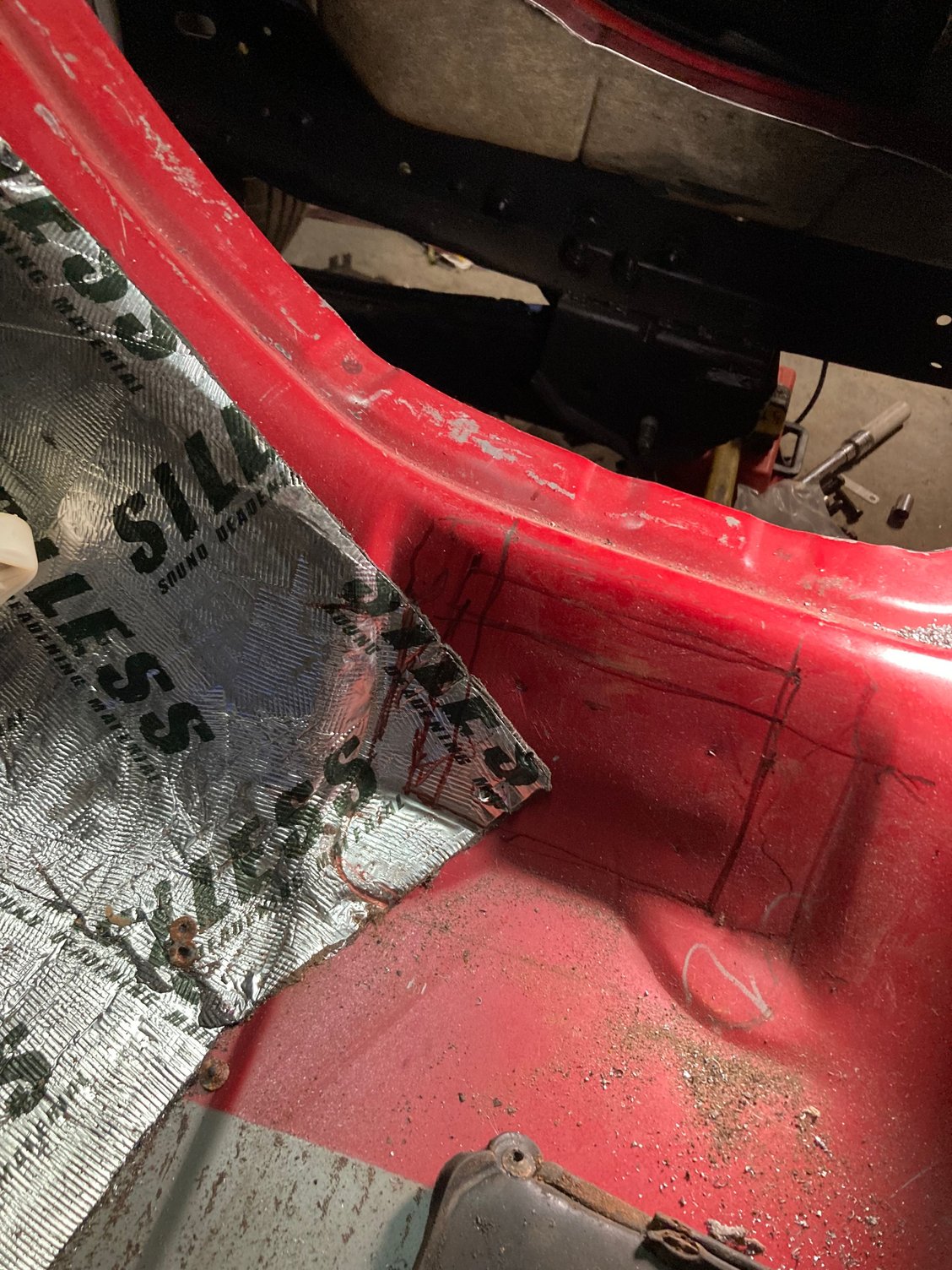

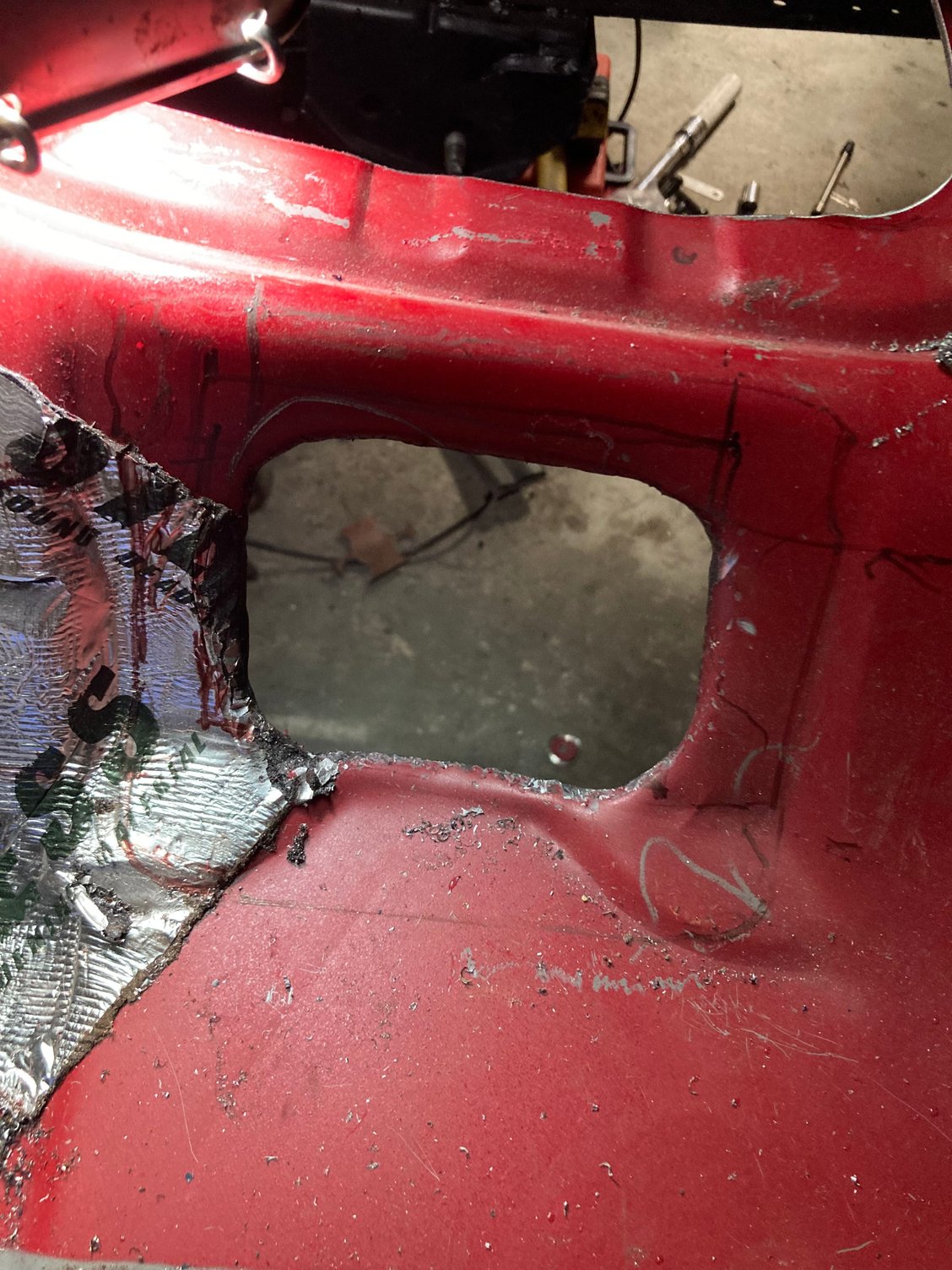

Here's a pic of where the hole is; posted on oilburners. Waiting for him to send some dimensions.



Reply
0
Old May 8, 2023 | 06:04 AM
Share
  #11
SVandal's Avatar
SVandal
Thread Starter
|
Tuned
5 Year Member
Liked
Loved
Community Favorite
Joined: Mar 2017
Posts: 417
Likes: 37
Originally Posted by bulletpruf
Here's a pic of where the hole is; posted on oilburners. Waiting for him to send some dimensions.
Is that for an 87? I’ve seen earlier trucks had the Tcase shifter in the tunnel cover.

pictures here are for a 96




Reply
1
Old May 8, 2023 | 10:17 AM
Share
  #12
bulletpruf's Avatar
bulletpruf
Fleet Mechanic
15 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2009
Posts: 1,312
Likes: 327
From: San Antonio, TX
Yes, it's for an '87. Transfer case shifter is in the same spot as the pics you posted. Thanks

Reply
0
Old May 8, 2023 | 11:42 AM
Share
  #13
My4Fordtrucks's Avatar
My4Fordtrucks
Hotshot
10 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2015
Posts: 12,796
Likes: 2,427
Originally Posted by SVandal
Is that for an 87? I’ve seen earlier trucks had the Tcase shifter in the tunnel cover.
That’s why I asked what shifter is being used. This is where my ‘87 Bronco transfer case shift is located.


Reply
0
Old May 8, 2023 | 12:03 PM
Share
  #14
bulletpruf's Avatar
bulletpruf
Fleet Mechanic
15 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2009
Posts: 1,312
Likes: 327
From: San Antonio, TX
Originally Posted by My4Fordtrucks
That’s why I asked what shifter is being used. This is where my ‘87 Bronco transfer case shift is located.
no room for it there; that’s where my ZF5 shifter is

Reply
0
Old May 8, 2023 | 03:09 PM
Share
  #15
My4Fordtrucks's Avatar
My4Fordtrucks
Hotshot
10 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2015
Posts: 12,796
Likes: 2,427

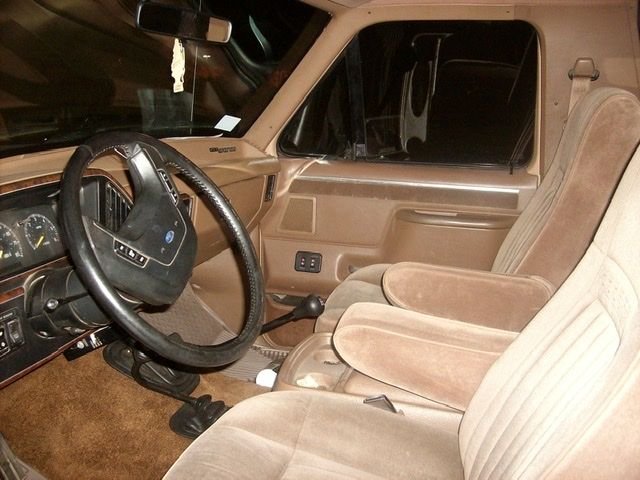

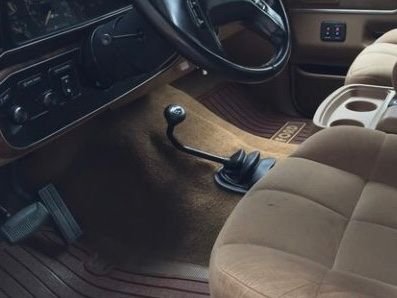

Picture of an ‘87 with manual transmission. Transfer case shifter is still on top of the hump.
