Test light solid, no pulse...

Thread Tools

Search this Thread

Old Nov 28, 2020 | 02:23 PM
  #1
rtcapo's Avatar
rtcapo
Thread Starter
|
Mountain Pass
5 Year Member
Photoriffic
Shutterbug
Loved
Joined: Jun 2017
Posts: 204
Likes: 9
From: West Palm Beach
Test light solid, no pulse...

When I put a test light on the fuel sending unit I don’t get the pulse, just a solid steady light.

what does that mean?

Fuel gauge always reads 3/4 empty.

New instrument cluster voltage regulator installed.

A new sending unit reads 1/2 full when I filled it up.

rtc


Reply
Old Nov 28, 2020 | 04:57 PM
  #2
jowilker's Avatar
jowilker
Fleet Owner
25 Year Member
Joined: Jun 1999
Posts: 24,552
Likes: 74
From: Creedmoor, North Carolina
Club FTE Silver Member

Make sure you have a good ground at the tank. Sometime a little paint can be in the way.


John

Reply
Old Nov 28, 2020 | 05:01 PM
  #3
rtcapo's Avatar
rtcapo
Thread Starter
|
Mountain Pass
5 Year Member
Photoriffic
Shutterbug
Loved
Joined: Jun 2017
Posts: 204
Likes: 9
From: West Palm Beach
Originally Posted by jowilker
Make sure you have a good ground at the tank. Sometime a little paint can be in the way.


John
I used the spade on the sending unit and the body near the roof line, it does have paint up there...I scratched off some paint...still solid light.

thanks,

rtc

Reply
Old Nov 28, 2020 | 06:30 PM
  #4
Tedster9's Avatar
Tedster9
Post Fiend
Joined: Apr 2002
Posts: 19,311
Likes: 97
From: Waterloo, Iowa
It's the ICVR that provides the pulse, isn't it? Be sure to use analog type voltmeter, many digital LCD displays will just be gibberish.

Reply
Old Nov 29, 2020 | 12:36 AM
  #5
Christmas's Avatar
Christmas
Logistics Pro
5 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2018
Posts: 3,550
Likes: 441
The fuel tank sender has no voltage to measure. It can only be tested as resistance using an Ohm meter. As the float moves up and down the resistance changes. Best way to test is to remove it. This is the same thing you would do to test the oil and temp senders. You don't want to introduce any sort of voltage for testing. The ICVR provides the voltage to the gauge and the senders provide the ground. Spark and fuel is not your friend here.

Reply
Old Nov 29, 2020 | 07:17 AM
  #6
rtcapo's Avatar
rtcapo
Thread Starter
|
Mountain Pass
5 Year Member
Photoriffic
Shutterbug
Loved
Joined: Jun 2017
Posts: 204
Likes: 9
From: West Palm Beach
Originally Posted by Tedster9
It's the ICVR that provides the pulse, isn't it? Be sure to use analog type voltmeter, many digital LCD displays will just be gibberish.
Right, I’m just using a harbor freight circuit tester.

The point of the tester in the power wire that goes to the top of the sending unit, and the clip to bare metal.

rtc

Reply
Old Nov 29, 2020 | 08:34 AM
  #7
Tedster9's Avatar
Tedster9
Post Fiend
Joined: Apr 2002
Posts: 19,311
Likes: 97
From: Waterloo, Iowa
Basically if the factory gauge itself pegs to the high side when the hot wire at the tank is grounded momentarily, then the gauge is probably good. Just do this for a second to make sure it's OK.

Then with the sender unit in hand run the float arm through full travel lock to lock as it were, and see if the gauge display is corresponding to that. When the float arm is at the top of its travel, the gauge should read above "F". If not, that's a problem. It may just need an adjustment. The aftermarket senders have a set screw that will allow for calibration. I don't really care how many ohms it is, I just want the gauge to read close. Small adjustments make big changes in the gauge indication.

An easier or at least quicker way to calibrate is if the tank itself is known to be 1/2 full, adjust the float arm set screw (if it has one) and float arm so the fuel quantity gauge displays at 1/2 full, in the center of its range.

Reply
Old Nov 29, 2020 | 09:18 AM
  #8
Crop Duster's Avatar
Crop Duster
Logistics Pro
Veteran: Air Force
10 Year Member
Joined: May 2015
Posts: 4,463
Likes: 954
From: Tri Cities, TN
Club FTE Silver Member

Which ICVR did you install? A solid state one will put out a constant 5 to 5.5 volts, an electro mechanical one will pulse.

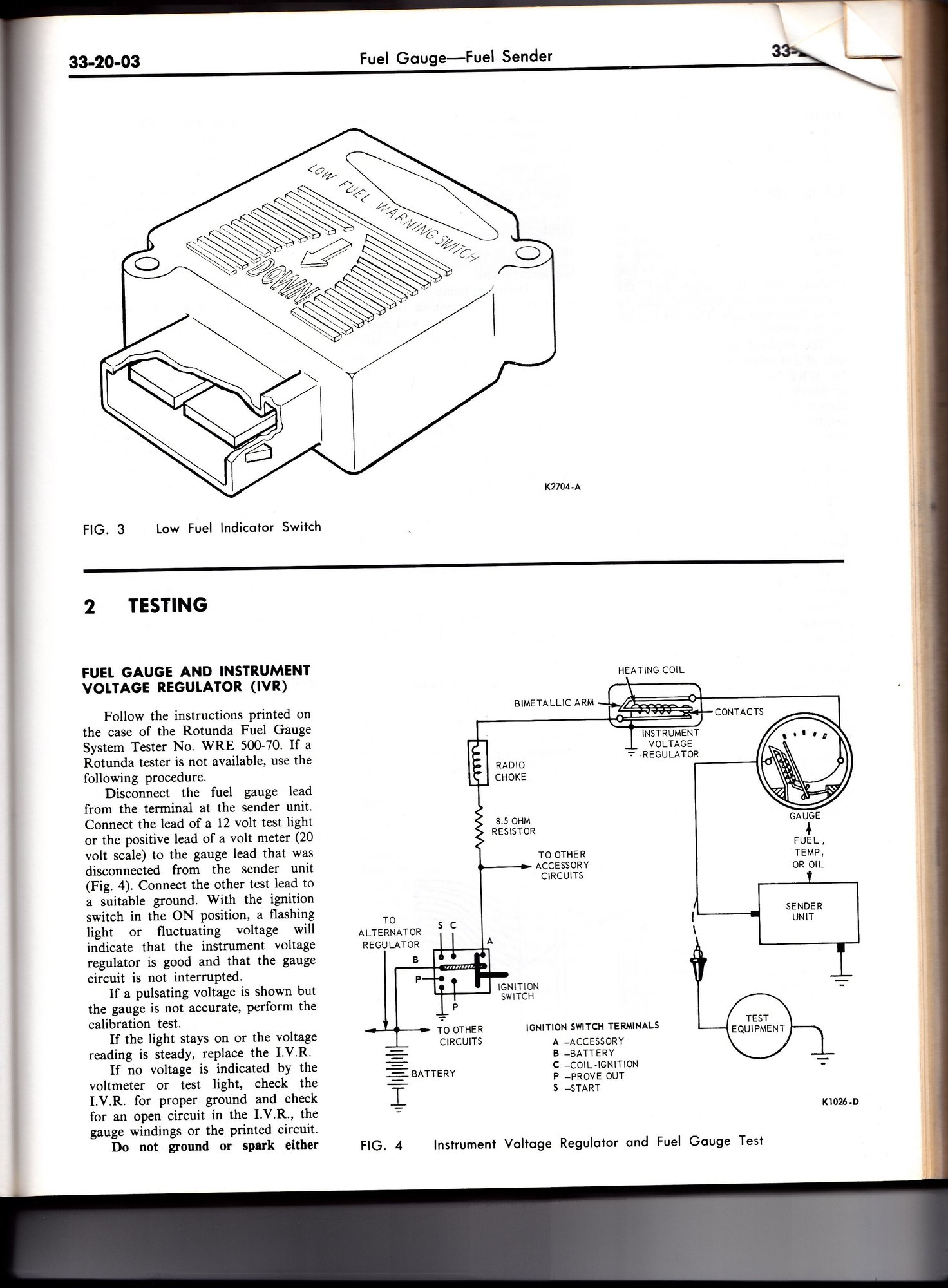

The only reliable way to test these gauges is to follow the manual instructions. Disregard the 8.5 ohm resistor and radio choke they aren't used in your truck.






Reply
FTE Stories

Ford Trucks for Ford Truck Enthusiasts

story-0

Top 10 Ford Truck Tragedies

 Joe Kucinski
story-1

AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make

 Brett Foote
story-2

Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!

 Michael S. Palmer
story-3

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

 Verdad Gallardo
story-4

10 Best Ford Truck Engines We Miss the Most!

 Joe Kucinski
story-5

2026 Shelby F-150 Off-Road: Better Than a Raptor R?

 Brett Foote
story-6

2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!

 Michael S. Palmer
story-7

10 Most Surprising 2026 Ford Truck Features!

 Joe Kucinski
story-8

Top 10 Ford Trucks Coming to Mecum Indy 2026

 Brett Foote
story-9

5 Best / 5 Worst Ford Truck Wheels of All Time

 Joe Kucinski
Old Nov 29, 2020 | 05:05 PM
  #9
rtcapo's Avatar
rtcapo
Thread Starter
|
Mountain Pass
5 Year Member
Photoriffic
Shutterbug
Loved
Joined: Jun 2017
Posts: 204
Likes: 9
From: West Palm Beach
Originally Posted by Crop Duster
Which ICVR did you install?

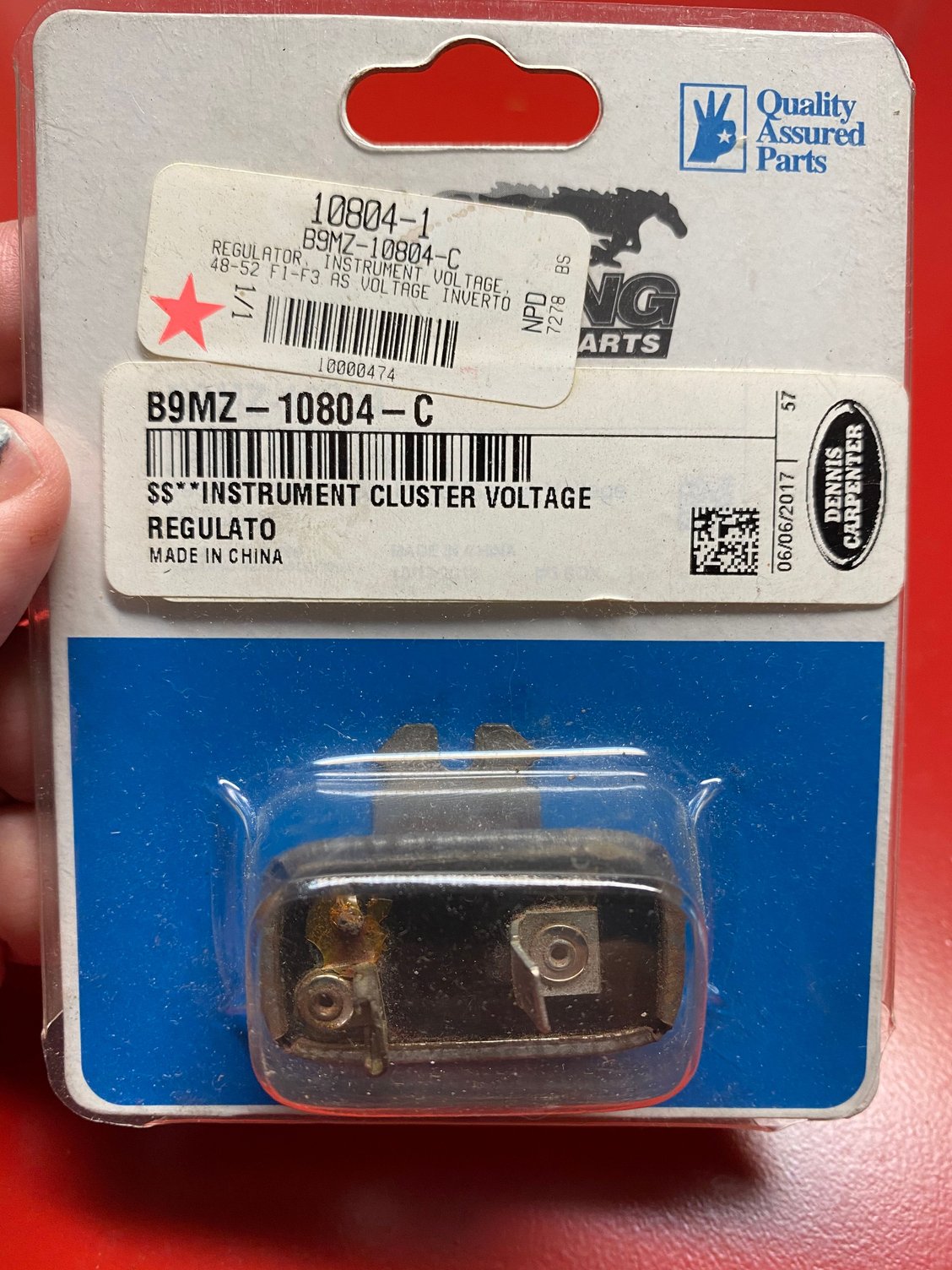

I bought and installed this a few years ago. I thought I might have bought the wrong one, but it fits the description of NPD and Dennis Carpenters website.

On DC, looks like it’s solid state.

rtc

Reply
Old Nov 29, 2020 | 05:28 PM
  #10
rtcapo's Avatar
rtcapo
Thread Starter
|
Mountain Pass
5 Year Member
Photoriffic
Shutterbug
Loved
Joined: Jun 2017
Posts: 204
Likes: 9
From: West Palm Beach
Originally Posted by Tedster9
It may just need an adjustment. The aftermarket senders have a set screw that will allow for calibration.
That’s cool, where is the set screw? Is it the two nuts on top of the assembly or is it internal?



Reply
Old Nov 30, 2020 | 04:19 AM
  #11
Tedster9's Avatar
Tedster9
Post Fiend
Joined: Apr 2002
Posts: 19,311
Likes: 97
From: Waterloo, Iowa

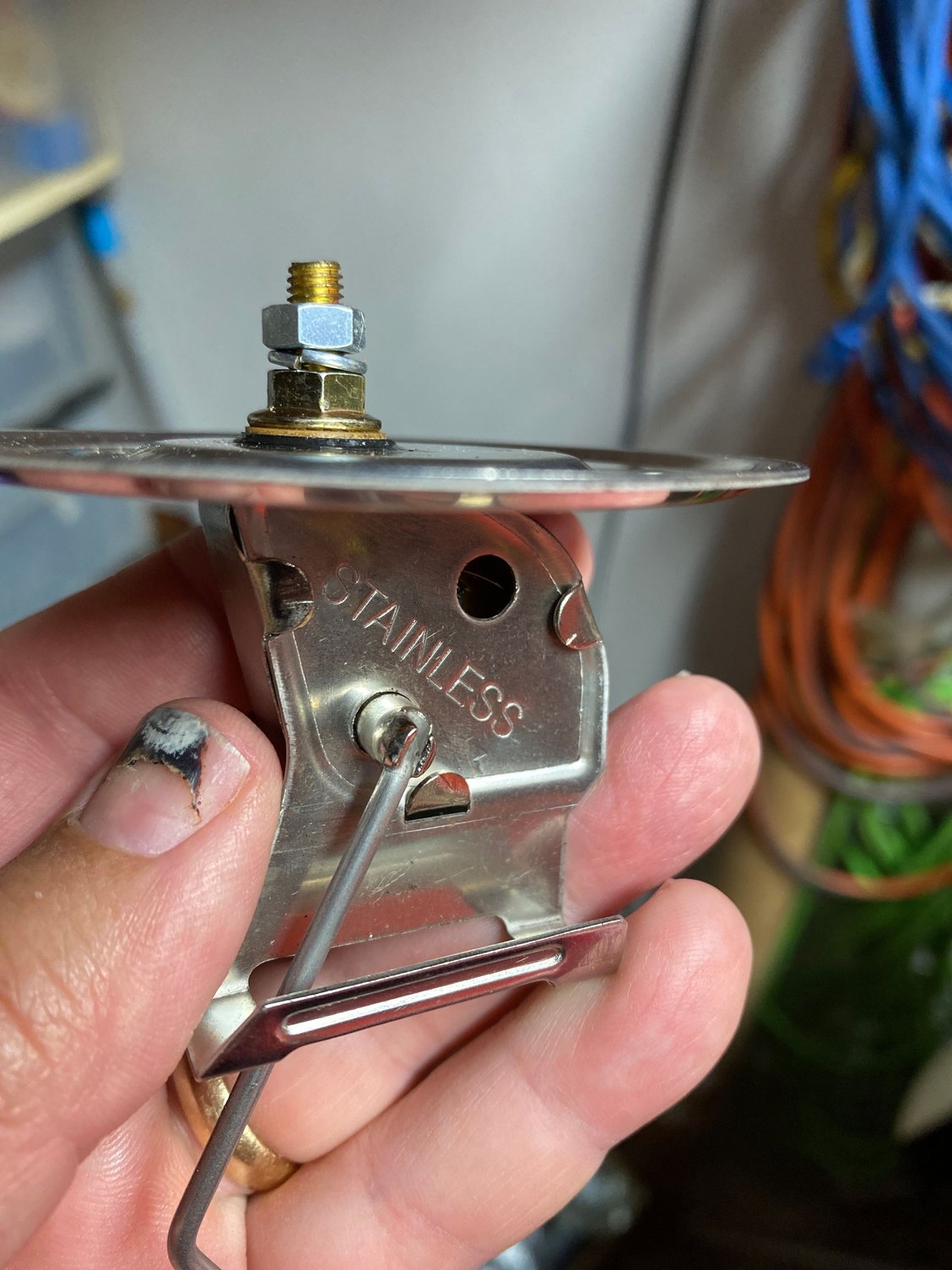

OK, I see they have "improved" the quality of construction. The arm is just crimped on to the rotor. Nice. So no adjustment is possible.
