66 E160 Supervan Brake Lines
Thread Starter
|
New User
Joined: Oct 2020
Posts: 2
Likes: 0
66 E160 Supervan Brake Lines
Long Story Short, A buddy of mine bought a super van that had brake issues. Investigating found some rusted lines. Disassembled earlier in the year and now he can't remember the line configuration.
Any chance someone has a picture of the master cylinder and the line configuration on which line goes to which port and the proportioning valve as well?
Thanks in advance for all help provided.
Any chance someone has a picture of the master cylinder and the line configuration on which line goes to which port and the proportioning valve as well?
Thanks in advance for all help provided.
Hotshot
Joined: Feb 2015
Posts: 17,559
Likes: 1,081
From: Central Delaware

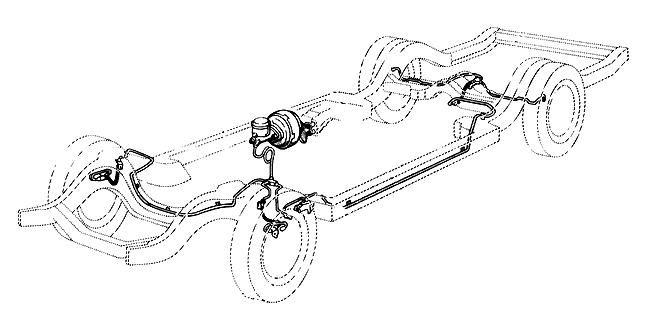

The is a very generic diagram, but, it is accurate. A google search turned up a bunch of pics for the 67 and up, but I didn't see anything for the 66 and prior. Some more intense searching may reveal the exact diagram you need.
Cargo Master
Joined: Dec 2006
Posts: 2,511
Likes: 8
From: hinckley ohio
there is no proportioning valve just a 3 way block that bolts to master cylinder. with the brake light switch on the end. on mine don't remember correct location but think it was left front left rt.front and rear line of the bottom part. when I did my lines need 2 51 inch for pass side 2 18 or 21for driver side
