65 66 Restoration Guide
I made a few corrections, added the part number for the short bed front parking brake cable, and some GVWR info. Here is the new link:
https://drive.google.com/file/d/1fBF...ew?usp=sharing
I hope this helps you get your truck project moving forward.
https://drive.google.com/file/d/1fBF...ew?usp=sharing
I hope this helps you get your truck project moving forward.
Lead Gopher
Joined: Aug 2012
Posts: 10,057
Likes: 1,612
From: Seattle

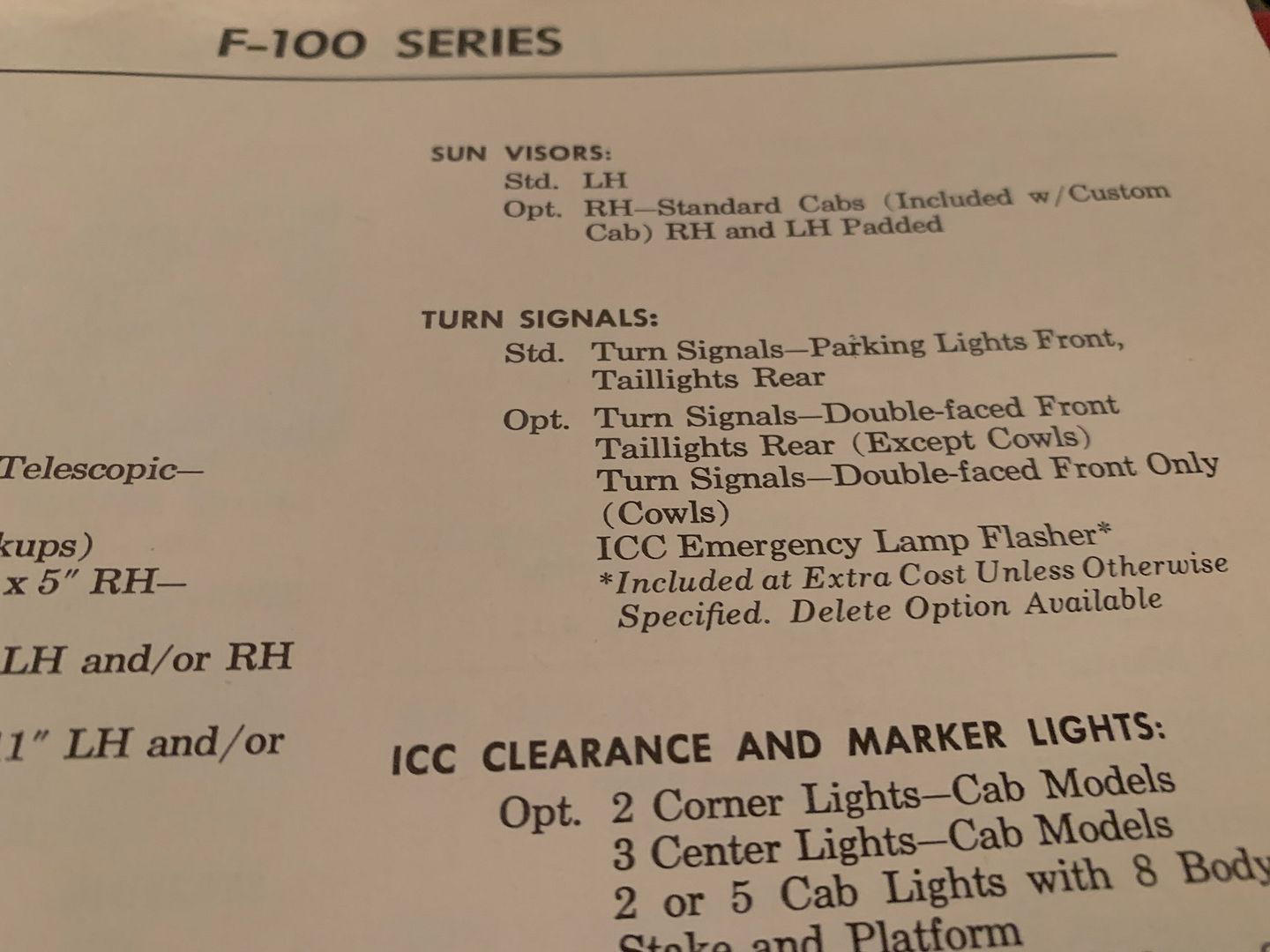

Minor correction: Custom Cab got you two un-padded sun visors as standard equipment but the padded visors were optional on all models.
Here's an invoice for a 1966 Custom Cab without padded visors.

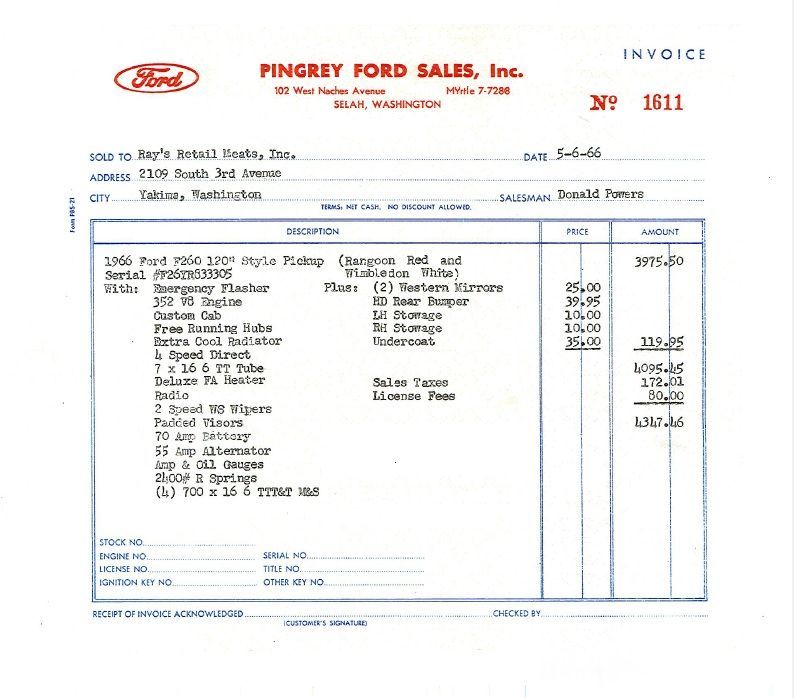

Here's a Custom Cab invoice for a 1966 that was ordered with the optional Padded Visors.
.jpg?width=1920&height=1080&fit=bounds)
1964 was the first year for padded visors and padded dash. They were both part of the optional "Safety Package" in that year.
Here's an invoice for a 1966 Custom Cab without padded visors.
Here's a Custom Cab invoice for a 1966 that was ordered with the optional Padded Visors.
1964 was the first year for padded visors and padded dash. They were both part of the optional "Safety Package" in that year.
Thread Starter
|
Fleet Mechanic
Joined: Sep 2016
Posts: 1,459
Likes: 70
From: Southern Maryland
Excellent, thanks! I'm working on an update for this fall. I'm probably the only one trying to make the factory transistorized ignition operational, but I added more information from the maintenance manuals. I also have sales brochures from both '65 and '66 that depict a style side F100 with an 8' "Camper Coach" and an F250 with a 10' over the cab "Camper Coach", Ford speak for a camper shell.
Thread Starter
|
Fleet Mechanic
Joined: Sep 2016
Posts: 1,459
Likes: 70
From: Southern Maryland

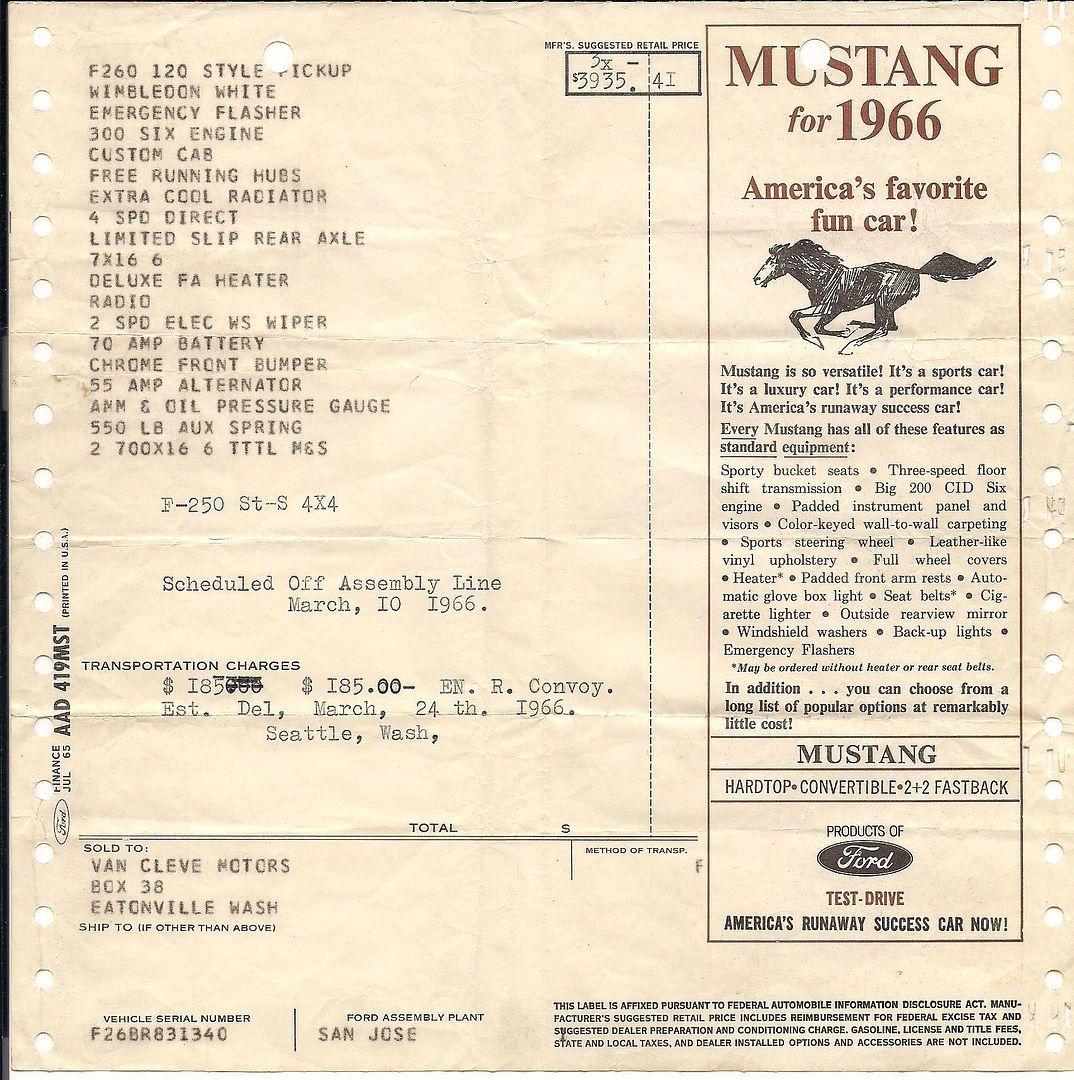

Something else I noted was that the 6 cylinder invoice only shows 2 6 ply tires while the V8 shows all 4. Strange that they would have delivered it with different tires front and rear.
Lead Gopher
Joined: Aug 2012
Posts: 10,057
Likes: 1,612
From: Seattle

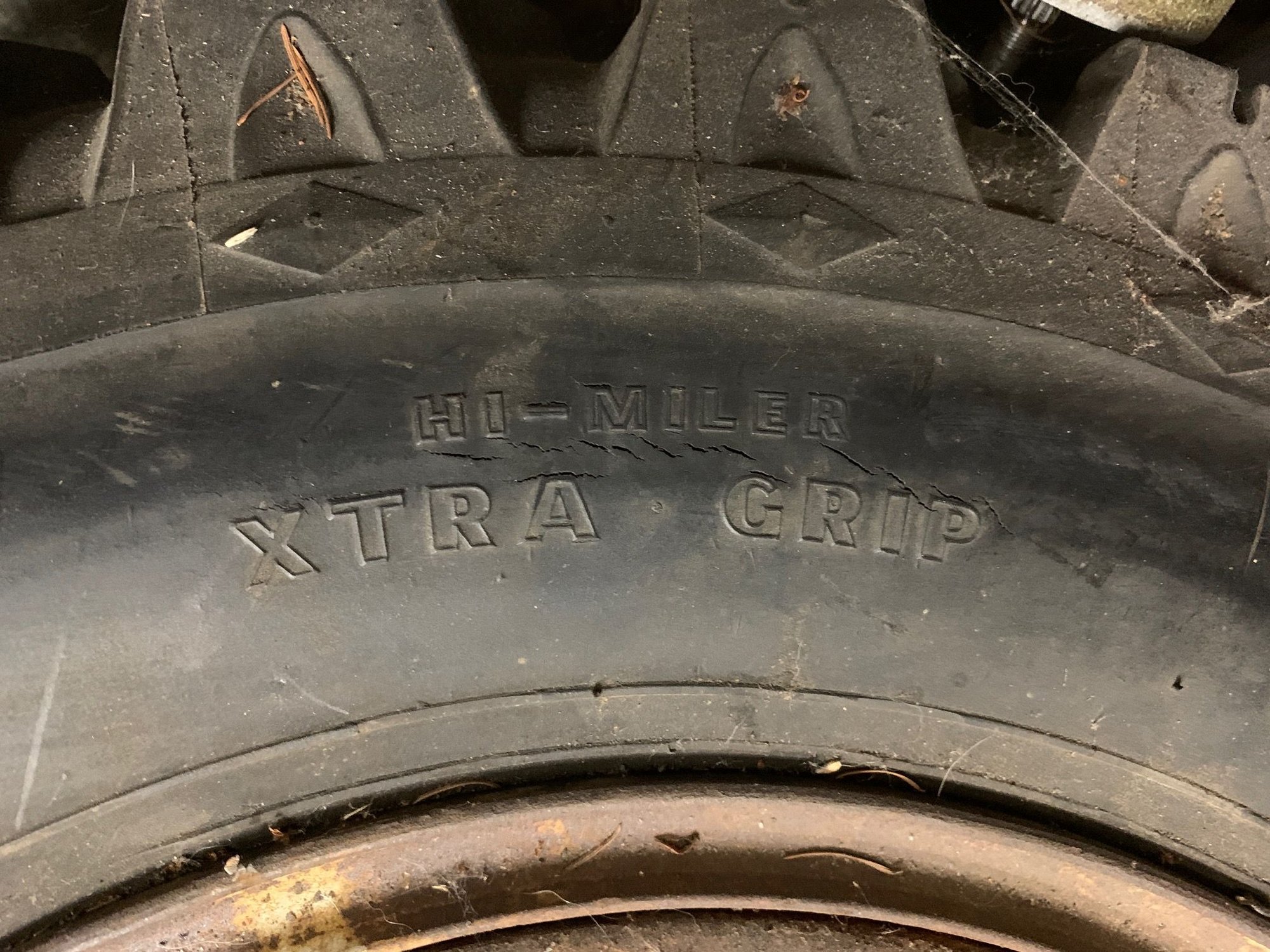

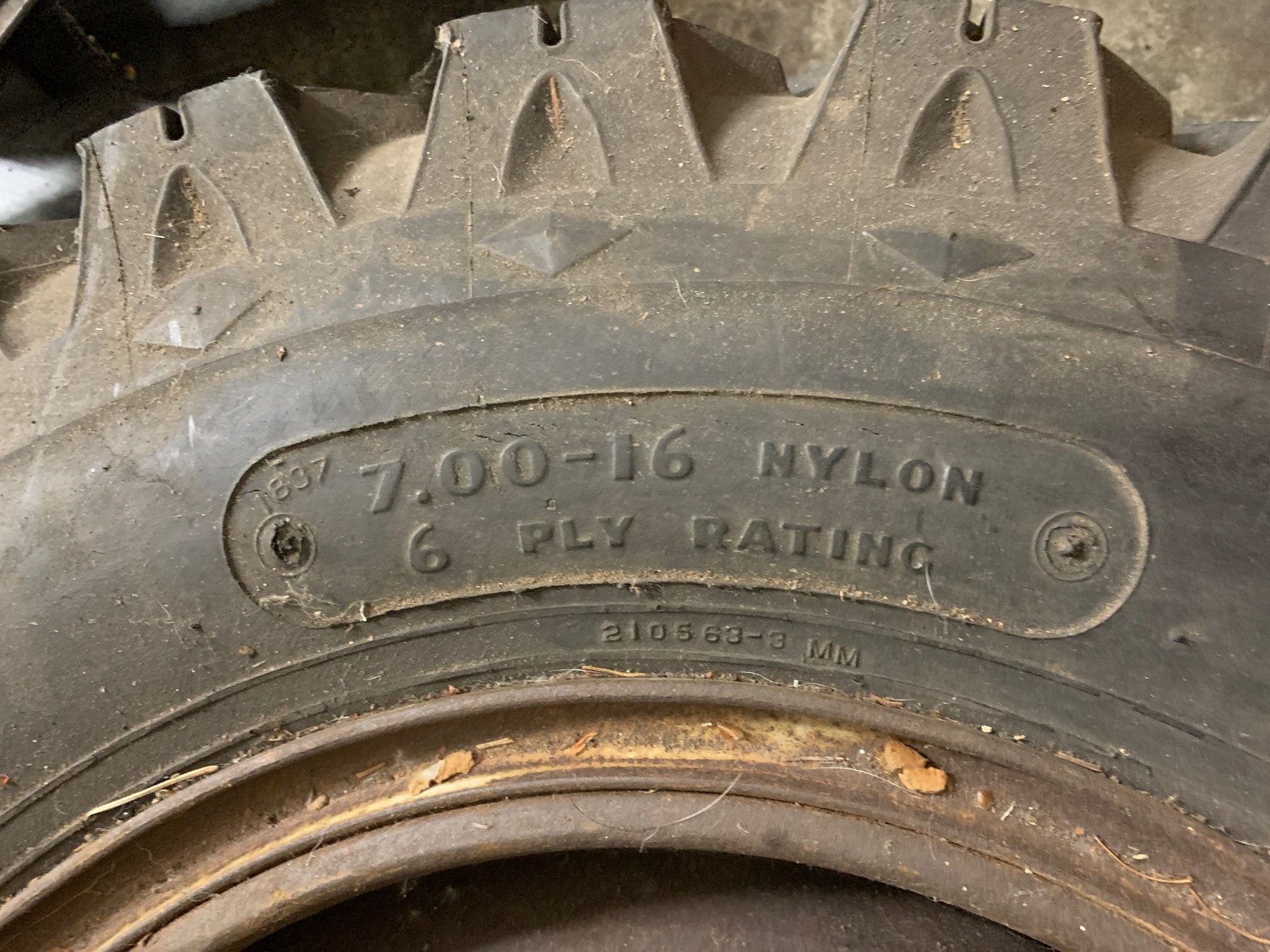

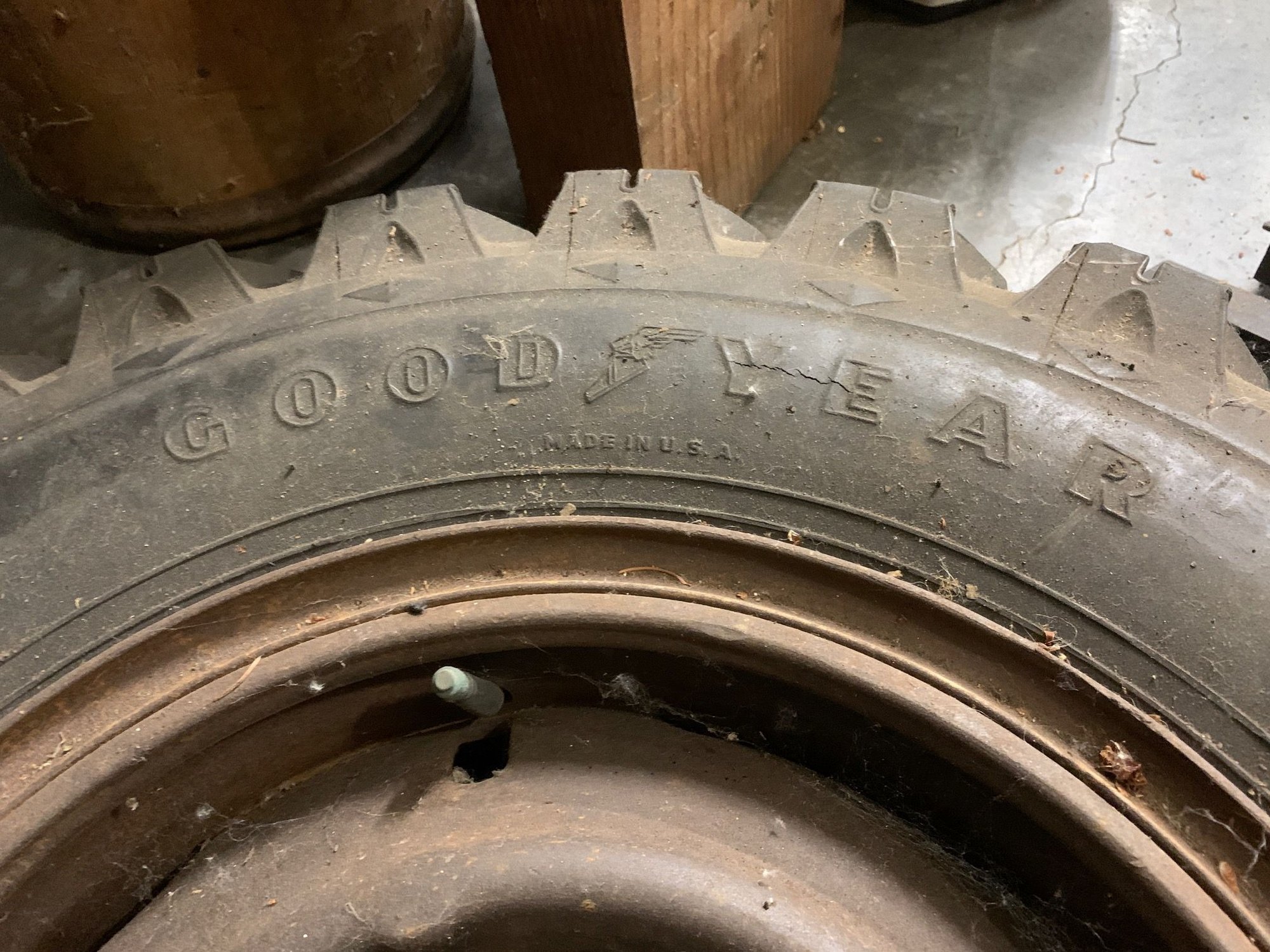

The 6 cylinder truck has a six digit DSO while the V8 has a two digit DSO - Both Seattle 74 - The tires may have been the thing that was special ordered. Nothing else seems to be particularly unique about the truck and I've always assumed the special order had to do with the tires. At this link is the build sheet and you can see across the bottom there are 4 tires specified but definitely seems to be two called out of one type and two of another type. All Goodyear tires, but two seem to be Standard and two seem to be XGRIP.
https://www.ford-trucks.com/g/picture/907676
https://www.ford-trucks.com/g/picture/907676
