Oil baffle orientation

Ridge up

Ridge down

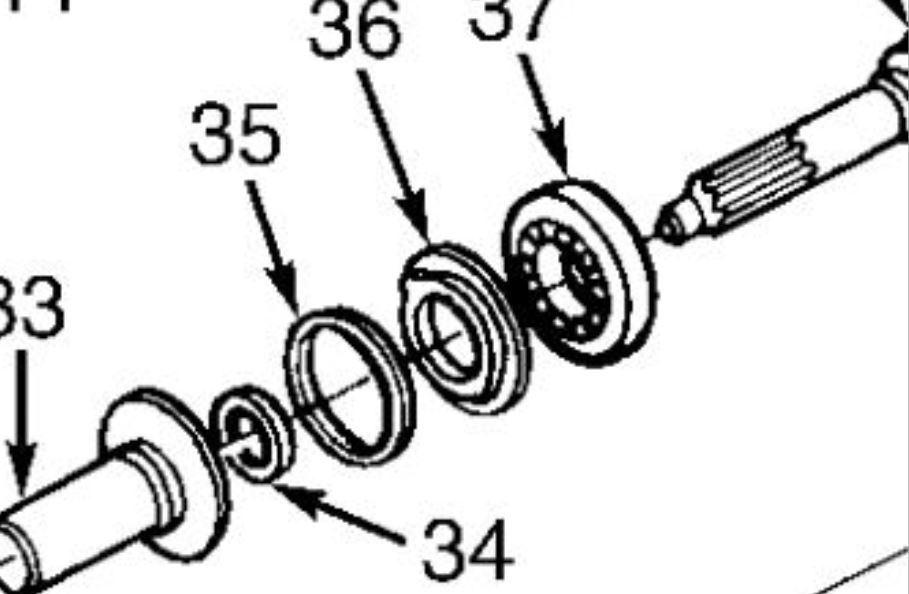

This is the order of it. The oil baffle sits on top of the shim and beneath tube race.
Which direction should the oil baffle be pointed. Up or down? Somebody else took it apart. I'm almost to the end

Reply
0
Old Jul 27, 2020 | 09:35 PM
Share
  #2
jk080's Avatar
jk080
Transmission Rebuilder
15 Year Member
Photogenic
Photoriffic
Shutterbug
Joined: Jul 2008
Posts: 1,570
Likes: 63
From: North Georgia
Club FTE Silver Member

Looks like the inner ridge is facing down towards the shim.
















Reply
0
Old Jul 27, 2020 | 10:46 PM
Share
  #3
Triggerready's Avatar
Triggerready
Thread Starter
|
Freshman User
Joined: Jul 2020
Posts: 30
Likes: 0

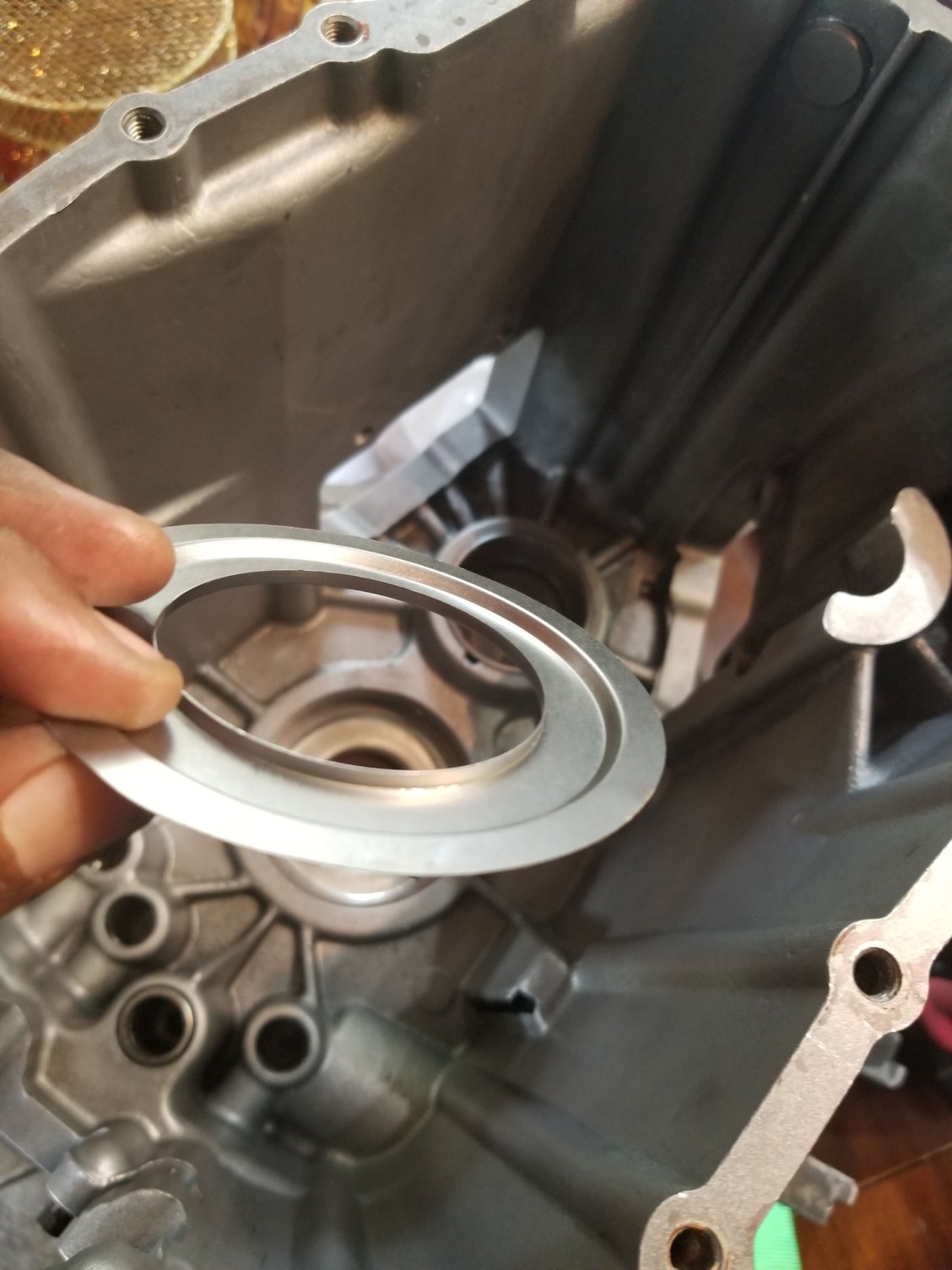

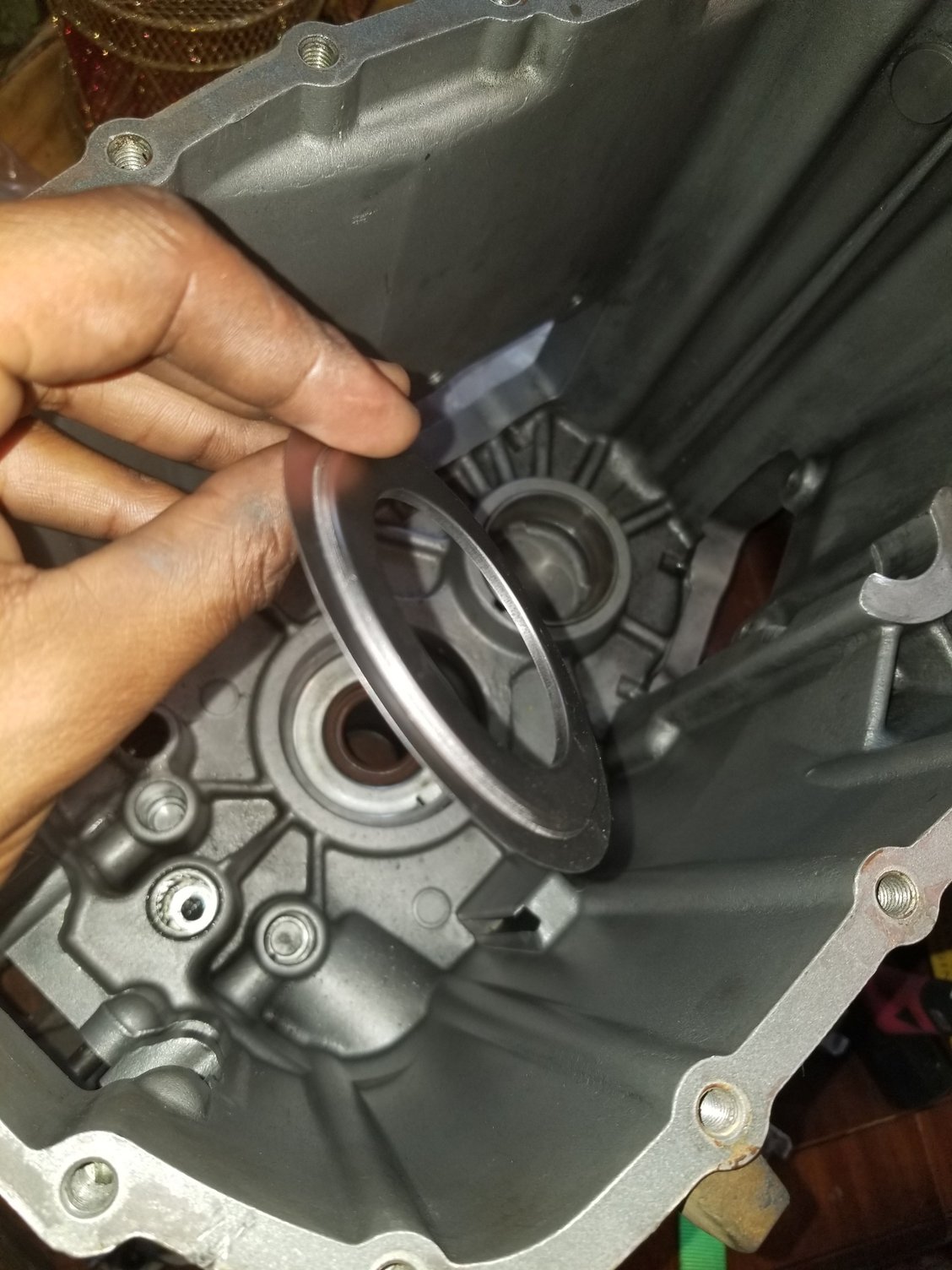

@jk080 so like this

@jk080 ao like this

Reply
0
Old Jul 28, 2020 | 09:59 PM
Share
  #4
jk080's Avatar
jk080
Transmission Rebuilder
15 Year Member
Photogenic
Photoriffic
Shutterbug
Joined: Jul 2008
Posts: 1,570
Likes: 63
From: North Georgia
Club FTE Silver Member

Yes that looks correct from what I can tell

Reply
0
Old Jul 28, 2020 | 10:23 PM
Share
  #5
Triggerready's Avatar
Triggerready
Thread Starter
|
Freshman User
Joined: Jul 2020
Posts: 30
Likes: 0
@jk080 I can't wait till I get it on. I've been driving 4 dent ls all direction minivan with no door handle or AC for the past 6 months lol

Reply
0
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Where does the oil go?
52Flthed
1948 - 1956 F1, F100 & Larger F-Series Trucks
4
Aug 29, 2019 09:55 PM
Oil life remaining
RandyinTN
2017 - 2022 Super Duty
2
Mar 29, 2019 05:48 AM
Would this be enough damage to cause low oil pressure?
JoeDaf
Ford Inline Six, 200, 250, 4.9L / 300
14
Mar 3, 2018 10:46 AM
HELP! River of Oil
GatorBait1996
6.0L Power Stroke Diesel
36
Feb 11, 2013 04:42 PM
CF Upgrades
muns53
Bio-diesel, Propane & Alternative Diesel Engine Fuels
1
Apr 17, 2011 11:56 AM
Back to Subforum
Clutch, Transmission, Differential, Axle & Transfer Case
View Next Unread
Fluid pouring out of bellhousing on E4OD. Replace pump?
