Transmission plugs different !!

Reply Subscribe

Thread Tools

Search this Thread

Jul 6, 2020 | 10:30 AM

#16

jas88

Lead Driver

Joined: Feb 2002

Posts: 7,961

Likes: 594

From: Greater Austin, Texas

I just did this in reverse, I put a 1994 E4OD into a 1996 Bronco. You can source the correct plug that connects at the transmission on eBay. The plugs tend to melt, especially if the heat shield is missing like it was on mine, so replacements are readily available.

https://www.ebay.com/itm/Ford-E4OD-4...0AAOSwo4pYOwuy

I bought the 94 plug and then connected it to the 96 harness. The wire colors and circuits are all the same. I got the pinouts for 94 and 96 and compared them. All you have to do is solder the wires on the 96 plug to your 94 wires, the colors are the same.

The transmission does not care about OBD1 vs OBD2.

1994 pinouts:

1996 pinouts:

Jul 6, 2020 | 10:31 AM

#17

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,667

Likes: 301

From: Easton,Ks

Quote:

Originally Posted by jackietreehorn

I sent him a 97 ODB1 SD PCM he is using, so that has internal diodes, where as his original did not--this means he must run a new wire back to the PCM?

He would not need to run a new wire for the moving of the diodes. I do not understand why you would ask that question.

Jul 6, 2020 | 10:51 AM

#18

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,667

Likes: 301

From: Easton,Ks

Here is all the plugs, take your pick.
Name: ax32D1Y.png
Views: 765
Size: 86.4 KB

Jul 7, 2020 | 05:20 PM

#19

Joe Ruddy

Thread Starter

Cross-Country

Joined: Aug 2018

Posts: 95

Likes: 0

Plug

Subford, That "C1049" plug you show , for the 4r70w trans is what I have. I don't understand why. The door tag shows "E" , for a e40d trans. But, it is what it is. I have to deal with it. If you look at the wiring and color codes, all match EXCEPT, the wire for the "coast clutch solenoid" . That's the only wire that I don't know what to do with. Unless I run a single wire straight to the pcm. Me and Jackietreehorn feel theres no other way to make it work. What do you think.??
ALSO Subford, would you happen to have one of those BIG schematics for a 1994 with the 4r70w trans, just for the hell of it , I would like to compare.

Jul 7, 2020 | 08:24 PM

#20

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,667

Likes: 301

From: Easton,Ks

Quote:

Originally Posted by Joe Ruddy

ALSO Subford, would you happen to have one of those BIG schematics for a 1994 with the 4r70w trans, just for the hell of it , I would like to compare.

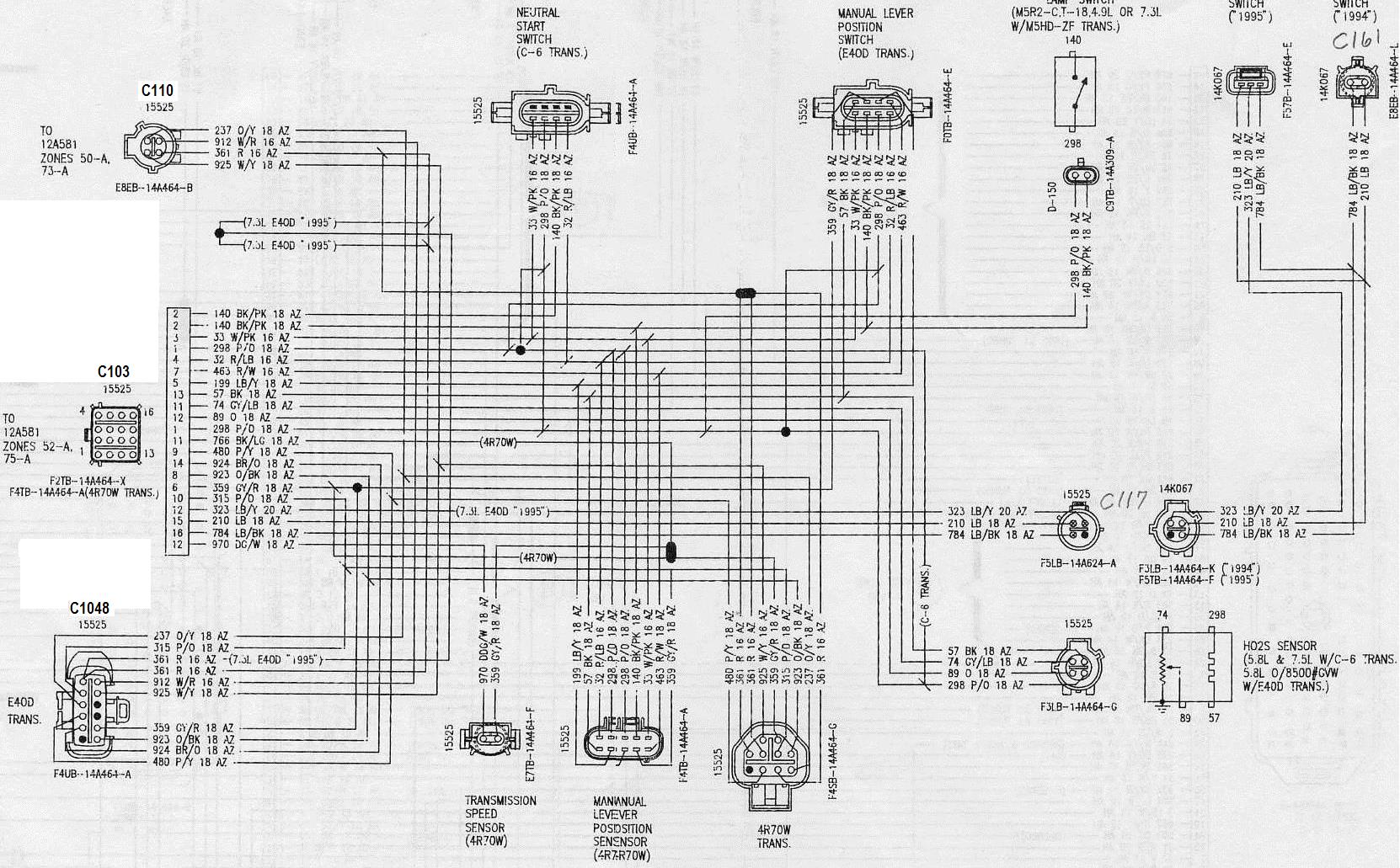

This one shows all of the Transmissions for 1994, click on it to enlarge:Attachment 281592

/
