Apr 13, 2020 | 06:45 PM

#16

Jeffturner903

Thread Starter

New User

Joined: Apr 2020

Posts: 15

Likes: 0

What and where is the spade switch located

Apr 13, 2020 | 06:47 PM

#17

Jeffturner903

Thread Starter

New User

Joined: Apr 2020

Posts: 15

Likes: 0

Quote:

Originally Posted by subford

Just one click means most of the time the starter relay is bad.
You have not said anything about the starter relay just starter solenoid that is mounted down on the starter itself.

the starter is brand new and the solenoid on fender is too

Apr 13, 2020 | 07:24 PM

#18

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,667

Likes: 301

From: Easton,Ks

Quote:

Originally Posted by Jeffturner903

the starter is brand new and the solenoid on fender is too

The starter solenoid is down and mounted on the starter and not on the fender.
There is no solenoid on the fender.
The starter relay is on the fender near the battery.

The SPOUT shorting bar (little gray connector) has nothing to do with the engine cranking.
The ICM has nothing to do with the engine cranking.

The spade is not a switch but a push on wire connector that pushes onto the solenoid.
The other end of the spade connector wire is up at the starter relay.

The relays under the hood in the relay fuse box also have nothing to do with cranking the engine.
Only the starter relay on the passenger fender.

Apr 13, 2020 | 07:34 PM

#19

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,667

Likes: 301

From: Easton,Ks

Quote:

Originally Posted by Jeffturner903

Yeah it aint trying to turn over at all turn key and click and could it be locked up since the belt broke off during driving

Why did the belt break?
Maybe the Water Pump, Generator (alternator) or other belt driven chive is locked up and broke the belt.
So take your new belt off and see if it will crank and start.

Apr 13, 2020 | 08:25 PM

#20

Jeffturner903

Thread Starter

New User

Joined: Apr 2020

Posts: 15

Likes: 0

The belt didn’t necessarily break it just seperated but stayed on the truck it was an old belt and ok will do that and it does have a solenoid on the fender and on the starter

Apr 13, 2020 | 08:25 PM

#21

Jeffturner903

Thread Starter

New User

Joined: Apr 2020

Posts: 15

Likes: 0

Its also the dual belt system

Apr 13, 2020 | 08:31 PM

#22

raytasch

Believe Nothing

Joined: Jun 2004

Posts: 7,514

Likes: 398

From: W. Central FL.

Are we sure that thing is not hydrolocked? Belt broke. Did engine overheat cause it to loose power? I would verify the engine is free.

Apr 13, 2020 | 08:52 PM

#23

Jeffturner903

Thread Starter

New User

Joined: Apr 2020

Posts: 15

Likes: 0

Im pretty sure its not hydro locked gonna try to roll start it next but no overheat or nothith the belt seperated but didnt break

FTE Stories

Ford Trucks for Ford Truck Enthusiasts

Rezvani's Latest Post-Apocalytic Monster Is a Ford F-150 Raptor Underneath

Verdad Gallardo

Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer

Joe Kucinski

2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)

Brett Foote

Top 10 Ford Truck Tragedies

Joe Kucinski

AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make

Brett Foote

Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!

Michael S. Palmer

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

Verdad Gallardo

10 Best Ford Truck Engines We Miss the Most!

Joe Kucinski

2026 Shelby F-150 Off-Road: Better Than a Raptor R?

Brett Foote

2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!

Michael S. Palmer

Apr 14, 2020 | 07:55 PM

#24

Jeffturner903

Thread Starter

New User

Joined: Apr 2020

Posts: 15

Likes: 0

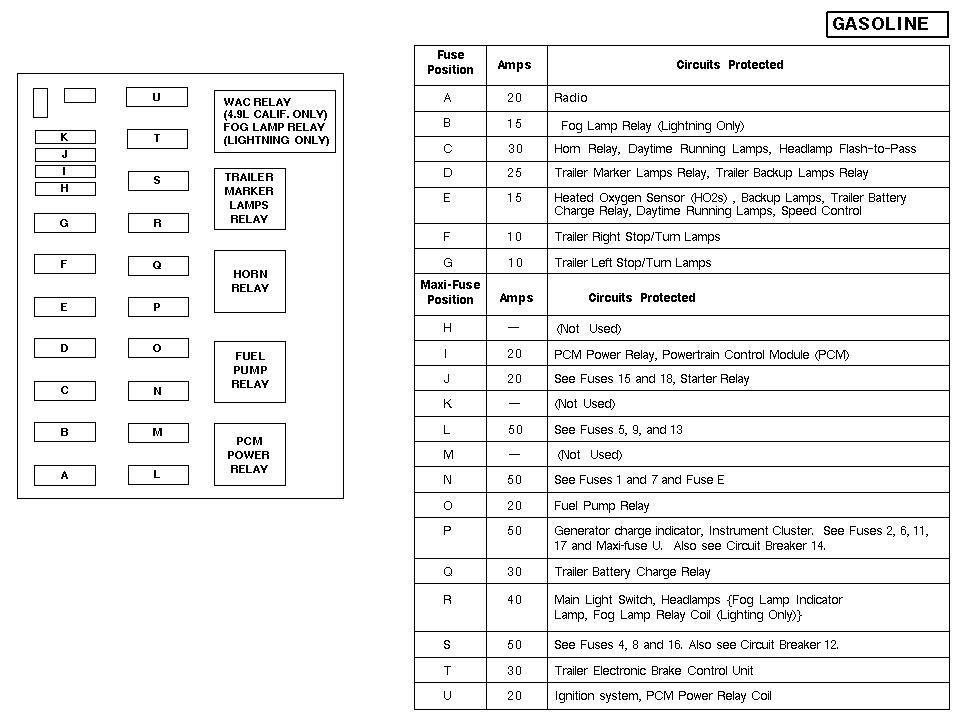

Does anyone have a diagram for my yr truck fuse box labeled

Apr 14, 2020 | 08:29 PM

#25

Jeffturner903

Thread Starter

New User

Joined: Apr 2020

Posts: 15

Likes: 0

Update just tried to roll start no go beleive its locked up

Apr 15, 2020 | 07:13 AM

#26

torq'ta 5 8

Lead Driver

Joined: Jan 2019

Posts: 5,075

Likes: 864

From: N.W. Alabama

Quote:

Originally Posted by Jeffturner903

Update just tried to roll start no go beleive its locked up

did you try with belt removed also

Apr 15, 2020 | 08:06 AM

#27

Jeffturner903

Thread Starter

New User

Joined: Apr 2020

Posts: 15

Likes: 0

No do you think it would free it with belts removed

Apr 15, 2020 | 08:16 AM

#28

torq'ta 5 8

Lead Driver

Joined: Jan 2019

Posts: 5,075

Likes: 864

From: N.W. Alabama

if you take the belt off, you could eliminate any accessory(e.g. water pump, power steering, A/C, alternator) and spin each with your hand and see if any are locked up causing
