I ordered a Recon cab light kit for my 2019 Superduty. The kit comes with lights and wire harness to tie into the trucks harness but no instructions. Recon emailed me a roof template once I called and confirmed my order had arrived.
I made an individual light template out of a piece of cardboard.
Removing the sun visors and A pillar covers is pretty straight forward. The headliner will come down far enough to see up in there. If you have a glass roof I understand that it’s not really any harder to access.
The Recon light kit
Roof template that was emailed to me from Recon
I made an individual light template out of cardboard

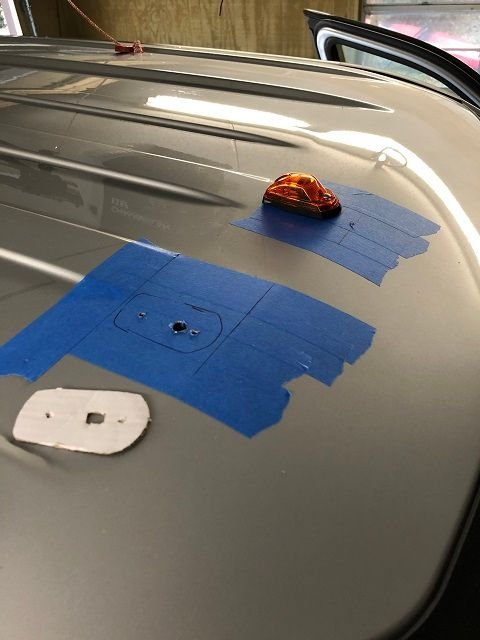

You want to start with the center light first. Put some painters tape down in the general area where the light will go. I measured back from the windshield gap and marked where the front of the light should go. I then lined up the front of the cardboard template that I made and centered it.

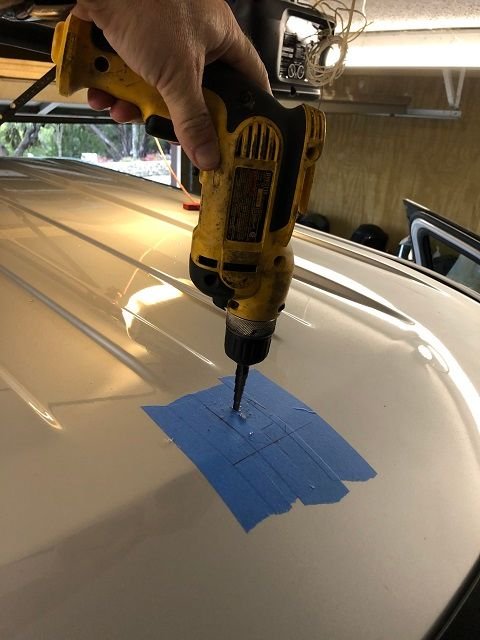

Drill the hole for the plug and only that hole.
I haven’t even made the first payment yet!
Painters tape works well to pick up debris

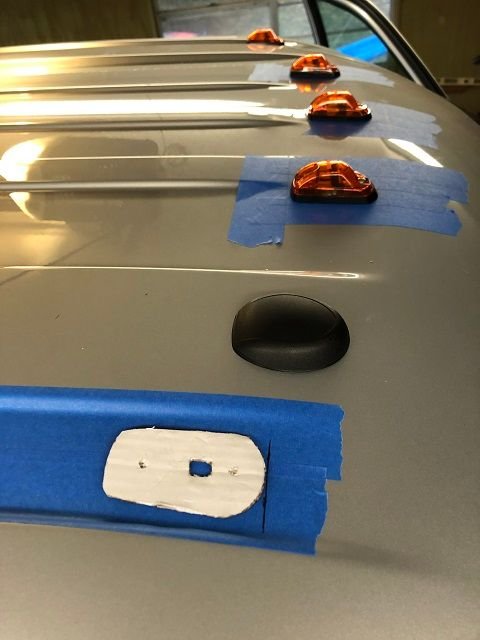

Note that the side center lights are mounted slightly rearward of the center light. The outside lights are even further back. There's no absolute here as long as the lights mount on a flat surface. The main thing is to make everything uniform, like a mirror image.

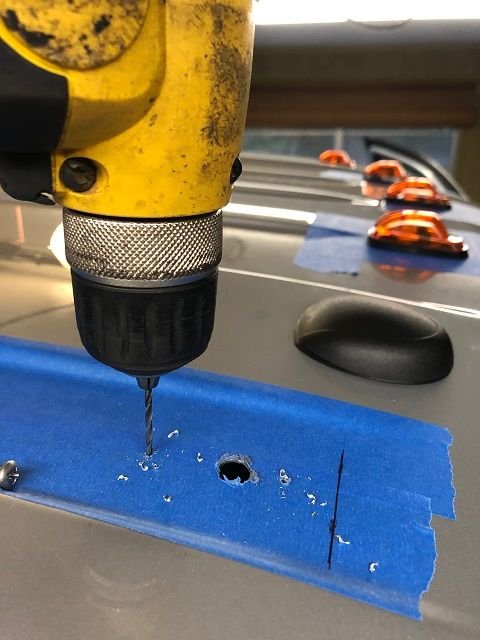

Once you place the light on the roof with the wires through the hole, you can then mark the 2 mounting screw holes. Making sure the light is exactly where you want it and that it is straight in line front to rear. The painters tape makes it easy to see where to drill the mounting screw holes. I used a punch tool (not shown) to divot each drill spot to keep the drill bit from sliding around. Be sure to use a bit that is smaller than the hardware.
It's important that the center light is perfectly centered. Once you have the center light installed, it's just a matter of measuring back from the windshield channel and over from the center light. Measure multiple times because you can only drill once.

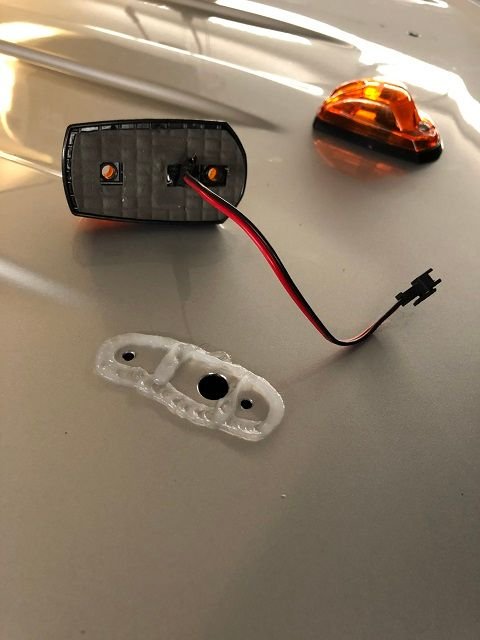

I applied electrical tape (not shown) around the wires where they go through the roof. You could use grommets instead but at least do something to protect the wires. Use a proper sealant to seal out the weather when mounting the lights in place. I used a sun/water proof silicone from a hardware store.
You can then plug the wire harness to the 5 lights and run the harness down and to the bottom of the passenger side A pillar.

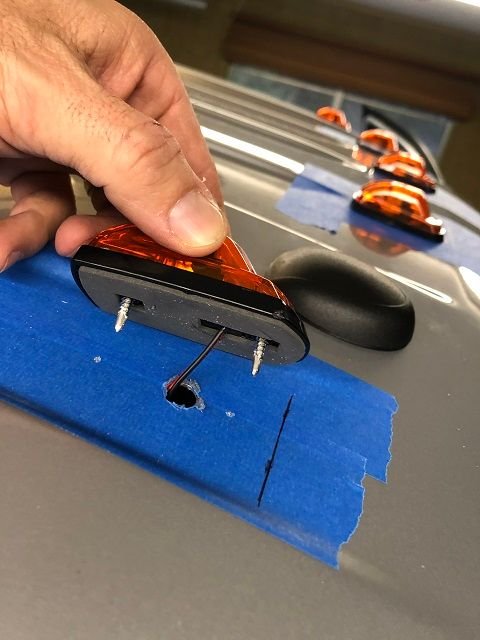

Use the screws to mark their locations in the painters tape

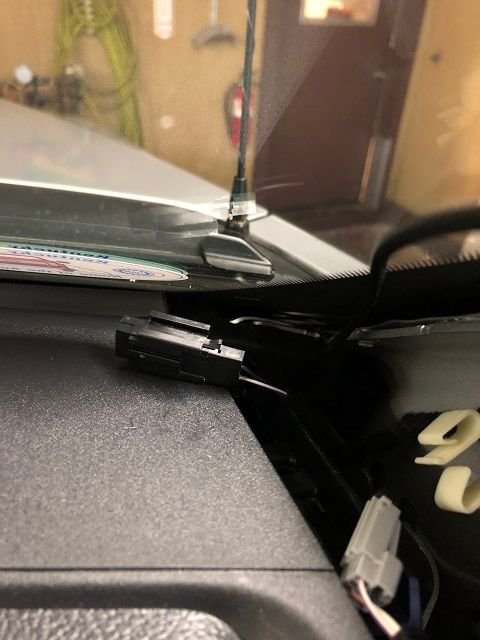

There is a plug located at the bottom of the passenger side A pillar. Get it loose and pull the dummy plug out of the connector. You can then use a test light to verify that this plug will provide a headlight switched hot and ground to the cab lights.

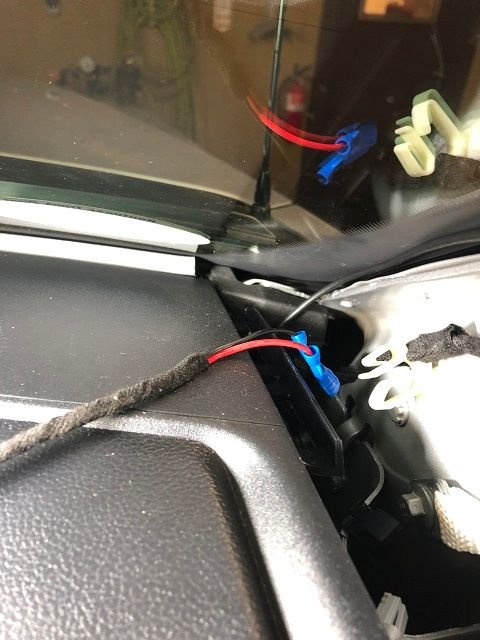

Now here’s what I did… not recommended but it works for me. I simply cut and spliced in-line connectors to make my connections. There are more than a few ways to do this and it’s up to you to determine how you want to do yours. I really wish that Recon would include the proper plug on their harness to make this a 100% plug and play project.
Note: If you decide to tap into a 12 volt source somewhere else. Make sure that you don't use a parking light supply that will flash on and off when using the blinkers.
Purple w/ white is positive - Black w/ purple is negative
I did the same thing only with 17+ OEM roof marker lights on my 2017 F150(same roof/cab)
Only thing i did differently is i had no template for the mounting positions. So i covered the entire front section of the roof with painters tape so i could mark measurements and draw and not scratch any paint.
i also used a small piece of sheet metal for the template for the lights vs cardboard.
Its a rush to start chopping into a perfectly good roof panel hahaha.

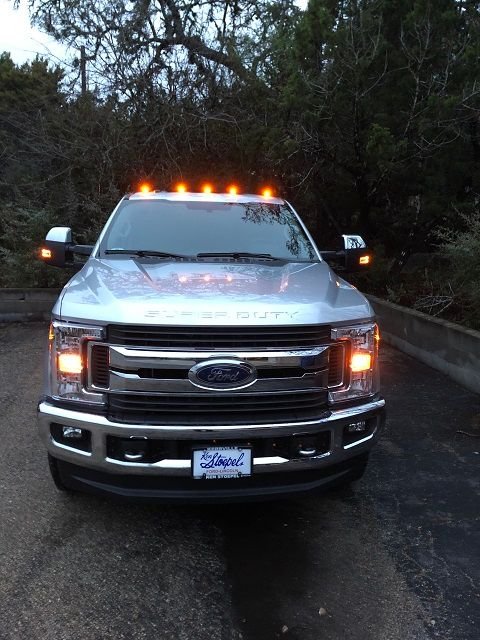

How cool is that? You’re braver than I am. I really like the cab lights - they make the look of a SD. Well done sir. Looks solid, no room for leaks there.
Good job! You are a brave soul taking a drill to your roof like that. I'll bet the pucker factor was off the charts sinking that first hole. From that point on you are too far gone to turn back. They turned out great.
I am working my way up to having the courage to do this exact thing. Thanks for the pictures and the information about the wiring. I wonder if there is a factory harness that I can buy so I don't have to cut up the vehicle wires?
