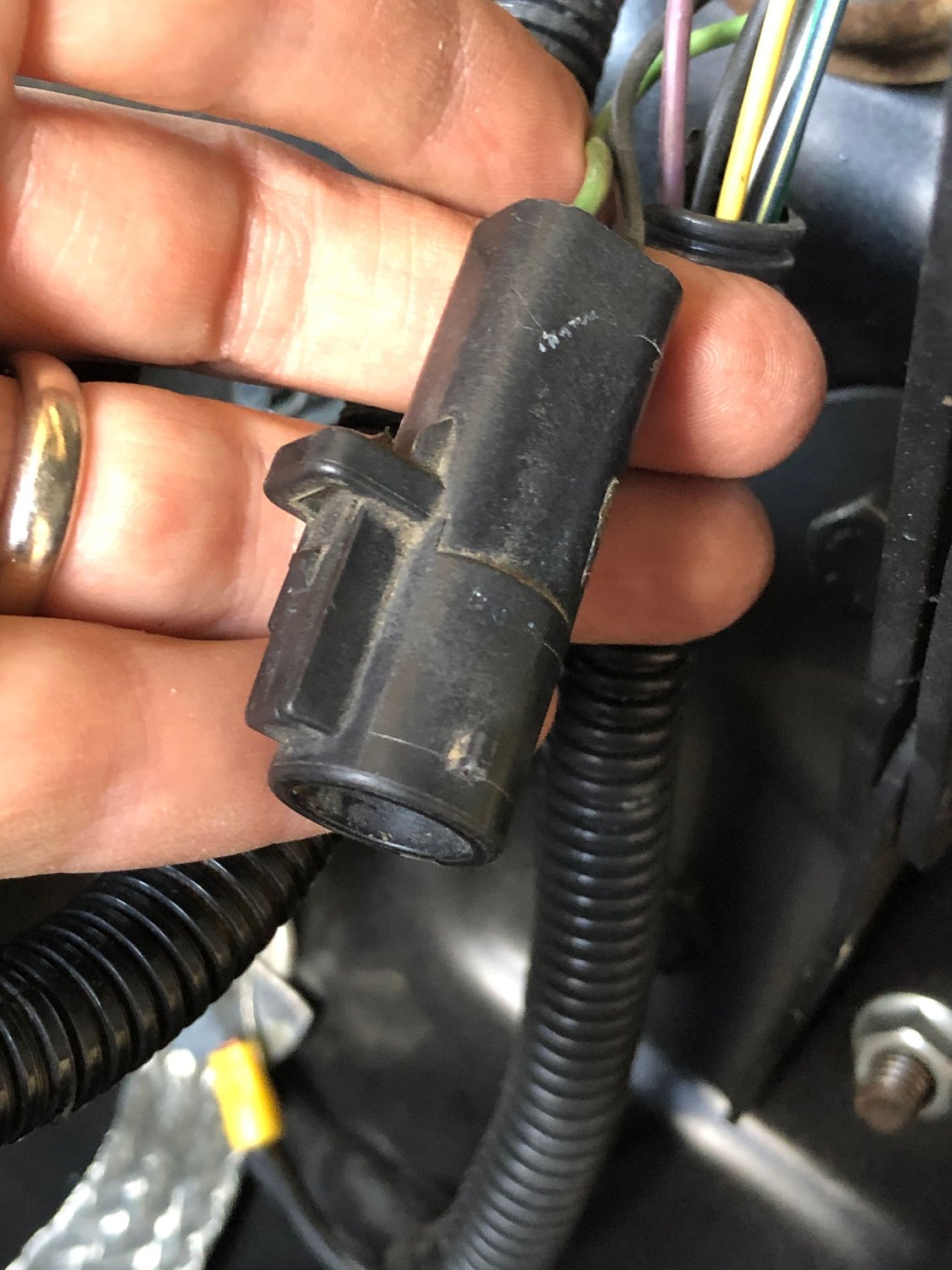

Recognize this connector?
Thread Starter
|
Laughing Gas
Joined: May 2015
Posts: 826
Likes: 21
From: Golden, CO
I don't know that it was under the hood — I rec'd all the wiring harnesses from a '95 just dumped in a large box! Last year I spent a bunch of time culling diagrams to figure out what is what, and at some point I labeled this for under hood light… but now that everything is wired up (in my '52) I see that both pins are ground.
My AllData subscription expired, so no more access to diagrams. Not a huge deal, as I can pull power for light from somewhere else easily enough, was just hoping someone might recognize the connector.
My AllData subscription expired, so no more access to diagrams. Not a huge deal, as I can pull power for light from somewhere else easily enough, was just hoping someone might recognize the connector.
FTE Chapter Leader
Joined: May 2006
Posts: 12,319
Likes: 1,298
From: Central Mississippi
In my 94, it is the under hood courtesy light.
My owners manual showing all the other courtesy lights that are always hot are fed by a 15 amp fuse #8.
It runs along with the wiper harness down to the bulkhead connector into the cab.
My owners manual showing all the other courtesy lights that are always hot are fed by a 15 amp fuse #8.
It runs along with the wiper harness down to the bulkhead connector into the cab.
Fleet Owner
Joined: Aug 2005
Posts: 23,666
Likes: 301
From: Easton,Ks
The under hood lamp connector is gray and not black.
Also the wires to it are LG/Y & BK. Not LG & brown.
Also the wires to it are LG/Y & BK. Not LG & brown.
Trending Topics
More Turbo
Joined: Feb 2014
Posts: 632
Likes: 41
On my '95 F150 with a 302 I can confirm that that connector matches the under hood lamp connector. On mine it is black and has the same wire colors. One side of the connector is attached to about three feet of wire that leads to the lamp, and the other connector is coming out of a larger bundle about six inches from the wiper motor along the top of the fire wall. Hope that helps.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Mountain Pass
Joined: Jan 2014
Posts: 214
Likes: 37
From: Madison Ohio
In my 89 F250 I have a plug like that near that battery. It is a body ground between battery and body. I'll try to look tonight at the wire colors. I know its two wire. One end goes to a bolt on the core support other to the battery.
