Wire bundle identification assistance needed

1998 F150 5.4L

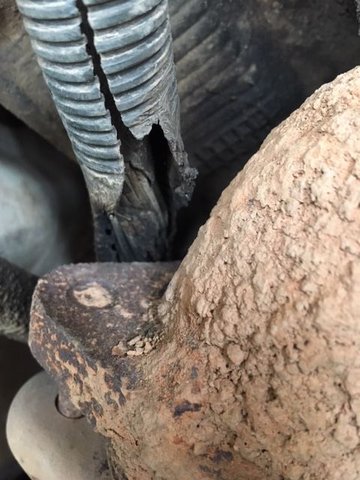

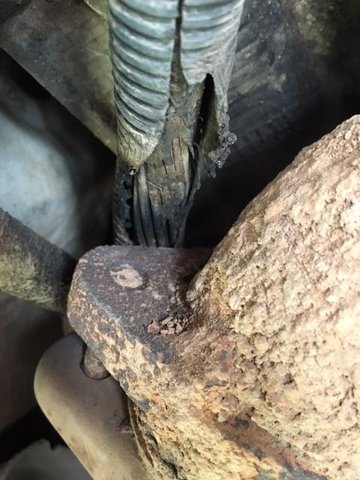

I found this while chasing a ground issue and changing out my starter.

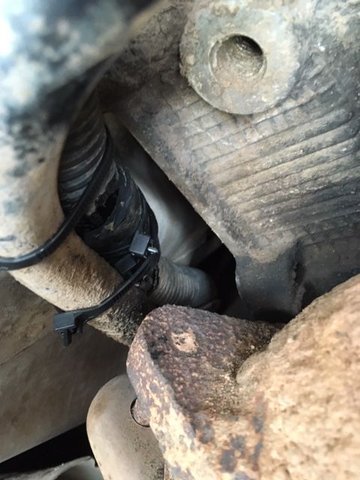

I zipped and wrapped a cut up heater hose around it for now. Any assistance would be great on the bundles functions.

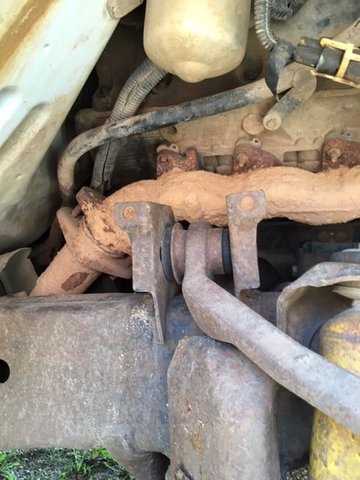

Looking to replace my battery relay cable but no one has it in stock. I cleaned up the end where it attaches to frame rail by the little metal bracket that redirects the wires to the starter. So I cleaned grounds and still chasing my no start for now.








Last edited by azroxx; Jun 25, 2019 at 03:20 PM. Reason: clarification
Reply
Old Jun 26, 2019 | 08:30 AM
  #2
alloro's Avatar
alloro
Fleet Owner
15 Year Member
Shutterbug
Liked
Loved
Joined: Apr 2008
Posts: 24,322
Likes: 5,132
From: 0,0,1
Club FTE Gold Member
That one looks like it's going to the transmission.
