Just something I wanted to share. I did a bit of a new spin on the old relays inside the voltage regulator housing trick after installing a 3G alternator.

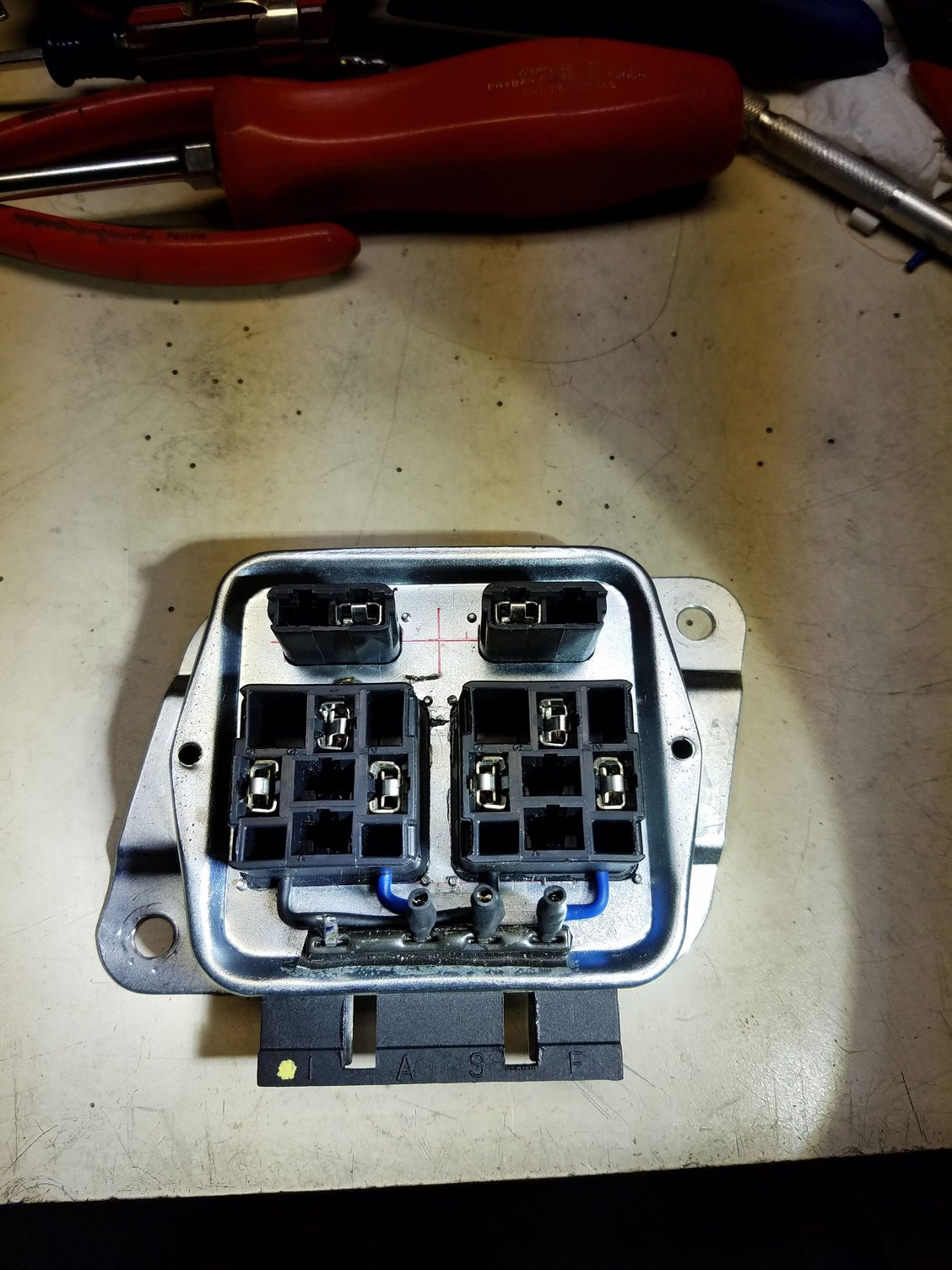

Something that always bothered me about hiding relays in the old regulator was not having the relays easily removed, so I modified the housing by mounting Delphi or weatherpak style relay sockets along with the fuses.
I populated the original regulator connector with the P-side headlight wires and hard wired the relay socket blades to the regulator housing terminals.

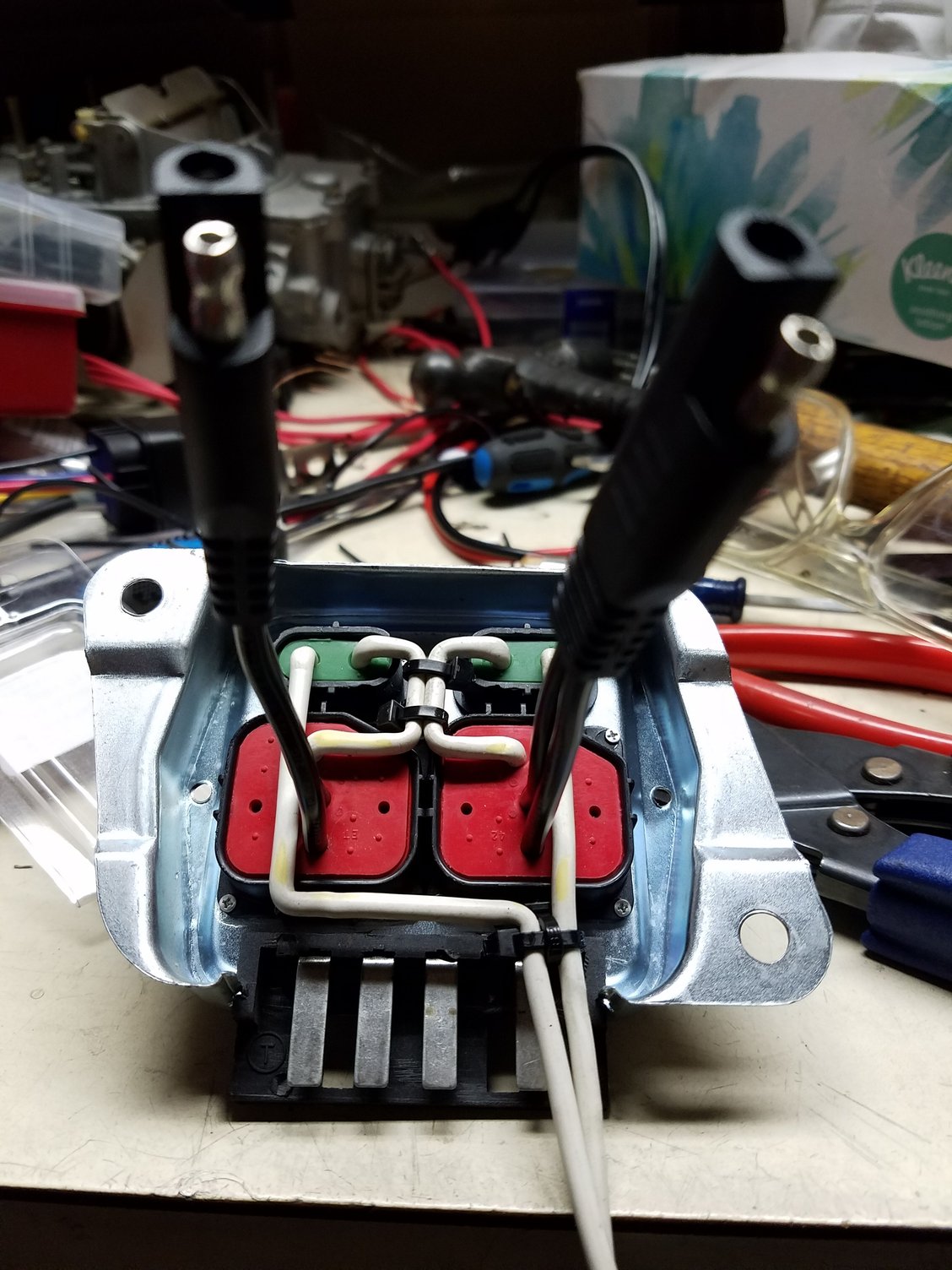

I wired the main input and output power thru the backside using SAE connectors so not only are the relays and fuses removable but the entire unit is plug and play.
I put a lot of effort into this and was real happy with the result, I figured it would generate more responses here but I guess its generally considered as cool as old nail clippings for most
I tell you what, with the E code lamps this is now a pleasure to drive at night
I am running Hella E code headlights in my 1971 F250 with a upgraded wiring harness that feeds full 12 volts to the lights. What a difference, like you said a real joy to drive at night.
Not looking forward to having to replace my old Carello lamps, but the reflective surface is really deteriorating quickly. Probably going to try the Hellas unless I can find some Cibié/Valéo rectangulars for the '79.
Fantastic looking job Jon. Don't think I've seen any other discussions about hiding the wiring in the regulator, but it's a great idea. I like stealth, but rarely practice it!
I've got headlight relays and a horn relay (my model did not come with one) just standing right there in plain sight. Since I'm going to be running an internally regulated alt at some point, I might go to the trouble as well.
Not sure if my 105a large case 1G will ever die, but just in case, great idea.
What are you doing with your ignition module Gray Star? GM HEI style in the Dura Spark housing? Or did you mean an ignition module inside a voltage regulator body?
Oh, and what are you using for harness tape Jon?
thought about it, wanted to make printed circuit boards even. In the end I'd need to stamp my own pieces and I haven't figured out a way to make it cost less to make than what they'd sell for (yet )
Originally Posted by old28
I am running Hella E code headlights in my 1971 F250 with a upgraded wiring harness that feeds full 12 volts to the lights. What a difference, like you said a real joy to drive at night.
followed your whole thread
Originally Posted by 1TonBasecamp
Not looking forward to having to replace my old Carello lamps, but the reflective surface is really deteriorating quickly. Probably going to try the Hellas unless I can find some Cibié/Valéo rectangulars for the '79.
Fantastic looking job Jon. Don't think I've seen any other discussions about hiding the wiring in the regulator, but it's a great idea. I like stealth, but rarely practice it!
I've got headlight relays and a horn relay (my model did not come with one) just standing right there in plain sight. Since I'm going to be running an internally regulated alt at some point, I might go to the trouble as well.
Not sure if my 105a large case 1G will ever die, but just in case, great idea.
What are you doing with your ignition module Gray Star? GM HEI style in the Dura Spark housing? Or did you mean an ignition module inside a voltage regulator body?
Oh, and what are you using for harness tape Jon?
Thanks guys.
Paul
I picked up the idea from the Ford Falcon news forums some years back, but with spade connections pushed on the relay tangs.
Not looking forward to having to replace my old Carello lamps, but the reflective surface is really deteriorating quickly. Probably going to try the Hellas unless I can find some Cibié/Valéo rectangulars for the '79.
Fantastic looking job Jon. Don't think I've seen any other discussions about hiding the wiring in the regulator, but it's a great idea. I like stealth, but rarely practice it!
I've got headlight relays and a horn relay (my model did not come with one) just standing right there in plain sight. Since I'm going to be running an internally regulated alt at some point, I might go to the trouble as well.
Not sure if my 105a large case 1G will ever die, but just in case, great idea.
What are you doing with your ignition module Gray Star? GM HEI style in the Dura Spark housing? Or did you mean an ignition module inside a voltage regulator body?
Oh, and what are you using for harness tape Jon?
Thanks guys.
Paul
Putting HEI Module in a Ford Ignition Box, Lot easier to get your Hands Own. Been Collecting a Few of the Older Finned Boxes off Epay.......
