I guess I got hung up on "most of" the wiring and "possibly" the GEM.
It is certain on the GEM, and I don't think there's any wiring harnesses that you'd be able to re-use.
So based on the pics you posted, there's a memory switch on the driver's door (the steering wheel switches confirm that it had the options package that included memory function)
the memory feature was external to the seat, and I think if you look carefully at the seat motors you'll find that the motor pack is marked with "MEM" somewhere. You should look closely under the seat for a black or silver box labelled "heated seat control module" or similar on both seats. if you've got that module, you'll be able to make the seats heat up, otherwise you're kinda SOL.
It is certain on the GEM, and I don't think there's any wiring harnesses that you'd be able to re-use.
the memory feature was external to the seat, and I think if you look carefully at the seat motors you'll find that the motor pack is marked with "MEM" somewhere. You should look closely under the seat for a black or silver box labelled "heated seat control module" or similar on both seats. if you've got that module, you'll be able to make the seats heat up, otherwise you're kinda SOL.
Tuned
Joined: Mar 2018
Posts: 347
Likes: 3
I guess I got hung up on "most of" the wiring and "possibly" the GEM.
It is certain on the GEM, and I don't think there's any wiring harnesses that you'd be able to re-use.
So based on the pics you posted, there's a memory switch on the driver's door (the steering wheel switches confirm that it had the options package that included memory function)
the memory feature was external to the seat, and I think if you look carefully at the seat motors you'll find that the motor pack is marked with "MEM" somewhere. You should look closely under the seat for a black or silver box labelled "heated seat control module" or similar on both seats. if you've got that module, you'll be able to make the seats heat up, otherwise you're kinda SOL.
It is certain on the GEM, and I don't think there's any wiring harnesses that you'd be able to re-use.
So based on the pics you posted, there's a memory switch on the driver's door (the steering wheel switches confirm that it had the options package that included memory function)
the memory feature was external to the seat, and I think if you look carefully at the seat motors you'll find that the motor pack is marked with "MEM" somewhere. You should look closely under the seat for a black or silver box labelled "heated seat control module" or similar on both seats. if you've got that module, you'll be able to make the seats heat up, otherwise you're kinda SOL.
I see, gosh darn it this was one of those situations where I was too excited upon finding the seats and didn’t even consider looking for memory seat modules etc on it, now I see the steering wheel controls that you pointed out; I was looking at the door panel before you said that and thought nah there’s no way it’s memory!
Ok so currently my drivers xlt seat is a power seat. The new limited seats fortunately are the exact same (with the exception of the added heat function) with manual recline and the memory option which I’ll just omit. It sounds like if i locate the heated seat module on both seats, and transfer the drivers side seat cushion from my new seat to the xlt base, all I will need to do is figure out wiring for an add on heated seat switch that I can mount later to use that feature. It would seem that the passenger side connector just needs 12v power and ground by tying into the drivers side harness. Not sure what all 4 pins are for currently though (see pic). I’ll make sure to take good photos of the seat base swap, hopefully I can figure this out without too much pain. Anyone still have access to the seat wiring diagrams? Autozone seems to have purged them from their database.

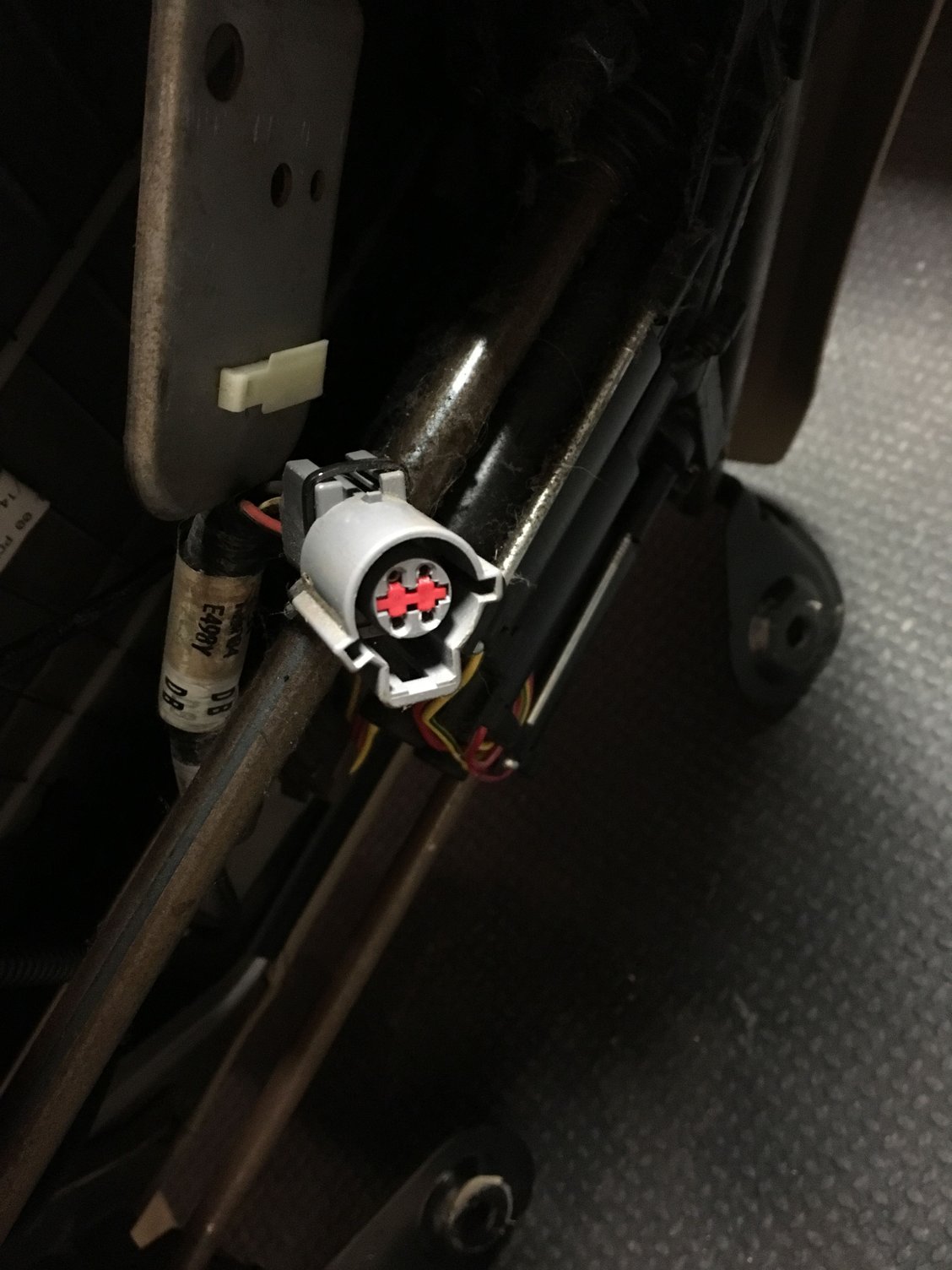

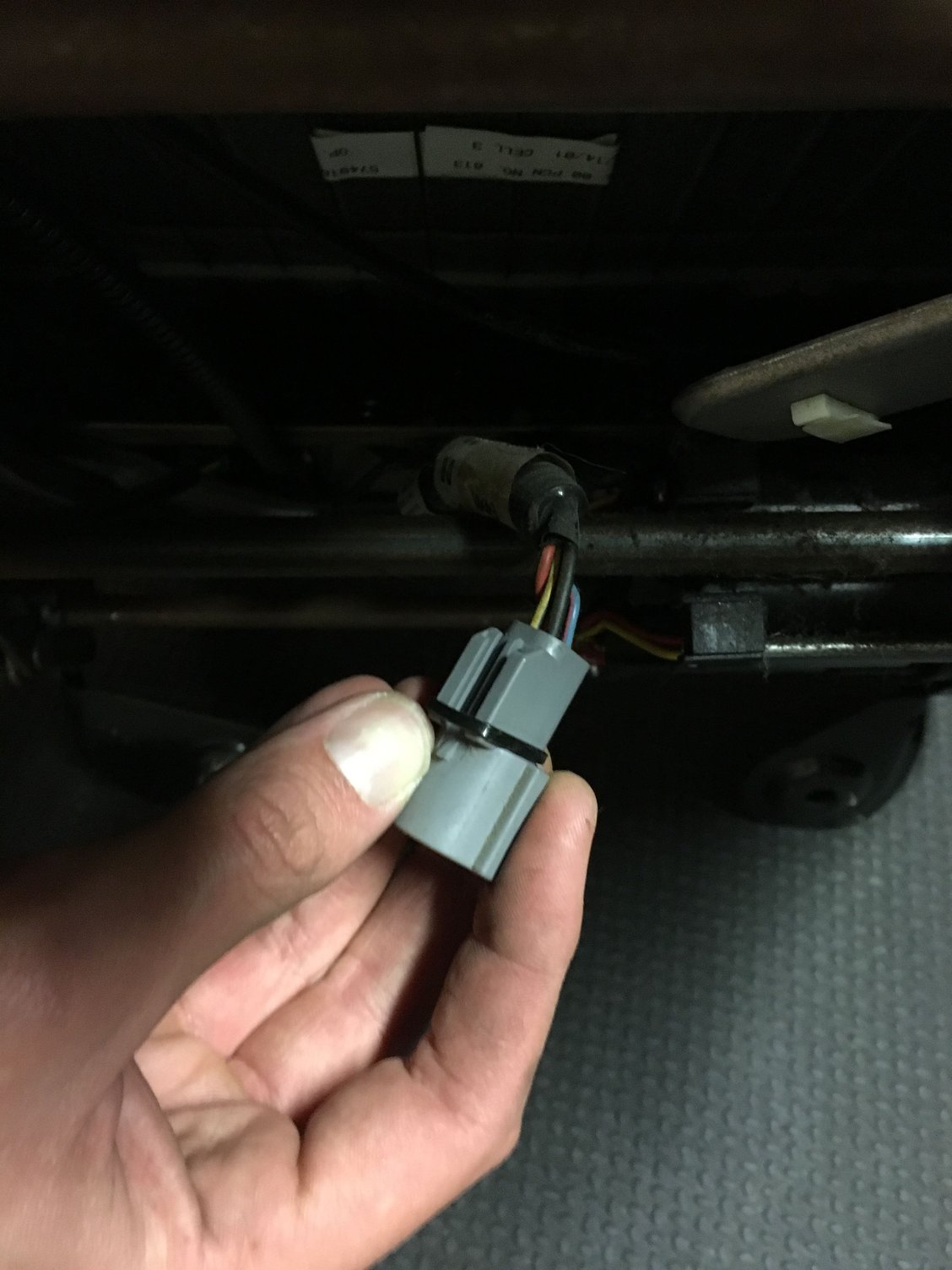

Passenger seat connector.
Laughing Gas
Joined: Dec 2017
Posts: 879
Likes: 40
From: Greensburg, IN
Another option to consider is to move the wiring harness from the XLT seat onto the Limited seat, that should functionally bypass the memory part assuming everything plugs together. You'll have a couple leftover wires in the main connector that go to the heater, but you can cut those out of the loom and re-use the seat side to rig your own wiring for that.
Caveat: this is based on my knowledge on the Explorer, and observations from junkyard trucks. I do know that without that module, you're not getting the heaters to work without crafting your own control unit via switches and relays
The module has 4 lines: constant hot, hot-in-run, ground, and signal to the dash light. The hot-in-run wakes up the module and lets you turn on the heater, which draws through the constant hot. The signal puts out 5v+ when the heater is running, but is not essential.
I think there's a heating pad in the backrest too? if so, the unit has to have both pads connected and operational in order to work.
I've not had any better luck than you at finding excursion-specific diagrams...
If you provide power to the module and leave the wiring from the module to switch intact, you should be able to put the Limited trim with the switches and all right onto the XLT motor base.
As far as I know, there's no provisions for adjustment. There's a thermal cutoff built in to the heating pad, and when it gets too hot, it cuts the circuit and turns off the module. Newer versions did not have the module on the seat, but rather built into the climate control system, and those allowed the automatic temp control to vary how hot the seat was depending on how cold the cabin was and what the set temperature in the cabin was. Pretty complex system.
I see, gosh darn it this was one of those situations where I was too excited upon finding the seats and didn’t even consider looking for memory seat modules etc on it, now I see the steering wheel controls that you pointed out; I was looking at the door panel before you said that and thought nah there’s no way it’s memory!
Ok so currently my drivers xlt seat is a power seat. The new limited seats fortunately are the exact same (with the exception of the added heat function) with manual recline and the memory option which I’ll just omit. It sounds like if i locate the heated seat module on both seats, and transfer the drivers side seat cushion from my new seat to the xlt base, all I will need to do is figure out wiring for an add on heated seat switch that I can mount later to use that feature. It would seem that the passenger side connector just needs 12v power and ground by tying into the drivers side harness. Not sure what all 4 pins are for currently though (see pic). I’ll make sure to take good photos of the seat base swap, hopefully I can figure this out without too much pain. Anyone still have access to the seat wiring diagrams? Autozone seems to have purged them from their database.
Ok so currently my drivers xlt seat is a power seat. The new limited seats fortunately are the exact same (with the exception of the added heat function) with manual recline and the memory option which I’ll just omit. It sounds like if i locate the heated seat module on both seats, and transfer the drivers side seat cushion from my new seat to the xlt base, all I will need to do is figure out wiring for an add on heated seat switch that I can mount later to use that feature. It would seem that the passenger side connector just needs 12v power and ground by tying into the drivers side harness. Not sure what all 4 pins are for currently though (see pic). I’ll make sure to take good photos of the seat base swap, hopefully I can figure this out without too much pain. Anyone still have access to the seat wiring diagrams? Autozone seems to have purged them from their database.
The module has 4 lines: constant hot, hot-in-run, ground, and signal to the dash light. The hot-in-run wakes up the module and lets you turn on the heater, which draws through the constant hot. The signal puts out 5v+ when the heater is running, but is not essential.
I think there's a heating pad in the backrest too? if so, the unit has to have both pads connected and operational in order to work.
I've not had any better luck than you at finding excursion-specific diagrams...
As far as I know, there's no provisions for adjustment. There's a thermal cutoff built in to the heating pad, and when it gets too hot, it cuts the circuit and turns off the module. Newer versions did not have the module on the seat, but rather built into the climate control system, and those allowed the automatic temp control to vary how hot the seat was depending on how cold the cabin was and what the set temperature in the cabin was. Pretty complex system.
Fleet Mechanic
Joined: Jan 2017
Posts: 1,667
Likes: 182
I have the 2003 shop wiring manual. I’ll take a look and see what it has in it. Not sure it’ll be the same, but it’s worth a shot. I’ll post up pictures if I have them.
Moderator
Joined: Jul 2010
Posts: 12,062
Likes: 1,570
From: Media PA
At this point I think this seat swap conversation needs to move into its own thread, it really does not belong here in the craigslist finds thread.
Laughing Gas
Joined: Dec 2017
Posts: 879
Likes: 40
From: Greensburg, IN
Anyway, back on topic with the strangest looking Excursion I've ever seen:
https://indianapolis.craigslist.org/...796389332.html
Followed by this behemoth:
https://indianapolis.craigslist.org/...794278140.html
Cross-Country
Joined: Nov 2018
Posts: 94
Likes: 1
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 6 Best Deals Available on New Fords & Lincolns Right Now
Brett Foote
This Hennessey Takes the Expedition Tremor's Off-Roading Capability to the Next Level
Verdad Gallardo
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Senior User
Joined: Feb 2015
Posts: 218
Likes: 1
Fleet Mechanic
Joined: Nov 2015
Posts: 1,843
Likes: 191
From: NoVA
Cross-Country
Joined: Nov 2018
Posts: 94
Likes: 1
Mountain Pass
Joined: Apr 2017
Posts: 180
Likes: 0
From: Central Ohio
Cross-Country
Joined: Nov 2018
Posts: 94
Likes: 1
Owner says it still runs but parting out...3 of 4 doors left.
https://norfolk.craigslist.org/pts/d...799386941.html
https://norfolk.craigslist.org/pts/d...799386941.html
Senior User
Joined: Mar 2012
Posts: 301
Likes: 0
From: Nanuet, NY
Laughing Gas
Joined: Jul 2018
Posts: 816
Likes: 7
From: Prescott, AZ
https://prescott.craigslist.org/cto/...807492573.html
2001 2WD V10 XLT, 135k, some body damage and won't start (ad says alternator overcharged and blew "computer"). But for $2100, it's probably the cancer-free donor car of some rust-belters dreams.
About a half hour away from me if anyone wants me to go take a look.
2001 2WD V10 XLT, 135k, some body damage and won't start (ad says alternator overcharged and blew "computer"). But for $2100, it's probably the cancer-free donor car of some rust-belters dreams.
About a half hour away from me if anyone wants me to go take a look.
