Agree with the previous post. The basic speedo was basic version of the cluster with just the blue/green led readout. probably the reason your wanting to upgrade the cluster to the version with the full color screen between the tach and speedometer.
Get a 2012-2011 version of the cluster. I tried a 2014 version in my 2014 XLT and it would power up and go through the ford splash screen and just reset and do it over and over. I put in a 2012 unit and it worked right off and I never had any other issues. Best I can tell is the it’s related to the way the 2013+ clusters communicates with the overall system.
Get a 2012-2011 version of the cluster. I tried a 2014 version in my 2014 XLT and it would power up and go through the ford splash screen and just reset and do it over and over. I put in a 2012 unit and it worked right off and I never had any other issues. Best I can tell is the it’s related to the way the 2013+ clusters communicates with the overall system.
5th Wheeling
Joined: Apr 2019
Posts: 45
Likes: 4
When I’m driving the screen shows a 1-6 listing of each gear with a box around the number for the gear the auto trans has selected. I can watch it go up and down as I drive.
I don’t do the manual selections but would assume it’ll still reflect the selected gear
I don’t do the manual selections but would assume it’ll still reflect the selected gear
Lead Driver
Joined: Mar 2004
Posts: 5,372
Likes: 108
From: Northern Indiana
I am interested in making this swap also. I find it interesting that the 2012 cluster was working for you when a 2012 climate control unit will plug in and work in my 2016 but does work with my remote start.
4wd Low
Joined: Jan 2023
Posts: 12
Likes: 0
From: Vancouver Island, BC
Hey guys...I am late to the party as always...lol
I have a 2013 F350 6.2l, and I am looking to do this swap.I have done stuff like this with my F150 I had, and want the fancy screen on my dash. The problem I am having is finding a gauge cluster with the screen, in 2011 or 2012, in KPH, and gas not diesel.
Does anyone have a source or place to find these?I have been looking through ebay, kijiji, local wreckers, Ford itself, and can't find the right setup. Does anyone have the part number for the KPH unit? I see above the unit for the MPH one, but when I give those to the parts guys up in Canada, they say it doen't even show that number in their systems. Any help is greatly appreciated.
I have a 2013 F350 6.2l, and I am looking to do this swap.I have done stuff like this with my F150 I had, and want the fancy screen on my dash. The problem I am having is finding a gauge cluster with the screen, in 2011 or 2012, in KPH, and gas not diesel.
Does anyone have a source or place to find these?I have been looking through ebay, kijiji, local wreckers, Ford itself, and can't find the right setup. Does anyone have the part number for the KPH unit? I see above the unit for the MPH one, but when I give those to the parts guys up in Canada, they say it doen't even show that number in their systems. Any help is greatly appreciated.
Trailering
Joined: Apr 2003
Posts: 22
Likes: 2
From: Murphy
You should look at car-part dot com. I found mine there. There are Canadian junk yards that post there as well. You will need 2 parts. Speedometer and cruise control switch with 5 button messaging center. This last one you will find it under Column switch. Hope this help.
4wd Low
Joined: Jan 2023
Posts: 12
Likes: 0
From: Vancouver Island, BC
You should look at car-part dot com. I found mine there. There are Canadian junk yards that post there as well. You will need 2 parts. Speedometer and cruise control switch with 5 button messaging center. This last one you will find it under Column switch. Hope this help.
Trailering
Joined: Apr 2003
Posts: 22
Likes: 2
From: Murphy

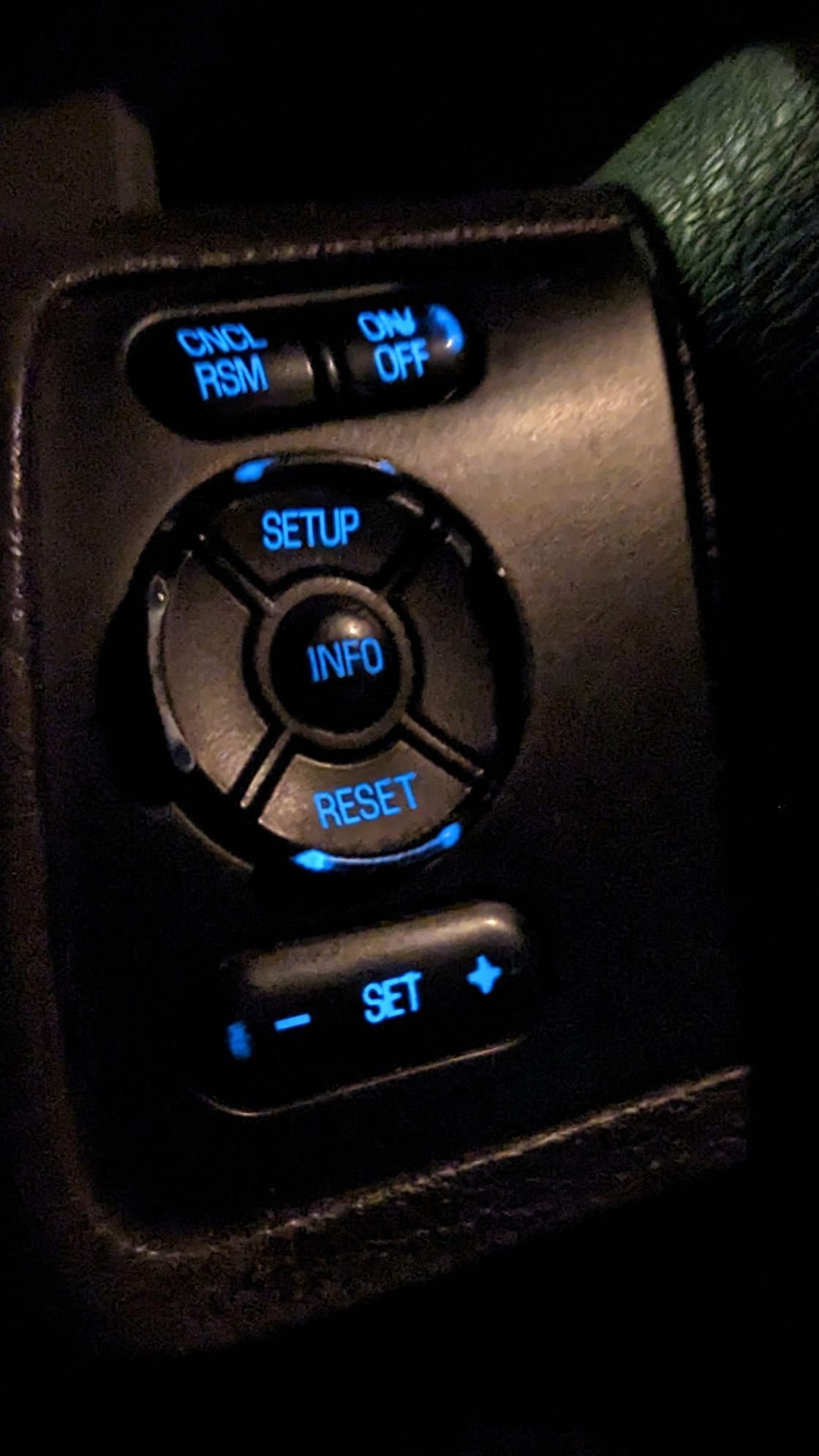

You have what they call a cruise control 3 button message center switch. This will not allow you to move up, dow, left and right.
4wd Low
Joined: Jan 2023
Posts: 12
Likes: 0
From: Vancouver Island, BC
My switch on the steering wheel. I have full audio controls on the other side
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
5th Wheeling
Joined: Apr 2019
Posts: 45
Likes: 4
Hey guys...I am late to the party as always...lol
I have a 2013 F350 6.2l, and I am looking to do this swap.I have done stuff like this with my F150 I had, and want the fancy screen on my dash. The problem I am having is finding a gauge cluster with the screen, in 2011 or 2012, in KPH, and gas not diesel.
Does anyone have a source or place to find these?I have been looking through ebay, kijiji, local wreckers, Ford itself, and can't find the right setup. Does anyone have the part number for the KPH unit? I see above the unit for the MPH one, but when I give those to the parts guys up in Canada, they say it doen't even show that number in their systems. Any help is greatly appreciated.
I have a 2013 F350 6.2l, and I am looking to do this swap.I have done stuff like this with my F150 I had, and want the fancy screen on my dash. The problem I am having is finding a gauge cluster with the screen, in 2011 or 2012, in KPH, and gas not diesel.
Does anyone have a source or place to find these?I have been looking through ebay, kijiji, local wreckers, Ford itself, and can't find the right setup. Does anyone have the part number for the KPH unit? I see above the unit for the MPH one, but when I give those to the parts guys up in Canada, they say it doen't even show that number in their systems. Any help is greatly appreciated.
looking through the online parts listings, it looks like a 2012 6.2L gas cluster with Kph/mph is CC3Z-10849-HA
Link
4wd Low
Joined: Jan 2023
Posts: 12
Likes: 0
From: Vancouver Island, BC
Ok..unit installed, but having a forscan issue
Saved old cluster as built info as f350old. Installed the new cluster. Opened and saved the new lariat head unit. Saver as lariat cluster.

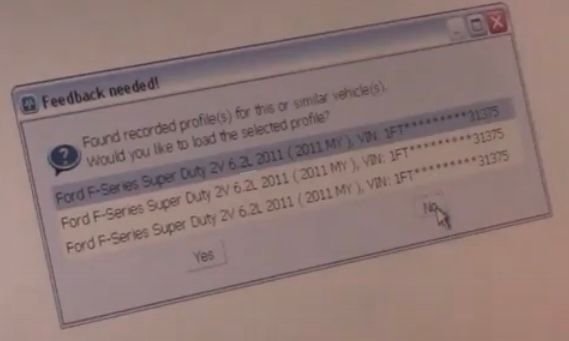

Now I get an error.. configuration structure mismatch when trying to load the old cluster info.....do I have to reinstall the old cluster and download again? Can I use the factory as built using my vin?
