Wiring identification help needed

Reply Subscribe

Thread Tools

Search this Thread

Feb 2, 2019 | 03:25 PM

El Caballo

Thread Starter

Junior User

Joined: Jan 2019

Posts: 75

Likes: 0

From: Oak Ridge, TN

Wiring identification help needed

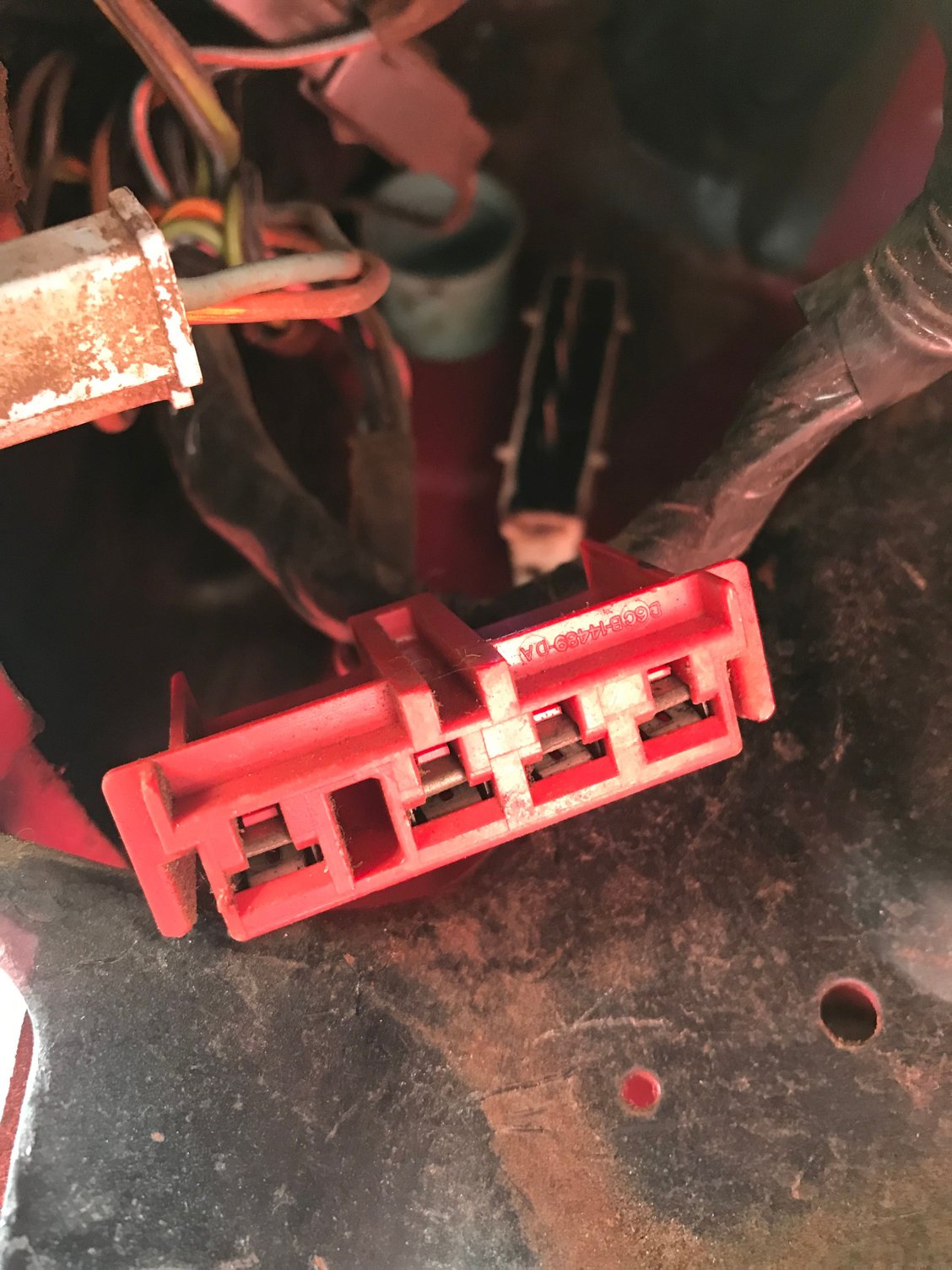

This appears to go into the bulkhead plug above it in the picture. Before I plug it back in I’d like to know what it is.

Feb 2, 2019 | 04:22 PM

hickory1991

Fleet Mechanic

Joined: Feb 2011

Posts: 1,410

Likes: 42

From: Michigan

Seat belt buzzer.

Feb 2, 2019 | 04:40 PM

NumberDummy

Ford Parts Specialist

Joined: Nov 2006

Posts: 88,826

Likes: 783

From: Simi Valley, CA

Quote:

Originally Posted by hickory1991

Seat belt buzzer.

No it's not. It's marked with ID engineering number: D6OB-14489-DA = Ford part number: D6OZ-14489-B .. Wire Sleeve-Red .. TYPE 15 in pic:

The seat belt buzzer could have 4 different ID engineering numbers, all of which include basic number 13150 .. Ford part number is D4AZ-13150-B

Feb 2, 2019 | 07:54 PM

niko20

More Turbo

Joined: Feb 2018

Posts: 710

Likes: 3

From: Oregon

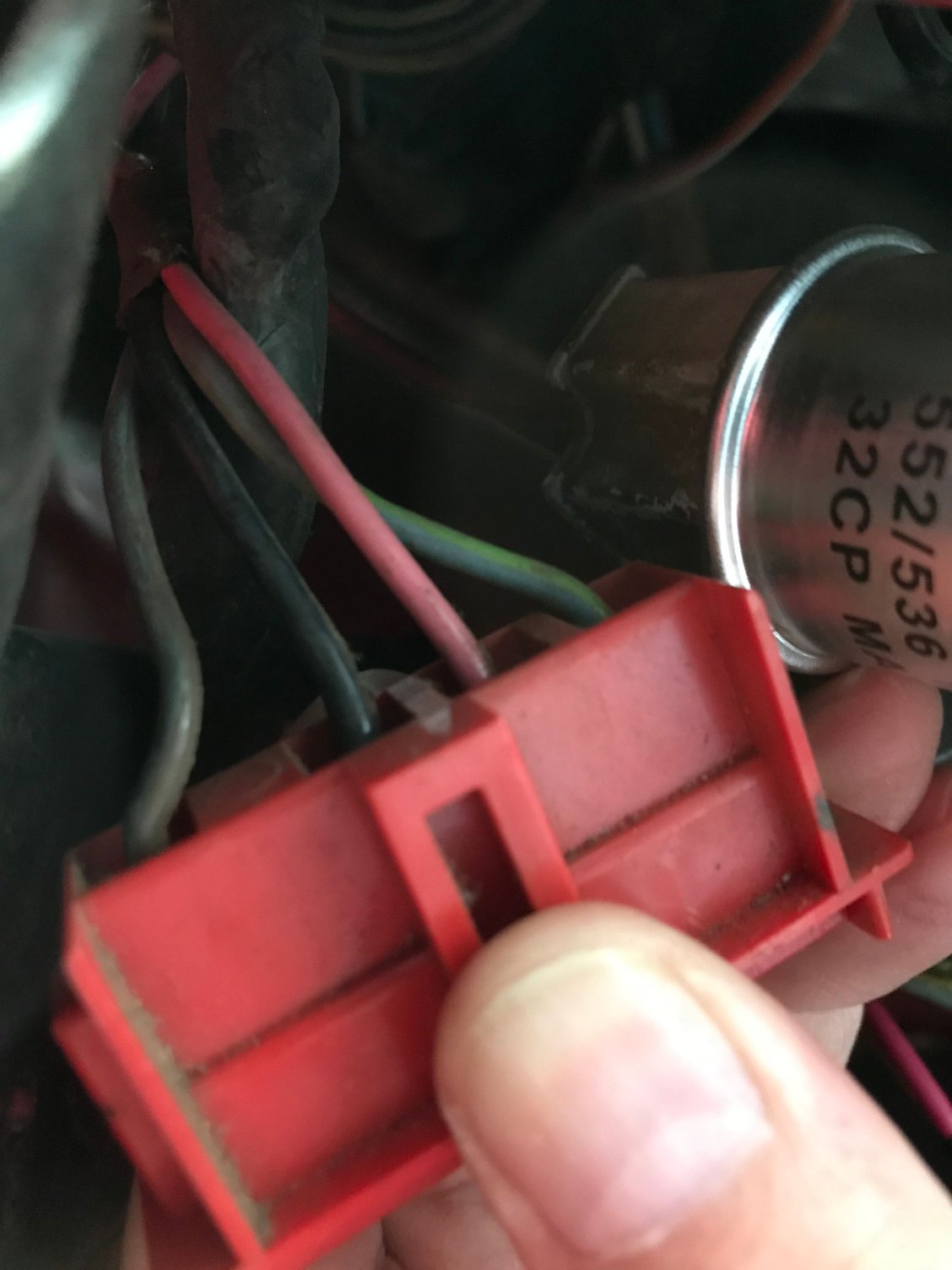

Try to get some wire colors off the back of it, tell us what the colors are, that's a good hint to find them on a wiring diagram

Feb 3, 2019 | 10:46 AM

march

Laughing Gas

Joined: May 2006

Posts: 1,140

Likes: 13

From: Port Orchard Wa

It is not the seat belt buzzer. However....... It is the connector for the seat belt warning buzzer. So think twice about plugging it back in. Look at C-419 on this diagram.

http://fordification.net/tech/images...ster_9of10.png

Feb 3, 2019 | 03:07 PM

meangreen92

Logistics Pro

Joined: Jul 2005

Posts: 4,217

Likes: 154

I agree. However, mine is plugged in. I like hearing the lost forgotten sound of a real buzzer, rather than the chimes cars have had for the past 25+ years.
