code sez 3.70?
Finally found
Thread Starter
|
Fleet Mechanic
Joined: Jan 2014
Posts: 1,529
Likes: 271
From: Billings Montana
The HD is the spring rate 1250 lbs with 450 lb overloads think the cost was $6.50
Post Fiend
Joined: Apr 2002
Posts: 19,311
Likes: 97
From: Waterloo, Iowa
Lead Gopher
Joined: Aug 2012
Posts: 10,014
Likes: 1,565
From: Seattle
3,300 lb. axle with 3.89:1 ratio was standard equipment on the 1964 F100.
The 4.10:1 was optional and only available with the T98A 4-speed transmission.
3.92:1 ratio was not available with the 4-speed.
This is excellent documentation to have.
Chad
The 4.10:1 was optional and only available with the T98A 4-speed transmission.
3.92:1 ratio was not available with the 4-speed.
This is excellent documentation to have.
Chad
Post Fiend
Joined: Apr 2002
Posts: 19,311
Likes: 97
From: Waterloo, Iowa
Lead Gopher
Joined: Aug 2012
Posts: 10,014
Likes: 1,565
From: Seattle
Hi Ted,
I was only referring to the Standard Equipment on a 1964 F100 per the Salesmans Data Book for that year. Gobs of information in this particular publication.
The Ford 3-speed "Synchro-Silent" transmission was also Standard Equipment.
There were restrictions on what could be ordered as far as Optional Equipment. You couldn't get the 3.92:1 ratio with the 4-speed transmission in any engine choice. Only the 4.10:1 axle came with the 4-speed transmission.

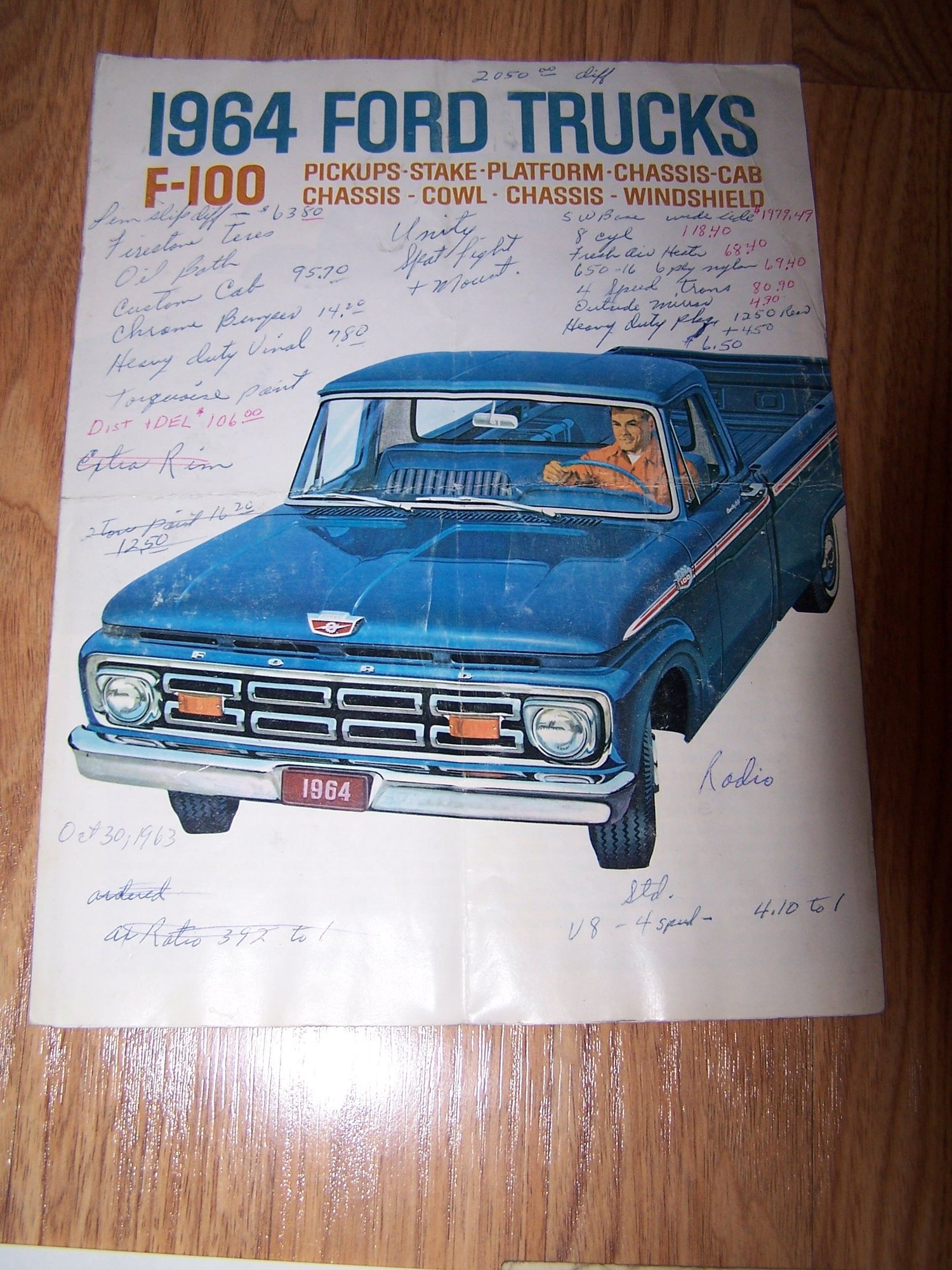

I hope that helps clarify what I was saying. You can see how they had written
"October 31, 1963"
and then below that it says
"ordered
ax Ratio 392 to 1"
but it's been crossed out and on the right side it says
"V8 - 4-speed - 4.10 to 1"
That's because the 3.92:1 was not available with the 4-speed.
Chad
I was only referring to the Standard Equipment on a 1964 F100 per the Salesmans Data Book for that year. Gobs of information in this particular publication.
The Ford 3-speed "Synchro-Silent" transmission was also Standard Equipment.
There were restrictions on what could be ordered as far as Optional Equipment. You couldn't get the 3.92:1 ratio with the 4-speed transmission in any engine choice. Only the 4.10:1 axle came with the 4-speed transmission.
I hope that helps clarify what I was saying. You can see how they had written
"October 31, 1963"
and then below that it says
"ordered
ax Ratio 392 to 1"
but it's been crossed out and on the right side it says
"V8 - 4-speed - 4.10 to 1"
That's because the 3.92:1 was not available with the 4-speed.
Chad
Trending Topics
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 783
From: Simi Valley, CA
No such thing as AXLE code A11.
A would be the TRANS code: Ford type 3.03 3 speed manual all synchromesh trans.
11 = Ford 9" rear axle / 3.70-1 / 3,300 lbs. rear axle capacity.
A would be the TRANS code: Ford type 3.03 3 speed manual all synchromesh trans.
11 = Ford 9" rear axle / 3.70-1 / 3,300 lbs. rear axle capacity.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Ford Super Duty: 5 Things Owners LOVE, 5 Things They LOATHE!
Joe Kucinski
Every 2026 Ford Truck Engine RANKED from WORST to FIRST!
Michael S. Palmer
The Best F-150 Deal of Every Trim Level (XL through Raptor)
Joe Kucinski
Post Fiend
Joined: Apr 2002
Posts: 19,311
Likes: 97
From: Waterloo, Iowa
This is what I'm unclear about. A 3300 pound axle, with the HD springs and overload - with better wheels and tires a standard F100 could carry quite a bit more than half a ton of cargo, no? Maybe not ideal, but it would be doable, no?
Thread Starter
|
Fleet Mechanic
Joined: Jan 2014
Posts: 1,529
Likes: 271
From: Billings Montana
I guess. This truck was ordered with 650 16 6 ply Firestone tires and wheels. Wish I still had the wheels but discarded them years ago I would possibly be interested in 4 if anyone knew of any.
