E4OD plug wiring diagram/ color codes

Reply Subscribe

Thread Tools

Search this Thread

Feb 24, 2018 | 09:59 AM

dtrm

Thread Starter

New User

Joined: Nov 2017

Posts: 7

Likes: 0

E4OD plug wiring diagram/ color codes

I have a 93 F250 4wd with a 460 and an E4OD transmission. The previous owner did an extensive rebuild done of the transmission, and added a Banks Trans Command system, and it has failed. To install the trans command, they pulled three wires from the plug going into the transmission, which are replaced by wires from the trans command system. I'm looking for a wiring diagram that shows which of the three factory colored wires goes into which of the pins in the factory plug. Thanks in advance!

Feb 27, 2018 | 07:13 PM

Scndsin

FTE Chapter Leader

Joined: May 2006

Posts: 12,338

Likes: 1,314

From: Central Mississippi

Bump to the top of forum.

Good luck.

Feb 27, 2018 | 08:38 PM

wag53

Senior User

Joined: Jan 2003

Posts: 286

Likes: 0

From: Sumter SC

e4od-harness-connector.jpg I think this is what you are looking for.

Feb 28, 2018 | 06:15 AM

dtrm

Thread Starter

New User

Joined: Nov 2017

Posts: 7

Likes: 0

Thank you. Almost there, removed the trans command, and it's well again.

Feb 28, 2018 | 07:42 AM

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,667

Likes: 301

From: Easton,Ks

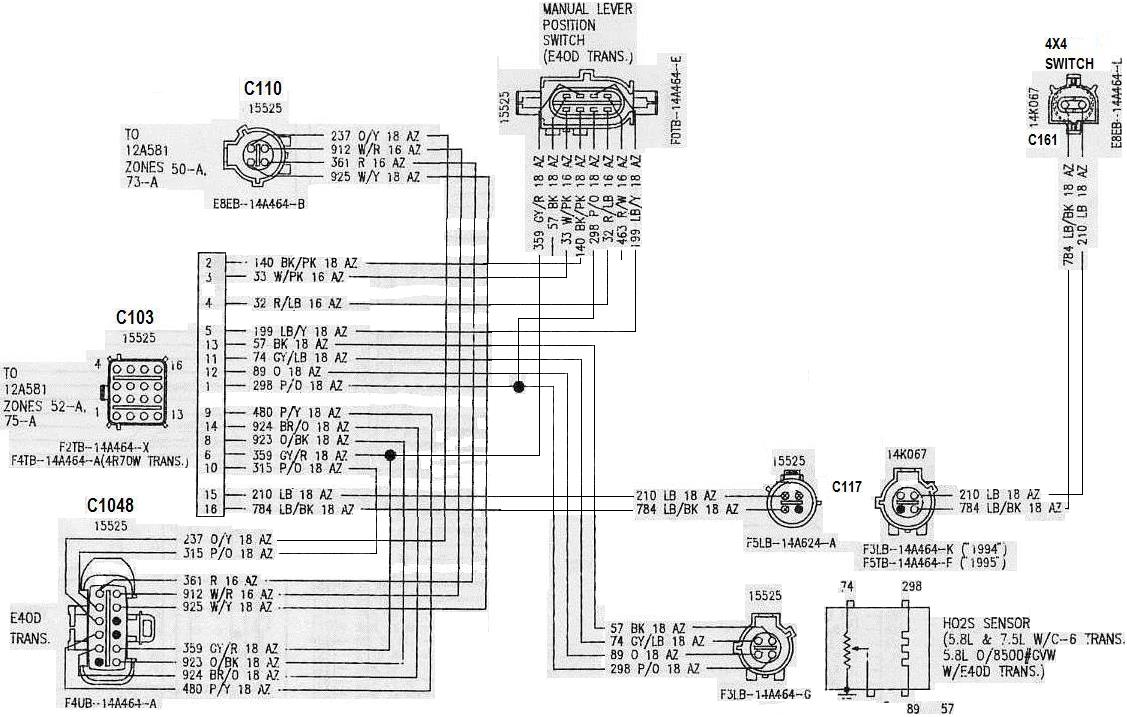

Here is the diagram:
Attachment 282875

/

Feb 28, 2018 | 07:49 AM

dtrm

Thread Starter

New User

Joined: Nov 2017

Posts: 7

Likes: 0

Thank you !

Sep 16, 2022 | 09:37 AM

IBEWelectronut

5th Wheeling

Joined: May 2022

Posts: 37

Likes: 2

From: Tulsa, Oklahoma

Quote:

Originally Posted by subford

Here is the diagram:

What year truck is this diagram for?
