Mystery ground driver side

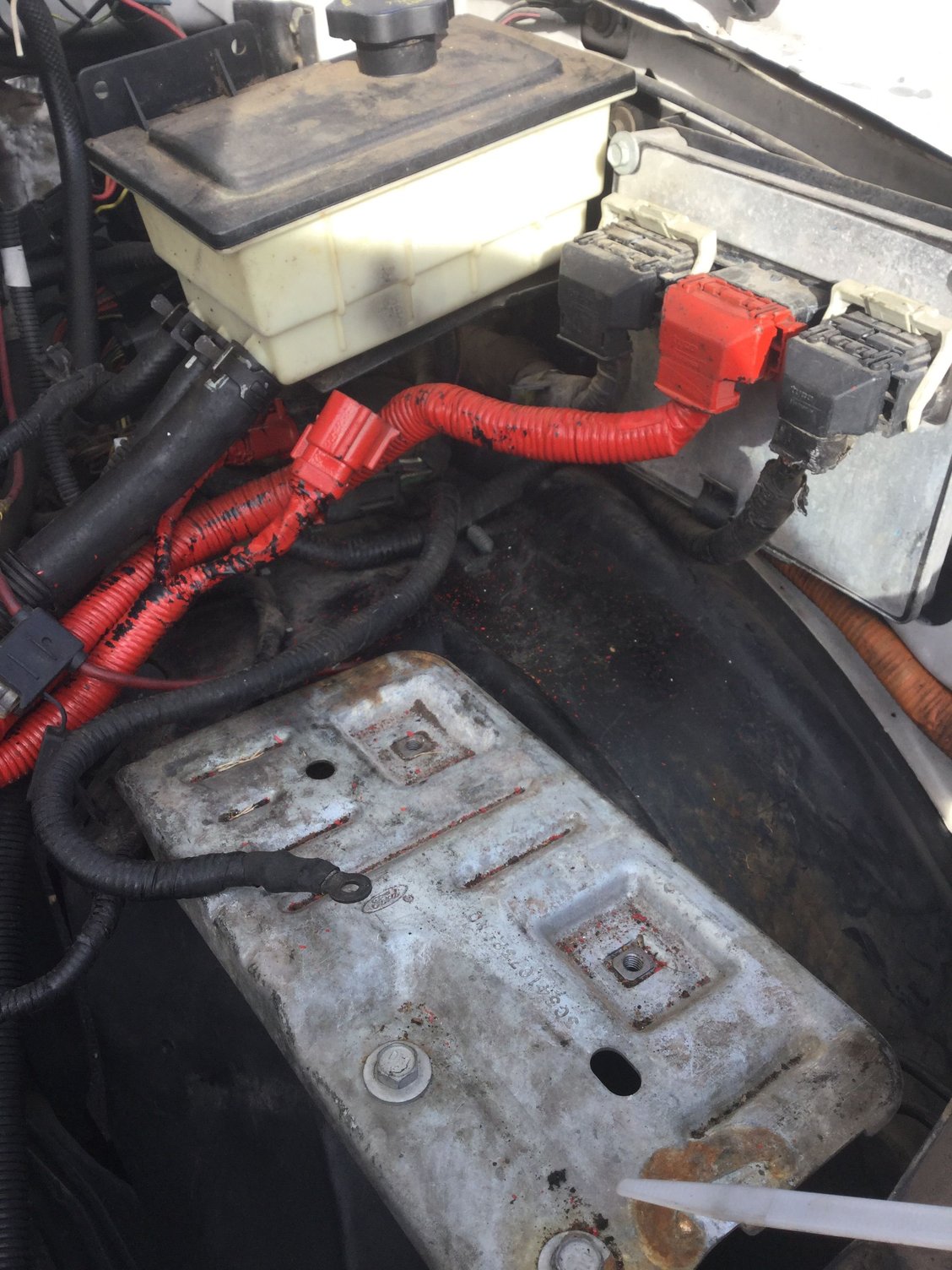

I'm installing the battery tray and I see a grounding wire coming from the cab towards the PCM I don't no actually where it goes . This where is laying right now I'm pretty sure the grounds to the frame but I don't know where can anyone tell me where this wire grounds to pleas

Reply
Old Nov 28, 2017 | 04:16 PM
  #2
FiznUKa's Avatar
FiznUKa
Posting Guru
Joined: Mar 2014
Posts: 1,468
Likes: 5
From: Salt Lake City, utah
That wire I don't think is a ground. It should be the positive wire to run the power to inside the truck.

Reply
Old Nov 28, 2017 | 04:25 PM
  #3
Allen117's Avatar
Allen117
Thread Starter
|
Junior User
Joined: Jul 2016
Posts: 53
Likes: 0
how do I make sure that a positive wire I don't want hook up the wrong wire to the battery lol

Reply
Old Nov 28, 2017 | 04:48 PM
  #4
TooManyToys.'s Avatar
TooManyToys.
Hotshot
Photogenic
Photoriffic
Shutterbug
Joined: Dec 2014
Posts: 17,762
Likes: 3,053
From: Jersey Shore
That’s the positive lead to the drivers positive post.

Check one, don’t hook it up and no power to anything in the truck. Nada.

Check two, set your multimeter to ohms or continuity, attach one lead to the eyelet, touch some other positive contact, light bulb (switched on) fuse panel, whatever.

Reply
Old Nov 28, 2017 | 09:09 PM
  #5
TooManyToys.'s Avatar
TooManyToys.
Hotshot
Photogenic
Photoriffic
Shutterbug
Joined: Dec 2014
Posts: 17,762
Likes: 3,053
From: Jersey Shore
Also if you trace that cable backwards past the reservoir you’ll find there are fusible links spliced in there. Fusible links are always on positive cables, never negative.

Reply
