Heat/vent control question
Thread Starter
|
Senior User
Joined: Jul 2017
Posts: 136
Likes: 0
From: Fort Wayne IN
Heat/vent control question
I know something is missing from my control unit but not sure what and I can't find a good photo of it.
The arms you move to adjust the temp don't stay on the pins so they can pivot. Looks like some kind of plate goes across the top where the 2 screw holes are and the pins. I'm sure I can make something out of a scrap metal I have but if is missing something important it would be nice to know before I reinstall it all
The arms you move to adjust the temp don't stay on the pins so they can pivot. Looks like some kind of plate goes across the top where the 2 screw holes are and the pins. I'm sure I can make something out of a scrap metal I have but if is missing something important it would be nice to know before I reinstall it all
Thread Starter
|
Senior User
Joined: Jul 2017
Posts: 136
Likes: 0
From: Fort Wayne IN
Thanks the marks on the lever show that sort of washer too. I have been searching online all morning and no luck finding this part at all. Might be able to find some washer that will work for that. I'm needing both top and bottom
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 787
From: Simi Valley, CA
The levers pivot on nylon bushings that cannot be replaced, as FoMoCo never sold these parts by themselves.
FoMoCo only sold the complete assy., and there are several different types, depending on the year and if the truck has factory installed integral A/C or just a heater.
FoMoCo only sold the complete assy., and there are several different types, depending on the year and if the truck has factory installed integral A/C or just a heater.
Thread Starter
|
Senior User
Joined: Jul 2017
Posts: 136
Likes: 0
From: Fort Wayne IN
No signs of having AC on the truck so guessing heat only.
Does anyone make these still? My truck is 78 F150
Or if someone know what this unit is called so I can search it easier would help too. Looking in my NPD catalog I see it in the drawing but it doesn't have a name or part number for this unit.
Does anyone make these still? My truck is 78 F150
Or if someone know what this unit is called so I can search it easier would help too. Looking in my NPD catalog I see it in the drawing but it doesn't have a name or part number for this unit.
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 787
From: Simi Valley, CA
No signs of having AC on the truck so guessing heat only.
Does anyone make these still? Obsolete My truck is 78 F150
Or if someone know what this unit is called (Heater Control Panel) so I can search it easier would help too.
Looking in my LMC catalog I see it in the drawing but it doesn't have a name or part number for this unit.
Does anyone make these still? Obsolete My truck is 78 F150
Or if someone know what this unit is called (Heater Control Panel) so I can search it easier would help too.
Looking in my LMC catalog I see it in the drawing but it doesn't have a name or part number for this unit.
Both make a difference in which heater control panel the truck uses.
Thread Starter
|
Senior User
Joined: Jul 2017
Posts: 136
Likes: 0
From: Fort Wayne IN
The truck doesn't have duel fuel tanks.
Not sure about the hi/Lo vent system. Need to read on what that is and check the truck.
My unit does have the two adjusters that pivot on the pins, left side has fan speed switch and right side is another switch but no markings to what it might be for.
Not sure about the hi/Lo vent system. Need to read on what that is and check the truck.
My unit does have the two adjusters that pivot on the pins, left side has fan speed switch and right side is another switch but no markings to what it might be for.
Trending Topics
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 787
From: Simi Valley, CA
The truck doesn't have dual fuel tanks.
Not sure about the hi/Lo vent system. Need to read on what that is and check the truck.
My unit does have the two adjusters that pivot on the pins, left side has fan speed switch and right side is another switch
but no markings to what it might be for.
Not sure about the hi/Lo vent system. Need to read on what that is and check the truck.
My unit does have the two adjusters that pivot on the pins, left side has fan speed switch and right side is another switch
but no markings to what it might be for.No dual fuel tanks, no fuel tank selector switch. If the right side has this switch, more than likely a previous owner replaced the heater control panel with one from a truck with dual tanks.
The vents in the center of the dash used with factory A/C were also used with the optional Hi/Lo Comfort Vent System.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Thread Starter
|
Senior User
Joined: Jul 2017
Posts: 136
Likes: 0
From: Fort Wayne IN
I did wondering about my truck having duel fuel tanks but I just thought they put the wire on all the trucks. Plus my driver side bed panel has been changed so the easy way to tell doesn't work.
I will take a look tonight and some more photos of the panel.
I will take a look tonight and some more photos of the panel.
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 787
From: Simi Valley, CA
The selector switch (it only changes the dash fuel gauge from one tank to the other) is located under the dash (on a bracket) to the left of the steering column.
1973/74's with dual tanks used a similar valve, but the switch is located in the heater control panel.
Thread Starter
|
Senior User
Joined: Jul 2017
Posts: 136
Likes: 0
From: Fort Wayne IN
Ok looking at the heater control panel the switch on the right is fuel. Aux /Main.
But I won't be replacing the tank so I will have find another use for the switch.
And yes I'm gping to look for those star locking washers this weekend at Lowes
But I won't be replacing the tank so I will have find another use for the switch.
And yes I'm gping to look for those star locking washers this weekend at Lowes
Thread Starter
|
Senior User
Joined: Jul 2017
Posts: 136
Likes: 0
From: Fort Wayne IN

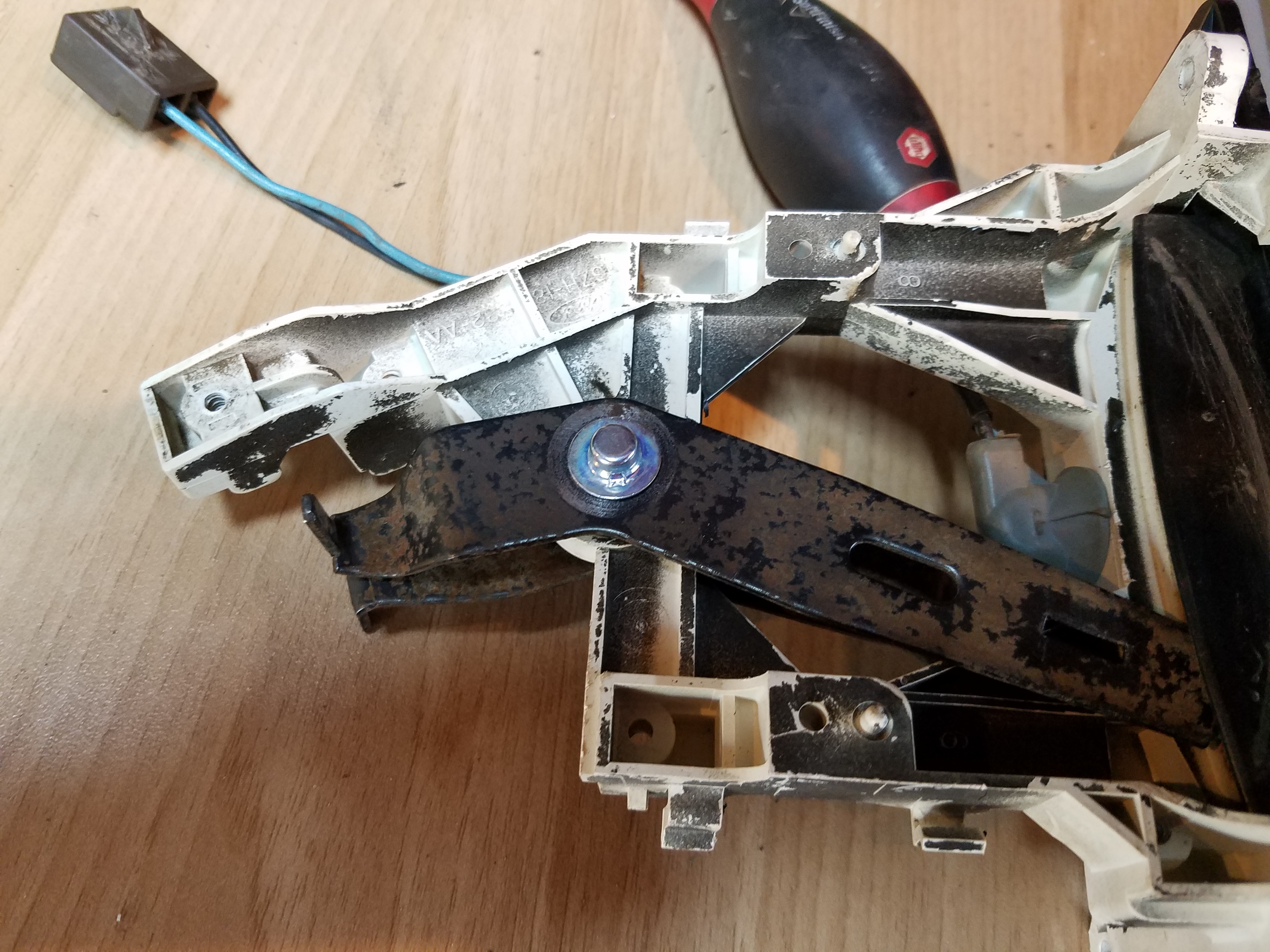

Ok hit Lowes and they didn't have the ones I was looking for but found these little caps and I think they will work.
