Manual Steering Swap

Will my stock pitman arm of my manual gearbox fit a Saginaw gearbox?

Jun 9, 2017 | 05:51 PM

HIO Silver

Fleet Owner

Joined: Dec 2009

Posts: 20,678

Likes: 82

From: NorCal

PS pitman arms are PS-specific. The difference btwn manual and PS pitmans is the head angle... one is less angled that the other. I forget which....

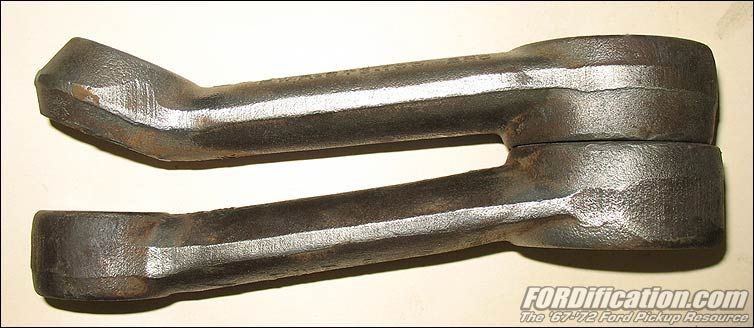

There is a pic comparing the two over at Fordification.

Jun 9, 2017 | 06:33 PM

pchelp

Thread Starter

Elder User

Joined: May 2017

Posts: 590

Likes: 4

Quote:

Originally Posted by HIO Silver

HIO, I just took a look at the Technical articles and it doesn't show the pitman arm. Would it be posted any place else ?

Jun 9, 2017 | 06:40 PM

HIO Silver

Fleet Owner

Joined: Dec 2009

Posts: 20,678

Likes: 82

From: NorCal

Quote:

Originally Posted by pchelp

HIO, I just took a look at the Technical articles and it doesn't show the pitman arm. Would it be posted any place else ?

It's posted....Go here: Steering/Suspension Component Variations - FORDification.com

Jun 9, 2017 | 07:04 PM

pchelp

Thread Starter

Elder User

Joined: May 2017

Posts: 590

Likes: 4

Quote:

Originally Posted by HIO Silver

It's posted....Go here: Steering/Suspension Component Variations - FORDification.com

Ok I do see the difference, thank you ! Problem solved, I contacted there person I bought the Saginaw from and he has the pitman arm.

Jun 10, 2017 | 08:24 AM

ultraranger

Lead Driver

Joined: Apr 2011

Posts: 6,399

Likes: 40

From: El Dorado, Arkansas

The arm for a Saginaw has a greater offset angle.

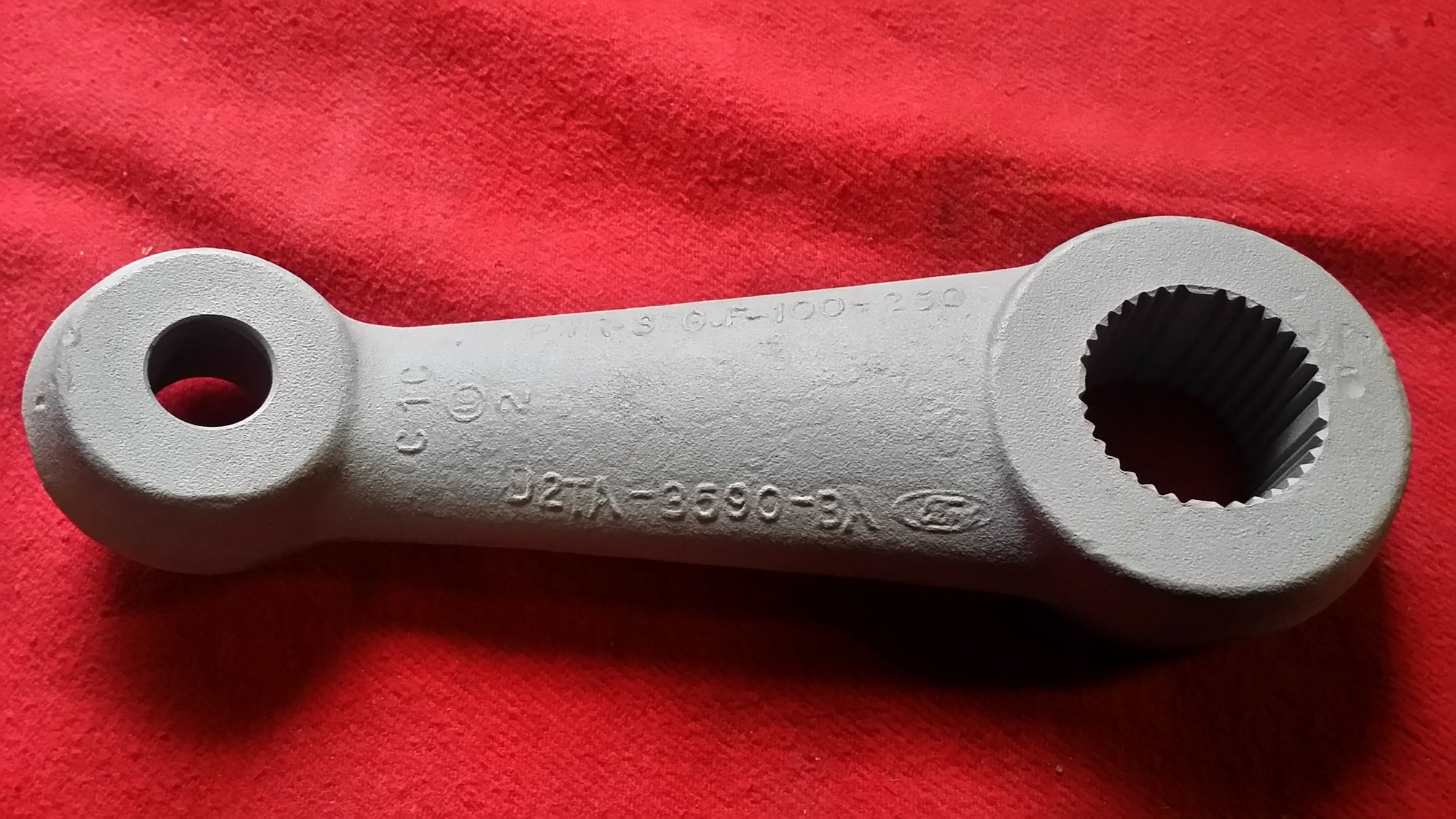

This is a pitman arm from a '75 F100 that had a Saginaw PS gearbox. (D2TA-3590-BA. Cast with "PWR STG F-100-250" on it).

Jun 10, 2017 | 01:36 PM

NumberDummy

Ford Parts Specialist

Joined: Nov 2006

Posts: 88,826

Likes: 785

From: Simi Valley, CA

----------
