Adding Adaptive Cruise Control - Complete!
Freshman User
Joined: Mar 2014
Posts: 33
Likes: 1
From: Southern Maryland
Works Like A Charm!
Hi Everyone. I am new to this forum, not new to this industry. I have an ongoing thread on another board, but thought I would share on this platform as well.
I have a 2016 F150 502a, this will not work on XLT systems due to the harness behind the dash and IPC screen. Perform this mod at your own risk. The parts list and required FORScan changes are posted below. Enjoy!!!
BATTERY - Disconnect it.

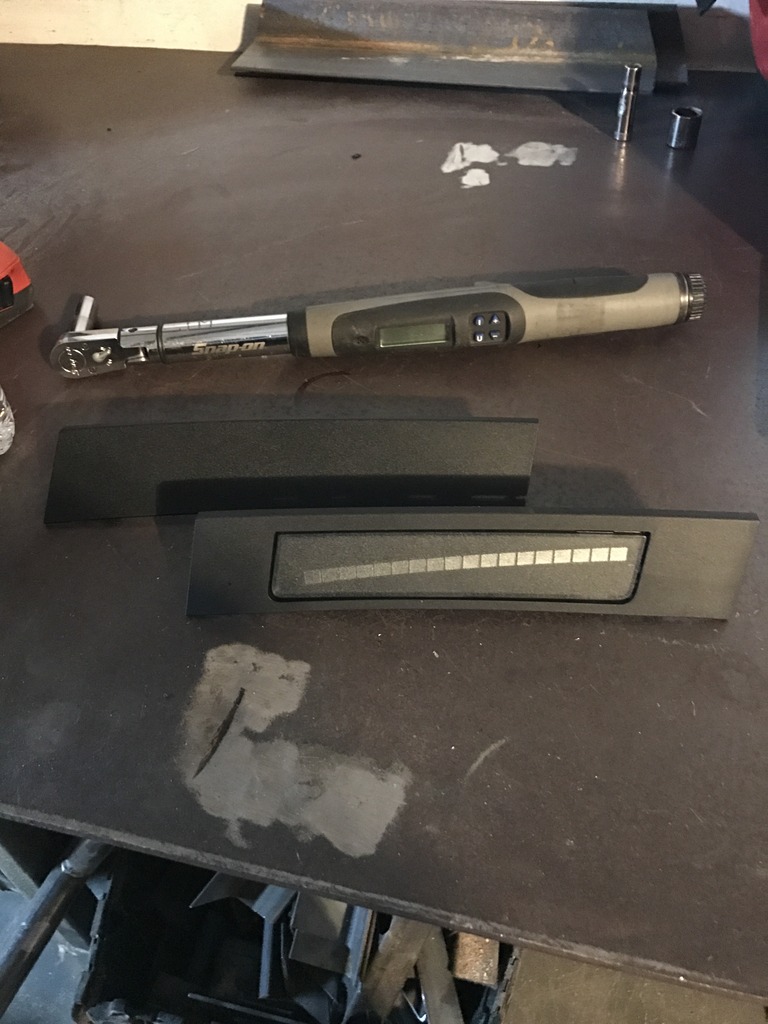

HUD - Easy to remove the blank plate and add in the HUD module. Two retaining clips on either end with the HUD wire connected to the blank. Remove the plate with a small screw driver or trim removal tool - pops right out. Straight forward to install new trim plate and the HUD module. Easiest part of the install!
WIRING HARNESS - The new harness powers fogs and the new CCM module. The connector you can see from the top by the passenger headlight assembly. It lays horizontal in a small triangular space. Getting it out was a challenge until I removed the bumper. Three bolts on either side and the bumper is off and the harness is right there. Knowing what I know now I might be able to get the harness out without pulling the bumper, but only because I've done it one time.
SENSOR MODULE - The new bracket goes in very easy. Level the new sensor and you're good to go using the top alignment screw and a reverse torx socket. Three plastic retainers in the bumper itself; two screws in the top of the bracket to the metal frame behind it.

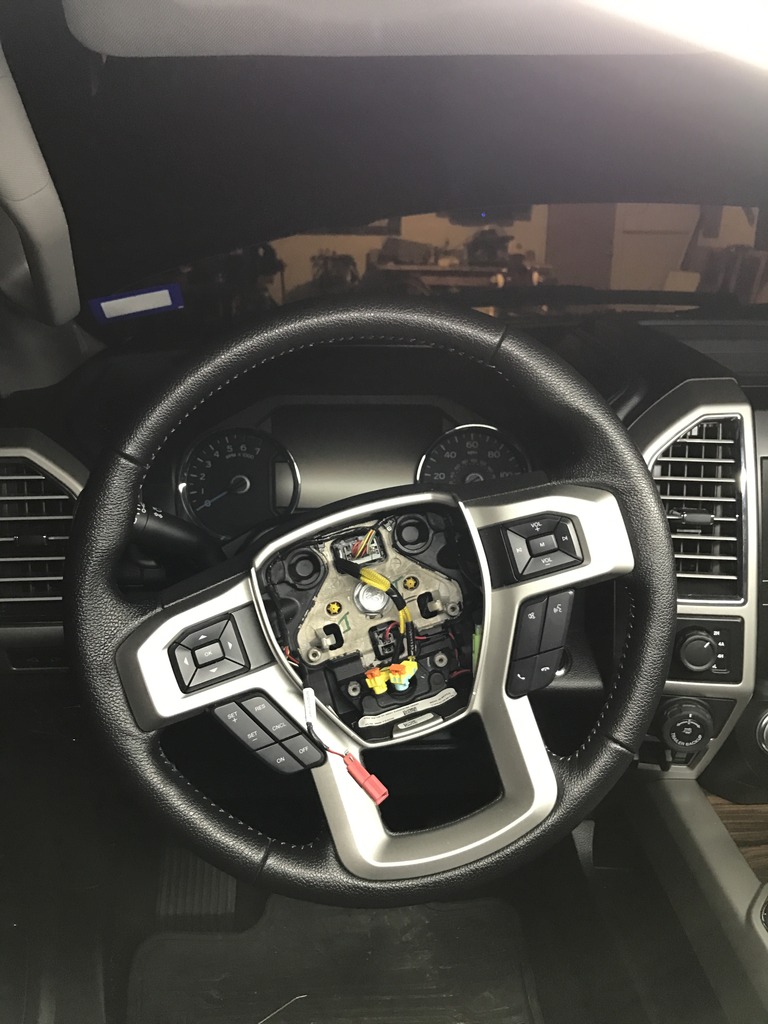

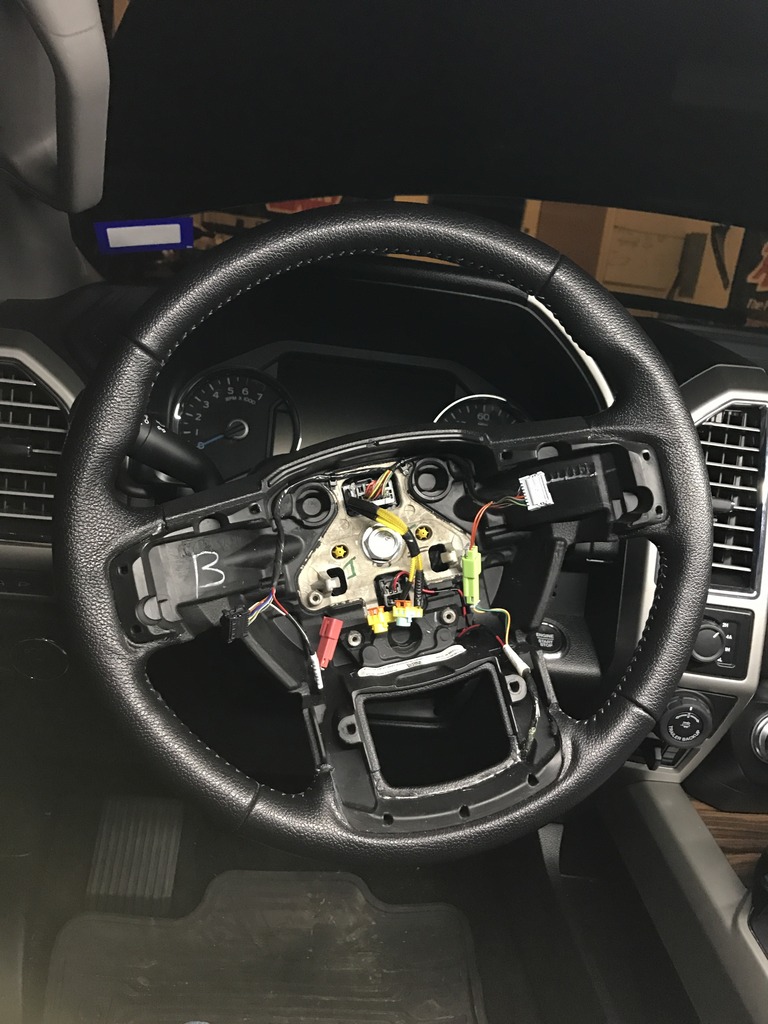

STEERING WHEEL CONTROLS - Make sure the battery is disconnected and that there were no airbag faults prior to disconnecting the battery. Always keep away from the face of the airbag and handle the unit VERY carefully. If dropped, do not reinstall the airbag. Getting the airbag out with two hex wrenches was easy. You can lift it right out and sit it on top of the wheel assembly. Two wiring connectors inside you need to pull off their retainer, but do not have to disconnect. One on either side (green and brown).
I have a 2016 F150 502a, this will not work on XLT systems due to the harness behind the dash and IPC screen. Perform this mod at your own risk. The parts list and required FORScan changes are posted below. Enjoy!!!
BATTERY - Disconnect it.
HUD - Easy to remove the blank plate and add in the HUD module. Two retaining clips on either end with the HUD wire connected to the blank. Remove the plate with a small screw driver or trim removal tool - pops right out. Straight forward to install new trim plate and the HUD module. Easiest part of the install!
WIRING HARNESS - The new harness powers fogs and the new CCM module. The connector you can see from the top by the passenger headlight assembly. It lays horizontal in a small triangular space. Getting it out was a challenge until I removed the bumper. Three bolts on either side and the bumper is off and the harness is right there. Knowing what I know now I might be able to get the harness out without pulling the bumper, but only because I've done it one time.
SENSOR MODULE - The new bracket goes in very easy. Level the new sensor and you're good to go using the top alignment screw and a reverse torx socket. Three plastic retainers in the bumper itself; two screws in the top of the bracket to the metal frame behind it.
STEERING WHEEL CONTROLS - Make sure the battery is disconnected and that there were no airbag faults prior to disconnecting the battery. Always keep away from the face of the airbag and handle the unit VERY carefully. If dropped, do not reinstall the airbag. Getting the airbag out with two hex wrenches was easy. You can lift it right out and sit it on top of the wheel assembly. Two wiring connectors inside you need to pull off their retainer, but do not have to disconnect. One on either side (green and brown).
New User
Joined: Dec 2019
Posts: 4
Likes: 1
I did this on my 2017 and it took me about 4 hours at the most. I took my grille off for easier access. Great feature
Posting Guru
Joined: Mar 2010
Posts: 1,629
Likes: 2
From: West Bloomfield, MI
I am very much considering adding this to my raptor, thanks for the wire up! Questions about the sensor...when you say to "level" the sensor, do you mean to make sure it's 90* to the bumper bracket or level with the ground?
New User
Joined: Dec 2019
Posts: 4
Likes: 1
[img]blob:https://www.ford-trucks.com/80bcc578-3f26-42a9-bc55-d1b0eb8e47b3[/img]
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
New User
Joined: Jan 2020
Posts: 1
Likes: 0
2019 XLT 5.0 301A Adaptive Cruise?
Hi Everyone. I am new to this forum, not new to this industry. I have an ongoing thread on another board, but thought I would share on this platform as well.
I have a 2016 F150 502a, this will not work on XLT systems due to the harness behind the dash and IPC screen. Perform this mod at your own risk. The parts list and required FORScan changes are posted below. Enjoy!!!
BATTERY - Disconnect it.
HUD - Easy to remove the blank plate and add in the HUD module. Two retaining clips on either end with the HUD wire connected to the blank. Remove the plate with a small screw driver or trim removal tool - pops right out. Straight forward to install new trim plate and the HUD module. Easiest part of the install!
WIRING HARNESS - The new harness powers fogs and the new CCM module. The connector you can see from the top by the passenger headlight assembly. It lays horizontal in a small triangular space. Getting it out was a challenge until I removed the bumper. Three bolts on either side and the bumper is off and the harness is right there. Knowing what I know now I might be able to get the harness out without pulling the bumper, but only because I've done it one time.
SENSOR MODULE - The new bracket goes in very easy. Level the new sensor and you're good to go using the top alignment screw and a reverse torx socket. Three plastic retainers in the bumper itself; two screws in the top of the bracket to the metal frame behind it.
STEERING WHEEL CONTROLS - Make sure the battery is disconnected and that there were no airbag faults prior to disconnecting the battery. Always keep away from the face of the airbag and handle the unit VERY carefully. If dropped, do not reinstall the airbag. Getting the airbag out with two hex wrenches was easy. You can lift it right out and sit it on top of the wheel assembly. Two wiring connectors inside you need to pull off their retainer, but do not have to disconnect. One on either side (green and brown).
Attachment 194218

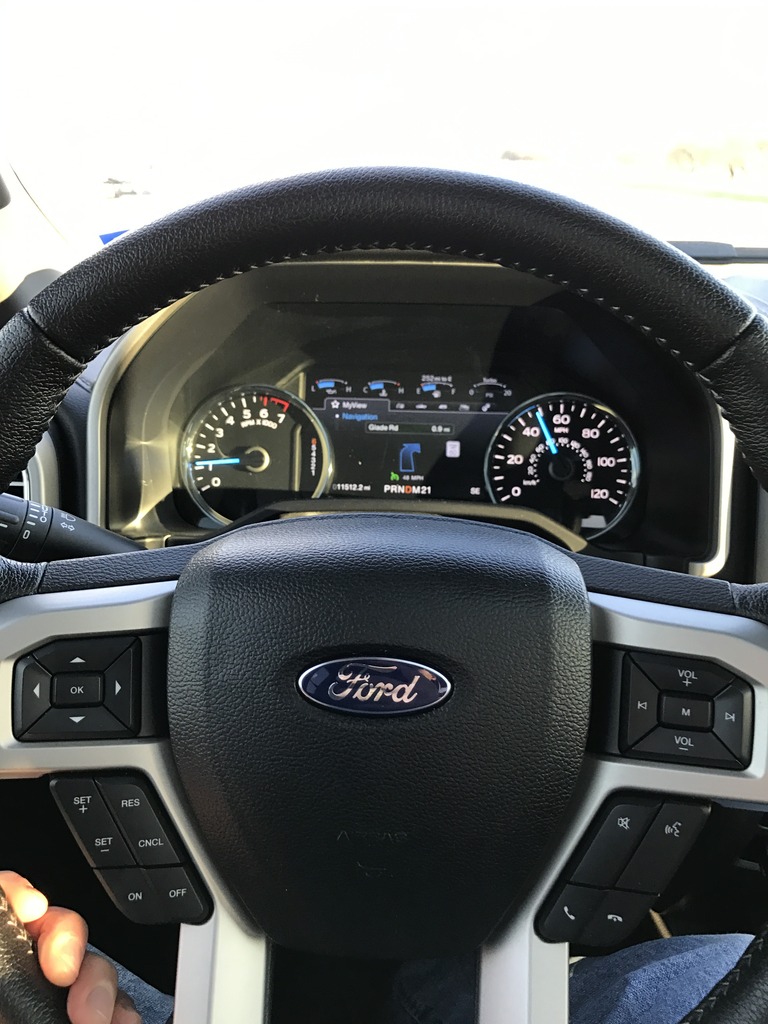

Before..
Attachment 194219
Attachment 194220
Attachment 194221
Attachment 194222
Attachment 194223
Attachment 194224
Attachment 194225
Attachment 194226
Attachment 194227
I have a 2016 F150 502a, this will not work on XLT systems due to the harness behind the dash and IPC screen. Perform this mod at your own risk. The parts list and required FORScan changes are posted below. Enjoy!!!
BATTERY - Disconnect it.
HUD - Easy to remove the blank plate and add in the HUD module. Two retaining clips on either end with the HUD wire connected to the blank. Remove the plate with a small screw driver or trim removal tool - pops right out. Straight forward to install new trim plate and the HUD module. Easiest part of the install!
WIRING HARNESS - The new harness powers fogs and the new CCM module. The connector you can see from the top by the passenger headlight assembly. It lays horizontal in a small triangular space. Getting it out was a challenge until I removed the bumper. Three bolts on either side and the bumper is off and the harness is right there. Knowing what I know now I might be able to get the harness out without pulling the bumper, but only because I've done it one time.
SENSOR MODULE - The new bracket goes in very easy. Level the new sensor and you're good to go using the top alignment screw and a reverse torx socket. Three plastic retainers in the bumper itself; two screws in the top of the bracket to the metal frame behind it.
STEERING WHEEL CONTROLS - Make sure the battery is disconnected and that there were no airbag faults prior to disconnecting the battery. Always keep away from the face of the airbag and handle the unit VERY carefully. If dropped, do not reinstall the airbag. Getting the airbag out with two hex wrenches was easy. You can lift it right out and sit it on top of the wheel assembly. Two wiring connectors inside you need to pull off their retainer, but do not have to disconnect. One on either side (green and brown).
Attachment 194218
Before..
Attachment 194219
Attachment 194220
Attachment 194221
Attachment 194222
Attachment 194223
Attachment 194224
Attachment 194225
Attachment 194226
Attachment 194227
New User
Joined: Dec 2019
Posts: 4
Likes: 1
New User
Joined: Aug 2020
Posts: 2
Likes: 1
Just performed this upgrade on my 2015 F150 Lariat (502A). Here are a couple of notes:
Don't over complicate the removal of your bumper. The only nuts that you need to remove are the six 21 millimeter nuts. Four are on the front of the bumper (2 on each side) and two are on the back (one on each side).

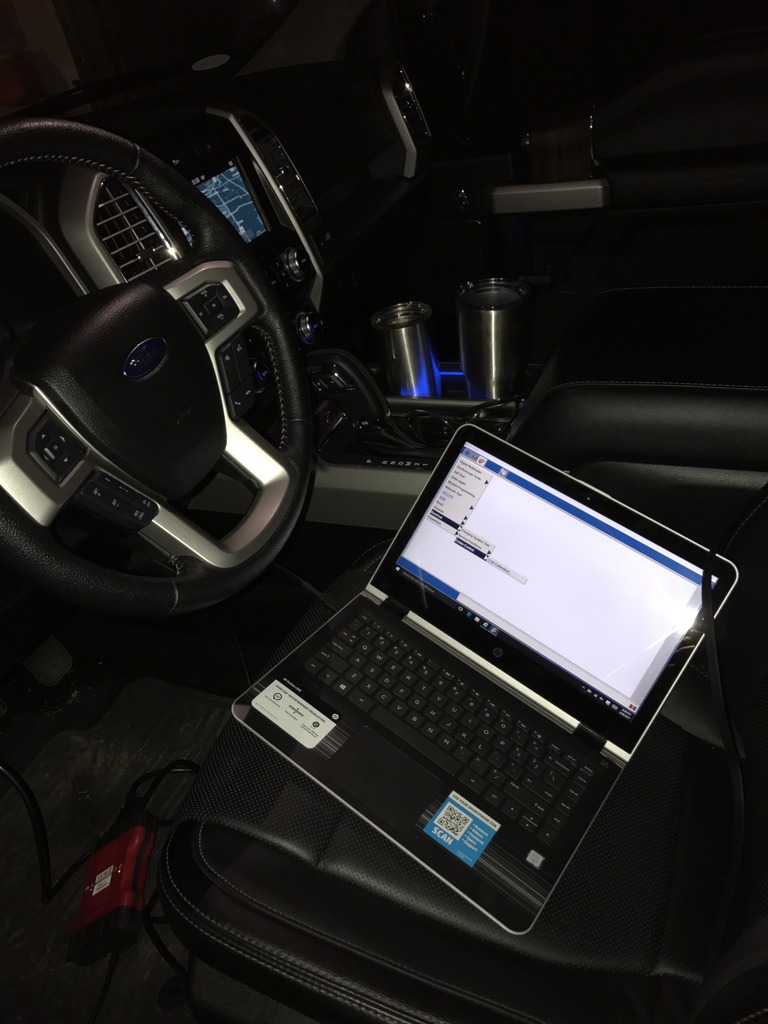

Also, once you have all of the hardware installed, when you start FORScan, do NOT use your old profile. Create a new one. This forces FORScan to recognize your cruise control module. I did not do this and could not find the C-CM module anywhere until I created the new profile.
I can attest that Ford IDS is not needed. Use FORScan to calibrate your C-CM.
Everything now works as advertised.
Thanks Ecoboost Morgan for this easy to use guide!
Don't over complicate the removal of your bumper. The only nuts that you need to remove are the six 21 millimeter nuts. Four are on the front of the bumper (2 on each side) and two are on the back (one on each side).
Also, once you have all of the hardware installed, when you start FORScan, do NOT use your old profile. Create a new one. This forces FORScan to recognize your cruise control module. I did not do this and could not find the C-CM module anywhere until I created the new profile.
I can attest that Ford IDS is not needed. Use FORScan to calibrate your C-CM.
Everything now works as advertised.
Thanks Ecoboost Morgan for this easy to use guide!
New User
Joined: Apr 2020
Posts: 4
Likes: 0
I'm ready to jump into this mod. I ran the hex decimal output for my vin ('16 Lariat 502a) and one cluster of digits is: 4b. Is this okay to enter into forscan when following the VIN entries? All input is greatly appreciated.
New User
Joined: Aug 2020
Posts: 2
Likes: 1
New User
Joined: Apr 2020
Posts: 4
Likes: 0
Thank you sir. When disconnecting the battery, just the negative is sufficient (and waiting about 30 minutes before working on removing the steering wheel airbag?
