Grille trim alignment
Thread Starter
|
Elder User
Joined: Aug 2009
Posts: 928
Likes: 2
Grille trim alignment
Putting a new grille, headlight buckets, lower valence, radiator support in an 86 and would like to see if anyone can post a picture on how everything lines up. For some reason, it seems the radiator support shroud should cover the headlight buckets, but the mounting holes does not allow it. Like I said, a few pictures would mean a lot to me as to what is where.
FTE Legend
Joined: Jul 2010
Posts: 32,875
Likes: 48
From: Northeast, OK
Thread Starter
|
Elder User
Joined: Aug 2009
Posts: 928
Likes: 2

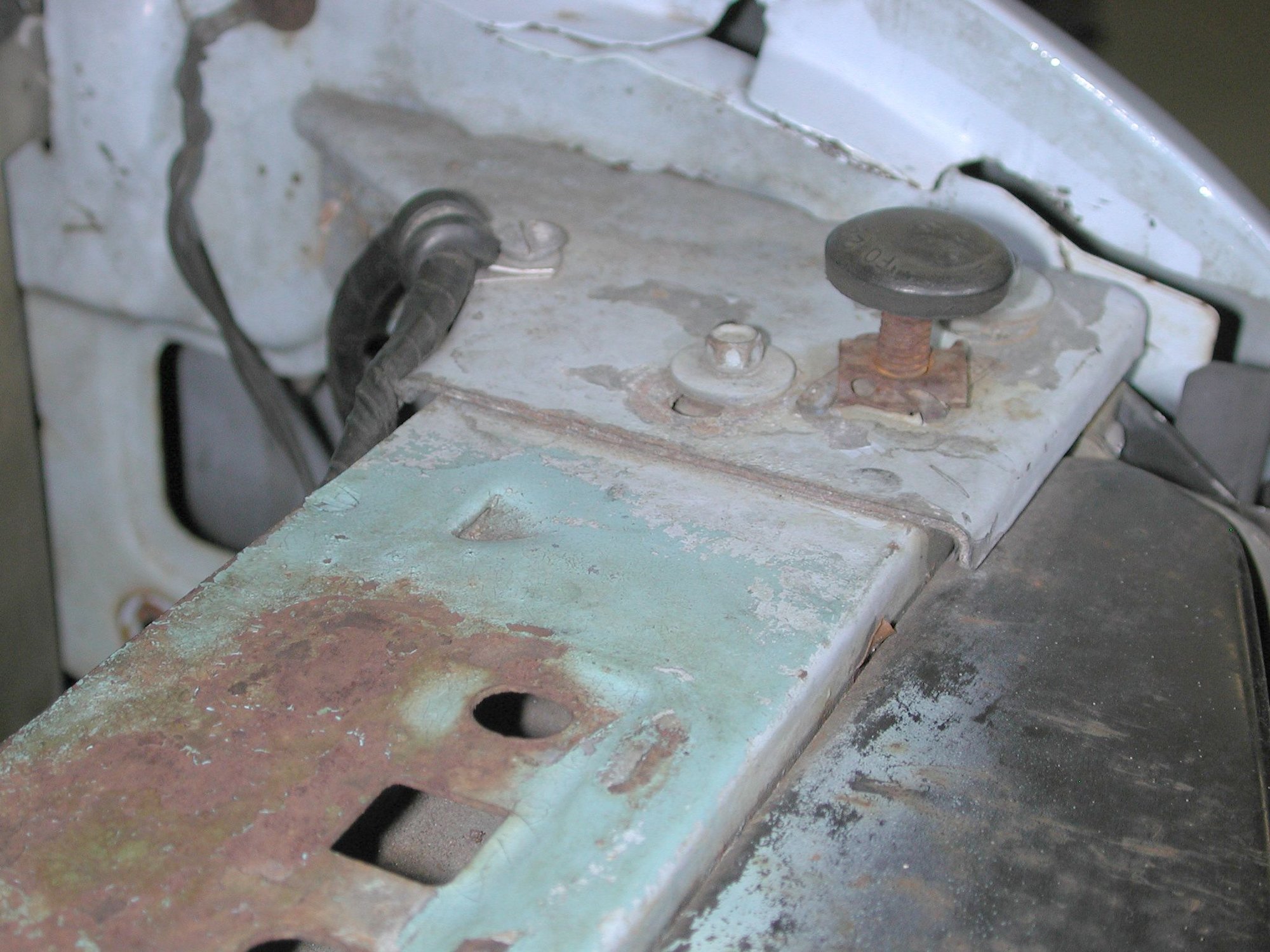

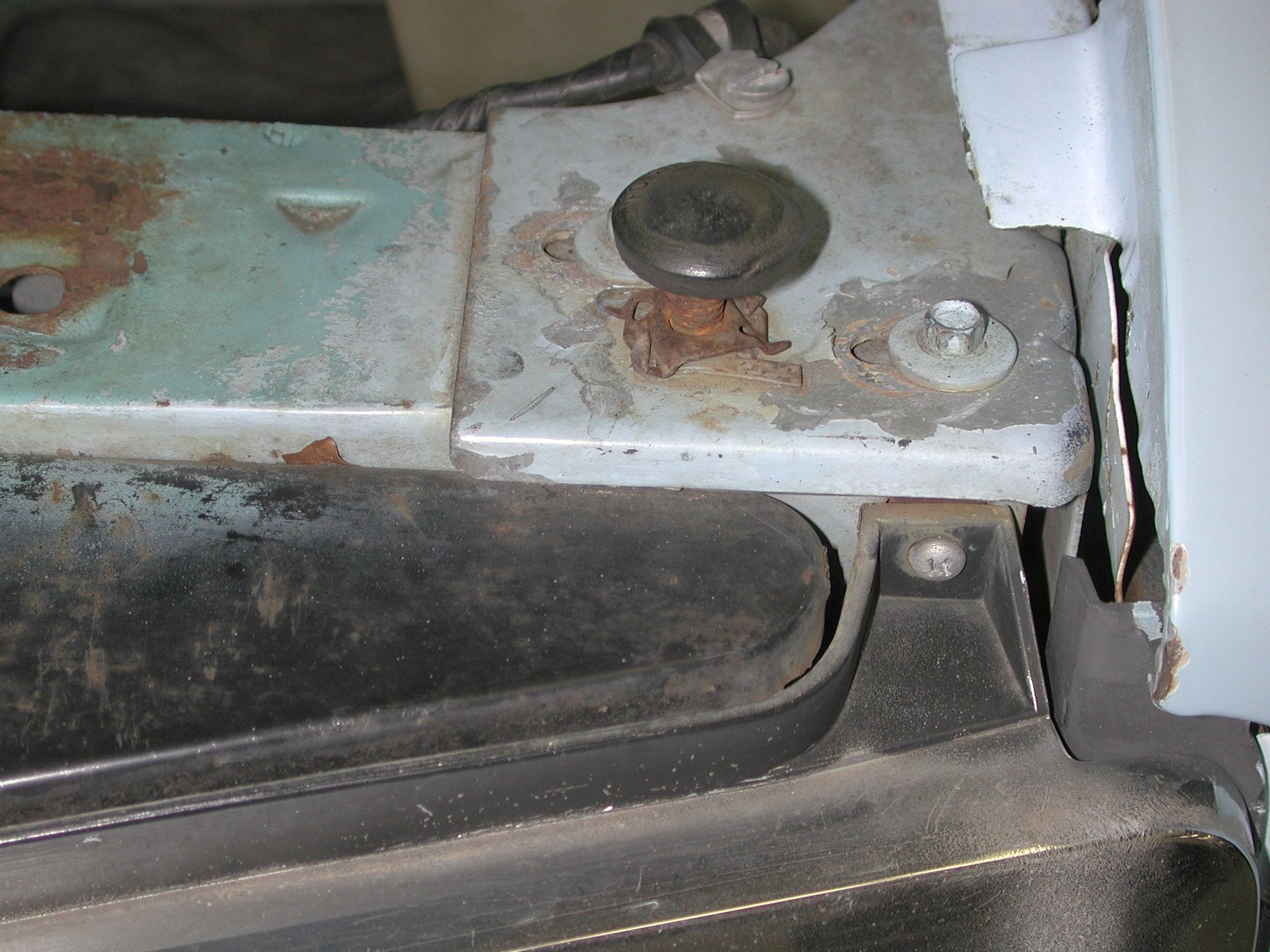

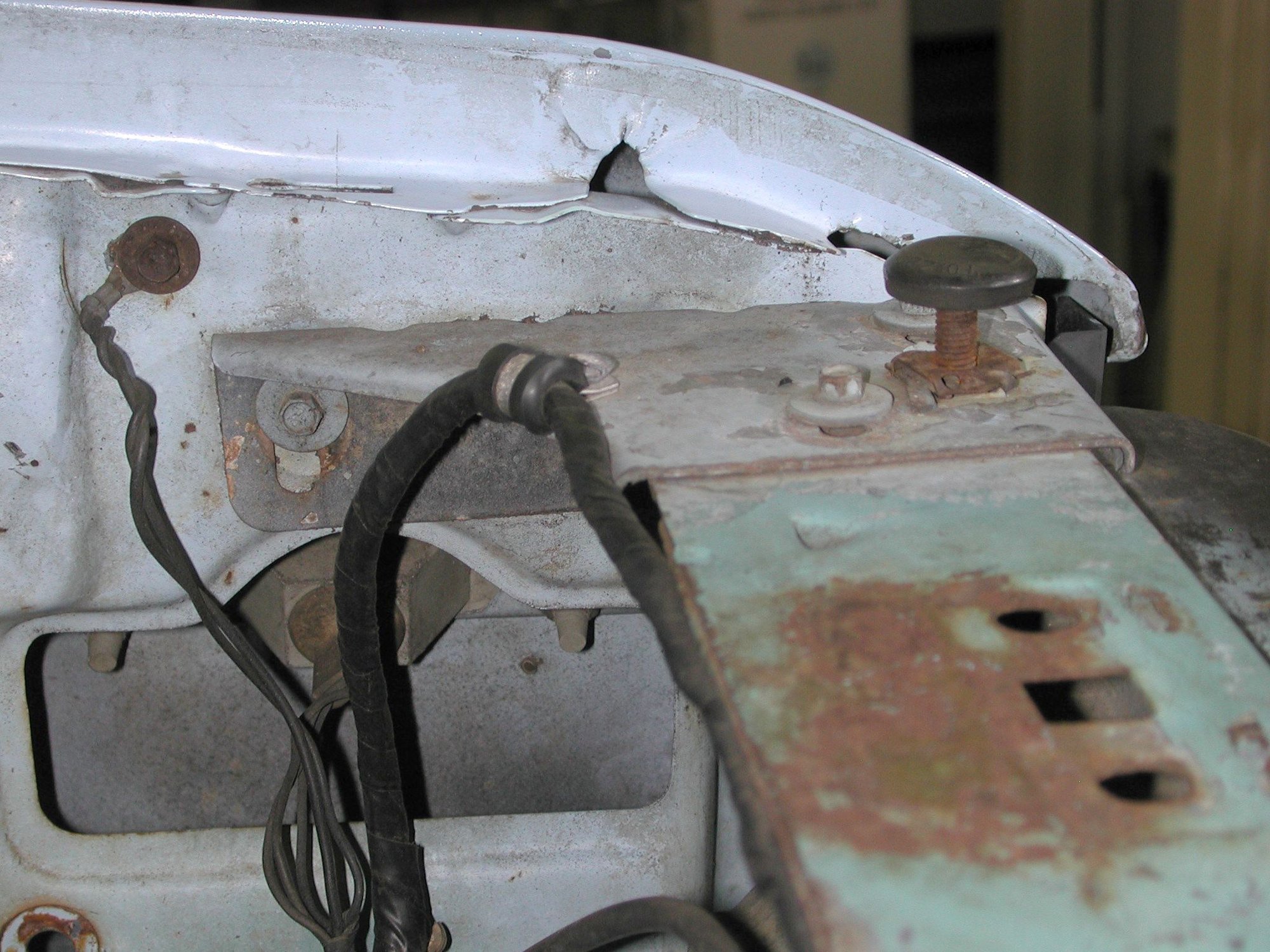

Thanks so far, what I really need is when you open the hood, on both sides, there is a bracket that bolts to the radiator support and to the fender. This bracket has a lip that overlaps at the front and rear and it does not allow the plate that bolts to the front of the radiator support (that has cutout for hood release) to sit flush, which also causes headlight bucket to not want to line up.
Thread Starter
|
Elder User
Joined: Aug 2009
Posts: 928
Likes: 2
Awesome! Thanks! For some reason it looked like it would be flush to the front and that would allow the trim to be flush at the top all the way across, but it seems that it dips down and supports the top of the headlight trim bezel at the far outside.
