SOMEBODY PLEASE HELP!!!
I have been dealing with this issue since the day after Christmas and it should not take this long to swap a radio.
I got an aftermarket radio for Christmas to swap out in my Excursion. I had to rewire the factory harness and I followed the schematic to the letter. (The factory harness was cut) I got the radio to power on, but now there is no sound. I don't think I have premium sound, so I don't think there is an amp to deal with. I do have rear controls for the radio.
Again, everything is wired correctly from the first harness. Is the second harness used to make the radio work?
Somebody please help me so I don't have to take it to a shop for something like this.
TIA,
Trent
I got an aftermarket radio for Christmas to swap out in my Excursion. I had to rewire the factory harness and I followed the schematic to the letter. (The factory harness was cut) I got the radio to power on, but now there is no sound. I don't think I have premium sound, so I don't think there is an amp to deal with. I do have rear controls for the radio.
Again, everything is wired correctly from the first harness. Is the second harness used to make the radio work?
Somebody please help me so I don't have to take it to a shop for something like this.
TIA,
Trent
Lead Driver
Joined: Mar 2010
Posts: 5,250
Likes: 10
From: West Virginia
You have no sound but the head unit is powering up and appears to be functioning? I can't remember the harness details but I believe I needed things hooked up on both but I was keeping factory DVD integration.
Lead Driver
Joined: Mar 2010
Posts: 5,250
Likes: 10
From: West Virginia

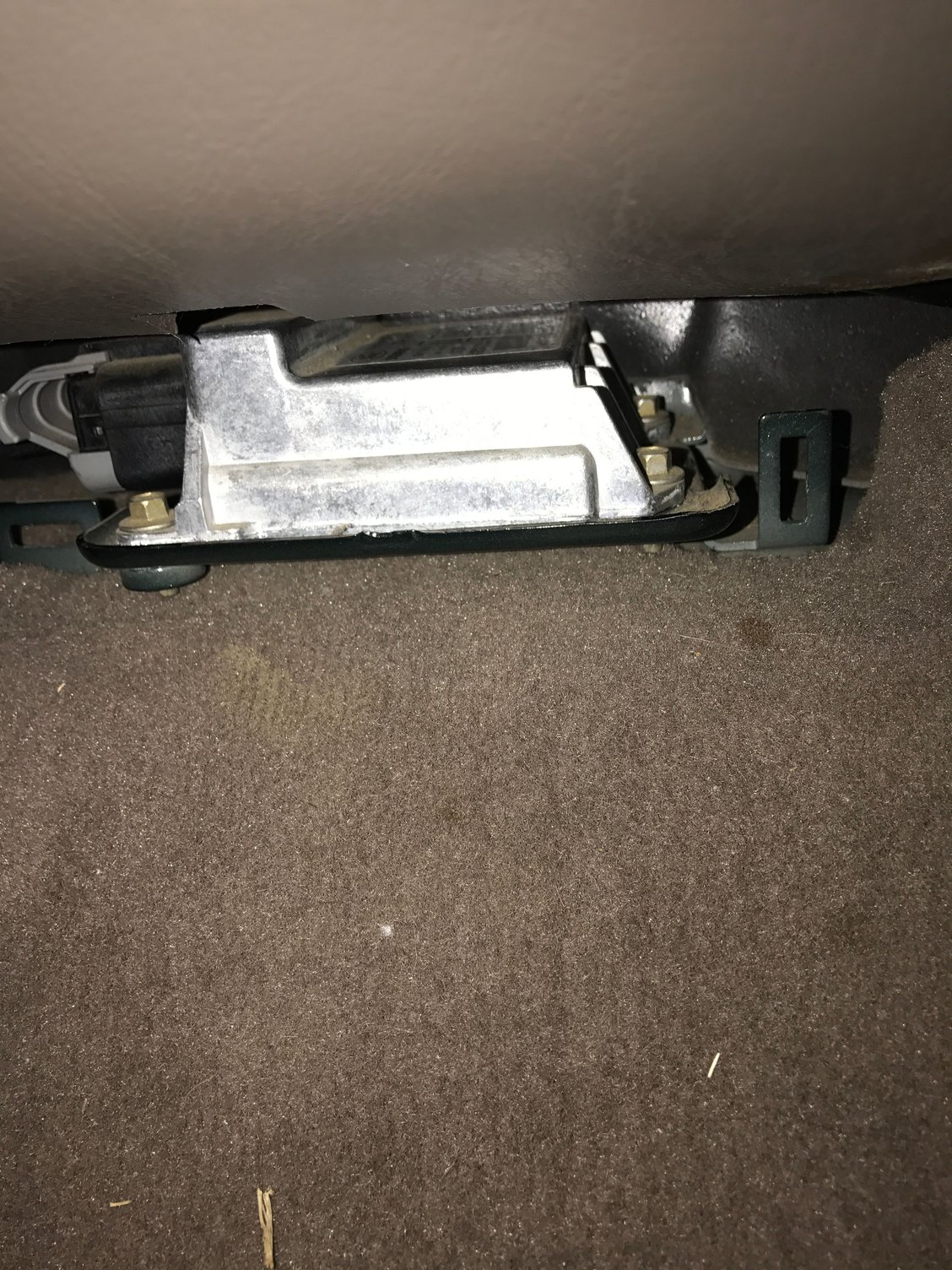

Looks like a factory amp but I'm not very familiar with one. Mine did not have a factory amp and I didn't even know it was available.
Not sure how easy or hard it is to bypass. The quick and dirty way is just run speaker wire straight to the speakers. You'll have 2 speakers off each rear channel if you hook up the third row, so if you wire in parallel you'll need your head unit to be 2 ohm stable.
You may be able to bypass simple by taking the formerly low level now high level input and wiring it to the presumably speaker level outputs on the other side but you'll need the wiring color codes. You can also usually wire the aftermarket head unit into a low level converted, or splice the rca leads into the aftermarket amp if your head unit has them.
If none of this is making sense, call Crutchfield, they will sell you the right harness, a beautiful diagram showing exactly how to hook it up, and provide really good phone support. If you're banging your head against the wall that's what I'd do. You'll probably spend under $40.
Not sure how easy or hard it is to bypass. The quick and dirty way is just run speaker wire straight to the speakers. You'll have 2 speakers off each rear channel if you hook up the third row, so if you wire in parallel you'll need your head unit to be 2 ohm stable.
You may be able to bypass simple by taking the formerly low level now high level input and wiring it to the presumably speaker level outputs on the other side but you'll need the wiring color codes. You can also usually wire the aftermarket head unit into a low level converted, or splice the rca leads into the aftermarket amp if your head unit has them.
If none of this is making sense, call Crutchfield, they will sell you the right harness, a beautiful diagram showing exactly how to hook it up, and provide really good phone support. If you're banging your head against the wall that's what I'd do. You'll probably spend under $40.
Thread Starter
|
New User
Joined: Aug 2016
Posts: 22
Likes: 0
From: Pittsburg, Tx
Ok I think it makes sense. What if I just use the factory amp? How would I incorporate it with my unit?
There were 2 harnesses coming off the factory radio, would I use the other one for amp?
Also, my unit does have RCA outputs in the back.
Last question, where would I find a schematic on the amp wiring?
Sorry for asking so many questions, I just want to make sure it's done right.
There were 2 harnesses coming off the factory radio, would I use the other one for amp?
Also, my unit does have RCA outputs in the back.
Last question, where would I find a schematic on the amp wiring?
Sorry for asking so many questions, I just want to make sure it's done right.
Cargo Master
Joined: Jul 2009
Posts: 2,885
Likes: 24
From: Chino, California
Typically, one harness is for the radio and speakers, while the other one is the control for the second row bench located behind the center console. When I installed my aftermarket unit, I only used one harness. When I removed the rear control panel in the center console, I lost the rear speakers and had to jump wires to the connector in the console to restore the rear speakers.
