drivers low beam headlight out
Thread Starter
|
Mountain Pass
Joined: Feb 2010
Posts: 140
Likes: 17
From: Brantford Ontario
drivers low beam headlight out
Okay guys hope you can help out here....2011 XLT 5.0 S/Crew....my drivers side headlight goes out as soon as I turn on lights. It goes from the DRL position to no light as soon as I put it into gear......... I have replaced the bulb & checked the fuse's also switched fuse's from left to right etc.. This light will come on only when I pull the fog light switch on....connector appears to be good etc. but has now got me stumped...Any thoughts out there.....Pleasssssssse
Last edited by maco; Jan 7, 2017 at 04:16 PM. Reason: more info
Thread Starter
|
Mountain Pass
Joined: Feb 2010
Posts: 140
Likes: 17
From: Brantford Ontario
slight update
Not a wrecked trk. however it was a shell fleet trk working in/around the alberta tar sands...it was pretty dusty & guncked up underneath....Hopefully that is all resolved to date...Trk has been parked for 6 months & when I restarted to use it 2 weeks ago this is what I found.....Checked for power @ headlight & still no Left Low beam...wire @ headlight IS DEAD....however it is as I said if you pull the fog light switch to on..... this low beam powers on....toooo cold working outside (-10) to trace back thru harness....just come inside & had a brain fart the only little thing that I didn't do @ the fuse panel was to look & check the out terminal...Like most everyone I presumed fuse is good so good to go.. Will check that first on next warm day...A little baffaling as to why the fog lights back feed the low beam/ that's what it appears to do ......Will post final repairs (hopefully soon) Thks Guys!!
Last edited by maco; Jan 8, 2017 at 05:01 PM. Reason: more info
Thread Starter
|
Mountain Pass
Joined: Feb 2010
Posts: 140
Likes: 17
From: Brantford Ontario
according to the wiring diagram...it comes out of the switch as 1 wire, thru MFS still as 1 wire to fuse panel @ pass. kick panel fuse box.....into right & left fuses (this rules out bad switch)....fuses are good so somewhere between fuses & left headlight we have a break/bad connection...tooo cold (-10) outside to get into the harness right now so will leave it ...will post repair when I find it....Thks
PS: checked @ plug....grd-ok...feed wire only powers when Fog lights are on.....
PS: checked @ plug....grd-ok...feed wire only powers when Fog lights are on.....
Last edited by maco; Jan 8, 2017 at 08:52 PM. Reason: more info
Thread Starter
|
Mountain Pass
Joined: Feb 2010
Posts: 140
Likes: 17
From: Brantford Ontario
Head-light wiring Diagram
can anyone post a headlight wiring diagram...mostly interested from the kick panel fuse box out....need wire colours... just so I don't have to stab every wire....can't find one on-line that stays with the exact year.....THKS!!!
Post Fiend
Joined: Dec 2006
Posts: 9,111
Likes: 3
From: Lexington Mo
Check your relay box under the hood (Most likely).
I believe that there were relay's added for each headlight? If so, you could swap those from side to side, then fire up the headlights
I believe that there were relay's added for each headlight? If so, you could swap those from side to side, then fire up the headlights
Trending Topics
Thread Starter
|
Mountain Pass
Joined: Feb 2010
Posts: 140
Likes: 17
From: Brantford Ontario
thats why I am looking for a wiring diagram ...i will double chk though........but I'm reasonably sure there is only a high beam relay there!! Low beams are two fuses in pass. side kick panel no relay...Thks.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
Thread Starter
|
Mountain Pass
Joined: Feb 2010
Posts: 140
Likes: 17
From: Brantford Ontario
drivers low beam headlight out
Sun 8am (no coffee yet) Plz bear with me???
just looked real quick @ diagrams & I couldn't readily see why/how the fog lights are back feeding power to this low beam
(thoughts subject to change after breckie)
It's only -4 outside today so I might get into the harness once it warms up later...
Don't know why but I'm thinking to concentrate on the last few feet of wiring to left side fogs & low beam also trying a new grd to low beam!!
!st look @ wiring harness looks good but As you probably know grds. result in funny things sometimes!!
Thks.....you are the man..."Mac"
just looked real quick @ diagrams & I couldn't readily see why/how the fog lights are back feeding power to this low beam
(thoughts subject to change after breckie)
It's only -4 outside today so I might get into the harness once it warms up later...
Don't know why but I'm thinking to concentrate on the last few feet of wiring to left side fogs & low beam also trying a new grd to low beam!!
!st look @ wiring harness looks good but As you probably know grds. result in funny things sometimes!!
Thks.....you are the man..."Mac"
Logistics Pro
Joined: Jan 2005
Posts: 3,534
Likes: 85
From: penn twp.

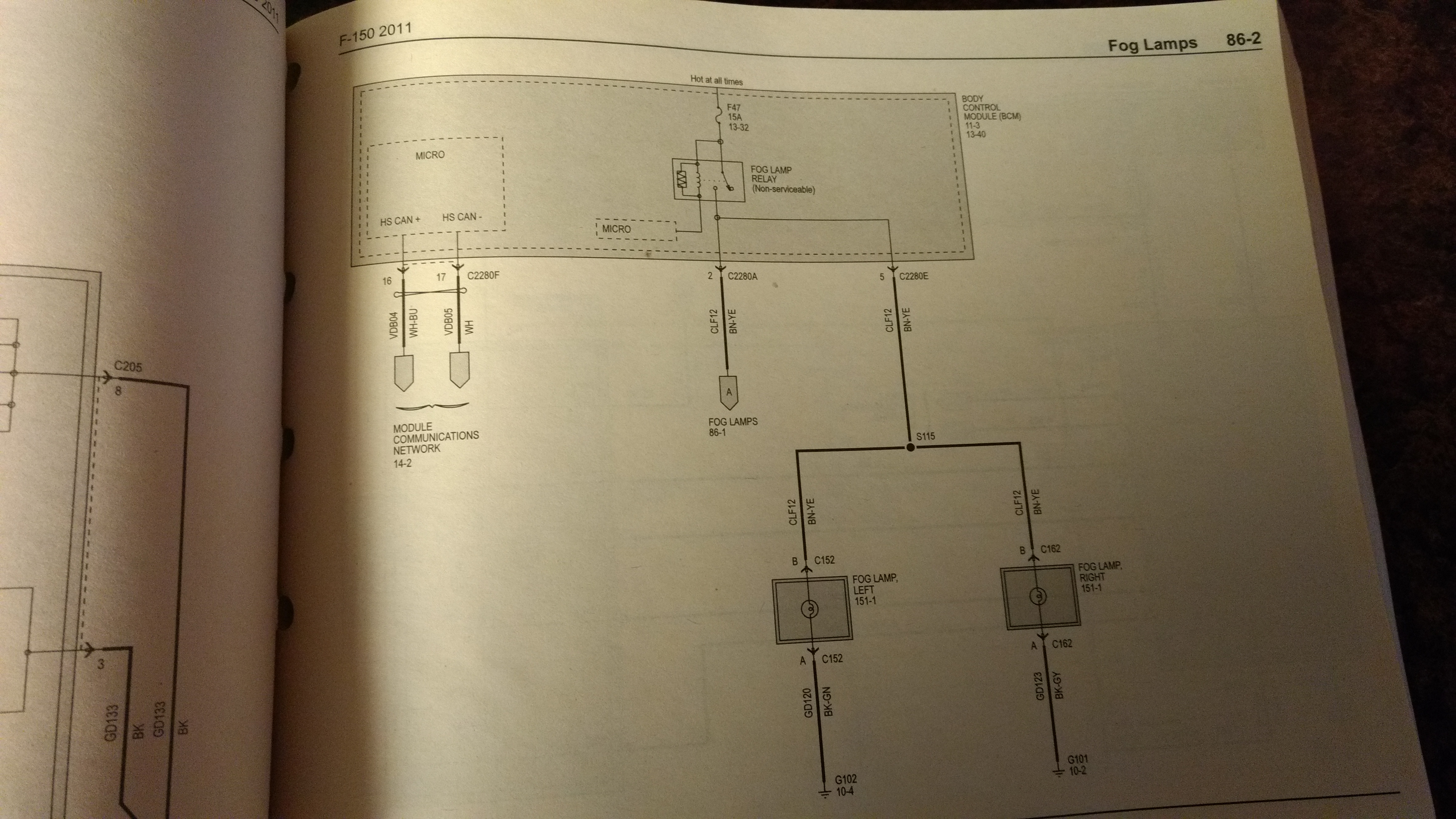

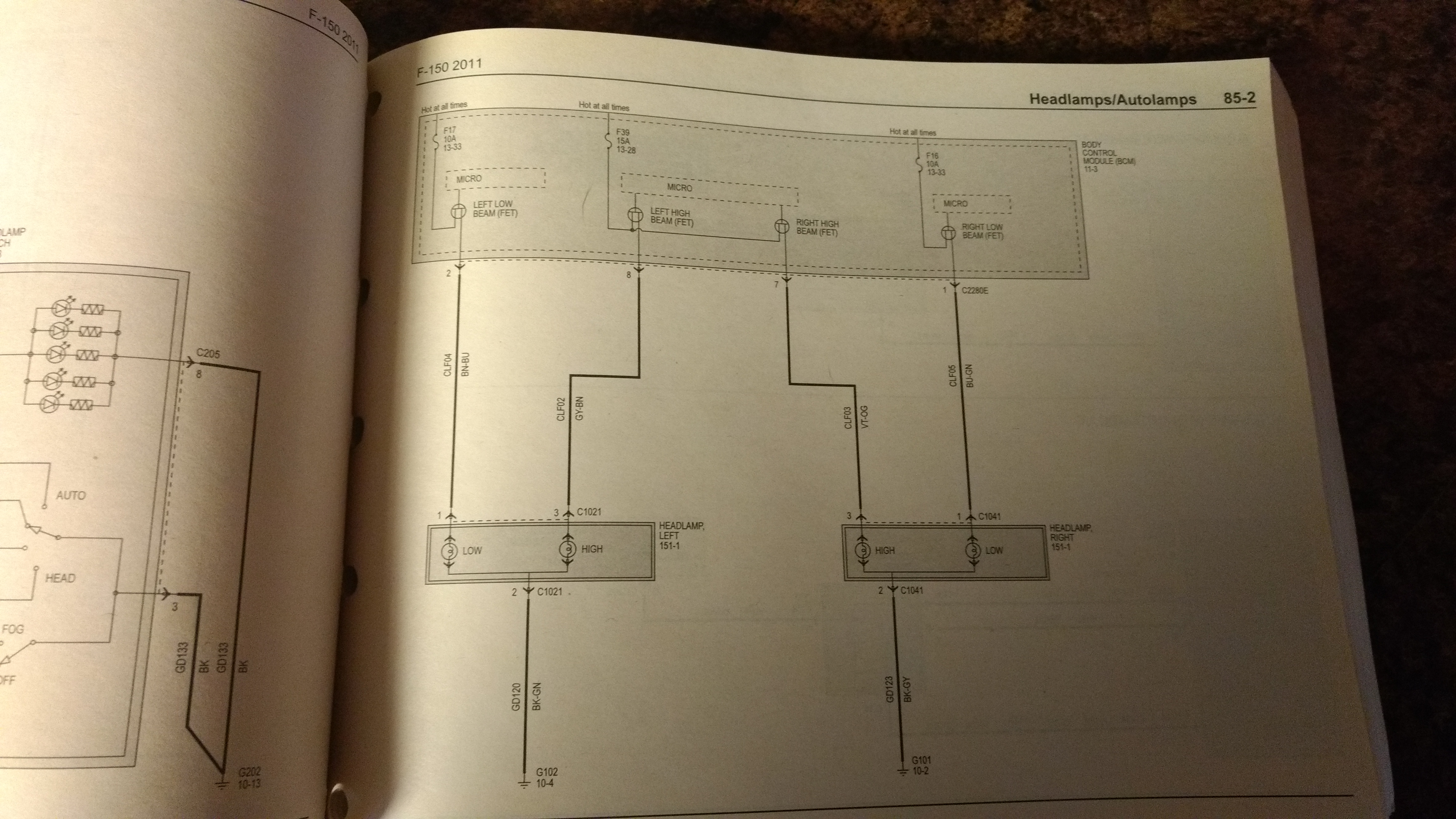

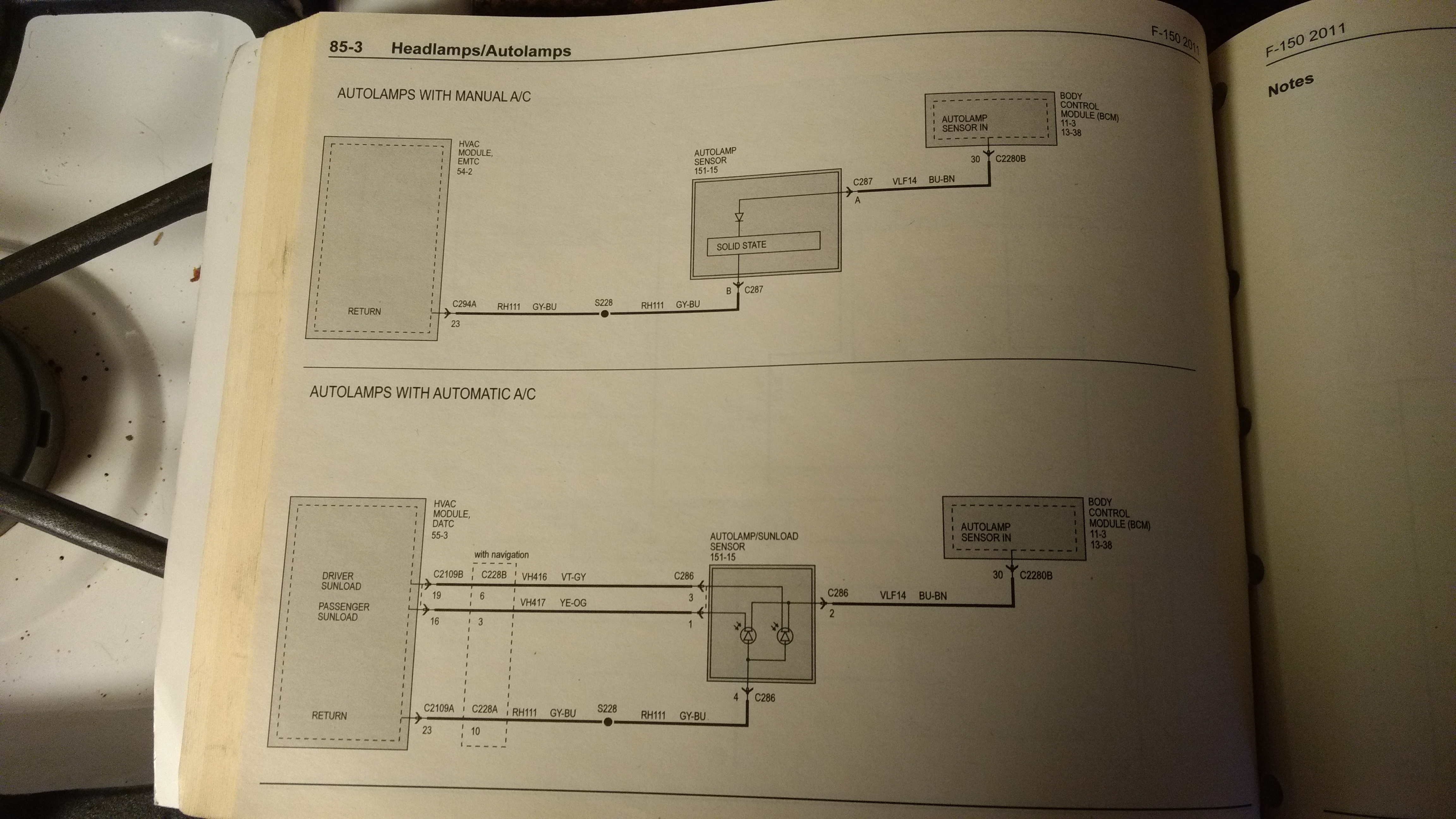

Now I'm not saying that this is the case. But keep in mind that these illustrations that I posted are for U.S. trucks. And I see that you're in Canada. So it may be possible that there may be wiring differences between the trucks for the U.S markets and the one for the Canadian market. I can't say that for certain, but it's worth noting the possibility of that being the case. However I hope this helps at least somewhat.
