Ignition switch wire help please

1973 - 1979 F-100 & Larger F-Series Trucks Discuss the Dentsides Ford Truck

Sponsored by:

Ignition switch wire help please

Reply Subscribe

Search this Thread

Old

Jul 18, 2016 | 05:05 PM

#1

Notmeofficer

Thread Starter

|

Laughing Gas

Joined: Jan 2008

Posts: 1,027

Likes: 4

Ignition switch wire help please

In my rewire using an aftermarket kit for one of my dentsides I am unable to find what terminal relates to what wire...

I was wondering if any of you can help me please..my searching here and google images was ineffective

This is a six terminal switch... starting from the left top of the picture does anyone know? They are not marked and I have no oem harness. Ill be installing spade terminal ends from my aftermarket harness.

Thanks

Name: phone%20003_zpsmlktzkwt.jpg
Views: 729
Size: 94.7 KB

Reply

Old

Jul 18, 2016 | 05:09 PM

#2

mountain dewd

Postmaster

Joined: Nov 2015

Posts: 2,769

Likes: 7

From: O-O-O-Oreilly's

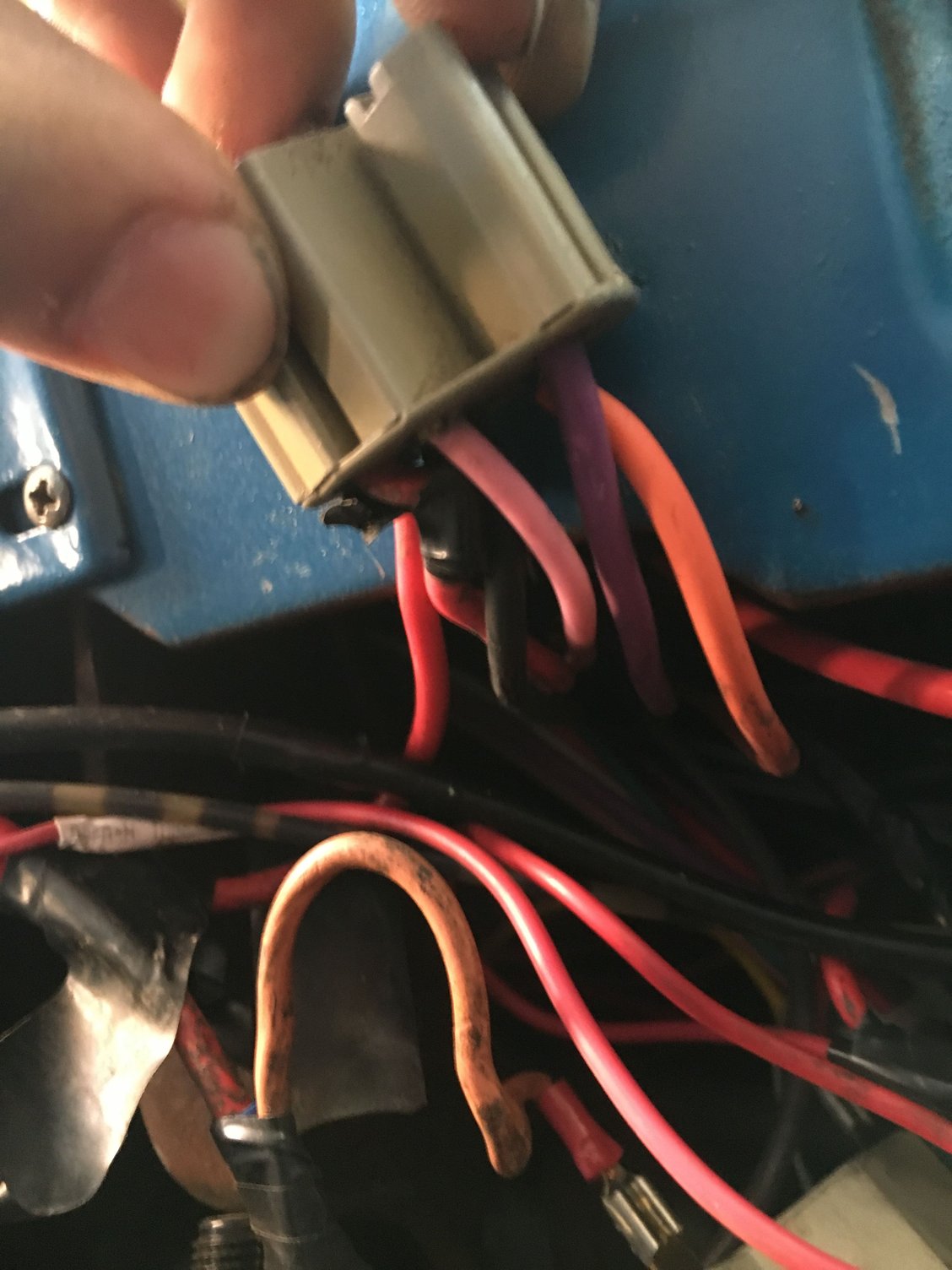

I can get you a picture, sit tight.

Top row: Purple, brown Orange= ign start, ign ignition, ign acc

Bottom row: Black, red, pink= batt, batt, coil

Reply

Old

Jul 18, 2016 | 05:20 PM

#3

mountain dewd

Postmaster

Joined: Nov 2015

Posts: 2,769

Likes: 7

From: O-O-O-Oreilly's

Reply

Old

Jul 18, 2016 | 05:39 PM

#4

Notmeofficer

Thread Starter

|

Laughing Gas

Joined: Jan 2008

Posts: 1,027

Likes: 4

Quote:

Originally Posted by mountain dewd

Thanks my ford friend..just what I needed

Reply

Old

Jul 18, 2016 | 05:40 PM

#5

mountain dewd

Postmaster

Joined: Nov 2015

Posts: 2,769

Likes: 7

From: O-O-O-Oreilly's

Glad I could help!
