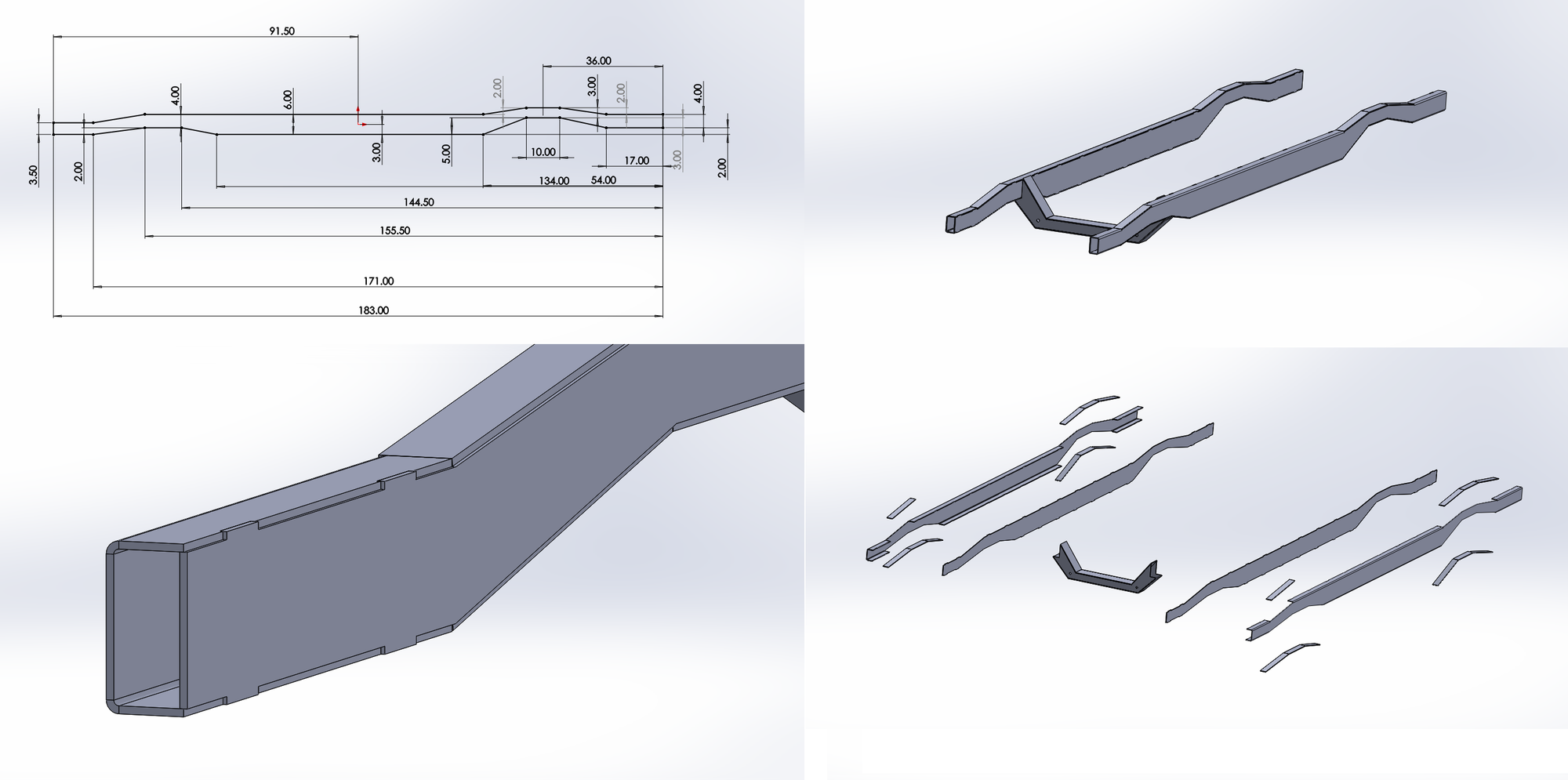

Frame Drawing
Thread Starter
|
Elder User
Joined: Jan 2015
Posts: 508
Likes: 1
Luckily where I work, I have access to the equipment to build this. Just have to weld it together in the boxing areas
Thread Starter
|
Elder User
Joined: Jan 2015
Posts: 508
Likes: 1
New. - missing a few cross members in this drawing.
Trending Topics
Tuned
Joined: Mar 2015
Posts: 307
Likes: 17
Oh boy. Clean sheet design opportunity
There is a lot to gain by using a larger section frame rail, both taller and wider. Same goes for X members. Wall thickness is important for strength but is not as effective as section size for stiffness.
Section bending stiffness goes up by the fourth power of the dimension so if you had a 7.5" tall rail instead of 6" the bending stiffness would double. Here's a cool little calculator if you want to play with various sections. Area Moment of Inertia Section Properties: Rectangle Tube Calculator | Engineers Edge | www.engineersedge.com This is why the BIG 10 chassis from No Limit uses a 10" tall rail. And a massive X member.
There is a lot to gain by using a larger section frame rail, both taller and wider. Same goes for X members. Wall thickness is important for strength but is not as effective as section size for stiffness.
Section bending stiffness goes up by the fourth power of the dimension so if you had a 7.5" tall rail instead of 6" the bending stiffness would double. Here's a cool little calculator if you want to play with various sections. Area Moment of Inertia Section Properties: Rectangle Tube Calculator | Engineers Edge | www.engineersedge.com This is why the BIG 10 chassis from No Limit uses a 10" tall rail. And a massive X member.
