Also how long should the vac. reservoir on the right side store vacuum, roughly after you shut the truck off or does it just hold vacuum while its running? Thanks again

  #32
Old 02-24-2016, 04:02 PM
rla2005's Avatar
rla2005
rla2005 is online now
Post Fiend
Join Date: Oct 2005
Location: Illinois
Posts: 14,889
rla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud of
The vacuum reservoir on the passenger side fender has a check valve in it. When manifold vacuum is lower than the stored vacuum it should shut off. It should hold vacuum indefinitely if the load side vacuum port is plugged off. With something connected, it's tough to say how long it will hold vacuum.

This is why I use a small handheld vacuum pump/gauge to test each vacuum circuit and component. Eliminates a lot of guess work.

  #33
Old 02-24-2016, 04:31 PM
scrobbie's Avatar
scrobbie
scrobbie is offline
Senior User
Thread Starter
Join Date: Oct 2013
Location: Independence
Posts: 496
scrobbie is starting off with a positive reputation.
Oh forgot to mention i have a vacuum test gauge but no pump i wished i did though

  #34
Old 02-24-2016, 04:44 PM
rla2005's Avatar
rla2005
rla2005 is online now
Post Fiend
Join Date: Oct 2005
Location: Illinois
Posts: 14,889
rla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud of
There are input and output ports on the coffee can reservoir. Be sure yours is plumbed correctly.

  #35
Old 02-24-2016, 04:58 PM
scrobbie's Avatar
scrobbie
scrobbie is offline
Senior User
Thread Starter
Join Date: Oct 2013
Location: Independence
Posts: 496
scrobbie is starting off with a positive reputation.
Yeah the one on the left side goes to the manifold and the egr solenoid i put a tee to go between the manifold and egr solenoid the other is capped off it went to the TAD and TAB solenoids will post a pic of that ok

  #36
Old 02-24-2016, 05:06 PM
scrobbie's Avatar
scrobbie
scrobbie is offline
Senior User
Thread Starter
Join Date: Oct 2013
Location: Independence
Posts: 496
scrobbie is starting off with a positive reputation.

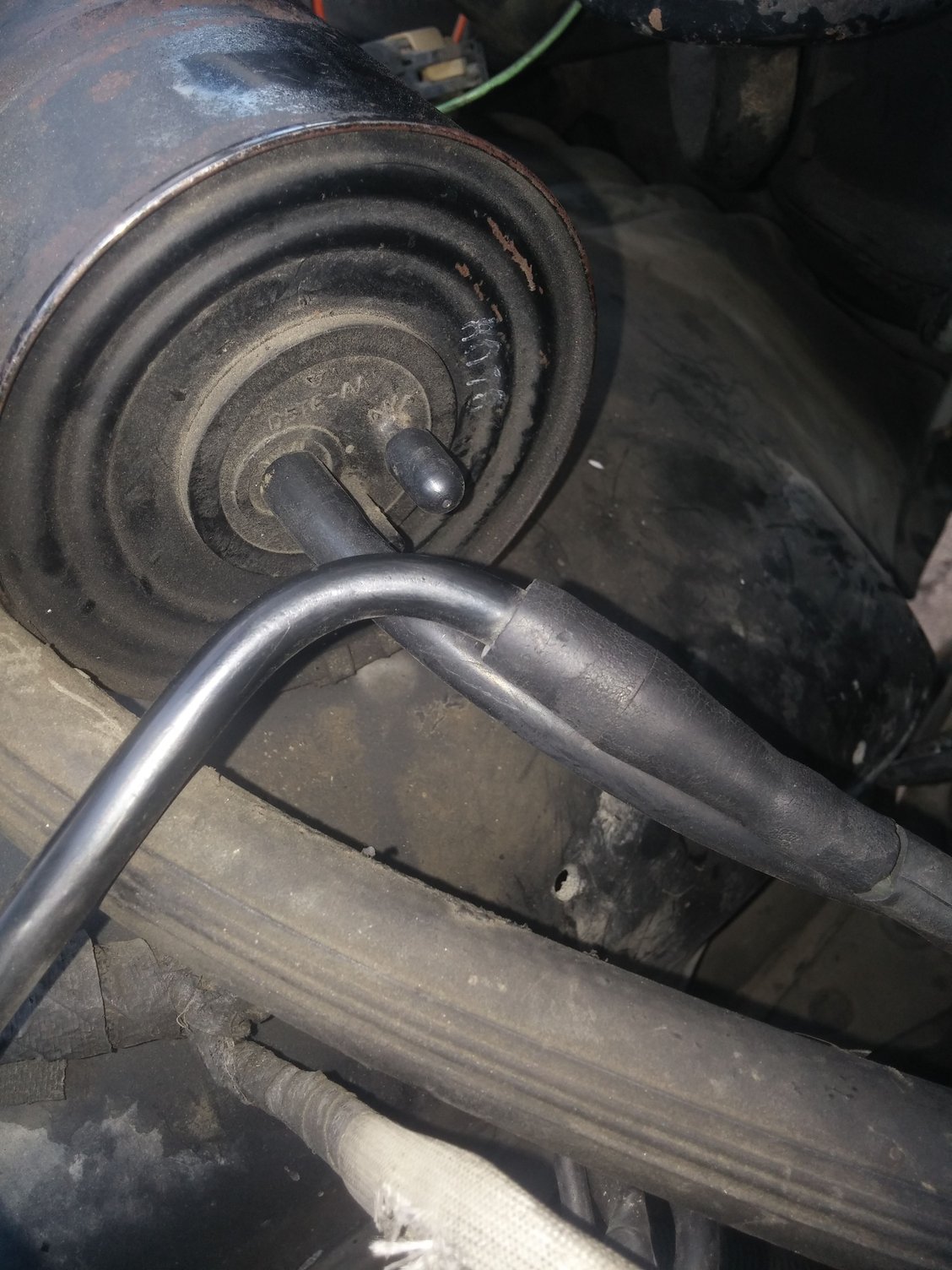

Here is the reservoir

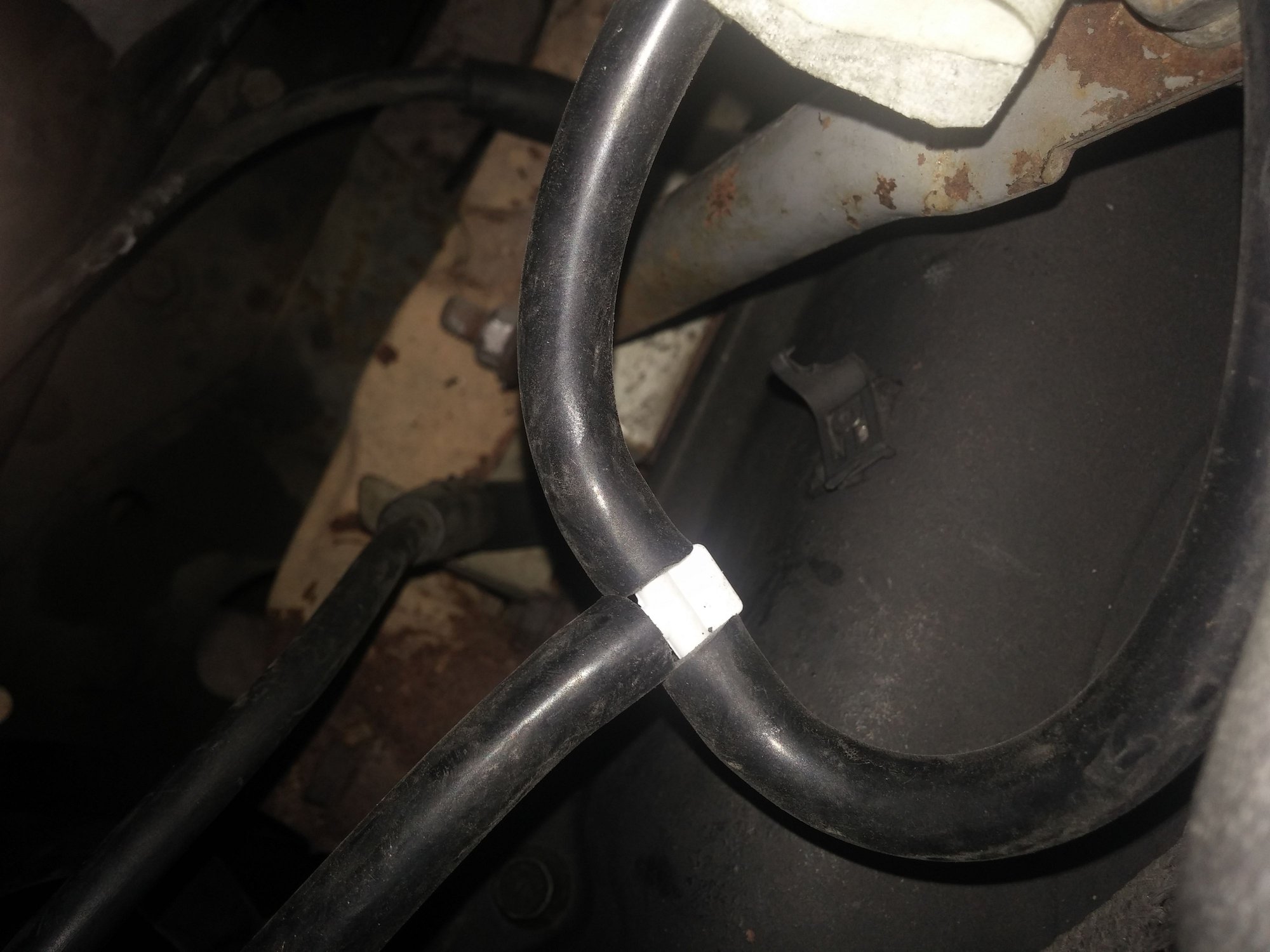

Here is where they are tee'd together

  #37
Old 02-24-2016, 05:20 PM
rla2005's Avatar
rla2005
rla2005 is online now
Post Fiend
Join Date: Oct 2005
Location: Illinois
Posts: 14,889
rla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud of
Absolutely the wrong way to plumb that reservoir and vacuum circuit. Sorry....

Probably not your vacuum leak issue, but it will cause other issues down the road.

  #38
Old 02-24-2016, 05:27 PM
scrobbie's Avatar
scrobbie
scrobbie is offline
Senior User
Thread Starter
Join Date: Oct 2013
Location: Independence
Posts: 496
scrobbie is starting off with a positive reputation.
Why is that? Thats basically the way it was except the other side went to the TAD and TAB solenoids you said i could remove those vacuum hoses that went to the solenoids if i didnt cap off that other side it would leak, right maybe i should run the other side to the egr solenoid? You think or no

  #39
Old 02-24-2016, 05:37 PM
scrobbie's Avatar
scrobbie
scrobbie is offline
Senior User
Thread Starter
Join Date: Oct 2013
Location: Independence
Posts: 496
scrobbie is starting off with a positive reputation.



This what the old one looked like where i put the tee i showed u then the single plastic line ran directly to the left side of the reservoir, so i dont understand what went wrong? Maybe honestly i guess i must just be an idiot

  #40
Old 02-24-2016, 05:40 PM
rla2005's Avatar
rla2005
rla2005 is online now
Post Fiend
Join Date: Oct 2005
Location: Illinois
Posts: 14,889
rla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud of
Originally Posted by scrobbie View Post
maybe i should run the other side to the egr solenoid? You think or no
Yes, that's the way it should be ran. The way it is cobbled together now will not allow the reservoir to work as intended. The EGR Vacuum Regulator (EVR) is essentially working with only manifold vacuum since the VRES has a check valve in it. Under low vacuum conditions the EGR is going to close. In theory that's what it's supposed to do anyway, but it may throw EGR valve not opening codes.

When I had to re-do some of the vacuum lines on my old '92 F350 I used the upper vacuum chamber as described above. The lower was re-purposed for the HVAC system.

Just make sure that coffee can is not open to atmosphere.

  #41
Old 02-24-2016, 05:58 PM
scrobbie's Avatar
scrobbie
scrobbie is offline
Senior User
Thread Starter
Join Date: Oct 2013
Location: Independence
Posts: 496
scrobbie is starting off with a positive reputation.
Ok im sorry man maybe i should just get a new VRES, u think? Im just want an opinion on that? Or since i don't have a vac pump, should i spray carb cleaner or something over it to see if it changes anything? I do have a VAC. tester could i use it on the other side that's capped off to see how much vacuum it has there? Thanks for your help man!!! I really do appreciate it!

  #42
Old 02-24-2016, 06:11 PM
scrobbie's Avatar
scrobbie
scrobbie is offline
Senior User
Thread Starter
Join Date: Oct 2013
Location: Independence
Posts: 496
scrobbie is starting off with a positive reputation.
Oh and also I didn't know of any other way to hook that together but with a tee if you have another suggestion, i would appreciate it on how u would've done it, so it doesnt look like crap!!! Or might throw a EGR code! Thanks again!!!

  #43
Old 02-25-2016, 10:14 AM
scrobbie's Avatar
scrobbie
scrobbie is offline
Senior User
Thread Starter
Join Date: Oct 2013
Location: Independence
Posts: 496
scrobbie is starting off with a positive reputation.
Is there any thing i can actually do with my vacuum pressure gauge tester for vacuum leaks? Or no? Its not a pump just a vacuum pressure tester thanks for the input! If not what is this good for, Anything? Maybe the trash can? Lol thanks again!!!

  #44
Old 02-25-2016, 10:33 AM
rla2005's Avatar
rla2005
rla2005 is online now
Post Fiend
Join Date: Oct 2005
Location: Illinois
Posts: 14,889
rla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud of
Run the manifold vacuum line to the input of the VRES. Run the EGR vacuum line to the output of the VRES. Eliminate the y/t completely.

I will warn you again..those metal cans are notorious for rusting through. Remove it, then thoroughly inspect.

  #45
Old 02-25-2016, 10:45 AM
scrobbie's Avatar
scrobbie
scrobbie is offline
Senior User
Thread Starter
Join Date: Oct 2013
Location: Independence
Posts: 496
scrobbie is starting off with a positive reputation.
Will do, i thought about that yesterday. I thought I said something about it. Maybe not either way, i will run it that way and will look at the VRES! But i could be lucky and nothing wrong with them, even though they are old! But not likely! But 1 could hope!
