Water temp gauge
FTE Legend
Joined: Jul 2010
Posts: 32,875
Likes: 48
From: Northeast, OK
Yes, lots of us have come across that problem. The first question is if your oil pressure and fuel gauge are working. If not, you have an Instrument Cluster Voltage Regulator problem. I have a page on my web site about that: ICVR - Gary's Garagemahal
If your oil and fuel gauges are working then it is likely to be the sending unit that is screwed into the engine. This page on my web site explains how the circuitry works and how to troubleshoot it: Fuel Tank Selector & Gauges - Gary's Garagemahal
If your oil and fuel gauges are working then it is likely to be the sending unit that is screwed into the engine. This page on my web site explains how the circuitry works and how to troubleshoot it: Fuel Tank Selector & Gauges - Gary's Garagemahal
FTE Legend
Joined: Nov 2015
Posts: 30,904
Likes: 4,122
From: Angier, NC
Johno If you don't have one yet buy a factory service manual for your truck. It will have all this information in it and help you locate & test systems.
Then when you get stuck on something or even want to double check you under stand it ask here.
Dave ----
Thread Starter
|
Senior User
Joined: Jul 2015
Posts: 102
Likes: 1
From: Victoria, Australia.
Trending Topics
Moderator
Joined: Nov 2007
Posts: 22,415
Likes: 92
From: Denver Metro Area, CO
Remove the wire from the sender; with the ignition switch in RUN and engine not running, connect the wire to a good nearby ground and teh gauge should peg all the way on the hjigh side; un-ground it and it should return to the full low side.
Don't ground the wire for real long but short periods for diagnostic purposes are OK.
If the gauge swings fully as you ground/unground the wire, this generally implies the gauge and wiring are OK (the correct test is listed in Gary's EVTM that he linked to above and involves resistors being placed inline in that circuit but most people don't have those) and the problem is in the sender which you should then replace...
That sender needs to supply an electrical ground to the engine block so don't load it up with lots of sealer.
BTW have you gotten yourself any sort of factory (or even aftermarket) books or other documentation to help you with this thing?
Two more questions if I may - how old are you and what is your experience with American vehicles of this age (non-EFI)?
Don't ground the wire for real long but short periods for diagnostic purposes are OK.
If the gauge swings fully as you ground/unground the wire, this generally implies the gauge and wiring are OK (the correct test is listed in Gary's EVTM that he linked to above and involves resistors being placed inline in that circuit but most people don't have those) and the problem is in the sender which you should then replace...
That sender needs to supply an electrical ground to the engine block so don't load it up with lots of sealer.
BTW have you gotten yourself any sort of factory (or even aftermarket) books or other documentation to help you with this thing?
Two more questions if I may - how old are you and what is your experience with American vehicles of this age (non-EFI)?
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
FTE Legend
Joined: Jul 2010
Posts: 32,875
Likes: 48
From: Northeast, OK
Yep, on several counts.
Yes, the sender grounds through the block. Which is why Chris told you to ground the wire to the block to test, and not to load the sender up with sealer when/if you put a new one in.
Yes, the sender grounds through the block. Which is why Chris told you to ground the wire to the block to test, and not to load the sender up with sealer when/if you put a new one in.
FTE Legend
Joined: Jul 2010
Posts: 32,875
Likes: 48
From: Northeast, OK
Ok, I don't want to talk down to you or demean you, but will spell it out very clearly:

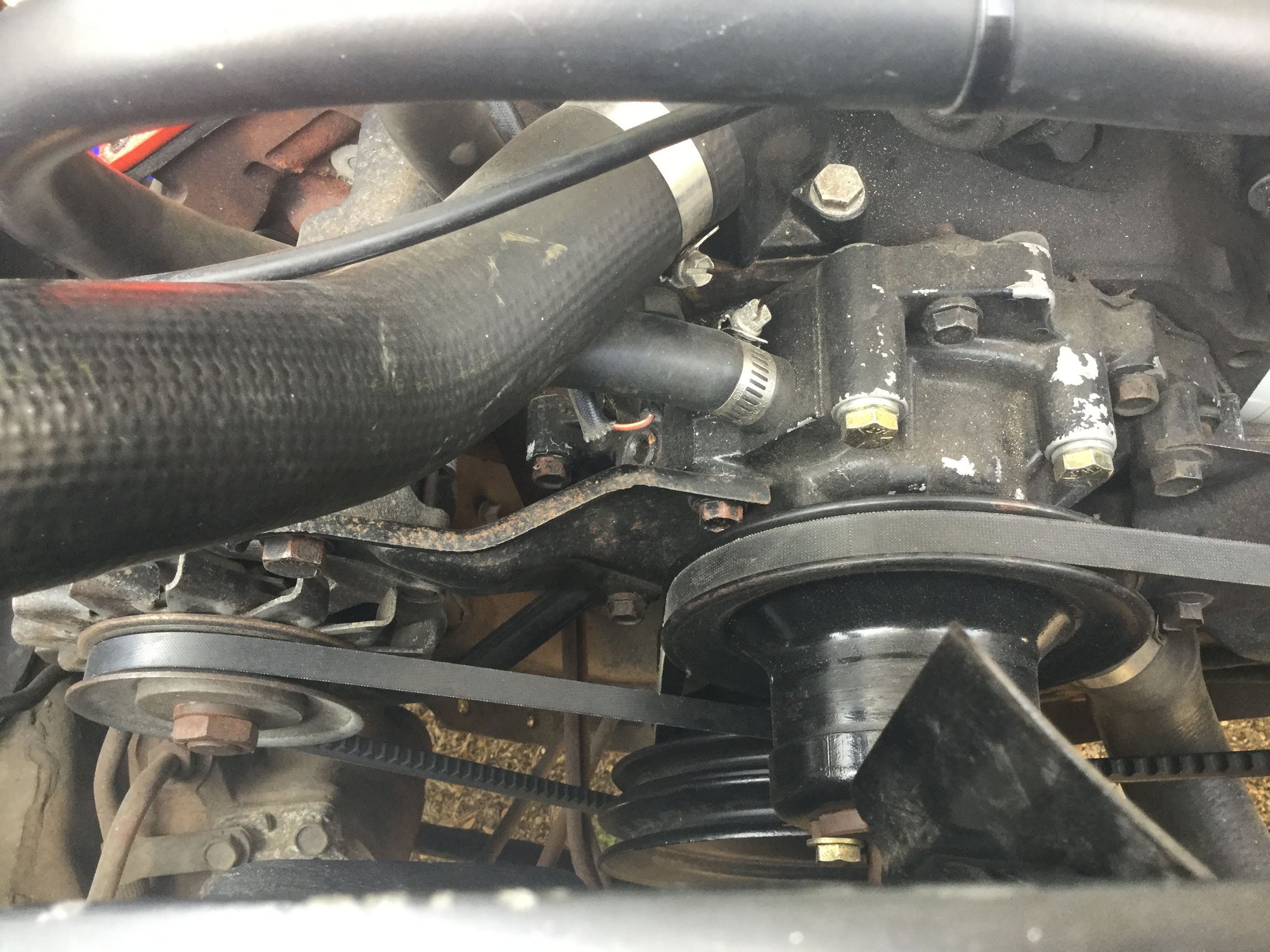

- Pull the connector & wire off of the temp sender. It should slide right off if you pull it directly away from the sender since most of the connectors slide on/pull off. But, I have seen some that have a ring-tongue terminal on the end that goes over a stud on the sender and a nut goes on top to hold it on. In either case, remove the wire from the sender.
- Hold the connector against the engine block. This is called "grounding it" since the engine block is ground.
- Meanwhile, someone else needs to be in the truck with the key on, but the engine not running, watching the gauge. If it goes to full scale fairly quickly when you ground the wire then the problem is the sender.
- If the gauge doesn't move then the problem is not the sender and is in the wiring or the gauge itself. In that case report back and we'll take the next step.
