Tail light wiring question?

I have a couple of wiring questions on my tail lights for my 52 Ford F1.

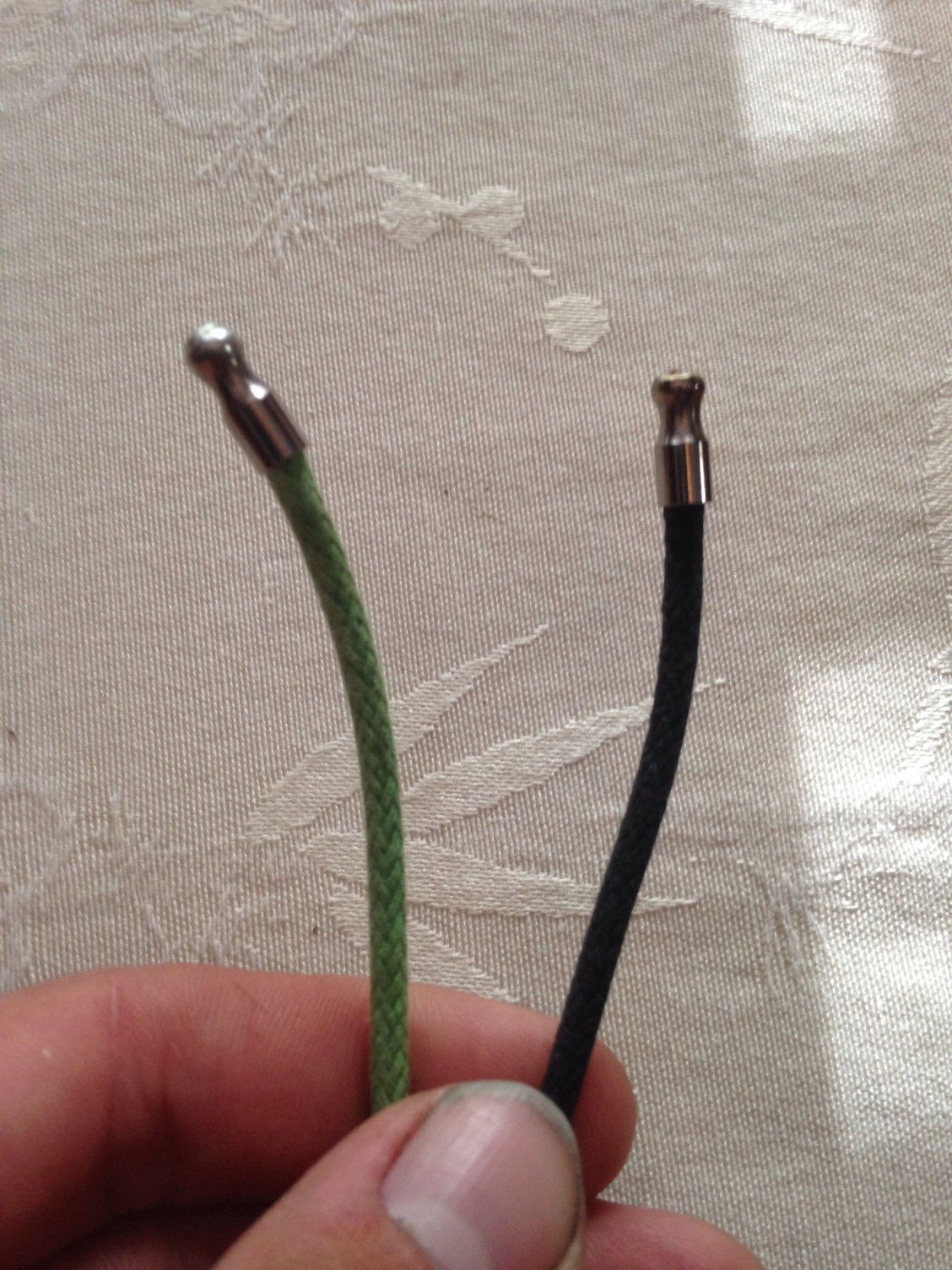

1- Has anyone found any connectors to use with these type pins that are on the end of my tail light harness?

2-I have two wires, I'm assuming the black wire is the ground, while the green wire is the hot?

Thank you!

Jon Preston

Reply
Old Jul 8, 2015 | 06:49 PM
  #2
truckeemtnfords's Avatar
truckeemtnfords
Logistics Pro
Veteran: Marine Corps
15 Year Member
Liked
Loved
Joined: Nov 2006
Posts: 3,674
Likes: 367
From: Fallon,NV & Bainbridge OH
Club FTE Gold Member
They are bullet connectors and any good electrical supply place will have them. Good (not chain) auto parts stores should have them or can get them. They come in two sizes. the bullet side not the wire side.

Reply
Old Jul 8, 2015 | 06:53 PM
  #3
ALBUQ F-1's Avatar
ALBUQ F-1
Fleet Owner
20 Year Member
Liked
Loved
Community Favorite
Joined: Jul 2004
Posts: 27,295
Likes: 1,055
From: NM
NAPA has blister packs of them on a rotating display at my local store. Dave is correct, mike the bullet before you go, so you get the right size.

If your taillights are stop/tail lights, one wire is stop/turn, the other is parking light. Then grounded thru the bed connection (not very reliable, so I added a grounding wire).

Reply
Old Jul 8, 2015 | 07:36 PM
  #4
FortyNiner's Avatar
FortyNiner
Logistics Pro
10 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2011
Posts: 4,995
Likes: 422
From: u-rah-rah Wisconsin
What type of bulbs - single or dual filament?

Reply
Old Jul 8, 2015 | 07:47 PM
  #5
52' fordnut's Avatar
52' fordnut
Thread Starter
|
Senior User
Joined: Aug 2012
Posts: 227
Likes: 0
From: Corbin, Ky
I went with the dual filament bulbs. They have the turn signal function as well as braking and park lights.

Reply
Old Jul 8, 2015 | 08:09 PM
  #6
FortyNiner's Avatar
FortyNiner
Logistics Pro
10 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2011
Posts: 4,995
Likes: 422
From: u-rah-rah Wisconsin
Then Ross is spot on (keeping his streak alive). Green - and brighter filament - for the brakes.
