Air compressor electrical hookup/plug question
Thread Starter
|
Laughing Gas
Joined: May 2004
Posts: 1,062
Likes: 6
From: Dallas, TX, USA
Air compressor electrical hookup/plug question

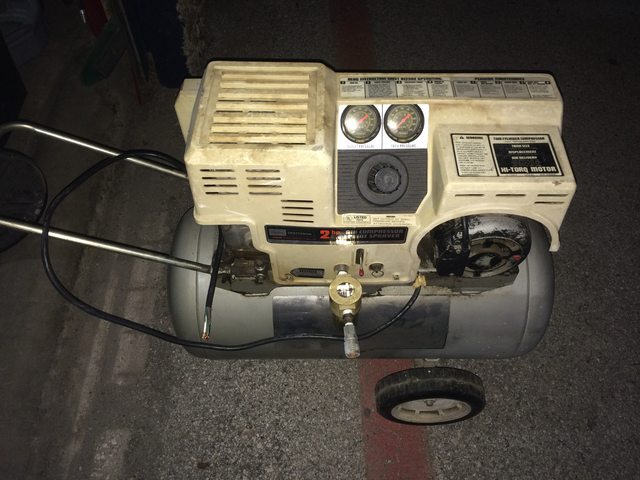

So I somehow ended up with one of these:
It's a 230V 2hp air compressor and came with a pile of other equipment. Nobody knows if it works. Unfortunately, I don't have a 230V supply at my home or where I can work on stuff and cannot upgrade for various reasons. I do have 230-240V outlets at one of my worksites and can test it there - only one problem.
It appears to have been a stationary shop compressor wired into an electrical breakout box and the plug end has long since been removed.
Here's the question - what is the correct plug for the thing so I can plug it in to test? There were several options at the local home unimprovement center and the info on this thing seems a bit spotty. Here's the electric motor's data plate.
I know of the NEMA plugs, but I'm a bit confused - should this use a NEMA 6, 10 or 14 plug? Thanks for any help.
It's a 230V 2hp air compressor and came with a pile of other equipment. Nobody knows if it works. Unfortunately, I don't have a 230V supply at my home or where I can work on stuff and cannot upgrade for various reasons. I do have 230-240V outlets at one of my worksites and can test it there - only one problem.
It appears to have been a stationary shop compressor wired into an electrical breakout box and the plug end has long since been removed.
Here's the question - what is the correct plug for the thing so I can plug it in to test? There were several options at the local home unimprovement center and the info on this thing seems a bit spotty. Here's the electric motor's data plate.
I know of the NEMA plugs, but I'm a bit confused - should this use a NEMA 6, 10 or 14 plug? Thanks for any help.
Thread Starter
|
Laughing Gas
Joined: May 2004
Posts: 1,062
Likes: 6
From: Dallas, TX, USA
Okay, the whole cable assembly disappears into the motor housing, guess I will check to see if it's grounded to the chassis with my multimeter in the morning. Or should I take the housing apart to double check?
Cargo Master
Joined: Apr 2003
Posts: 3,476
Likes: 224
From: Frequently frozen MN
According to this chart it should be a 10 or a 14
NEMA Straight Blade Reference Chart
The other styles are for different voltages. The motor says 15 amps, but that might be a little touchy if your outlet is just a 15.
F6 has probably done many of these, but the first time I tried it, I'd want to have the switch or circuit breaker close at hand.
Good Luck,
hj
NEMA Straight Blade Reference Chart
The other styles are for different voltages. The motor says 15 amps, but that might be a little touchy if your outlet is just a 15.
F6 has probably done many of these, but the first time I tried it, I'd want to have the switch or circuit breaker close at hand.
Good Luck,
hj
Post Fiend
Joined: Jun 2005
Posts: 7,047
Likes: 2
From: North west La
Get a plug that matches the ones on your jobsite. I swapped my compressor to 230 as soon as I got it in my shop. I have every tool that will run on 230 running on it's own 230 circuit. All my stationary tools have their own power circuit
i ain't rite
Joined: Mar 2005
Posts: 65,511
Likes: 5,567
From: Marlboro Mental Hospital.
agreed.
the green wire goes to the ground lug on the plug. the black and white wires go to the hot legs of the plug.
the green wire goes to the ground lug on the plug. the black and white wires go to the hot legs of the plug.
Thread Starter
|
Laughing Gas
Joined: May 2004
Posts: 1,062
Likes: 6
From: Dallas, TX, USA
Okay, bringing this back up. This is the plug I have available at the site. This is a NEMA 10 of the type used for 230V dryers, right?
Trending Topics
i ain't rite
Joined: Mar 2005
Posts: 65,511
Likes: 5,567
From: Marlboro Mental Hospital.
pretty much. just take that picture to home depot or lowes and ask for a plug to go into that outlet. they cost under $10
