Hey Guys,
This weekend I'll be mounting my tow mirrors on my 71 F100. They are the original style FoMoCo Stainless Mirrors with the 3rd arm. Somebody told me they were West Coast Jr. Mirrors.
Anyway, my drivers truck door already has the holes in it fot the upper and lower part of the mirror to be installed. They are a bit wollered out, so I accounted for that when I got the stainless hardware.
My question: Do I really need to mount that 3rd arm that shoots out and attaches onto the front part of the door? I've seen lots of these style mirrors that don't have that 3rd arm on them - they look exactly like mine,
just without that brace sticking out. These braces on each of my mirrors
seem a bit loose and floppy anyway. So, I'm wondering if anyone has just
mounted these style mirrors, anf left that arm off.
This weekend I'll be mounting my tow mirrors on my 71 F100. They are the original style FoMoCo Stainless Mirrors with the 3rd arm. Somebody told me they were West Coast Jr. Mirrors.
Anyway, my drivers truck door already has the holes in it fot the upper and lower part of the mirror to be installed. They are a bit wollered out, so I accounted for that when I got the stainless hardware.
My question: Do I really need to mount that 3rd arm that shoots out and attaches onto the front part of the door? I've seen lots of these style mirrors that don't have that 3rd arm on them - they look exactly like mine,
just without that brace sticking out. These braces on each of my mirrors
seem a bit loose and floppy anyway. So, I'm wondering if anyone has just
mounted these style mirrors, anf left that arm off.
#2
#3
It's OK to leave off the 'steady rest' third arm.
Nutserts (threaded rivets) I think would be a better way to attach them. However, there is a higher risk of theft (if that matters).
Western mirrors take a bit of getting used to due to their relatively large heads which can hide/screen pedestrians, bicyclists, and even entire vehicles.
Nutserts (threaded rivets) I think would be a better way to attach them. However, there is a higher risk of theft (if that matters).
Western mirrors take a bit of getting used to due to their relatively large heads which can hide/screen pedestrians, bicyclists, and even entire vehicles.
#4
I just installed West Coast Jr. My truck had holes for them as it left the factory with them. I removed the bondo and used the exsiting holes. For the lower mount I used 1/4" rubber nut inserts I found at Ace Hardware. They worked great. McMaster-Carr also has them. For the top I used stainless 1/4" x 3/4" long pan head screw with a 1/4" acorn nut on the outside of the door. I sourced everything from my local Ace Hardware. I was concerned about the rubber nut inserts, I looked up their specs and they are rated to hold 225lbs each.
Good info here on all the fasteners:
FORDification.net - The '73-'79 Ford Pickup Resource
Good info here on all the fasteners:
FORDification.net - The '73-'79 Ford Pickup Resource
#5
Join Date: Aug 2003
Location: **** hole San Jose ca.
Posts: 7,592
Likes: 0
Received 9 Likes
on
9 Posts
2x with Hio.
1. The large rack 3 arm jr w/c mirrors would not come with the extra arm if it was not needed Right.
Do this, stick your arm straight out the window at 50 mph and see if you can hold it straight out with it not moving from the wind..
The short arm mirrors fold in don't use the extra bracing arm..
Plus if you come out from under you truck from working on it, you better remember the mirrors arms the stick way out. If you'll have a gash in your forehead area many times over.. Then out pops many 4 letter words other then "ouch"
After selling my c/o camper those 3rd arm mirrors were the first thing to come off my doors.
orich
1. The large rack 3 arm jr w/c mirrors would not come with the extra arm if it was not needed Right.
Do this, stick your arm straight out the window at 50 mph and see if you can hold it straight out with it not moving from the wind..
The short arm mirrors fold in don't use the extra bracing arm..
Plus if you come out from under you truck from working on it, you better remember the mirrors arms the stick way out. If you'll have a gash in your forehead area many times over.. Then out pops many 4 letter words other then "ouch"
After selling my c/o camper those 3rd arm mirrors were the first thing to come off my doors.
orich
#6
Ford referred to these mirrors as Western Juniors (without 3rd 'steady rest' arm: C6TZ-17696-A / with 3rd 'steady rest' arm: C7TZ-17696-E). West Coast is an aftermarket term.
C6TZ-17696-A mirrors were optional for all except Camper Specials / C7TZ-17696-E 3rd 'steady rest' arm mirrors were part of the Camper Special package, optional on others.
Left/Right: Scroll down to see these two part numbers.
#7
Thanks Guys. Thanks Number Genius.
I will probably begin by trying them out without the steady rest arm.
If that doesn't seem steady enough, I can add them, I suppose.
I'd like to add one of those small round "blind spot" mirrors that clamp onto the mirror assy. as well. I wouldn't want to stick one on the mirror itself.
What is the deal with these doors having pre-drilled holes? Mine don't. Not my original 71 Ranger XLT Doors, or these ones that I'm putting on now (from a 67 Truck). I'm swapping the doors because the original ones were real rusty/crusty along the bottom (we live up north).
Thanks,
Bob
I will probably begin by trying them out without the steady rest arm.
If that doesn't seem steady enough, I can add them, I suppose.
I'd like to add one of those small round "blind spot" mirrors that clamp onto the mirror assy. as well. I wouldn't want to stick one on the mirror itself.
What is the deal with these doors having pre-drilled holes? Mine don't. Not my original 71 Ranger XLT Doors, or these ones that I'm putting on now (from a 67 Truck). I'm swapping the doors because the original ones were real rusty/crusty along the bottom (we live up north).
Thanks,
Bob
Trending Topics
#8
I don't think all doors where pre-drilled. As NumberDummy stated the dealers installed mirrors and there are a several different types. My Marti report shows my truck was ordered with Western mirrors, so I knew it at least left the dealership with them. I could also see top holes on the inside of the door when it was open. Someone had filled them and installed a different style mirror. I removed the door panel and found the bondo filled lower holes inside the door.
#9
I'd like to add one of those small round "blind spot" mirrors that clamp (C5TZ-17696-A) onto the mirror assy. as well.
What is the deal with these doors having pre-drilled holes? Mine don't.
If you find mirror holes in the doors, they were put there by a dealer or a previous owner.
What is the deal with these doors having pre-drilled holes? Mine don't.
If you find mirror holes in the doors, they were put there by a dealer or a previous owner.
And ~ TYPE 2: Western Junior / TYPE 3: Western Junior with 3rd 'steady rest' arm.
#11
#12
Join Date: Feb 2006
Location: North Pole, Alaska
Posts: 2,718
Likes: 0
Received 152 Likes
on
132 Posts
Type 9's are the best with not much hanging out there to create a forward blind spot, and they do fold easily to keep the parking lot obliviots from crumpling your doorskins. If they are not an improvement, then why does every manufacturer mount their mirrors in a similar down low fashion like the Type 9's?
#13
Join Date: Aug 2003
Location: **** hole San Jose ca.
Posts: 7,592
Likes: 0
Received 9 Likes
on
9 Posts
I even see extensions for the type 9's once in a while at Pnp & ebay for towing.
This was another reason I when just installed the (#9)
One night while out fishing a long a the American canal above the Salton Sea.
I was on the narrow dirt road and was leaving when I met another vehicle coming
at me bolt going about 25mph when are mirrors clipped popped pieces in my face.
I stopped and he slowed to may be a stop then kept going. No save place to turn around and what good would it have done anyway.
Those 3 arm jr west coast mirror bracket don't give when hit it did not damage any part of the frame or door other then breaking the glass mirror.
Found a mirror shop the next day and he had no safety glass type mirrors.
Pulled the right out a used for a cutting pattern. I installed non-safety one on the right side knowing what the safety plate one did. I did have a small cut on my ear area that, I saw late when I got home the night.
About 8 yrs ago when sold the camper I sold the mirrors for $100 bucks on ebay.
And was very happy when they were gone..
I kept a backup replacement mirror in my side tool box after getting the one hit that night on the dirt road fishing.
But were great for towing when needed..
orich
This was another reason I when just installed the (#9)
One night while out fishing a long a the American canal above the Salton Sea.
I was on the narrow dirt road and was leaving when I met another vehicle coming
at me bolt going about 25mph when are mirrors clipped popped pieces in my face.
I stopped and he slowed to may be a stop then kept going. No save place to turn around and what good would it have done anyway.
Those 3 arm jr west coast mirror bracket don't give when hit it did not damage any part of the frame or door other then breaking the glass mirror.
Found a mirror shop the next day and he had no safety glass type mirrors.
Pulled the right out a used for a cutting pattern. I installed non-safety one on the right side knowing what the safety plate one did. I did have a small cut on my ear area that, I saw late when I got home the night.
About 8 yrs ago when sold the camper I sold the mirrors for $100 bucks on ebay.
And was very happy when they were gone..
I kept a backup replacement mirror in my side tool box after getting the one hit that night on the dirt road fishing.
But were great for towing when needed..
orich
#14

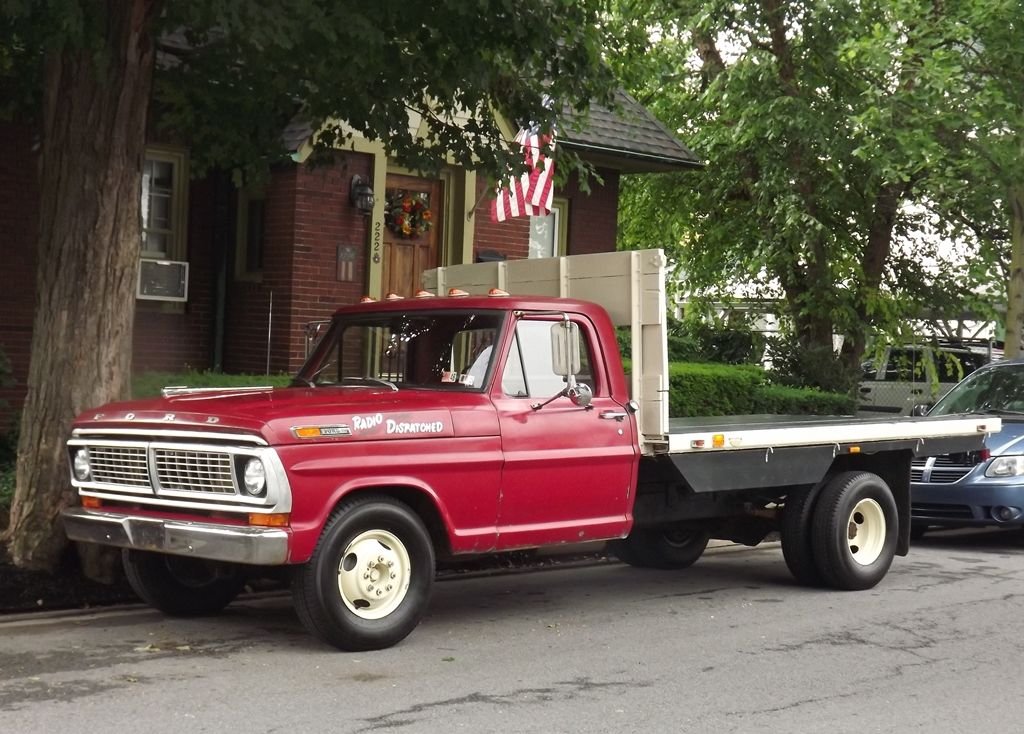

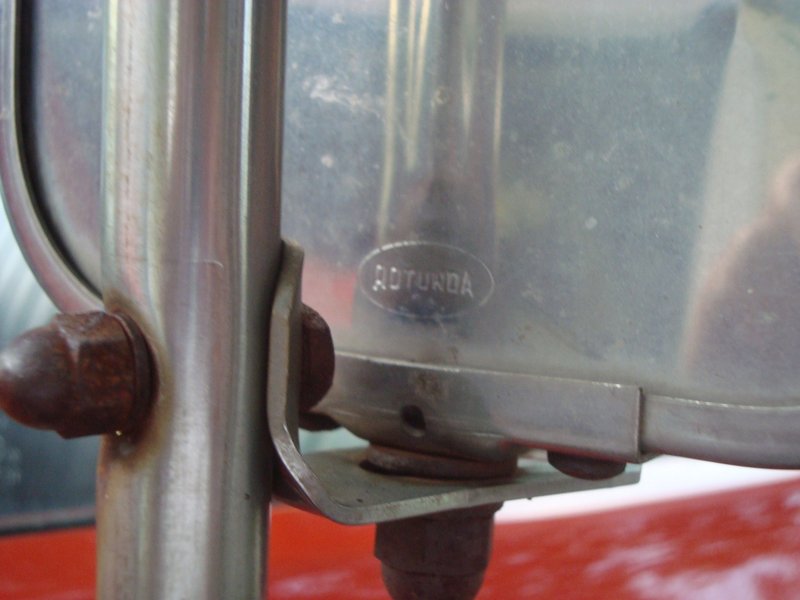

I have the type 3 with the steady arm rest on my 70 F350 flatbed dump. I wouldn't want anything else for mirrors. They are invaluable for me when I am in traffic, changing lanes but especially when backing to load things and when backing up to dump. I added small convex mirrors which give a broader view and also show where my rear wheel are. As far as blind spots to the left or right just a small turn of my takes care of that. I think that is better than a blind spot behind me.
