Scratch built console

I recently spent a few hours butchering poster board trying to figure if I wanted to tackle building my own console or just make a salvage yard console fit. Since I usually always do everything the hard way, I decided to take a shot at building from scratch. I had planned to build it entirely out of fiberglass, but finally decided that a sheet of cheap thin plywood would give me a lot extra material to cut up and probably throw away.

I started out with poster board patterns.







Picked up a $14 sheet of plywood from Lowes and started cutting.





I made a lot of trips to the truck marking these panels for further trimming and needless to say the left and right sides won't be identical.






More to come.

Reply With Quote
  #2
Old 12-13-2013, 05:13 PM
toby tough's Avatar
toby tough
toby tough is offline
Posting Guru
Join Date: Sep 2011
Location: Clitherall, MN.
Posts: 1,405
toby tough has a good reputation on FTE.toby tough has a good reputation on FTE.toby tough has a good reputation on FTE.
Wow, lookin' good! Bein' a carpenter for 20+ years I can appreciate the work involved. When it's all done I'm sure it will shine like a brand new penny.

Reply With Quote
  #3
Old 12-13-2013, 06:21 PM
rhopper's Avatar
rhopper
rhopper is offline
Posting Guru
Join Date: Mar 2005
Location: peyton, colorado
Posts: 1,496
rhopper has a good reputation on FTE.rhopper has a good reputation on FTE.
Drew, I was thinking something like that for my F1. I have a bench seat so I may drop straight down from the dash to the floor so I still have leg room for the grand boys. I only need to install a radio and relocate the center ac vents but alittle extra storage would be nice, too.

Reply With Quote
  #4
Old 12-13-2013, 06:30 PM
Drewski 2's Avatar
Drewski 2
Drewski 2 is offline
Elder User
Thread Starter
Join Date: Jan 2009
Location: Lavergne, Tn.
Posts: 802
Drewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud of
I cut a base plate out of 1/2" plywood with appropriate openings for shifter mount and cable and drilled mounting holes so that each time I installed the console I could be sure it was going back in the exact same position. It also was cut to create curves in the side panels of the console so that I could get a way from the square look and allow the console to match the curvature of the seat bolsters. I used sheetrock screws , glue and spacer blocks and about every clamp that I had in my shop to hold this thing in shape until the glue set.







I had set up the patterns so that the console would include a waterfall up to the rear window. After sitting in the truck and thinking about it, I decided that it looked a little gaudy.



So I'm back to the drawing board on the waterfall portion. I guess I'll butcher some more poster board.

Reply With Quote
  #5
Old 12-13-2013, 06:39 PM
Drewski 2's Avatar
Drewski 2
Drewski 2 is offline
Elder User
Thread Starter
Join Date: Jan 2009
Location: Lavergne, Tn.
Posts: 802
Drewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud of
Originally Posted by toby tough View Post
Wow, lookin' good! Bein' a carpenter for 20+ years I can appreciate the work involved. When it's all done I'm sure it will shine like a brand new penny.
Thanks for the vote of confidence......I really don't know where this is going to wind up. I really hope to incorporate some more cherry wood into this console to match my instrument panel insert.

Originally Posted by rhopper View Post
Drew, I was thinking something like that for my F1. I have a bench seat so I may drop straight down from the dash to the floor so I still have leg room for the grand boys. I only need to install a radio and relocate the center ac vents but alittle extra storage would be nice, too.
It will certainly simplify the build if you don't have bucket seats to contend with.

Reply With Quote
  #6
Old 12-13-2013, 06:46 PM
tinman52's Avatar
tinman52
tinman52 is offline
Welder User
Join Date: Feb 2009
Location: northwest MT
Posts: 5,084
tinman52 has a superb reputationtinman52 has a superb reputationtinman52 has a superb reputationtinman52 has a superb reputationtinman52 has a superb reputationtinman52 has a superb reputationtinman52 has a superb reputationtinman52 has a superb reputationtinman52 has a superb reputationtinman52 has a superb reputationtinman52 has a superb reputation
Drew, that looks really good! What will the top/face surface be? Will the base be finished wood or covered? Seems a shame to cover up that beautiful wood work.
Can't wait to see it finished...

Reply With Quote
  #7
Old 12-13-2013, 06:49 PM
bk53's Avatar
bk53
bk53 is offline
Senior User
Join Date: Apr 2012
Location: near dallas
Posts: 258
bk53 is starting off with a positive reputation.
nice. got a good esthetic and craft too. can't wait to see what you come up with.

Reply With Quote
  #8
Old 12-13-2013, 07:27 PM
4tl8ford's Avatar
4tl8ford
4tl8ford is offline
Post Fiend
Join Date: Jun 2001
Location: Erie, pa
Posts: 7,435
4tl8ford is a splendid one to behold4tl8ford is a splendid one to behold4tl8ford is a splendid one to behold4tl8ford is a splendid one to behold4tl8ford is a splendid one to behold4tl8ford is a splendid one to behold4tl8ford is a splendid one to behold
As always, Stunning work

Reply With Quote
  #9
Old 12-13-2013, 09:02 PM
bobbytnm's Avatar
bobbytnm
bobbytnm is offline
Roast em' if you got 'em
Join Date: Mar 2005
Location: Rio Rancho, NM
Posts: 12,320
bobbytnm has a brilliant futurebobbytnm has a brilliant futurebobbytnm has a brilliant futurebobbytnm has a brilliant futurebobbytnm has a brilliant futurebobbytnm has a brilliant futurebobbytnm has a brilliant futurebobbytnm has a brilliant futurebobbytnm has a brilliant futurebobbytnm has a brilliant futurebobbytnm has a brilliant future
Drew,

I love it everytime you start a new thread. There is always something cool to look at and to get inspiration from.
Another nice project! Thanks for sharing

Bobby

Reply With Quote
  #10
Old 12-13-2013, 09:44 PM
yamagrant's Avatar
yamagrant
yamagrant is online now
Postmaster
Join Date: Jun 2011
Location: Winnipeg, Manitoba
Posts: 4,956
yamagrant has a superb reputationyamagrant has a superb reputationyamagrant has a superb reputationyamagrant has a superb reputationyamagrant has a superb reputationyamagrant has a superb reputationyamagrant has a superb reputationyamagrant has a superb reputationyamagrant has a superb reputationyamagrant has a superb reputationyamagrant has a superb reputation
ATTA BOY Drew. You are truley an inspiration. Keep up the good work.

Reply With Quote
  #11
Old 12-13-2013, 09:54 PM
drptop70ss's Avatar
drptop70ss
drptop70ss is offline
Posting Guru
Join Date: Oct 2013
Location: in a barn
Posts: 2,326
drptop70ss has much to be proud ofdrptop70ss has much to be proud ofdrptop70ss has much to be proud ofdrptop70ss has much to be proud ofdrptop70ss has much to be proud ofdrptop70ss has much to be proud ofdrptop70ss has much to be proud ofdrptop70ss has much to be proud ofdrptop70ss has much to be proud of
Looks good, I had the same idea for mine, just havent decided on bench or bucket seats yet. I want to leave behind the seats for storage so either way I will be stopping the console in front or between the seats. I thought about making it out of wood and then fiberglassing over it so I could paint it.

Reply With Quote
  #12
Old 12-13-2013, 10:29 PM
Project-55's Avatar
Project-55
Project-55 is offline
Elder User
Join Date: May 2012
Location: North Idaho
Posts: 728
Project-55 has a great reputation on FTE.Project-55 has a great reputation on FTE.Project-55 has a great reputation on FTE.Project-55 has a great reputation on FTE.
Drew, I knew from your first cardboard console layout that it was going to look super and as usual you have pulled it off and put me to shame.

I think the waterfall look is cool but I like an elbow rest so why not incorporate an arm rest into your waterfall design???
Just one of my warped thoughts, hehe.

Reply With Quote
  #13
Old 12-13-2013, 10:38 PM
Drewski 2's Avatar
Drewski 2
Drewski 2 is offline
Elder User
Thread Starter
Join Date: Jan 2009
Location: Lavergne, Tn.
Posts: 802
Drewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud ofDrewski 2 has much to be proud of

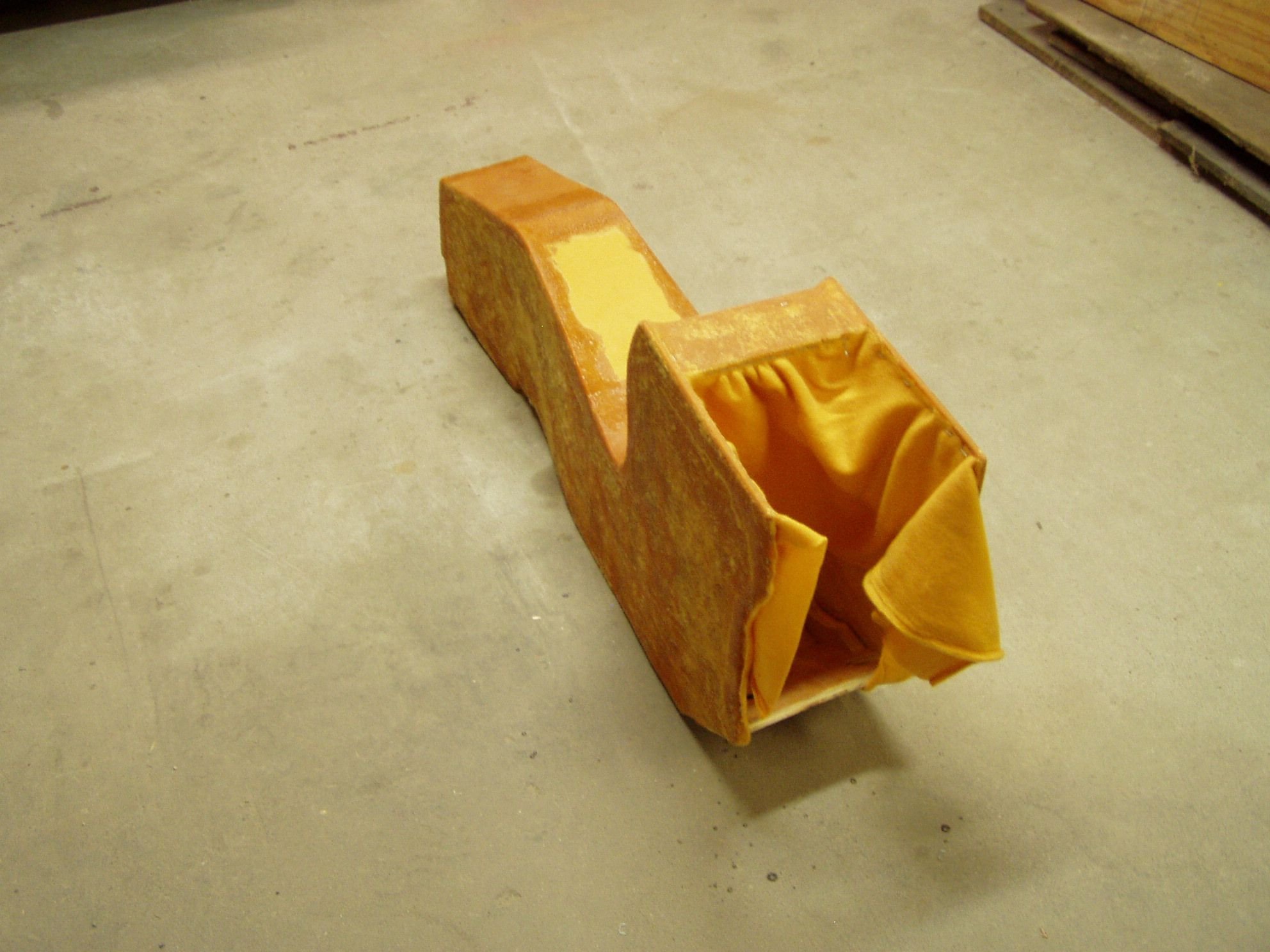

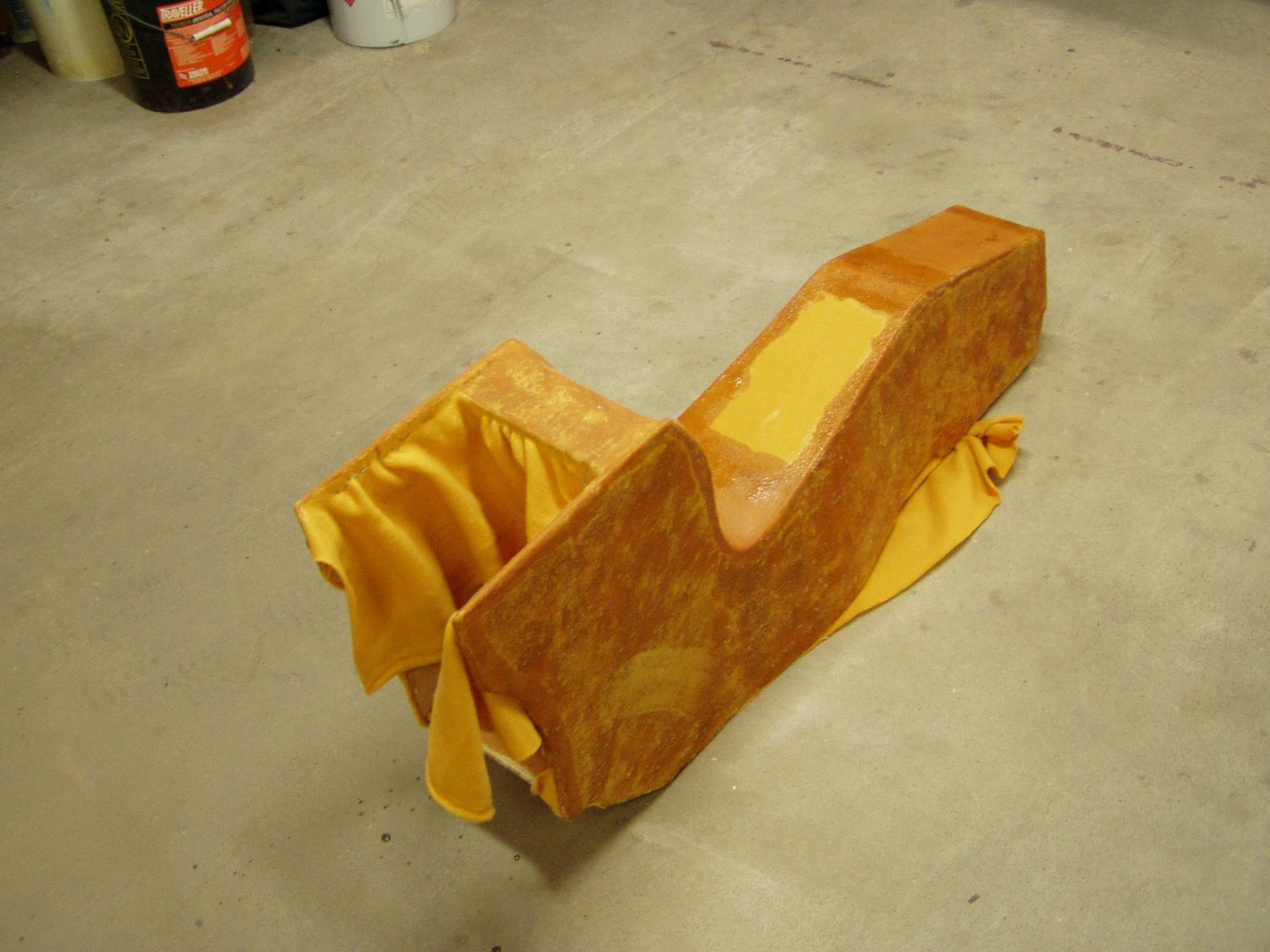

Moving right along........I guess I must have walked through the tuner section one time too many at the local cruise in....... cause I got the sudden urge to run to Wallyworld and buy a yard of the cheapest fleece I could find. $2.97 a yard got some designer orange and headed home. Lots of staple later stretching the fleece and around 30 ounces of polyester resin and the console is covered and ready for some mat placed in strategic locations. No resin where there will be a cutout for the shifter.
