Ididit steering column and linkage issues
Thread Starter
|
Laughing Gas
Joined: Sep 2013
Posts: 1,203
Likes: 146
From: Goulburn, NSW
Ididit steering column and linkage issues

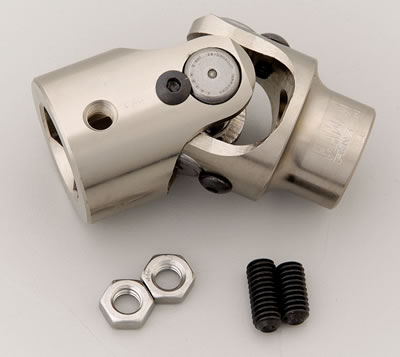

Hi guys. I've just discovered that my universal joint linkage system has been welded up and apparently that is a bit of a no no. I recently bought a 30" Ididit column with a DD end and my first discovery was that the old shaft was a 3/4 round one. I bought a Flaming river universal FR1707DD
thinking that would solve the problem. It fitted the new column, but the other end was only one inch and no way of securing it to the round shaft. So, obviously I bought the wrong thing. Further investigation then revealed the rest of the shaft down to the steering box has been welded together.
It's a mustang II front end with a Pinto rack. I guess the only way to remedy this is to rip it all out and start again?
thinking that would solve the problem. It fitted the new column, but the other end was only one inch and no way of securing it to the round shaft. So, obviously I bought the wrong thing. Further investigation then revealed the rest of the shaft down to the steering box has been welded together.
It's a mustang II front end with a Pinto rack. I guess the only way to remedy this is to rip it all out and start again?
Cargo Master
Joined: Apr 2009
Posts: 3,038
Likes: 4
From: South west Idaho
Hi guys. I've just discovered that my universal joint linkage system has been welded up and apparently that is a bit of a no no. I recently bought a 30" Ididit column with a DD end and my first discovery was that the old shaft was a 3/4 round one. I bought a Flaming river universal FR1707DD
thinking that would solve the problem. It fitted the new column, but the other end was only one inch and no way of securing it to the round shaft. So, obviously I bought the wrong thing. Further investigation then revealed the rest of the shaft down to the steering box has been welded together.
It's a mustang II front end with a Pinto rack. I guess the only way to remedy this is to rip it all out and start again?
thinking that would solve the problem. It fitted the new column, but the other end was only one inch and no way of securing it to the round shaft. So, obviously I bought the wrong thing. Further investigation then revealed the rest of the shaft down to the steering box has been welded together.
It's a mustang II front end with a Pinto rack. I guess the only way to remedy this is to rip it all out and start again?
.
---Yes , do it right replace it all. Some people like to live on the danger side of life but not me .----
.
Hotshot
Joined: Oct 2004
Posts: 15,882
Likes: 88
From: Durham NC
Get a DD to DD U joint, a length of DD stainless intermediate shaft and a DD to Pinto(?) rack U joint from Borgeson, and replace the whole shebang.. You do not need nor should you use an intermediate shaft support unless you have 3 or more U joints in the setup, then use a support immediately after the second (counting from the column) and after any additional U joints.
Thread Starter
|
Laughing Gas
Joined: Sep 2013
Posts: 1,203
Likes: 146
From: Goulburn, NSW
Thanks guys. I might be able to reuse that support mount, unless whole thing has been welded in. There's a performance parts open day in the city where I live next week, so I might rip the old one out, take it down and match something up.
Can I just ask one quick question. Once you take the grub screw out, shouldnt the old column just pull through?
Can I just ask one quick question. Once you take the grub screw out, shouldnt the old column just pull through?
Hotshot
Joined: Oct 2004
Posts: 15,882
Likes: 88
From: Durham NC
Trending Topics
Lead Driver
Joined: Aug 2002
Posts: 6,682
Likes: 12
From: Saskatoon SK Canada
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
Thread Starter
|
Laughing Gas
Joined: Sep 2013
Posts: 1,203
Likes: 146
From: Goulburn, NSW
Lol! I would have told you what a grub screw was, but that's the only name I know it by.
Yeah, I went out there again tonight. Wish I did normal working hours. Pitch black again and the air is full of fricken mosquitoes, so didnt stick at it for long.
Still couldn't get that shaft out, but am now convinced its not welded now, just tight as all hell. I was gonna attack it tonight but it's 9pm and the neighbours are kinda sensitive to angle grinders going off at night, and I am
fresh out of cutting discs for the dremel, otherwise I would have hit it with that. (bit quieter)
I think easiest way is approach with a dremel from the top and cut the old shaft out of there. Since it has all been welded, probably the only thing I can do?
Anyway, chatted to a guy from Borgeson. He had a look at the setup and recommended
013449 ¾”-36 X ¾” DD rack joint (assuming its a 36 spline off a power assisted pinto)
014949 ¾” DD X ¾” DD center joint
014952 ¾” DD X 1” DD column joint
409418 18” length of ¾” DD shaft OR 409436 36” length of ¾” DD shaft
Pretty much what we thought.
Thanks guys.
I'll keep you posted on how she goes
Yeah, I went out there again tonight. Wish I did normal working hours. Pitch black again and the air is full of fricken mosquitoes, so didnt stick at it for long.
Still couldn't get that shaft out, but am now convinced its not welded now, just tight as all hell. I was gonna attack it tonight but it's 9pm and the neighbours are kinda sensitive to angle grinders going off at night, and I am
fresh out of cutting discs for the dremel, otherwise I would have hit it with that. (bit quieter)
I think easiest way is approach with a dremel from the top and cut the old shaft out of there. Since it has all been welded, probably the only thing I can do?
Anyway, chatted to a guy from Borgeson. He had a look at the setup and recommended
013449 ¾”-36 X ¾” DD rack joint (assuming its a 36 spline off a power assisted pinto)
014949 ¾” DD X ¾” DD center joint
014952 ¾” DD X 1” DD column joint
409418 18” length of ¾” DD shaft OR 409436 36” length of ¾” DD shaft
Pretty much what we thought.
Thanks guys.
I'll keep you posted on how she goes
Thread Starter
|
Laughing Gas
Joined: Sep 2013
Posts: 1,203
Likes: 146
From: Goulburn, NSW
I don't know what else to call it. It's a grub screw Heheh....
Hotshot
Joined: Oct 2004
Posts: 15,882
Likes: 88
From: Durham NC
OK, Nathan tell me its a set screw, a recessed hex head short (pointed) bolt that is used to keep the U joint from slipping off the shaft. I learned something new!
If your connection uses 3 U joints then you will need an intermediate shaft support bearing. See the steering shaft design section of the Borgeson catalog for location preferences.
If your connection uses 3 U joints then you will need an intermediate shaft support bearing. See the steering shaft design section of the Borgeson catalog for location preferences.
