Birthday money is burning a hole in my pocket
What is the difference between the SR-M and the SR-M2 besides $50? I'm sure its more powerful, but the description on Rigids site is the same for both lights
EDIT: I am thinking of just getting the SR-M with the mounting bracket. I'm leary of cutting holes in my bumper, and if I get a newer truck some day I can take the SR-M off
What is the difference between the SR-M and the SR-M2 besides $50? I'm sure its more powerful, but the description on Rigids site is the same for both lightsEDIT: I am thinking of just getting the SR-M with the mounting bracket. I'm leary of cutting holes in my bumper, and if I get a newer truck some day I can take the SR-M off
As for the difference between the "M" and "M2", M2's actually have 3 LED's in them and use the Specter Lenses versus the hybrid lenses for the "M". They put out more lumens and have a wider flood of light. I figured that my "M" was already overkill for reversing and after living with these lights, I still agree with that assessment. I also wanted to reduce the amperage overage since I decided to tap straight into the reverse light circuit. I was torn over mounting solutions as well, but I just loved the clean look of flush-mounted lights so I went that way. If I ever sell my truck, someone's going to be lucky
.
Resident smarta$$
Joined: Aug 2006
Posts: 4,929
Likes: 9
From: Oaks,PA
I do like the flush mount look as well, I'm on the fence over whether I want to cut holes in the bumper or not. One other issue to consider, marine or not? I like the idea of salt resistance but don't like the white surround. Decisions, decisions
Thanks for the birthday wishes also!
EDIT: So are you saying you think you could've gotten away with the "M"?
Thanks for the birthday wishes also!EDIT: So are you saying you think you could've gotten away with the "M"?
Thread Starter
|
Elder User
Joined: Jul 2010
Posts: 501
Likes: 1
From: Pacific NW
I do like the flush mount look as well, I'm on the fence over whether I want to cut holes in the bumper or not. One other issue to consider, marine or not? I like the idea of salt resistance but don't like the white surround. Decisions, decisions Thanks for the birthday wishes also!
EDIT: So are you saying you think you could've gotten away with the "M"?
Thanks for the birthday wishes also!EDIT: So are you saying you think you could've gotten away with the "M"?
Thread Starter
|
Elder User
Joined: Jul 2010
Posts: 501
Likes: 1
From: Pacific NW
Where did you tap-in for power/on-signal?
Did you test your relay (if you're running one)?
Is you signal wire running hot for your rigids? Or is it the power source that's not putting out?
Resident smarta$$
Joined: Aug 2006
Posts: 4,929
Likes: 9
From: Oaks,PA
EDIT: BOOM! Just pulled the trigger on the surface mount SR-M diffused
New User
Joined: Feb 2013
Posts: 2
Likes: 0
Wish I knew, however on your setup are your regular reversal lights coming on and just the rigids not working?
Where did you tap-in for power/on-signal?
Did you test your relay (if you're running one)?
Is you signal wire running hot for your rigids? Or is it the power source that's not putting out?
Where did you tap-in for power/on-signal?
Did you test your relay (if you're running one)?
Is you signal wire running hot for your rigids? Or is it the power source that's not putting out?
Nothing is working, the lights were tapped into the factory reverse light. I check load and all seemed fine at the time of install.
Thread Starter
|
Elder User
Joined: Jul 2010
Posts: 501
Likes: 1
From: Pacific NW
Can't offer much help without knowing your wiring setup. Also, are your regular reversing lights working as well without your rigids? If not, then I think you're right in that it could be a switch or something for the reverse system. Will probably have to look at alldata or look at an FSM to see how the reverse system is handled, what/where is the switch and so-on. Also, how many amps does your light-bar pull? I know that I put an additional 1.24 amps of load on my reversing setup with my configuration. I figure that's safe.
Resident smarta$$
Joined: Aug 2006
Posts: 4,929
Likes: 9
From: Oaks,PA
I got a little quality "ME" time today after the CFO went to work Heres my set-up. Thanks especially to Jus2shy for the idea, I just went with a different mount. Not much of a choice for existing holes, so here's where I mounted mine. I also wired mine into the trailer plug, center wire on the 7-pin, white w/black tracer- on MY truck. I figured if I messed it up I could always buy a new pigtail
Side view
Wired up and testing
I can't wait until tonight to see how they work. I did debate for a few minutes whether to not tie them directly into the reverse lights. They come with a nice illuminated rocker switch, but the wires would've been too short since I mounted them on the back. Sorry to hijack this thread, just wanted to show a different mounting for the same lights. Thanks again to Jus2shy!
Heres my set-up. Thanks especially to Jus2shy for the idea, I just went with a different mount. Not much of a choice for existing holes, so here's where I mounted mine. I also wired mine into the trailer plug, center wire on the 7-pin, white w/black tracer- on MY truck. I figured if I messed it up I could always buy a new pigtailSide view
Wired up and testing
I can't wait until tonight to see how they work. I did debate for a few minutes whether to not tie them directly into the reverse lights. They come with a nice illuminated rocker switch, but the wires would've been too short since I mounted them on the back. Sorry to hijack this thread, just wanted to show a different mounting for the same lights. Thanks again to Jus2shy!
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 6 Best Deals Available on New Fords & Lincolns Right Now
Brett Foote
This Hennessey Takes the Expedition Tremor's Off-Roading Capability to the Next Level
Verdad Gallardo
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Thread Starter
|
Elder User
Joined: Jul 2010
Posts: 501
Likes: 1
From: Pacific NW
I got a little quality "ME" time today after the CFO went to work Heres my set-up. Thanks especially to Jus2shy for the idea, I just went with a different mount. Not much of a choice for existing holes, so here's where I mounted mine. I also wired mine into the trailer plug, center wire on the 7-pin, white w/black tracer- on MY truck. I figured if I messed it up I could always buy a new pigtail
Side view
Wired up and testing
I can't wait until tonight to see how they work. I did debate for a few minutes whether to not tie them directly into the reverse lights. They come with a nice illuminated rocker switch, but the wires would've been too short since I mounted them on the back. Sorry to hijack this thread, just wanted to show a different mounting for the same lights. Thanks again to Jus2shy!
Heres my set-up. Thanks especially to Jus2shy for the idea, I just went with a different mount. Not much of a choice for existing holes, so here's where I mounted mine. I also wired mine into the trailer plug, center wire on the 7-pin, white w/black tracer- on MY truck. I figured if I messed it up I could always buy a new pigtailSide view
Wired up and testing
I can't wait until tonight to see how they work. I did debate for a few minutes whether to not tie them directly into the reverse lights. They come with a nice illuminated rocker switch, but the wires would've been too short since I mounted them on the back. Sorry to hijack this thread, just wanted to show a different mounting for the same lights. Thanks again to Jus2shy!
. The nice thing with those mounts is you can still swivel/pivot them around for that perfect aim while my flush mounts are locked-in for life (though I'm perfectly happy with the performance/light distribution). For those that wanted to get technical, I posted my camera settings when I took photos if they wanted to direct compare. More people posting would only give more ideas to more people on how to tackle this problem. Get some nice night shots in.
Resident smarta$$
Joined: Aug 2006
Posts: 4,929
Likes: 9
From: Oaks,PA
Just got home from the gym- around 10pm, pics with the same 5 MP cell camera as the day shots. The road is approx 10 yards and the embankment you can just about see beyond the road is a lil more than 20 yards, paced off by foot
This is about the far side of the road, roughly 20 yards standing off to the side
Overall I am very pleased and I think it was money well spent There will be no guessing that I am backing up
This is about the far side of the road, roughly 20 yards standing off to the side
Overall I am very pleased and I think it was money well spent
There will be no guessing that I am backing up
Senior User
Joined: Aug 2009
Posts: 252
Likes: 0
From: Brazoria, Texas
It was pretty straight forward. It comes with plenty of wire and I tapped into the reverse lights. . I decided to solder and use heat shrink instead of using the connector it came with. ( sorry for the lack of vocabulary this morning, Not enough coffee)<O
</O<O</O
The original screws that hold the licenses plate on will not fit with the plastic cover on the LED strip so you will have to get a flush mount screw or bolt with a nut on the back. I also had to drill new holes.
<O></O>
I love it
I would have no problem paying the full price. It is worth every penny!
</O<O</OThe original screws that hold the licenses plate on will not fit with the plastic cover on the LED strip so you will have to get a flush mount screw or bolt with a nut on the back. I also had to drill new holes.
<O></O>
I love it
I would have no problem paying the full price. It is worth every penny!
Cargo Master
Joined: Sep 2012
Posts: 3,064
Likes: 39
From: Laramie, WY
I mounted one of those license plate lights from Vleds this weekend...but only 3 of the 6 led's came on. So I recommend testing it before you go through all the work to mount it. I sent it back to the company, kind of a bummer to have to pay return shipping on a defective product. Hope the next one works better.
Cargo Master
Joined: Sep 2012
Posts: 3,064
Likes: 39
From: Laramie, WY
Even though I bought one of the 'scratch and dent sale' light frames they sent me a perfect one. It worked fine and with it I can see my dog behind me while I back up. She likes to walk around the truck while I'm backing up, probably because she's a heeler and trying to heel the truck.

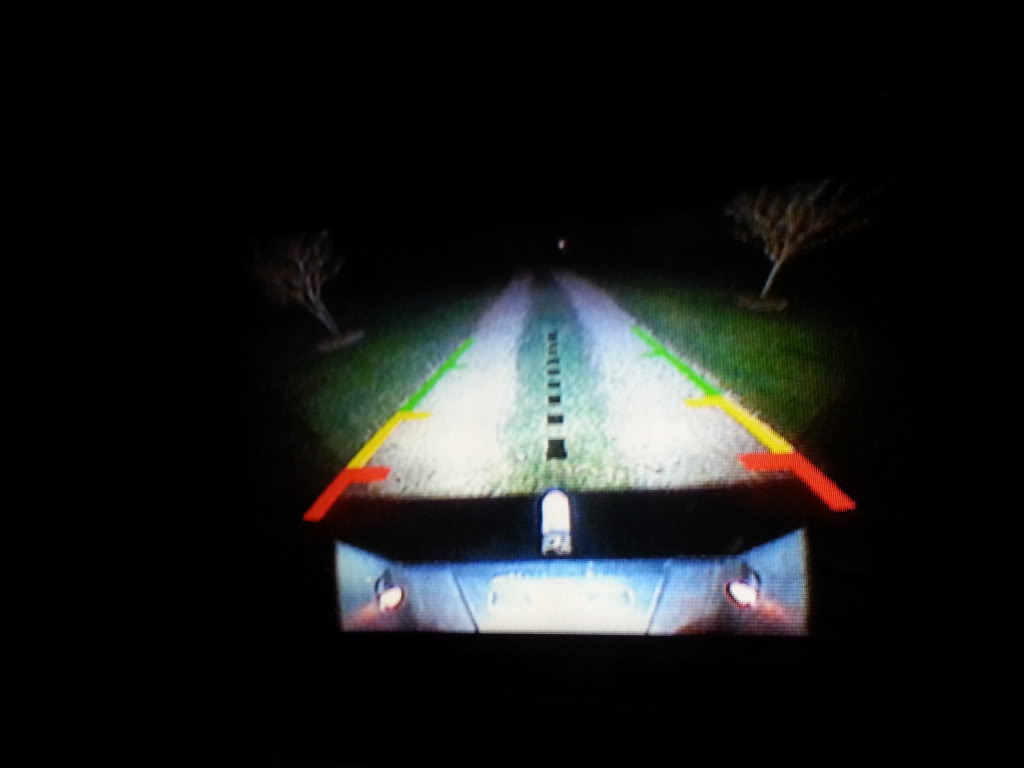

It puts up enough light to make the backup camera usable at night. And since I have a topper on the bed I need that to help with the mirrors. I'm sure the Rigid LED's are brighter...but I can back down a dark alley with no lights at night behind my garage with this light.
If you're having problems with the Rigid LED's just use a relay. The trigger wire goes to 95 with 96 grounded. The battery power goes to 30 and the lights go to 87. Just look at the bottom of the relay for the terminal numbers.
It puts up enough light to make the backup camera usable at night. And since I have a topper on the bed I need that to help with the mirrors. I'm sure the Rigid LED's are brighter...but I can back down a dark alley with no lights at night behind my garage with this light.
If you're having problems with the Rigid LED's just use a relay. The trigger wire goes to 95 with 96 grounded. The battery power goes to 30 and the lights go to 87. Just look at the bottom of the relay for the terminal numbers.
More Turbo
Joined: Feb 2003
Posts: 532
Likes: 0
From: Grand Rapids, MI
Why not just use something like this:
2X CREE R5 Emitter 7W T10 Wedge 184 192 Super Bright LED Reverse Backup Lights | eBay
That way you don't have to cut into the bumper and people have said these lights work great to replace the stock backup lights. I read the 921's are the ones to get from CREE...there are 3, 5, and 7 watt. (I would get the 7 watt) People have said they also replaced the cab lights with these 7w bulbs as well.
2X CREE R5 Emitter 7W T10 Wedge 184 192 Super Bright LED Reverse Backup Lights | eBay
That way you don't have to cut into the bumper and people have said these lights work great to replace the stock backup lights. I read the 921's are the ones to get from CREE...there are 3, 5, and 7 watt. (I would get the 7 watt) People have said they also replaced the cab lights with these 7w bulbs as well.
