E40D Rebuild Help

I am in the middle of rebuilding a E40D trans and I cant figure out where a large needle bearing goes or came from. Its 3-3/8 inches O.D. X 2-1/2 inches I.D.
I was planning on having the trans all back together today but I cant figure out where that needle bearing goes. I took the trans a part three times and still cant figure out where it goes!

Help!

Mar 3, 2012 | 10:25 PM

jk080

Transmission Rebuilder

Joined: Jul 2008

Posts: 1,570

Likes: 63

From: North Georgia

A picture of the bearing would help.

Mar 3, 2012 | 10:40 PM

rudedogii

Thread Starter

Elder User

Joined: Jan 2004

Posts: 685

Likes: 0

From: USA


I dont have a picture but its just a large needle bearing. It looks like the rest of the needle bearings just larger. I think it's the only large needle bearing. I have the ATSG repair manual but it doesnt tell you the size of the needle bearings.

Mar 3, 2012 | 11:23 PM

jk080

Transmission Rebuilder

Joined: Jul 2008

Posts: 1,570

Likes: 63

From: North Georgia

Big bearings are at the rear ring gear hub to low reverse sprag race, front planet to front ring gear hub, overdrive ring gear hub to center support, park gear to case.

Mar 3, 2012 | 11:48 PM

rudedogii

Thread Starter

Elder User

Joined: Jan 2004

Posts: 685

Likes: 0

From: USA

Thanks

Thanks I'll have to go back one more time and check to find out where it's missing. I got the ATSG book so thanks alot I'll check the out what you said.
Because I only got one Needle bearing left over!

Mar 4, 2012 | 10:33 AM

rudedogii

Thread Starter

Elder User

Joined: Jan 2004

Posts: 685

Likes: 0

From: USA

Picture?

Quote:

Originally Posted by jk080

A picture of the bearing would help.

I am in the middel of reassemling my E40D trans and cant figure out where a needle bearing goes.

JK080, Asked for a picture. I dont have a picture but I did make this YouTube video.
Bronco Project 3 - YouTube

It is now Sunday morning. I am going over the exploded view again and count every needle bearing on the diagram. Then I will be disassembling the trans one more time hopefully finding where that needle bearing goes!

Mar 4, 2012 | 11:28 AM

jk080

Transmission Rebuilder

Joined: Jul 2008

Posts: 1,570

Likes: 63

From: North Georgia

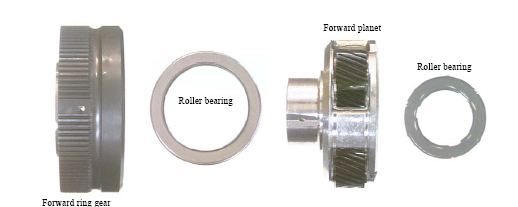

Name: E40D Bearing.JPG
Views: 832
Size: 18.8 KB

Some late model E40Ds use this bearing or if has been updated in the past, some early ones have a thrust washer in this location. Did that bearing come from your trans or is it part of a bearing kit.

Trending Topics

Odd knock/rattle at idle only after fully warmed up

23

253
This is prolly a 1 page thread at most

110.3k

6M
Another Crank no start -- sorry

14

115
2022 f350 6.2 10 speed 3.73 gears, its so thirsty!!

26

778
TCU Telematics module

24

746

Mar 4, 2012 | 12:42 PM

rudedogii

Thread Starter

Elder User

Joined: Jan 2004

Posts: 685

Likes: 0

From: USA

Bearing

Quote:

Originally Posted by jk080

Attachment 50551

Some late model E40Ds use this bearing or if has been updated in the past, some early ones have a thrust washer in this location. Did that bearing come from your trans or is it part of a bearing kit.

That bearing is part of my trans.
Now I only tore the trans down to the "forward planetary". I didnt touch the "reverse".

I just studied the exploded view while having breakfest and counted 6 needle bearings. 2-in the forward plantery, 1-in the forward clutch, 2-before the overdrive clutch, 1- by the coast clutch

Your picture looks like what I am looking for. I am going to dissassemble one more time and see! Thanks a whole lot! I'll sleep better when this is a back together!
