Finally got back to the truck over the past few months. It is starting to take shape!
Welded on rear shock mounts and repainted rear end:
Welded up the cross member where a PO torched out the old mount. Cut pieces out of flat bar stock and welded her in then painted:
Avoiding the hot sun any way you can
Installed rebuilt springs (new main leafs, removed every other leaf in pack):
New (used) Hangers front and rear:
Installed castor shims under the springs...one of my helpers lending a foot to the photo:
I'll post up some more in just a bit...feels good to get stuff done!
Welded on rear shock mounts and repainted rear end:

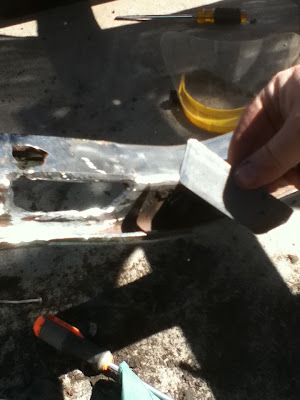

Welded up the cross member where a PO torched out the old mount. Cut pieces out of flat bar stock and welded her in then painted:
Avoiding the hot sun any way you can
Installed rebuilt springs (new main leafs, removed every other leaf in pack):
New (used) Hangers front and rear:
Installed castor shims under the springs...one of my helpers lending a foot to the photo:
I'll post up some more in just a bit...feels good to get stuff done!
Thread Starter
|
Senior User
Joined: Aug 2006
Posts: 494
Likes: 2
From: AZ
King pin install
Install grease cap-

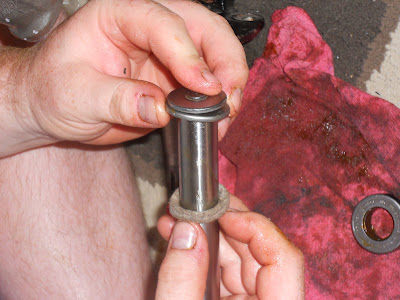

Felt washer-
Pack lower bearing-

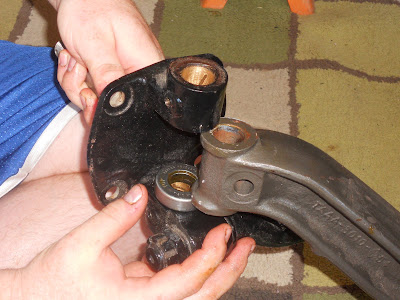

Installing spindle that I had new bushings pressed in and honed at the machine shop, note lower bearing installed flat side up. I ended up taking her back off later to install a few shims as there was just some slight play in the spindle up and down. Two shims did the trick. The shims went between the spindle and top of axle:
greased pin slides right in turned it so the slot will allow for lock pin to go in:
Just need to put in the lock pin and nut, pump in some grease and it is was all done!
I'll have more updates later like the disc brake install.
Install grease cap-
Felt washer-
Pack lower bearing-
Installing spindle that I had new bushings pressed in and honed at the machine shop, note lower bearing installed flat side up. I ended up taking her back off later to install a few shims as there was just some slight play in the spindle up and down. Two shims did the trick. The shims went between the spindle and top of axle:
greased pin slides right in turned it so the slot will allow for lock pin to go in:
Just need to put in the lock pin and nut, pump in some grease and it is was all done!
I'll have more updates later like the disc brake install.
