Is this a Carter YFA?
Thread Starter
|
Tuned
Joined: May 2009
Posts: 300
Likes: 5
From: Apex, NC
Is this a Carter YFA?
This came off of an '80 F150 300 w/ Duraspark II. It has stamping of 7287S and a casting to the right of the fuel inlet of 2433. What is the purpose of the linkage on opposite side of the choke? It moves with the throttle shaft and has some sort of dashpot on this side also. Can anyone ID this thing for me? What does this forked arm actuate?
Thread Starter
|
Tuned
Joined: May 2009
Posts: 300
Likes: 5
From: Apex, NC

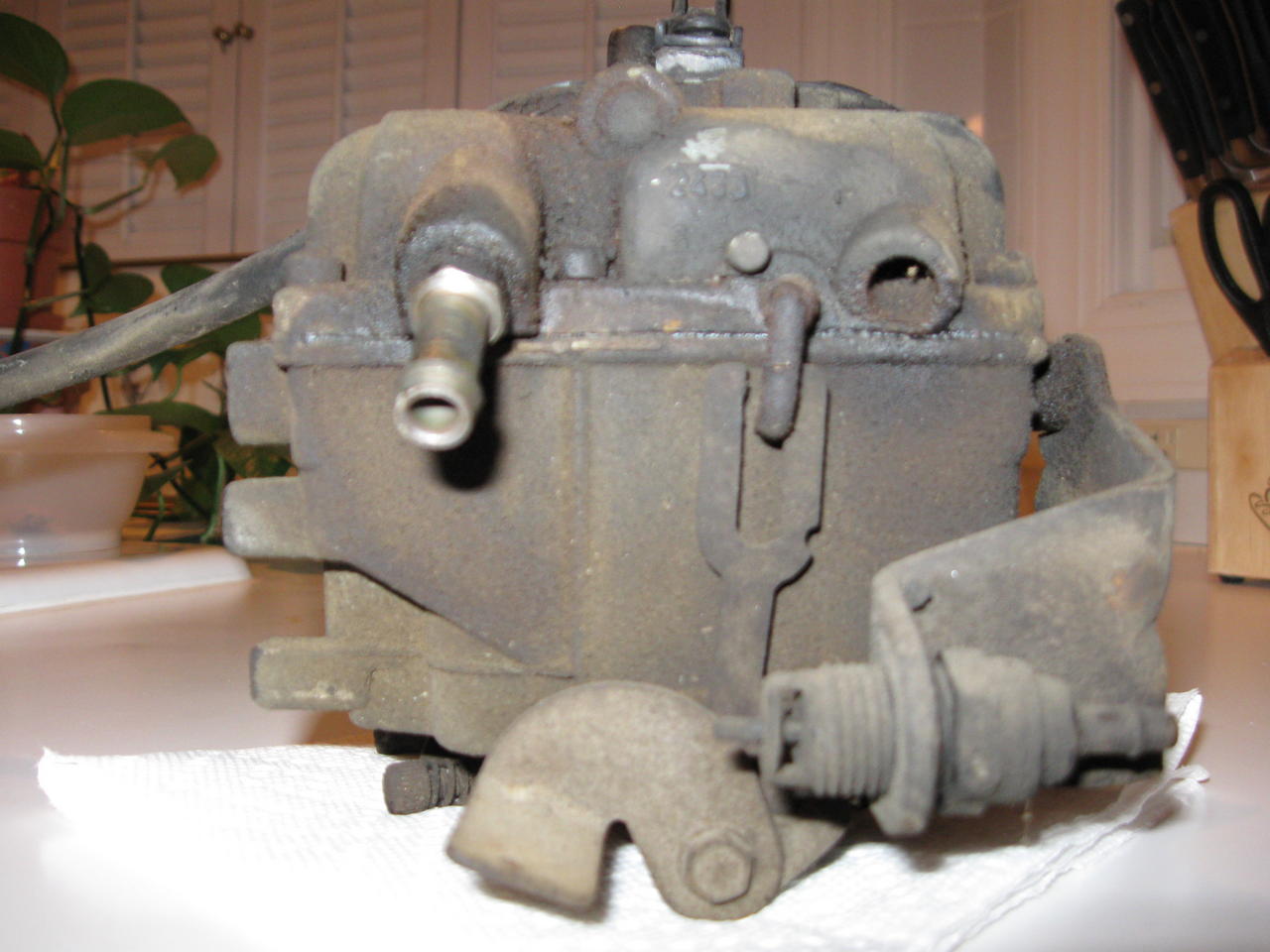

Thanks, I know it's a Carter (see photo below), what I don't know is which one. All of the drawings and pics that I find on-line never show the forked arm on the opposite side of the throttle shaft. I'm trying to figure out what it does and when I go to look for a rebuild kit, making sure I have the new parts for this assembly. Again, the only rebuild kits I find don't specify for use on this model # 7287S
Elder User
Joined: Nov 2004
Posts: 666
Likes: 5

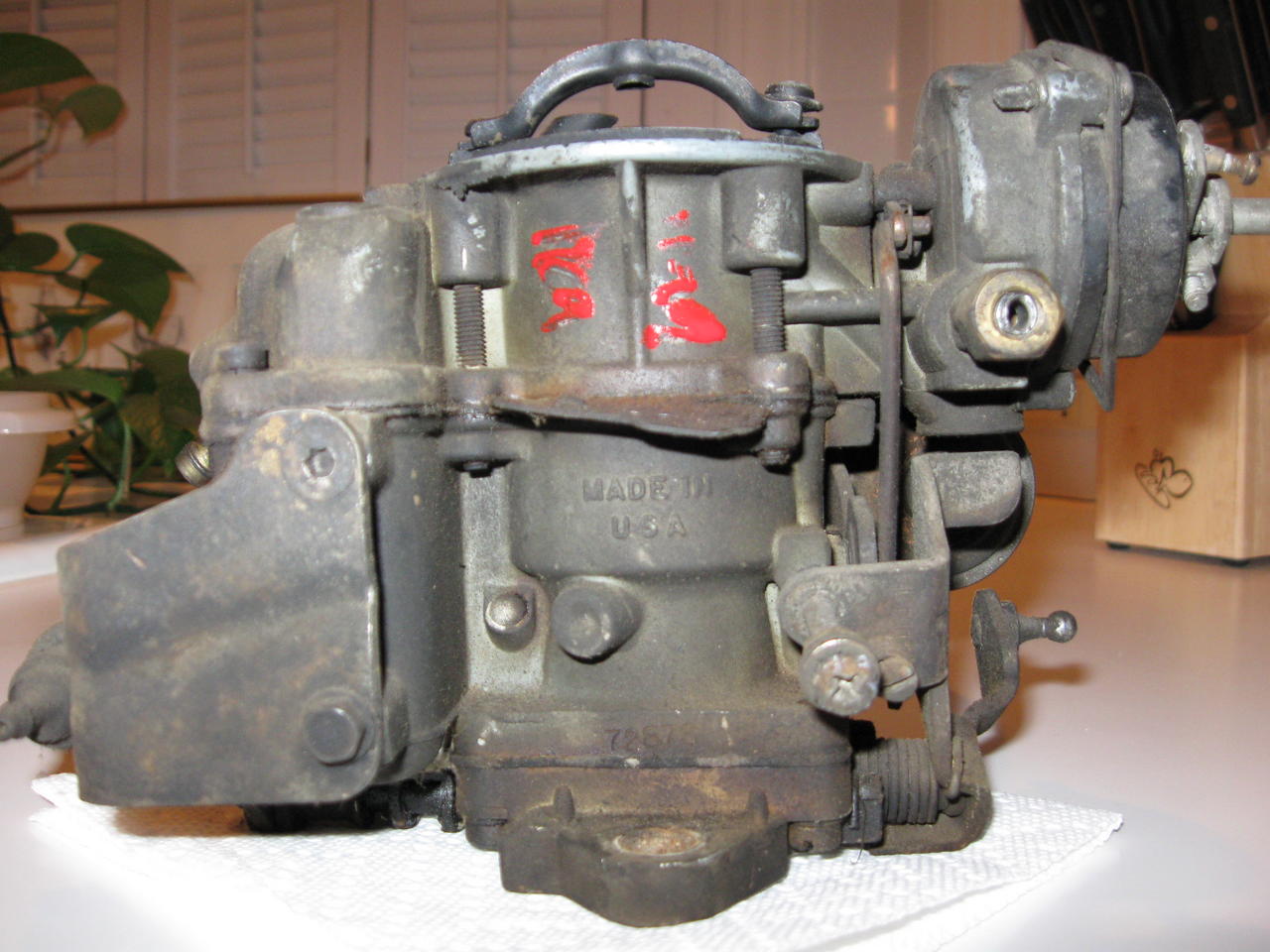

The carburetor pictured is a Carter YF. IIRC, the YFA is the feedback carb. It has been a while since I had my YF open, but I believe the forked linkage on the front opens the bowl vent (I don't recall if it opens it at idle, or opens it as you come off idle). The reason you don't see it in pictures and diagrams very often is that it was only used near the end of the YF production on emissions controlled applications. Most of the information I have found online is for the older YF carbs. The bowl vent was connected to the charcoal canister. In your second picture, there is a hole to the right of the fork linkage. There is supposed to be a short tube pressed in there. That is where the vent hose connects.
Elder User
Joined: Apr 2009
Posts: 922
Likes: 1
From: San Diego
In my humle opinion, it is actually a YFA, as the previous poster noted there were two versions of the YFA, Feedback and non-feedback.
In what I have found, the YF did not have the fuel bowl vent (which is missing the tube in the op post)
If you go to Oreillies (However the hell you spell it) they should have a kit for it, ask for what ever model year you pulled it off of rebuild kit for the inline 6 carb. (However nothing beats having the carb id tag) It should get you in the ball park for the right kit, the instructions for the kit are outside of the parts box so you can verify that it will work for your carb, once you open the kit there is no returning it.
There will be more parts in the kit than you need, and will say YF or YFA in the instructions.
And I succesfully rebuilt a YF carb with a YFA kit for what it is worth by just following the instuctions to the letter with the parts in the kit I could use.
In what I have found, the YF did not have the fuel bowl vent (which is missing the tube in the op post)
If you go to Oreillies (However the hell you spell it) they should have a kit for it, ask for what ever model year you pulled it off of rebuild kit for the inline 6 carb. (However nothing beats having the carb id tag) It should get you in the ball park for the right kit, the instructions for the kit are outside of the parts box so you can verify that it will work for your carb, once you open the kit there is no returning it.
There will be more parts in the kit than you need, and will say YF or YFA in the instructions.
And I succesfully rebuilt a YF carb with a YFA kit for what it is worth by just following the instuctions to the letter with the parts in the kit I could use.
